Chauvet Professional – WELL POD 3

Chauvet Professional

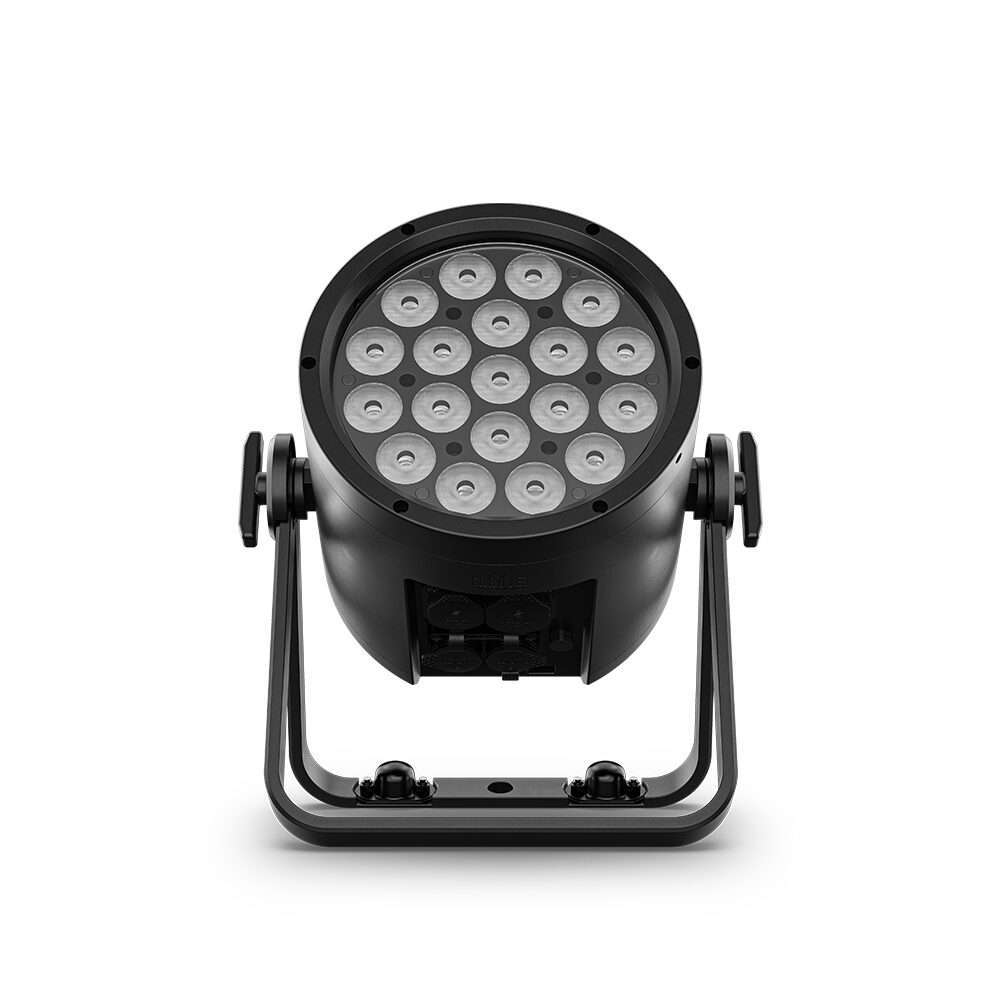

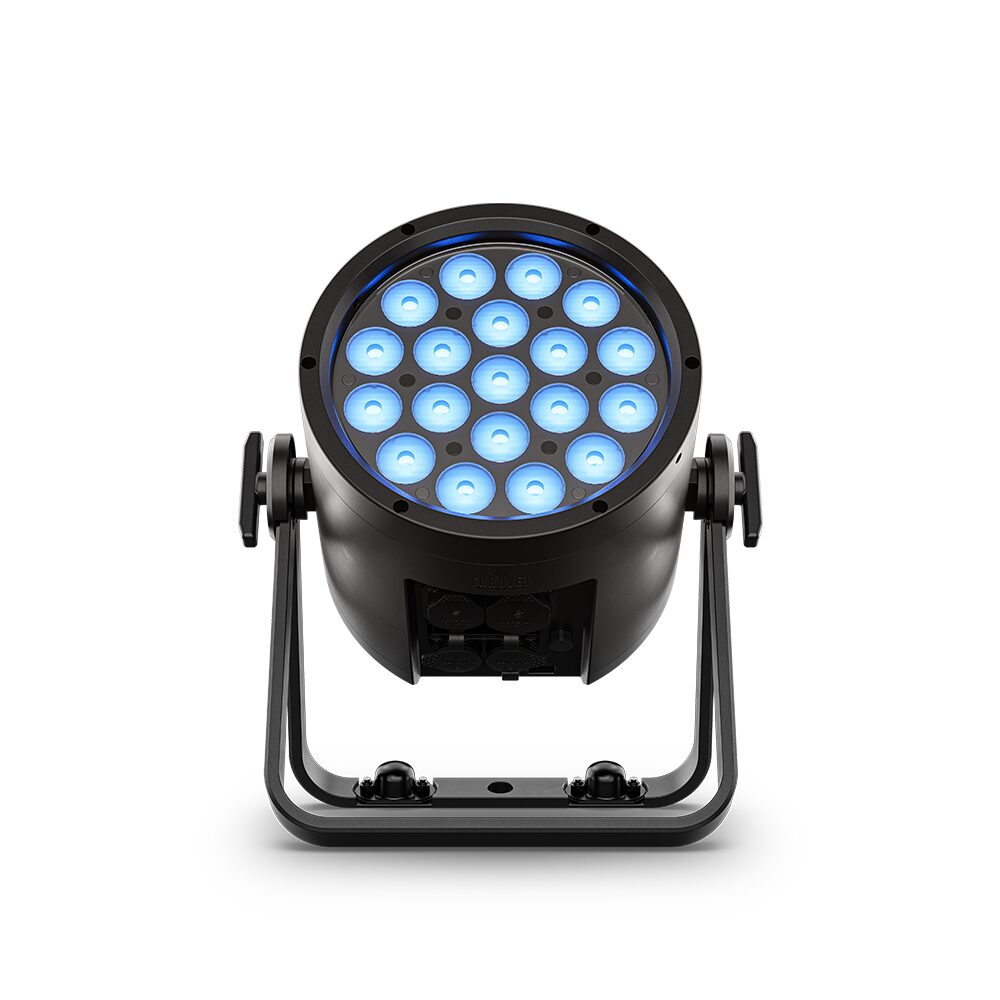

The WELL POD 3 is a versatile, battery-powered wash light that delivers high output and superior color rendering in a flexible PAR fixture design with a removable split yoke.

Ideal for indoor or outdoor productions and rental applications where lighting professionals require quick, flexible setup and long battery life.

Features

  • Features 19 RGBWW LEDs delivering 3,557 lumens for powerful, high-quality color mixing.
  • Offers selectable battery runtimes of up to 18 hours for all-day event reliability.
  • Built with a rugged, IP65-rated housing for dependable performance in any weather condition.
  • Supports DMX, CRMX, RDM, and RF protocols for maximum control flexibility on any production.
  • Ships as a four-fixture kit in a road-ready case with convenient in-case charging.
  • Provides adjustable PWM settings to ensure completely flicker-free operation for on-camera use.
SKU: WELLPOD3X4 Categories: , , , ,

Description

WELL POD 3 is a fully-accessorized addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.

Features

Complete 4-Fixture Kit

Includes four battery-operated, IP65-rated par fixtures, each with 19 RGB Warm White LEDs and a 12.7-degree beam angle.

Space-Saving Charging Case

Charge all fixtures inside the case with the lid closed to maximize storage and warehouse efficiency.

Selectable Battery Runtimes

Choose from 5, 8, 12, or 18-hour runtimes at full output to match the needs of your event.

Charge and Operate Simultaneously

The built-in battery charger allows the fixture to be used while it is plugged in and charging.

IP65 DMX Connectivity

Integrated IP65-rated 5-pin DMX in/out connections provide a reliable wired data link for any environment.

IP65 Power Connections

Features Seetronic IP65 PowerKon input and output for secure, weather-resistant power linking between fixtures.

Versatile Control Options

Operate the fixture using DMX, CRMX, RDM, or RF for maximum control flexibility.

Mobile App Control

Easily connect to the WELL CONNECT box and ConnectFX for convenient control directly from a mobile app.

USB-C Software Updates

A modern USB-C port allows for simple and convenient firmware updates.

Flexible Mounting Yoke

The removable split yoke enables versatile rigging options for both hanging and floor-standing applications.

Pressure Equalizing Valve

An integrated M6 Gore valve equalizes internal pressure, protecting the housing and electronics from the elements.

Integrated Safety Point

A dedicated attachment point is built directly into the fixture for securely attaching safety cables.

Clear OLED Display

An easy-to-read OLED display provides clear access to all onboard settings and fixture information.

Built-In Theft Alarm

Protect your investment with an integrated alarm that provides both audio and visual notifications if the fixture is moved.

Adjustable PWM

Built-in Pulse Width Modulation adjustment ensures completely flicker-free operation on camera.

Included RF Remote

An RF remote is included for simple, out-of-the-box wireless control of the fixtures.

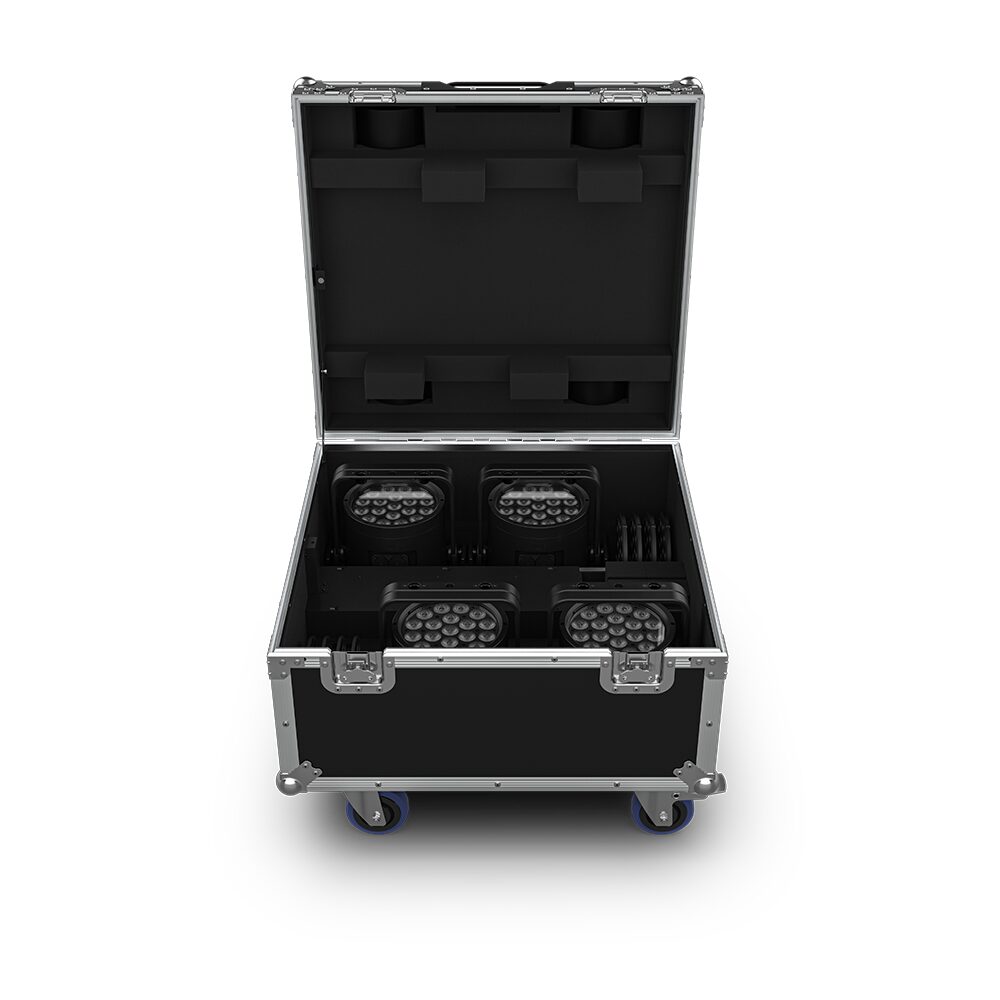

Included 4-Pack Charging Case

The kit comes complete with a rugged, road-ready charging case that holds and powers all four fixtures.

What’s Included

  • (4) WELL POD 3
  • (1) Charging case
  • (4) Omega brackets
  • (4) Detachable split yokes
  • (1) RF controller
  • (1) Quick Reference Guide

Additional information

Optical

Light Source: 19 LEDs (RGBWW), 13.2W, (960mA) 50,000 hours life
Color Temperature (range): 2800 to 6500 K
Beam Angle: 12.7°
Field Angle: 25.4°
Cutoff Angle: 47.2°
Lumens: 3557 lm (AC power)
Illuminance: 1692 lux @ 5 m (AC power)
Lumens: 1994 lm (OFF battery setting)
Illuminance: 946 lux @ 5 m (OFF battery setting)
Lumens: 2177 lm (5-hour battery setting)
Illuminance: 1033 lux @ 5 m (5-hour battery setting)
Lumens: 1379 lm (8-hour battery setting)
Illuminance: 655 lux @ 5 m (8-hour battery setting)
Lumens: 845 lm (12-hour battery setting)
Illuminance: 398 lux @ 5 m (12-hour battery setting)
Lumens: 555 lm (18-hour battery setting)
Illuminance: 261 lux @ 5 m (18-hour battery setting)
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input (fixture and charging case): Seetronic Powerkon IP65
Power Output(fixture and charging case): Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB-C
Battery

Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 8 hours
Battery Life: 3hr, 5hr, 8hr, 12hr
Battery Power: 25.9V, 6.6 Ah
Compatible Accessories

Clamps
15°Lens pack
60°x10° Lens pack
White metal cover
PowerKon Extension cables
5 pin DMX Cables
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 1 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No
Construction / Physical

Dimensions: 9.76 x 7 x 10.86 in (248 x 178 x 276 mm)
Dimensions (w/o bracket): 9.76 x 7 x 7 in (248 x 178 x 178 mm)
Dimensions case: 27 x 25.6 x 15 in (685 x 650 x 380 mm)
Weight: 11.2 lbs (5.1 kg)
Shipping Weight: 119.7 lb (54.3 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Control

Control Protocol: RDM, CRMX, NFC, RF
DMX Channels: 5, 8, or 12
Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
Wireless WDMX “G” Compatibility: G4S
Wireless Lumen Radio Compatibility: CRMX
Electrical

Single Unit:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 20 units @ 120 V; 34 units @ 208 V; 37 units @ 230 V;
Power and Current: 72 W, 0.60 A @ 120 V, 60 Hz
Power and Current: 70 W, 0.35 A @ 208 V, 60 Hz
Power and Current: 70 W, 0.32 A @ 230 V, 50 Hz
Certifications / Qualifications

Certifications: CE, UKCA, FCC, ROHS
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
