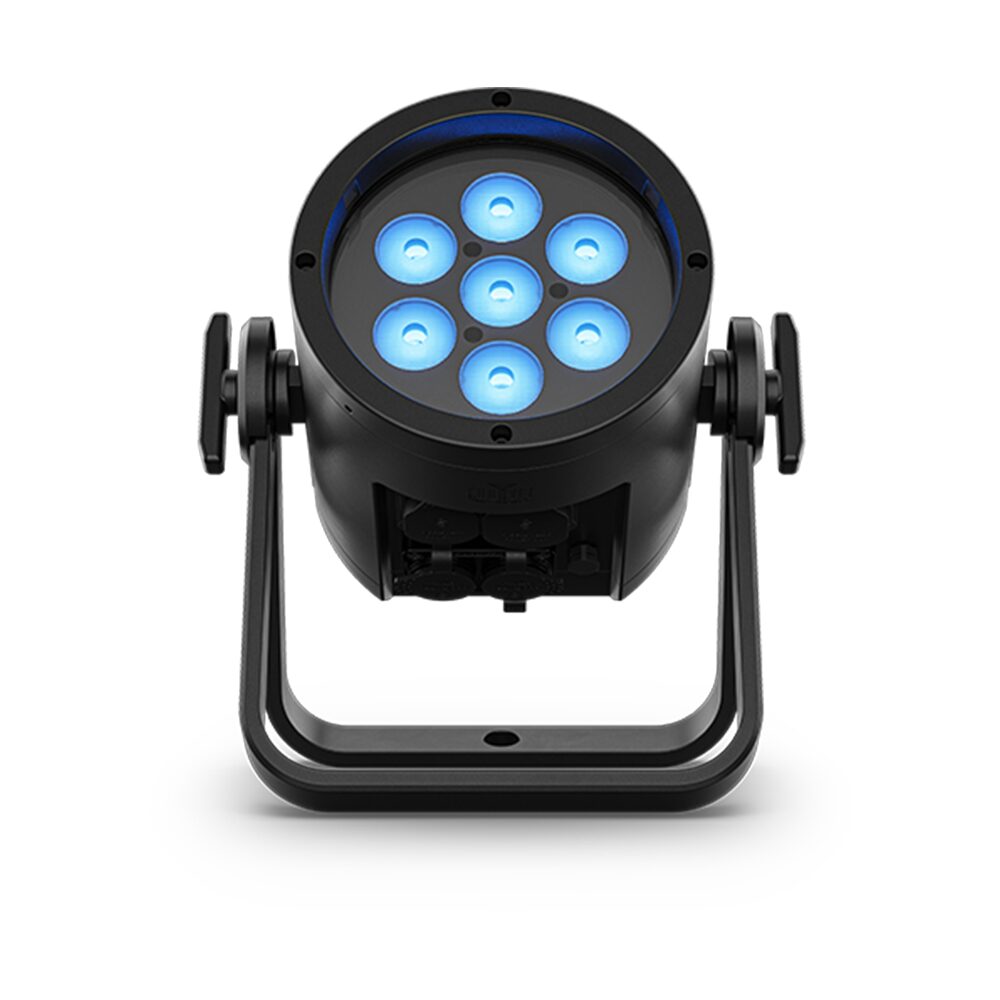

Chauvet Professional – WELL POD 2

Chauvet Professional

A compact, battery-powered PAR wash light offering high output, excellent color rendering, and flexible mounting with a removable split-yoke design.
Ideal for rental inventory and lighting professionals requiring a fast, flexible wash lighting solution for any indoor or outdoor production where quick setup is crucial.

Fetaures

  • Features seven RGBWW LEDs for rich colors and high-quality whites from 2800K to 6500K.
  • Offers multiple battery runtime selections, delivering up to 18 hours of continuous operation.
  • Built with a rugged, IP65-rated housing for reliable performance in any outdoor environment.
  • Provides versatile control options including DMX, CRMX, RDM, RF, and mobile app support.
  • Sold as a six-unit kit in a road case that charges all fixtures with the lid closed.
  • Includes adjustable PWM settings to ensure flicker-free output for on-camera applications.

Description

WELL POD 2 is a compact addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability.

Features

All-In-One Fixture Kit

This complete kit includes six IP65-rated par fixtures with RGB warm white LEDs and a 6-pack charging road case.

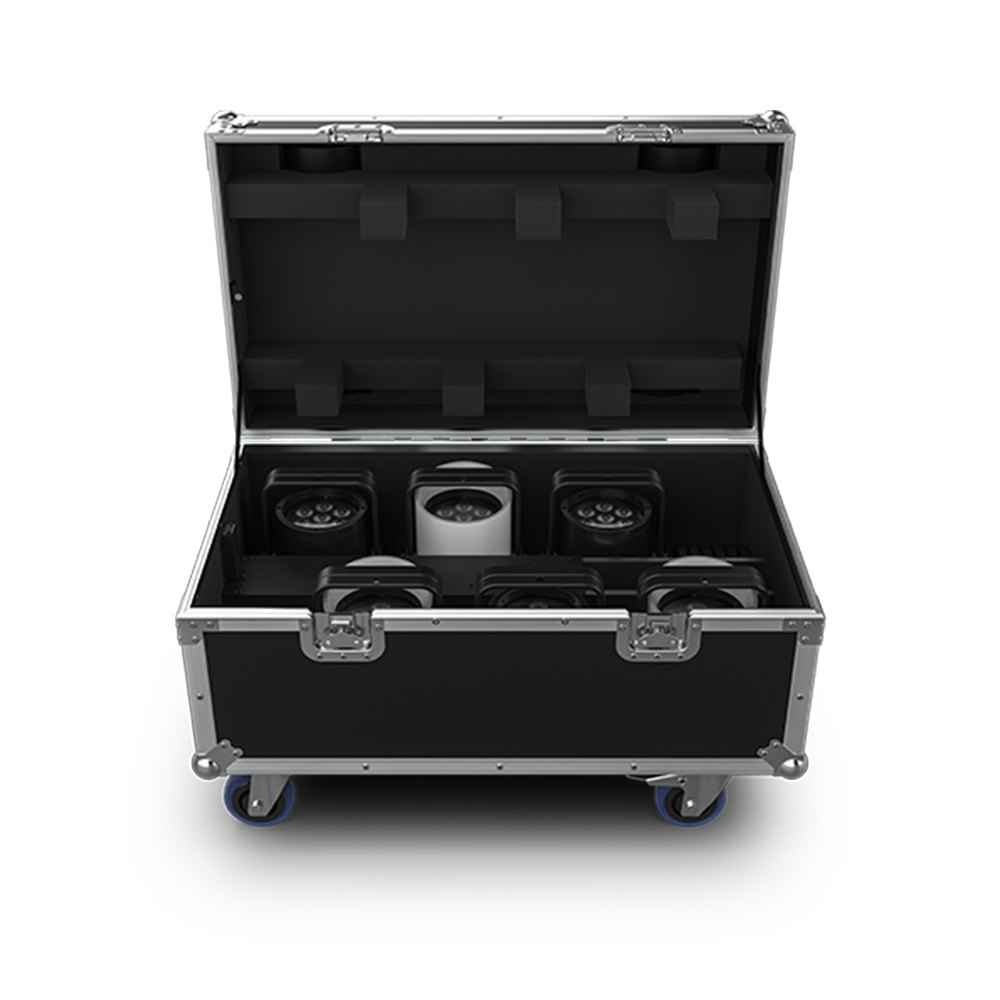

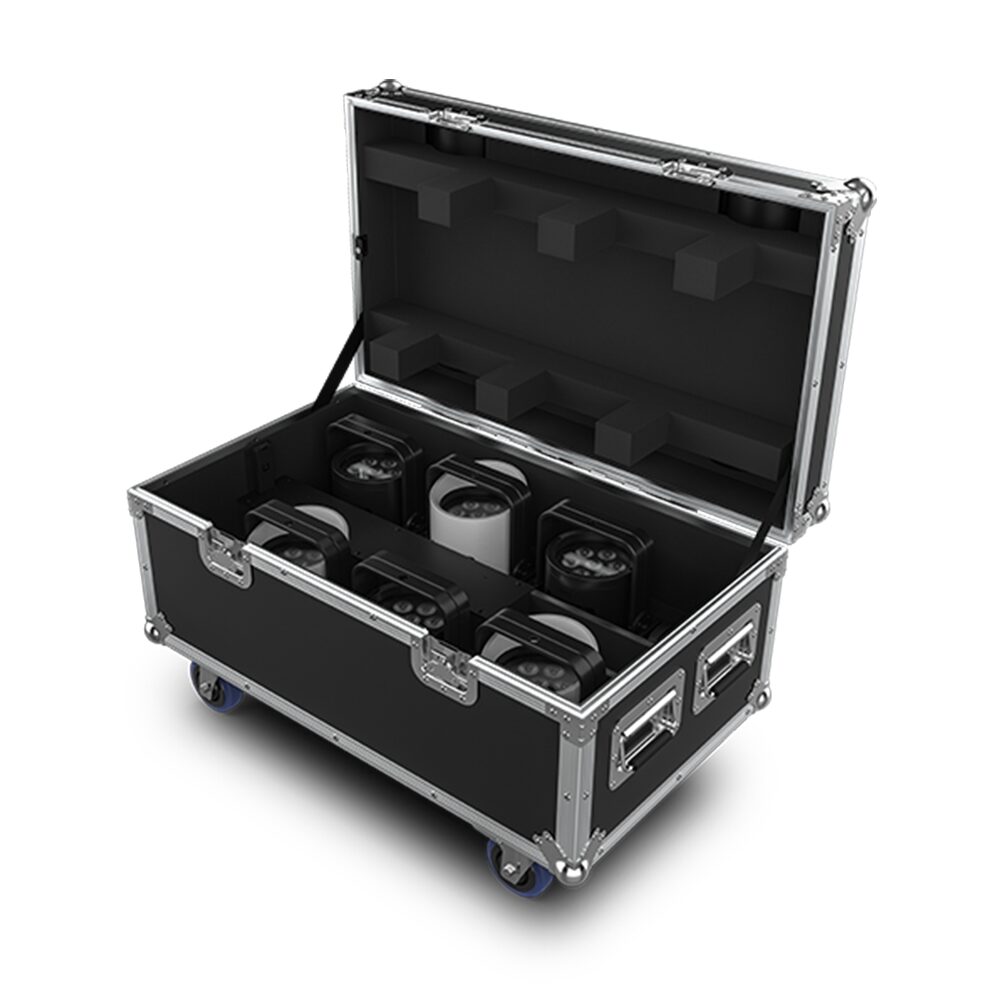

Space-Saving Charging Case

The included road case charges all fixtures simultaneously with the lid closed to maximize storage efficiency.

Extended Battery Runtimes

Choose from multiple battery runtime selections of 5, 8, 12, or 18 hours to match your event’s needs.

Charge and Operate Simultaneously

A built-in charger allows the fixture to be used for illumination even while it is actively charging.

Wired DMX Control

Integrated IP65-rated 5-pin DMX in/out ports provide a reliable connection for wired data control.

IP65 Power Linking

Built-in Seetronic PowerKon input and output connections allow for easy and secure power linking between fixtures.

Versatile Control Options

Operate the fixtures using your preferred method, with support for DMX, CRMX, RDM, and RF control protocols.

App-Based Control

Easily connect to the WELL CONNECT box and ConnectFX for convenient control directly from a mobile app.

Convenient Software Updates

A modern USB-C port makes applying future software and firmware updates simple and fast.

Flexible Mounting Yoke

The removable split yoke provides versatile rigging options for both hanging the fixture and placing it on the floor.

Pressure Equalizing Valve

An integrated M6 Gore valve equalizes internal and external pressure to protect the fixture’s seals and electronics.

Integrated Safety Point

A dedicated attachment point is built into the fixture’s housing for securely attaching a safety cable.

Clear OLED Display

An easy-to-read OLED screen provides clear access to all settings and operational information.

Built-In Theft Alarm

Protect your investment with an integrated alarm that provides both an audible and visual notification if moved.

Adjustable PWM

Adjust the Pulse Width Modulation to ensure flicker-free operation on camera.

Included RF Remote

An RF remote is included for simple wireless control right out of the box.

What’s Included

  • (6) WELL POD 2
  • (1) 6 slot charging case
  • (6) detachable split yokes
  • (1) RF controller
  • (1) QRG

Additional information

Optical

Light Source: 7 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
Beam Angle: 11.5°
Field Angle: 21.6°
Cutoff Angle: 36.9°
Lumens: 1797 lm (AC power)
Illuminance: lux 1089 @ 5 m (AC power)
Lumens: 718 lm (OFF battery setting)
Illuminance: 436 lux @ 5 m (OFF battery setting)
Lumens: 834 lm (5-hour battery setting)
Illuminance: 507 lux @ 5 m (5-hour battery setting)
Lumens: 528 lm (8-hour battery setting)
Illuminance: 319 lux @ 5 m (8-hour battery setting)
Lumens: 335 lm (12-hour battery setting)
Illuminance: 202 lux @ 5 m (12-hour battery setting)
Lumens: 214 lm (18-hour battery setting)
Illuminance: 129 lux @ 5 m (18-hour battery setting)
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Connections

Power Connection: Edison (local) plug to Seetronic PowerKon IP65
Power Input (fixture and charging case): Seetronic PowerKon IP65
Power Output (fixture and charging case): Seetronic PowerKon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB-C

Battery

Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 8 hours
Battery Life: 12 hours
Battery Power: 25.9 V, 2.5 Ah

Certifications / Qualifications

Certifications: CE, UKCA, FCC, ROHS
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Compatible Accessories

Clamps
WELL POD 2 – 15° Filter Pack
WELL POD 2 60° x 10° Filter Pack
WELL POD 2 White Fixture Cover
PowerKon Extension cables
5 pin DMX Cables
W-DMX Micro T-1 TRX G6

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 1 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

Construction / Physical

Dimensions: 8.11 x 5.31 x 8.76 in (206 x 138 x 222.5 mm)
Dimensions (w/o bracket): 5.43 x 5.43 x 5.67 in (138 x 138 x 144 mm)
Dimensions case: 32.7 x 19.3 x 15.4 in (832 x 492 x 390mm)
Weight: 7.2 lb (3.3 kg)
Weight (shipping weight): 113.8 lb (51.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast

Control

Control Protocol: RDM, CRMX, NFC, RF
DMX Channels: 5, 8, or 12
Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
Wireless WDMX “G” Compatibility: G4S
Wireless Lumen Radio Compatibility: CRMX

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Single unit
Power Linking: 34 units @ 120 V
Power Linking: 52 units @ 208 V
Power Linking: 54 units @ 230 V
Power and Current: 43 W, .35 A @ 120 V, 60 Hz
Power and Current: 47 W, .23 A @ 208 V, 60 Hz
Power and Current: 45 W, .22 A @ 230 V, 50 Hz
6 Pack case:
Power Linking: 4 units @ 120 V
Power Linking: 6 units @ 208 V
Power Linking: 6 units @ 230 V
Power and Current: 191 W, 2.75 A @ 120 V, 60 Hz
Power and Current: 185 W, 1.96 A @ 208 V, 60 Hz
Power and Current: 183 W, 1.76 A @ 230 V, 50 Hz
6 Pack case fuse: 4 hours (all fixtures in case)
