Chauvet-Professional-WELL-FIT-X-Front-Right-FixtureChauvet-Professional-WELL-FIT-X-Front-Right-Fixture

Chauvet Professional – WELL FIT X

Chauvet Professional

The WELL FIT X is an upgraded workhorse uplight featuring increased lumen output, improved color mixing, and enhanced functionality like beam shaping and a décor-matching cover in a more compact and lightweight design.

Ideal for any indoor or outdoor production, its road-worthy six-unit kit with integrated charging allows for rapid deployment and easy management in any event environment.

Features

  • Delivers vibrant color mixing with nine RGBWW LEDs and a 2600K to 10,000K CCT range.
  • Built with an IP65-rated housing and Gore valve for reliable all-weather operation.
  • Offers versatile wireless control options including CRMX, RDM, NFC, and an included RF remote.
  • Provides selectable battery runtimes of 5, 8, 12, or 18 hours at full output.
  • Allows software updates via USB-C while fixtures remain inside the charging case.
  • Features adjustable PWM for flicker-free on-camera use and a high-contrast OLED display.

Description

The leading workhorse uplight in its class gets a host of upgrades that improve color mixing, size, weight and functionality. WELL FIT X offers increased lumen output, additional LEDs with improved optics and outstanding beam collimation, a filter pack for beam shaping, and a white metal slip cover for more décor matching possibilities. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates to the fixtures while in their charging case.

Features

Complete Uplighting Kit

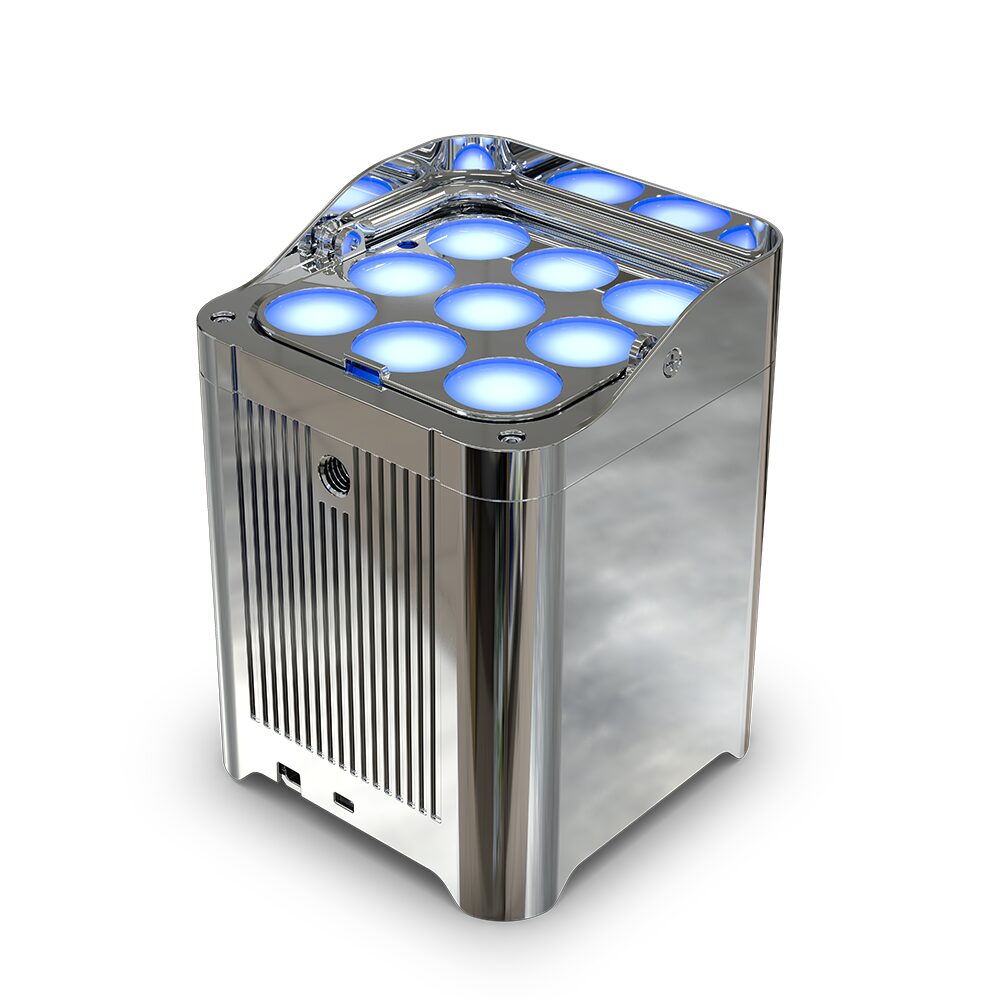

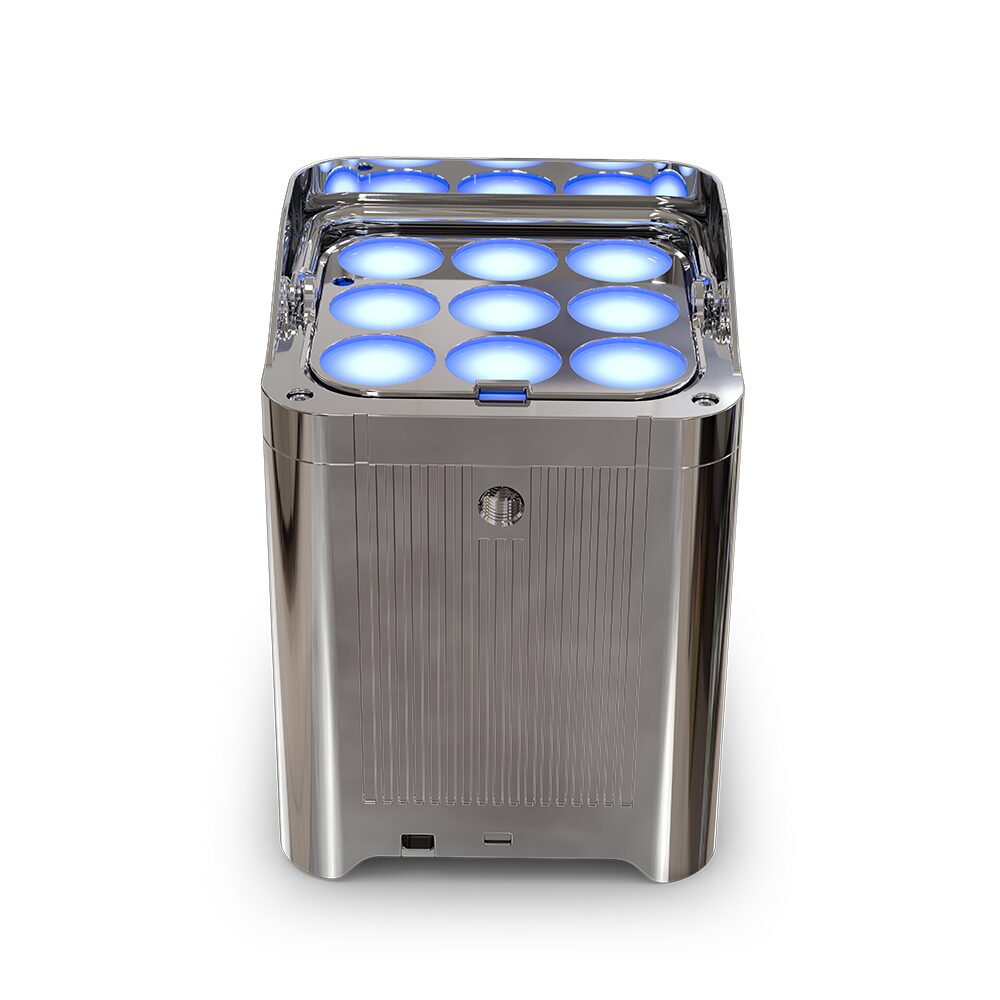

This fully realized kit includes six battery-operated, IP65-rated chrome fixtures, each featuring nine RGB warm white LEDs and an 11.3-degree beam.

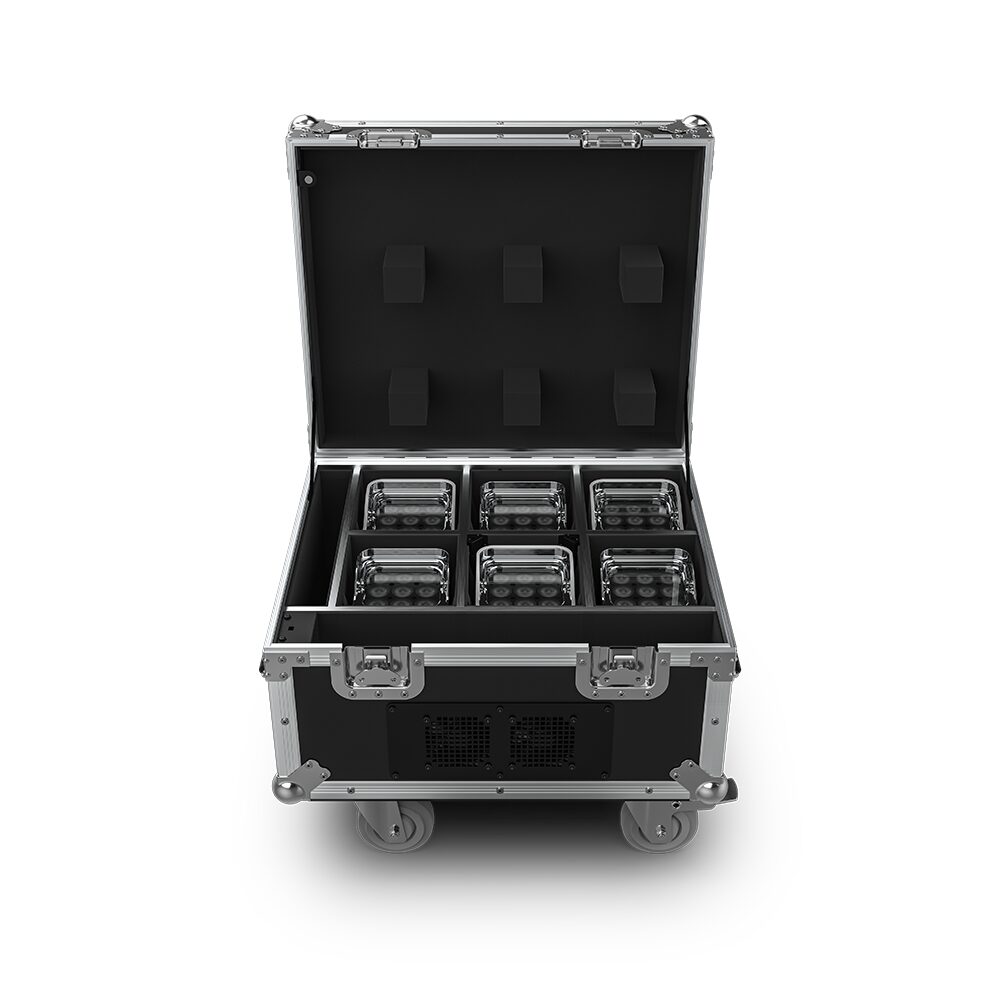

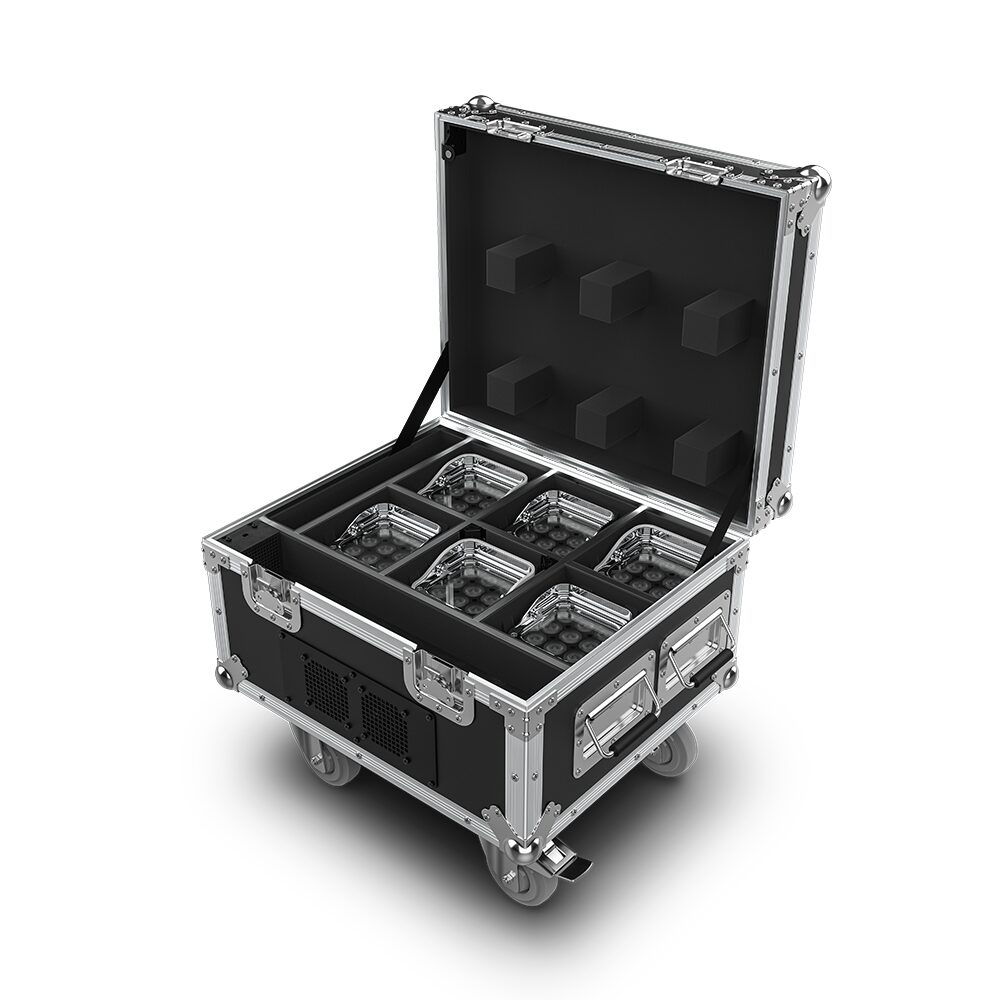

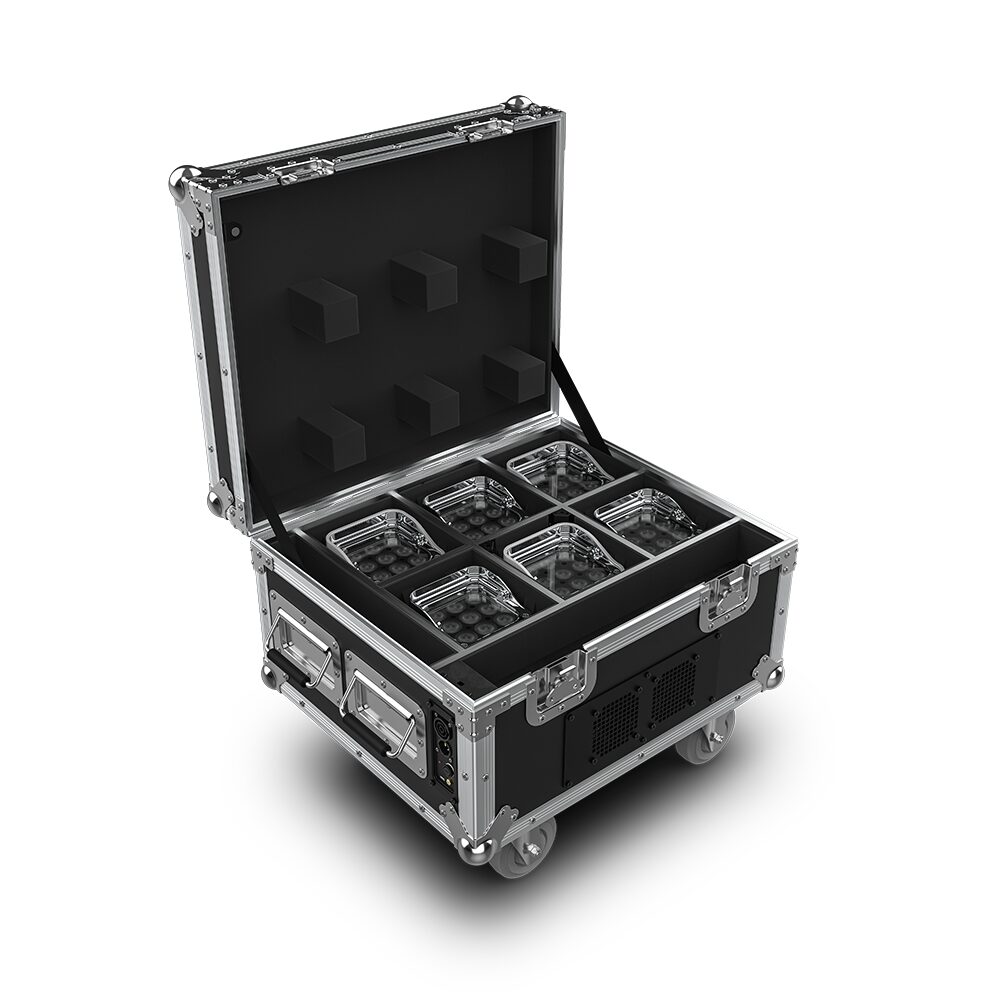

Space-Saving Charging Case

The included six-unit case charges all fixtures simultaneously with the lid closed to conserve valuable warehouse space.

Selectable Battery Runtimes

Choose from 5, 8, 12, and 18-hour operation modes at full output to match the needs of any event.

Uninterrupted Operation

A built-in charger allows the fixture to operate normally even while it is plugged in and charging.

Versatile Control Options

Take command of your lighting via RDM, CRMX, or the included handheld RF remote for simple wireless operation.

App and DMX Box Connectivity

Easily integrates with the WELL CONNECT box and the intuitive ConnectFX app for expanded control possibilities.

Convenient Software Updates

A modern USB-C port allows for simple, user-friendly software updates to keep the fixture current.

Pressure Equalizing Valve

An integrated M6 Gore valve protects internal components by equalizing pressure within the sealed housing.

Adjustable Kickstand

The adjustable front foot allows you to easily tilt the fixture and aim the light precisely where it is needed.

Kensington Lock Position

Secure your fixtures against theft using the integrated Kensington lock position.

Integrated Safety Point

A built-in attachment point is provided for the secure connection of a safety cable.

High-Contrast OLED Display

An easy-to-read OLED display provides clear access to all settings and fixture status information.

Built-In Theft Alarm

An integrated alarm provides both an audible and visual notification if the fixture is moved without authorization.

Adjustable PWM

Adjust the Pulse Width Modulation directly from the menu to ensure flicker-free operation on camera.

Included RF Remote

An RF remote is included for simple, out-of-the-box wireless control.

Included Charging Case

Comes with a rugged charging case that holds and charges all six fixtures simultaneously.

What’s Included

  • (6) WELL FIT 2
  • (1) 6 slot charging case
  • (1) basic RF controller
  • (1) True 1 power cable
  • (1) QRG

Additional information

Optical

Light Source: 9 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
Color Temperature (range): 2600 to 10,000K
Beam Angle: 11.5°
Field Angle: 19.1°
Cutoff Angle: 30.9°
Lumens: 2289 lm (AC Power)
Illuminance: Illuminance: 1651 lux @ 5 m (AC Power)*
Lumens: Lumens: 2369 lm (OFF battery setting)
Illuminance: Illuminance: 1683 lux @ 5 m (OFF battery setting)
Lumens: Lumens: 2220 lm (5-hour battery setting)
Illuminance: Illuminance: 1602 lux @ 5 m (5-hour battery setting)
Lumens: Lumens: 1376 lm (8-hour battery setting)
Illuminance: Illuminance: 992 lux @ 5 m (8-hour battery setting)
Lumens: Lumens: 855 lm (12-hour battery setting)
Illuminance: Illuminance: 613 lux @ 5 m (12-hour battery setting)
Lumens: Lumens: 538 lm (18-hour battery setting)
Illuminance: Illuminance: 385 lux @ 5 m (18-hour battery setting)
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Control

Control Protocol: RDM, CRMX, NFC, RF
DMX Channels: 5, 8, or 12
Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
Wireless WDMX “G” Compatibility: G4S
Wireless Lumen Radio Compatibility: CRMX

Battery

Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 1.6 hours
Battery Life: 3hr, 5hr, 8hr, 12hr
Battery Power: 25.9 V, 4.4 Ah

Certifications / Qualifications

CE, FCC, UKCA
IP Rating: IP65, temporary outdoor/ wet use (fixture)
IP Rating: IP20 (case)
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

Compatible Accessories

Clamps
WELL FIT X – 15° Filter Pack
WELL FIT X – 60° x 10° Filter Pack
WELL FIT X – Single Charger
WELL FIT X – Black Fixture Cover
W-DMX Micro T-1 TRX G6

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No

Construction / Physical

Dimensions – Fixture: 4.9 x 4.9 x 6.9 in (126 x 126 x 176 mm)
Dimensions – 6 pack case: 21.8 x 18.5 x13.5 in (554 x 470 x 345 mm)
Weights:
Weight (single unit): 7.0 LB (3.2 kg)
Weight (shipping weight): 98.3 lbs (44.6 kg)
Exterior Color: Chrome
Housing Material: Aluminum diecast

Connections

Power Connection: 5.5mm right-angle barrel jack
Cable Length (charger): 8.5 ft (2.6m) (sold separately)
Power Input (charging case): Seetronic TRUE1 IP65
Power Output (charging case): Seetronic TRUE1 IP65
Software Connection: USB-C

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Single Unit:
Power and Current (charging): 43 W, 0.74 A @ 100 V, 60 Hz
Power and Current (charging): 42 W, 0.64 A @ 120 V, 60 Hz
Power and Current (charging): 42 W, 0.52 A @ 208 V, 60 Hz
Power and Current (charging): 42 W, 0.47 A @ 230 V, 50 Hz
Power and Current (charging): 42 W, 0.47 A @ 240 V, 50 Hz
6 Pack Case:
Power Linking: 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
Power and Current: 239 W, 3.94 A @ 100 V
Power and Current: 238 W, 3.44 A @ 120 V
Power and Current: 235 W, 2.48 A @ 208 V
Power and Current: 235 W, 2.32 A @ 230 V
Power and Current: 235 W, 2.27 A @ 240 V

Downloads

Data Sheet Download
User Guide Download
