Description
WELL BATTEN 14 delivers 14 zones of control for pixel-mapping effects and a preprogrammed library of looks similar to our popular WELL STX. Up to 18 hours of battery life from a batten engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.
Features
Complete Batten Fixture Kit
A fully realized kit of four battery-operated, IP65-rated batten style fixtures.

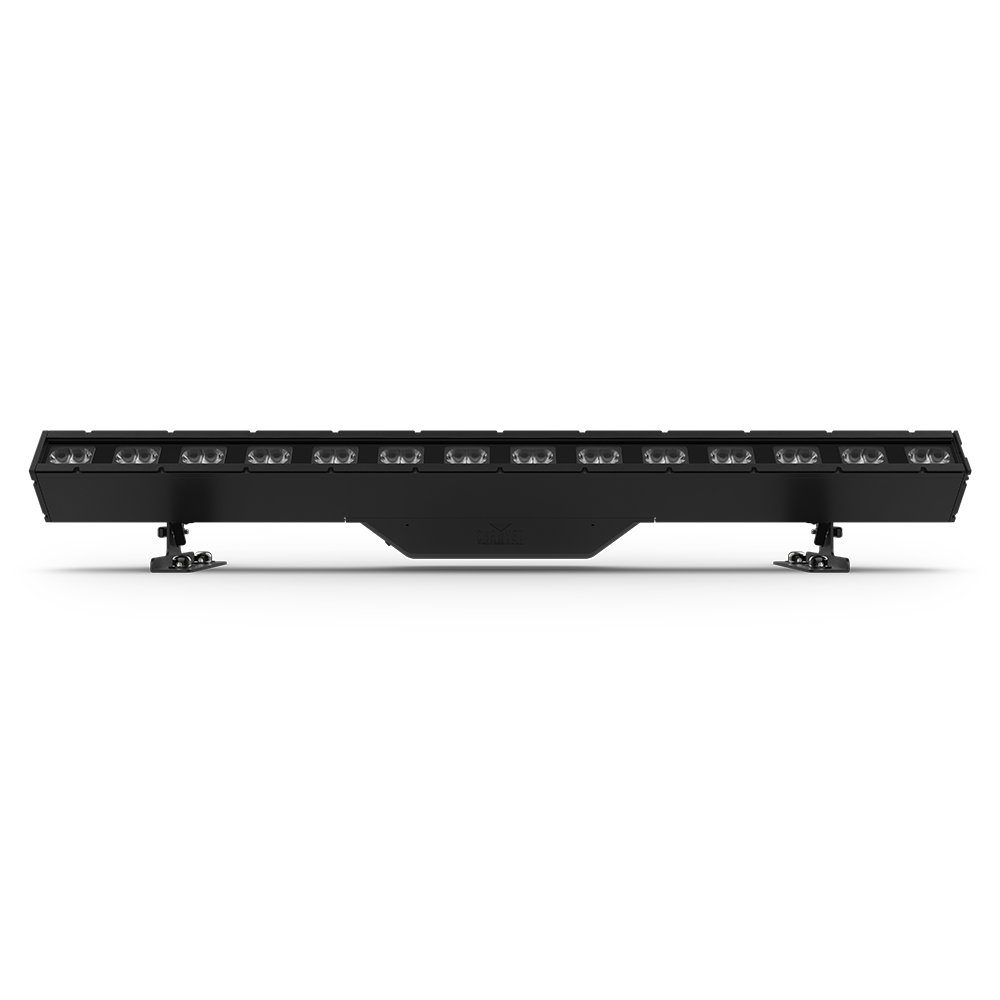

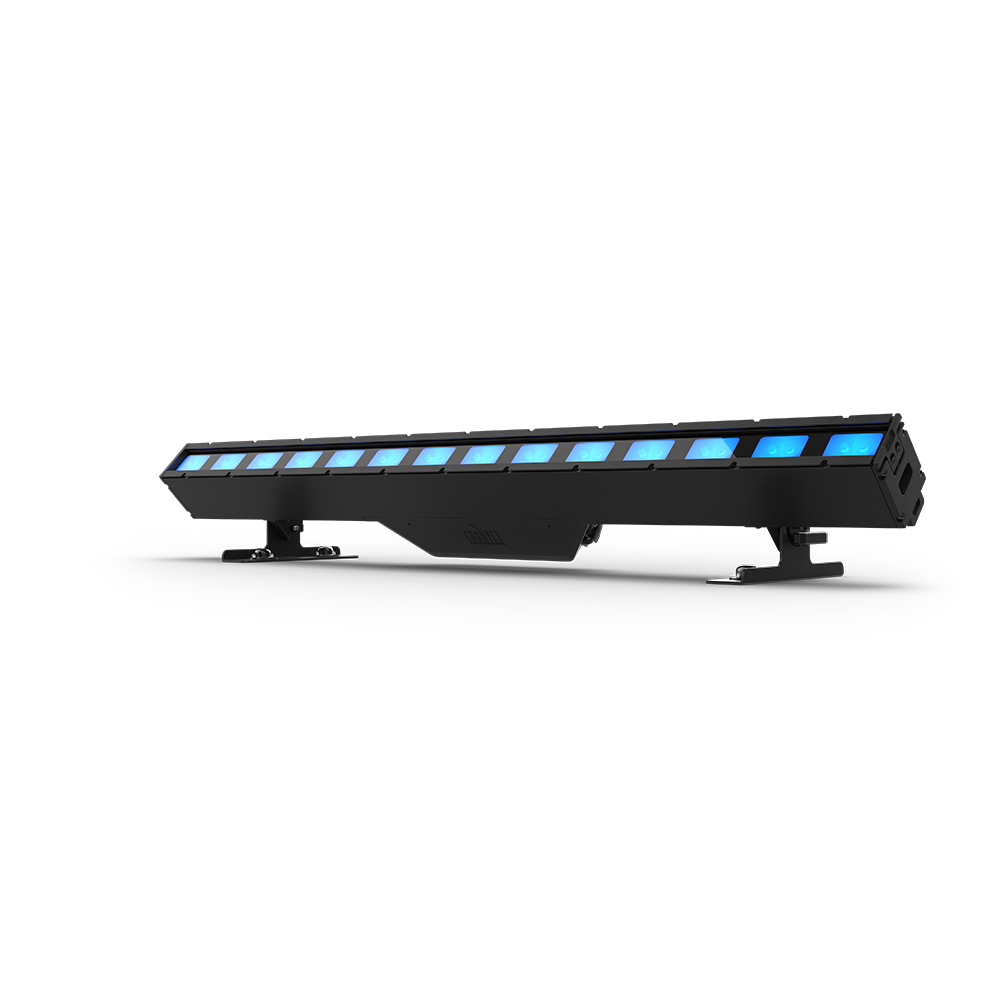

RGB Warm White LEDs
Each fixture contains 28 RGB warm white LEDs with a focused 16-degree beam angle.
Pixel Mapping Capability
Fourteen individual zones of control allow for the creation of intricate pixel mapping effects.

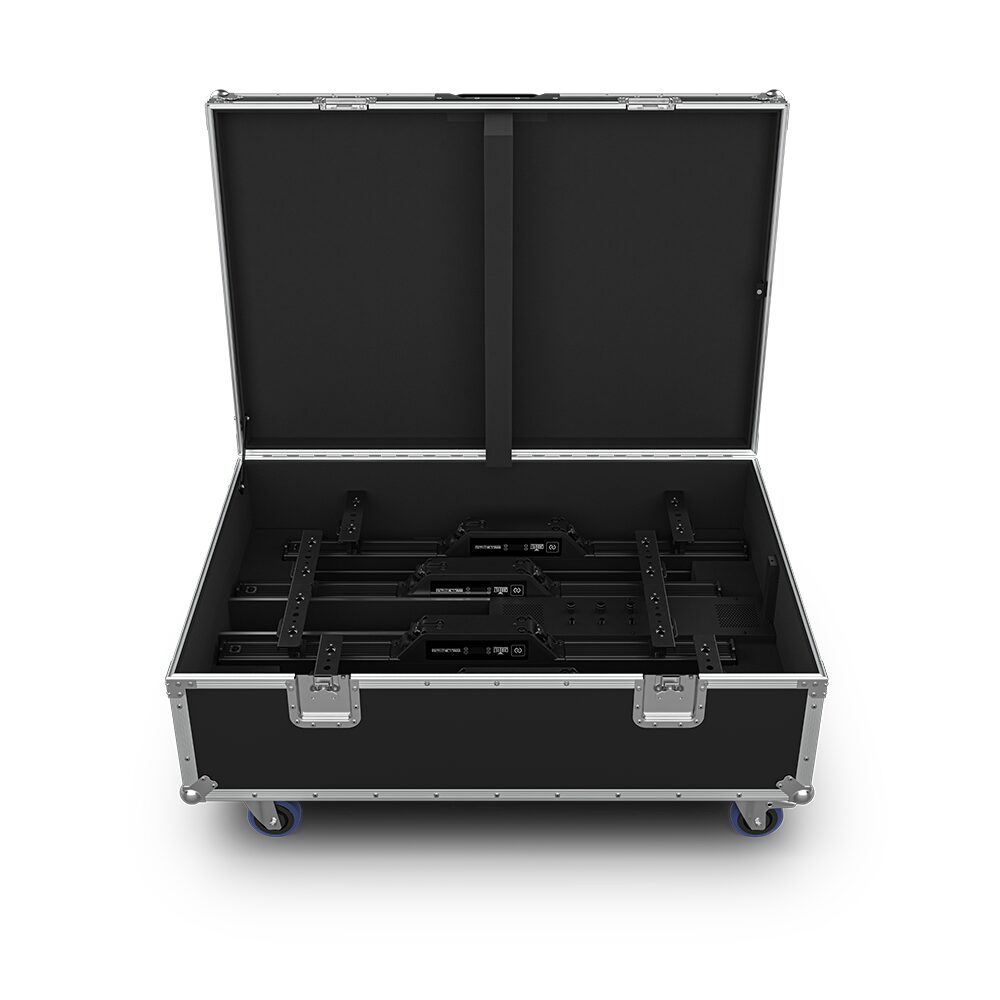

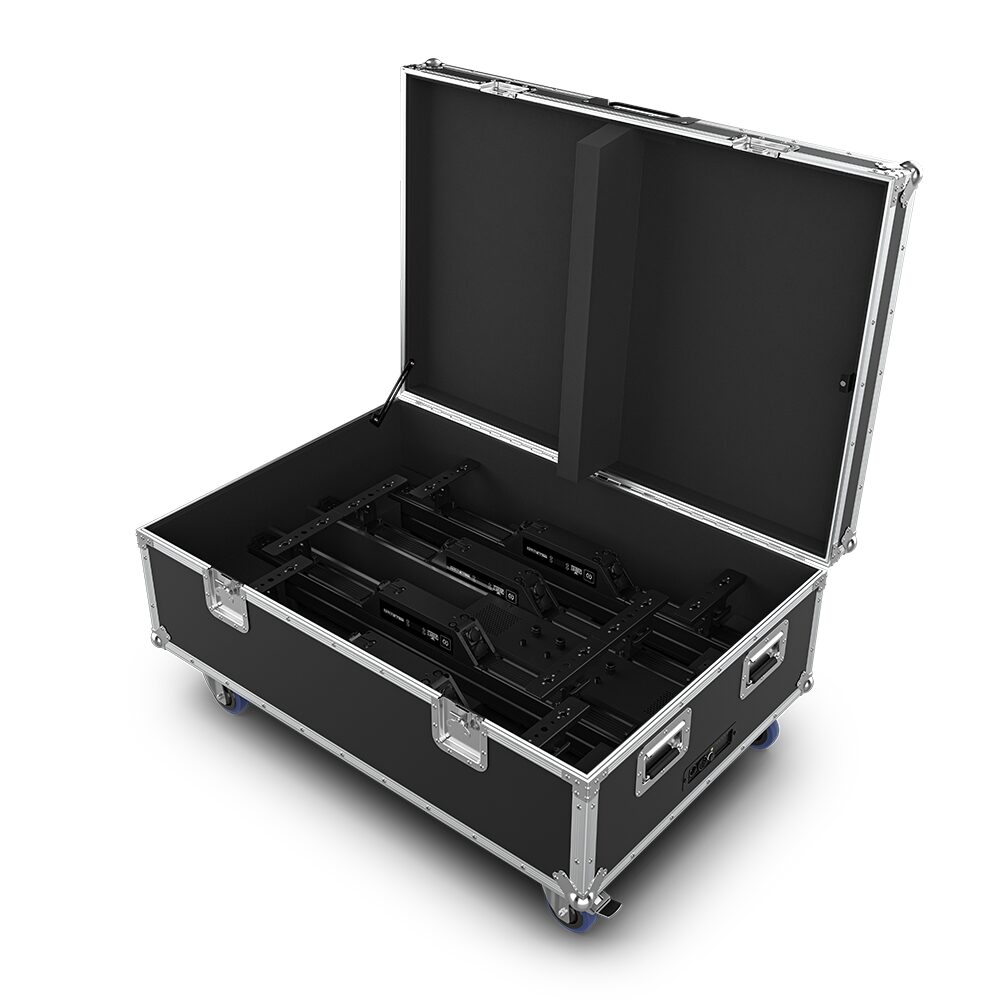

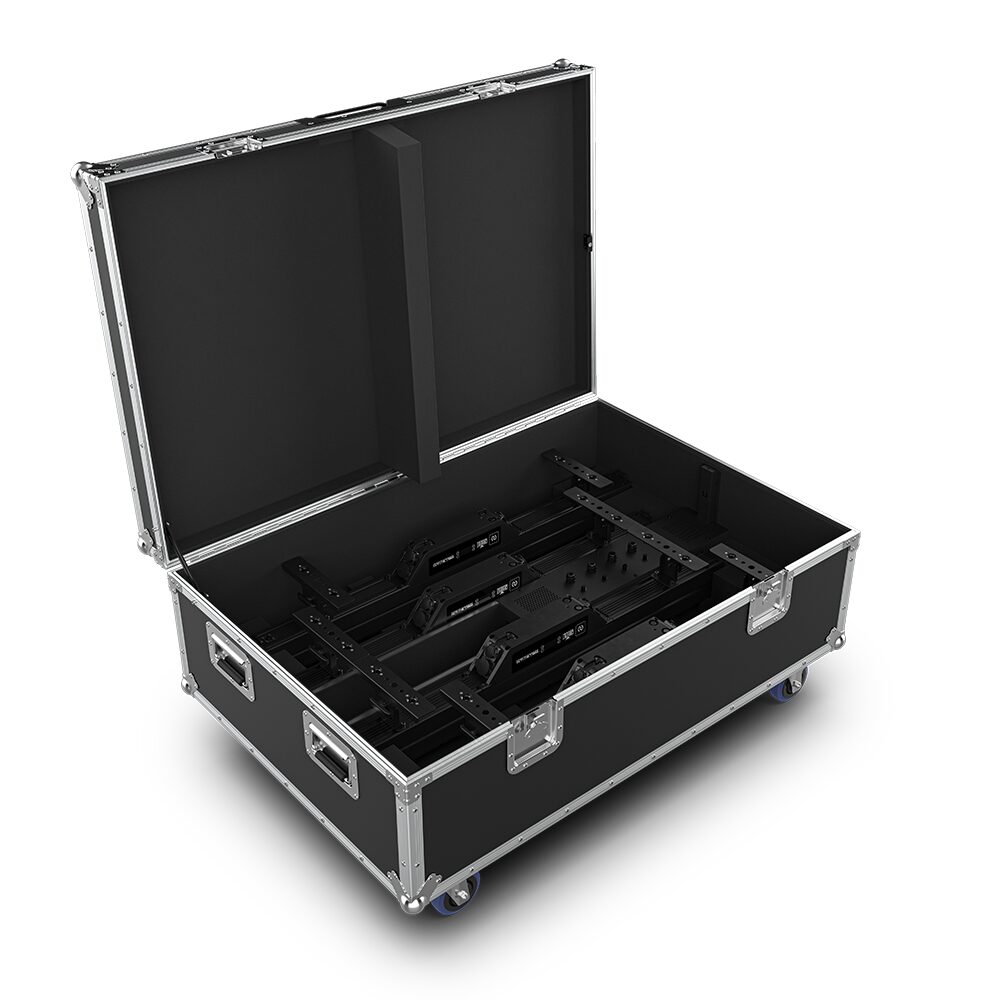

Space-Saving Charging Case
The included case is designed to charge all four fixtures simultaneously with the lid closed.
Selectable Battery Runtimes
Choose between 5, 8, 12, and 18-hour battery operation modes at full output.
Charge and Operate Simultaneously
A built-in battery charger allows the fixture to be used while it is plugged in and charging.
Wired DMX Connectivity
Integrated IP65-rated 5-pin DMX input and output ports provide a reliable wired data connection.
Professional Power Connections
Features built-in Seetronic IP65 PowerKon input and output for secure power linking.
Flexible Control Methods
Offers versatile control options including RDM, DMX, CRMX, or an RF remote.
ConnectFX App Control
Easily connects to the WELL CONNECT box for intuitive control via the ConnectFX mobile app.
Convenient Software Updates
A built-in USB-C port allows for simple and convenient firmware updates.
Pressure Equalizing Valve
An M6 Gore valve automatically equalizes internal pressure to protect seals and electronics.
Integrated Safety Point
A built-in attachment point provides a secure connection for a safety cable.
Clear OLED Display
An easy-to-read OLED screen provides clear access to settings and fixture information.
Built-in Theft Alarm
An integrated alarm provides both audible and visual alerts if the fixture is moved.
Flicker-Free Operation
Built-in Pulse Width Modulation adjustment ensures flicker-free performance on camera.
Included RF Remote
A radio frequency remote is included for simple wireless control out of the box.
Included Glare Shields
Comes with two glare shields to help shape the light output and prevent unwanted spill.
What’s Included
- (4) WELL BATTEN 14
- (1) 4 slot charging case
- (1) basic RF controller
- (4) Seetronic PowerKon IP65 power cords
- (8) Omega Brackets
- (8) glare shields
- (1) QRG
