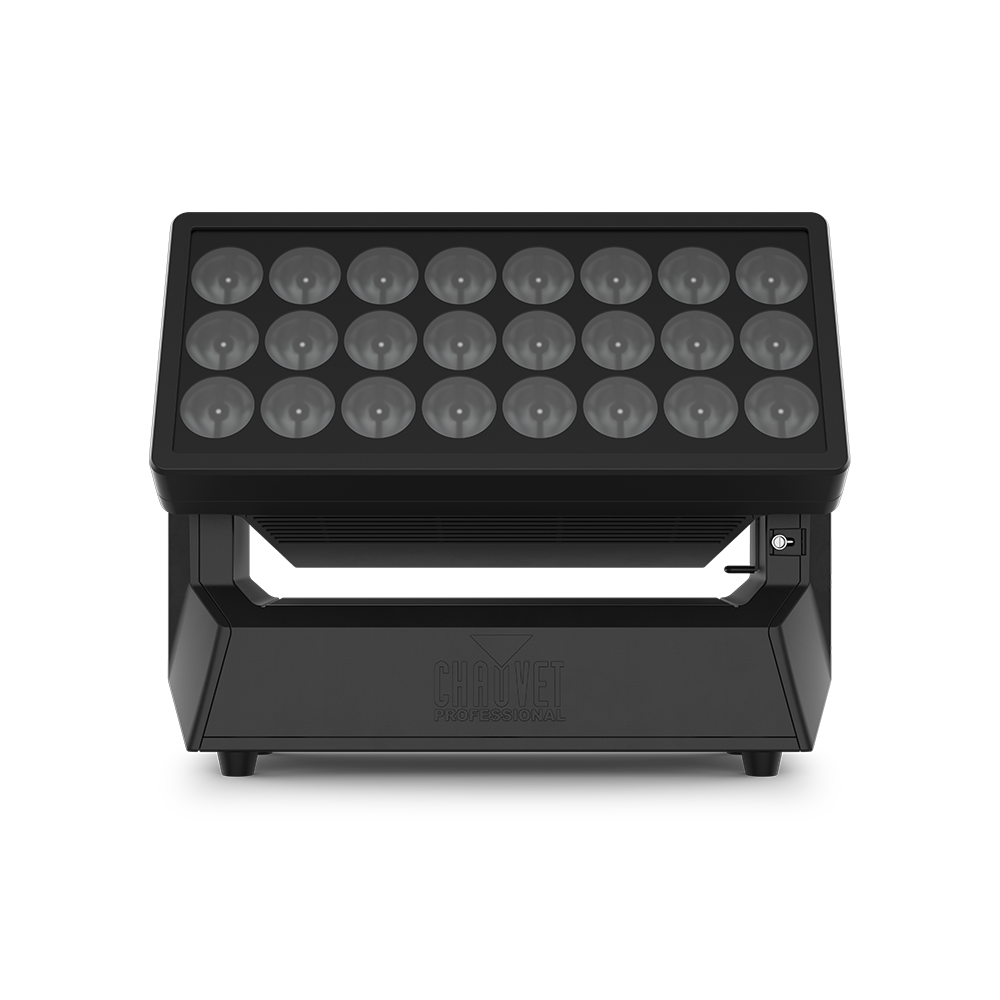

Chauvet-Professional-STRIKE-V-Front-FaceChauvet-Professional-STRIKE-V-Front-Face

Chauvet Professional – STRIKE V

Chauvet Professional

This IP65-rated, motorized tilting strobe and wash hybrid delivers dynamic dual-layer pixel effects, vibrant multicolor washes, and powerful strobe capabilities.

Perfectly suited for touring productions, large-scale concerts, and outdoor festivals requiring robust, high-impact, and weather-resistant lighting effects.

Features

  • Features 48 individually controllable quad-color RGBW LEDs across two distinct layers for dynamic effects.
  • Features a rugged, IP65-rated housing, ensuring dependable operation in any outdoor environment.
  • An integrated variable electronic frost filter instantly changes the beam angle for versatile wash effects.
  • Delivers a wide 180° motorized tilt range for precise and dynamic fixture positioning.
  • Supports versatile control options including DMX, RDM, Art-Net, and sACN protocols.
  • Includes a magnetic stealth filter to completely conceal the LED pixels when not in use.
SKU: STRIKEV Categories: , , ,

Description

Our newest STRIKE design introduces dynamic dual-layer pixel effects with a punchy flair that brings totally new and unique looks to our tour-proven STRIKE family of IP65-rated strobes and blinders. STRIKE V features dual LED diodes, under a variable electronic frost plate that can change beam angles instantly at the press of a button, and together offer fresh new multicolor creative possibilities. Advanced eye-candy effects, vibrant color washes, and stunning strobe capabilities from a motorized 180° tilting strobe/wash hybrid designed for powerful performance in the most demanding applications and conditions.

Features

Hybrid Strobe and Wash

A fully featured, high-power fixture combining strobe and wash effects with 180 degrees of tilt.

IP65 All-Weather Rating

The IP65 rating ensures reliable performance and protection for all-weather outdoor use.

Individual Pixel Control

Features 48 individually controllable pixels across two layers of LEDs for dynamic visual effects.

Variable Electronic Frost

Create stunning eye candy effects with the integrated variable electronic frost filter.

Magnetic Stealth Filter

An included filter attaches magnetically to completely hide the LEDs when the fixture is not in use.

Flexible Rigging Options

Multiple mounting locations and a repositionable yoke offer creative and convenient rigging in any orientation.

RDM Control

Allows for remote device management and fixture reporting over a standard DMX connection.

16-Bit Dimming

Achieve exceptionally smooth control of fades with 16-bit resolution on the master dimmer.

Easy-to-Use OLED Display

Rugged Design

Built to withstand years of rough use in the most extreme conditions.

Adjustable PWM

Adjustable Pulse Width Modulation provides added operational flexibility and flicker-free performance on camera.

USB Software Updates

A convenient onboard USB port allows for easy fixture software updates.

Built-In Alignment Pins

Integrated alignment pins ensure perfectly straight and seamless linear arrays.

Failsafe Ethernet Connectivity

Data continues to pass through to other fixtures even if the unit’s power is lost.

What’s Included

  • STRIKE V
  • Seetronic Powerkon IP65 power cord
  • Omega bracket
  • Stealth filter

Video

Curtain Tracks

Bring on multi-layer control, turn on smart variable frost, and turn up the excitement with motorized tilt. Meet the new IP65 superstar bright enough to fill the world’s largest arenas and outdoor festivals…

Additional information

Optical

Light Source: 24 LEDs top plate (quad-color RGBW), 6W, 50,000 hours life expectancy
Light Source: 24 LEDs bottom plate (quad-color RGBW), 50W, 50,000 hours life expectancy
Beam Angle:
(Combine): 9.9°
(Dot): 105.7°
(Cell): 9.9°
(w/E-Frost Combine): 50.3°
(w/E-Frost Dot): 103.1°
(w/E-Frost Cell): 46.8°
Field Angle:
(Combine): 17.6°
(Top Plate): 153.1°
(Cell): 17.5°
(w/E-Frost Combine): 125°
(w/E-Frost Dot): 155.6°
(w/E-Frost Cell): 117.2°
Lumens (Combine): 19,589
Lumens (Dot): 1,912
Lumens (Cell): 17,127
Lumens (w/E-Frost):
(Combine): 13,406
(Dot): 1,633
Cell): 15,769
Illuminance:
Illuminance (Combine): 16,779 lux @ 5 m
Illuminance (Dot): 29 lux @ 5 m
Illuminance (Cell): 16,789 lux @ 5 m
Illuminance (w/E-Frost Combine): 539 lux @ 5 m
Illuminance (w/E-Frost Dot): 26 lux @ 5 m
Illuminance (w/E-Frost Cell): 536 lux @ 5 m
Selectable PWM: 1000Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz, 64,000 Hz
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 747 W, 7.54 A @ 100 V, 60 Hz
Power and Current: 747 W, 6.20 A @ 120 V, 60
Power and Current: 719 W, 3.63 A @ 208 V, 60 Hz
Power and Current: 717 W, 3.28 A @ 230 V, 50 Hz
Power and Current: 717 W, 3.17 A @ 240 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
IP Rated Seetronic® Powerkon Extensions
IP Rated DMX cables
IP Rated EtherCon Cables
UPLOAD 03 software uploader
Dynamic Effects

Tilt: 180°
Tilt Ranges: 0° to 180°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)
Weight: 36 lb (16.3 kg)
Exterior Color: Black
Housing Material: AZ91D Magnesium diecast
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power): 5 ft (1.5 m)
Control

Control Protocol: Art-Net, DMX, RDM, sACN
DMX, ArtNet, and sACN Channels:
Single Mode: 29,222,314
Dual mode Movement: 30
Dual Mode Pixels: 144,192,240,288
ArtNet and sACN Channels Multi-Layer Control:
Movement: 30
Dot Pixels: 72,96,120,144
Cell Pixels: 72,96,120,144
Certifications / Qualifications

Certifications: CE, MET, ROHS, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Noise Levels:
Noise Level (Idle): 8.4 dB level @ 1 m
Noise Level (Auto): 39.6 dB level @ 1 m
Noise Level (Full): 39.5 dB level @ 1 m
Noise Level (Silent): 35.0 dB level @ 1 m
Noise Level (Max): 34.8 dB level @ 1 m
Temperatures:
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

Downloads

Data Sheet Download
User Guide Download
