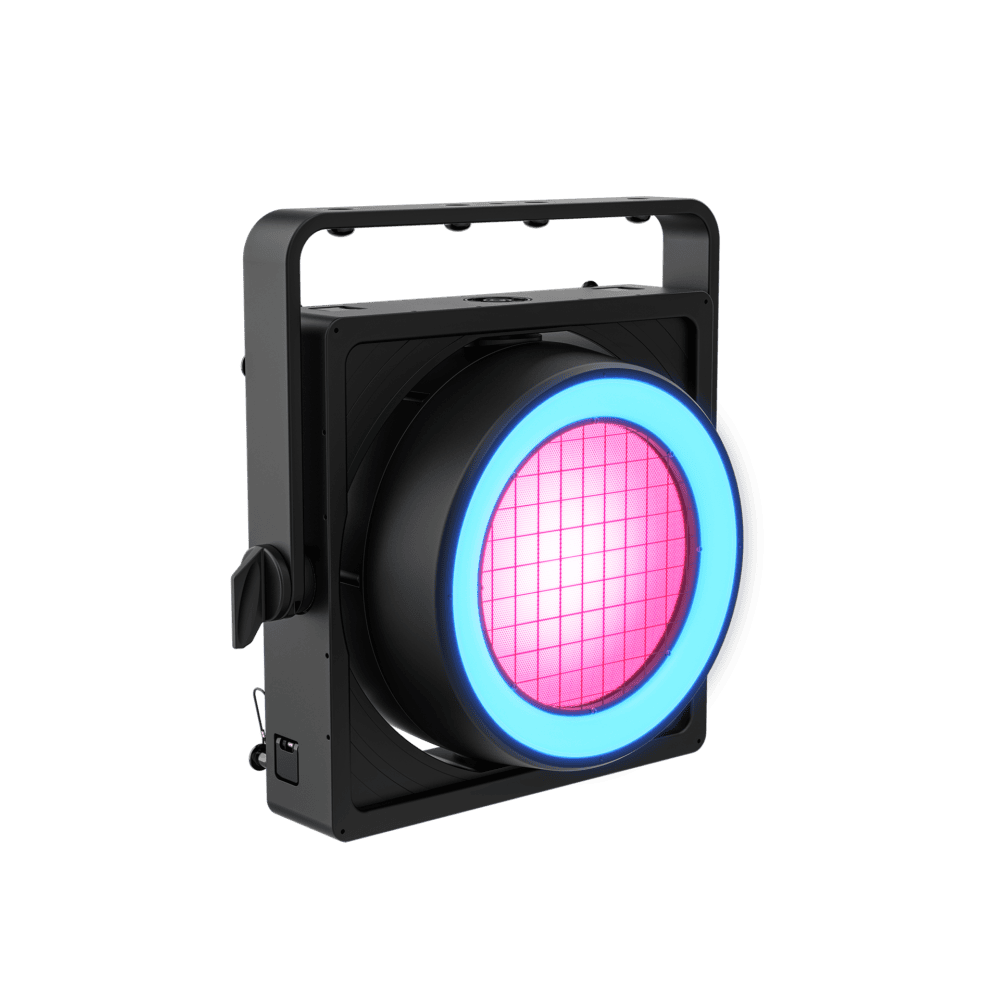

Chauvet Professional – STRIKE Array Ultra

Chauvet Professional

A next-generation IP65 audience blinder that pairs a powerful RGBA-WW engine with a motorized movement axis and a dynamic RGB halo ring.

Built for large-scale touring and broadcast applications, it transforms classic blinder punch into a flexible platform for creating unforgettable audience-facing effects.

Features

  • High-power, big aperture full color (RGBwWA), IP65 blinder in the STRIKE Array Family
  • Class defining output for stadium filling light in any color or high quality white with our trademark red-shift dimming
  • Features motorized pan (or tilt based on mount orientation), and RGB ring with segment control for added versatility and effects.
SKU: STRIKEARRAYULTRA Categories: , , ,

Description

WW engine with a distinctive RGB halo ring for bold, camera-ready looks. Its high-CRI calibrated whites and filter option deliver natural skin tones and rich color on camera, while a single motorized movement axis that functions as pan or tilt, along with broadcast-optimized dimming, transforms classic blinder punch into a flexible, dynamic effects platform. Built to integrate seamlessly with other STRIKE Array and STRIKE Bolt fixtures, it scales effortlessly from clubs to full festival and broadcast rigs.

Features

60,000+ Lumen Single-Source Punch

A single high-output pod delivers 60,000+ lumens of blinder-intensity impact—built to read on camera and carry from studio floors to stadium tours.

Broadcast-Grade RGBA-WW Color + High-CRI Whites

RGBA-WW color mixing produces saturated color and clean, high-CRI whites, with red-shift dimming for natural warmth on fades and superior on-camera skin tones.

Dynamic Motorized Movement

A single motorized axis provides pan or tilt movement, adding a layer of dynamic motion to traditional blinder effects for more engaging looks.

12‑Section RGB Halo Ring Effects

A distinctive 12-segment RGB ring adds pixel-style effects, chases, and eye-candy—expanding looks beyond “on/off blinder” for live and broadcast.

STRIKE Array Family Mounting Compatibility

Physically mounts with all fixtures in the STRIKE Array family for seamless lineup builds, consistent rigging, and familiar deployment across existing systems.

Video

STRIKE Array Ultra: Ultimate Impact. Multiplied. | CHAUVET Professional

Massive presence, expressive looks and scalable impact. Meet the next-generation IP65 audience blinder that combines 60K lumens of raw punch with rich color and a signature halo.

What’s Included

  • STRIKE Array Ultra
  • Seetronic Powerkon IP65
  • 2 Omega bracket with mounting hardware

Additional information

Optical

Light Source(s)
Light Source (Pod)
1 LED (RGBWA)
Light Source (Ring)
120 LEDs (RGB)
Color Temperature(s)
Color Temperature (range)
2800 to 6500 K
Color Temperature (at full)
5,950 K
CRI @ 3200K
92.8
Beam Angle(s)
Beam Angle (Combined)
52°
Beam Angle (Pod)
52°
Beam Angle (Ring)
112.3°
Field Angle(s)
Field Angle (Combined)
91.7°
Field Angle (Pod)
91.6°
Field Angle (Ring)
177.6°
Lumens
Lumens (Combined)
56,715
Lumens (Pod)
56,604
Lumens (Ring)
297
Illuminance
Illuminance (Combined)
2607 lux @ 5 m
Illuminance (Pod)
2610 lux @ 5 m
Illuminance (Ring)
4 lux @ 5 m
Selectable PWM
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects

Pan
+-25°
Pan Ranges
50°
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 30Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dim Modes
4
Dim Curves
4
Built-in Automated Programs
Yes
Construction/Physical

Dimensions
19.13 x 17.79 x 11.02 in (486 x 452 x 280 mm)
Weight
39.6 lb (18 kg)
Exterior Color
Black
Housing Material
Aluminum Profile, Die-casting magnesium
IP Rating
IP65
Connections

Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Data Connectors
5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
Cable Length (power)
5 ft (1.5 m)
Software Update
USB-C
Control

Control Protocol
Art-Net, sACN, DMX, RDM
DMX Channels
4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
Art-Net Channels
4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
Modes/Personalities
11 personalities (4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV)
Electrical

Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking
1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V;
Power and Current
1024 W, 8.54 A @ 120 V, 60 Hz
Power and Current
995 W, 4.81 A @ 208 V, 60 Hz
Power and Current
995 W, 4.34 A @ 230 V, 50 Hz
Certifications/Qualifications

Compliance
CE, MET, FCC
MET Listing Number
[E113093-1110, E113093-1125]
US Safety
[UL 60950-1]
Canadian Safety
[CSA C22.2 No. 60950-1]
Thermal Dissipation
Thermal Dissipation @ 120V
819 BTU per hour
Thermal Dissipation @ 208V
819 BTU per hour
Thermal Dissipation @ 230V
819 BTU per hour
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

STRIKE Array Flush Mount Bracket
RIGLINK powerKON cables
RIGLINK etherKON cables
RIGLINK DMX Cables
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
STRIKE Array Flush Bracket
RIGLINK IP65 DMX CABLES
CTC-50HC
CTC-50HCN
SC-08 Safety Cable
