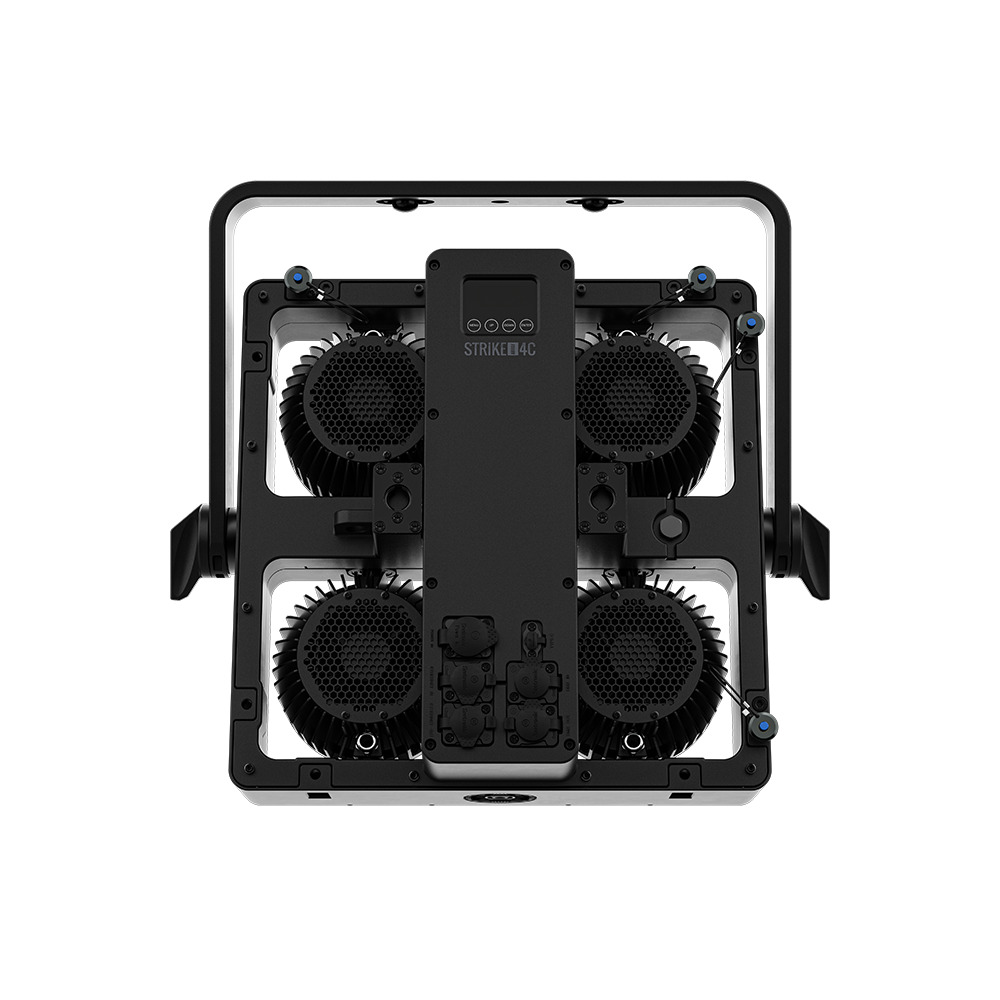

Chauvet Professional - STRIKE Array 4C Front right of four section blinderChauvet Professional - STRIKE Array 4C Front right of four section blinder

Chauvet Professional – STRIKE Array 4C

Chauvet Professional

An IP65-rated audience blinder with four independently focusable pods, delivering a full spectrum of color and a wide range of whites via its RGBA-WW LEDs, complete with smooth low-end dimming and a classic tungsten-emulating Red Shift.

Its high CRI, variable PWM, and scalable, weather-resistant design make it the ideal blinder for broadcast studios, outdoor festivals, concert tours, and large-scale productions.

Features

  • Features a high CRI of 94.6 at 3200K for superior color rendering on camera.
  • Provides broad, even coverage with a 59.6° beam angle and 102.2° field angle.
  • Offers precise intensity control with ultra-smooth 18-bit dimming and four dim modes.
  • A proprietary tool-free interlocking system enables fast, scalable unit configuration.
  • Supports DMX, RDM, Art-Net, and sACN for flexible, comprehensive control options.
  • Allows for independent strobe control on each pod to create dynamic, high-impact effects.
SKU: STRIKEARRAY4C Categories: , , ,

Description

STRIKE Array 4C is an IP65-rated audience blinder with four independently focusable pods. Intense RGBA-WW LED output delivers a full range of color as well as a wide choice of white color temperatures with exceptional color rendering. Offering the industry leading low end dimming performance our STRIKE Array fixtures are known for as well as Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make this the ideal blinder for broadcast applications. Its proprietary Tool-Free interlocking system enables STRIKE Array 4C to be easily interconnected with multiple Array units for scalable configurations. Omega-Bracket locks are also installed on both the yoke and the rear of the fixture to streamline the truss mounting process.

Features

IP65 All Weather Blinder

An intense four-pod color blinder and strobe is rated IP65 for reliable use in any weather condition.

Full Spectrum Color Rendition

Achieve a full range of vibrant colors and an excellent rendition of any color temperature of white.

Incandescent Red Shift Emulation

This feature perfectly mimics the warm dimming curve of traditional incandescent fixtures.

Individual Pod Pan and Tilt

Each head can be individually panned or tilted, allowing for precise directional adjustment of the light output.

Interlocking Fixture System

An innovative system allows you to connect multiple STRIKE Array family fixtures together quickly and securely.

Versatile Rigging Options

Multiple mounting locations and a repositionable yoke with quarter-turn adaptors offer creative and convenient rigging.

Independent Pod Control

Manage each pod and its strobe functionality independently to create high-impact effects on the fly.

Smooth 18-Bit Dimming

Ultra-smooth 18-bit dimming curves and speeds are designed to complement any lighting scheme.

Video

STRIKE Array C + STRIKE Bolt 1C: IP65 Full-Color Blinders and Strobes FTW by CHAUVET Professional

Level Up • Power Up • Stack Up • FTW • Now You’ve Got ALL the CODES to Raise Your Game with IP65 Full-Color Blinders and Strobes Built FOR THE WILD!

What’s Included

  • STRIKE Array 4C
  • Seetronic Powerkon IP65
  • Omega bracket with mounting hardware

Additional information

Optical

Light Source: 268 LEDs (112 quad-color RGBA, 156 WW), 2.7W to 4.32 W, (871 mA), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 6500 K
Color Temperature (at full): 5991 K
CRI (@3200K): 94.6
Beam Angle: 59.6°
Field Angle: 102.2°
Lumens: 53,481
Illuminance: 1979 lux @ 5 m
Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65: Power Input
Seetronic Powerkon IP65: Data Connectors
5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
Cable Length (power): 5 ft (1.5 m)
Software Update: USB-C
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 1180 W, 9.92 A @ 120 V, 60 Hz
Power and Current: 1150 W, 5.60 A @ 208 V, 60 Hz
Power and Current: 1140 W, 5.02 A @ 230 V, 50 Hz
Compatible Accessories

STRIKE Array Flush Bracket
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
IP Rated Seetronic® Powerkon Extensions
IP Rated DMX cables
IP Rated EtherCon Cables
UPLOAD 03 software uploader
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 19.13 x 7.55 x 17.8 in (486 x 191.64 x 452 mm)
Weight: 34.4 lb (15.4 kg)
Exterior Color: Black
Housing Material: Magnesium alloy
Control

Control Protocol: Art-Net, sACN, DMX ,RDM
Modes/Personalities: 10 personalities (1, 3, 5, 7, 10, 12, 13, 16, 22 or HSV)
Certifications / Qualifications

Certifications: CE, MET, FCC, ETL, cULus,
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
