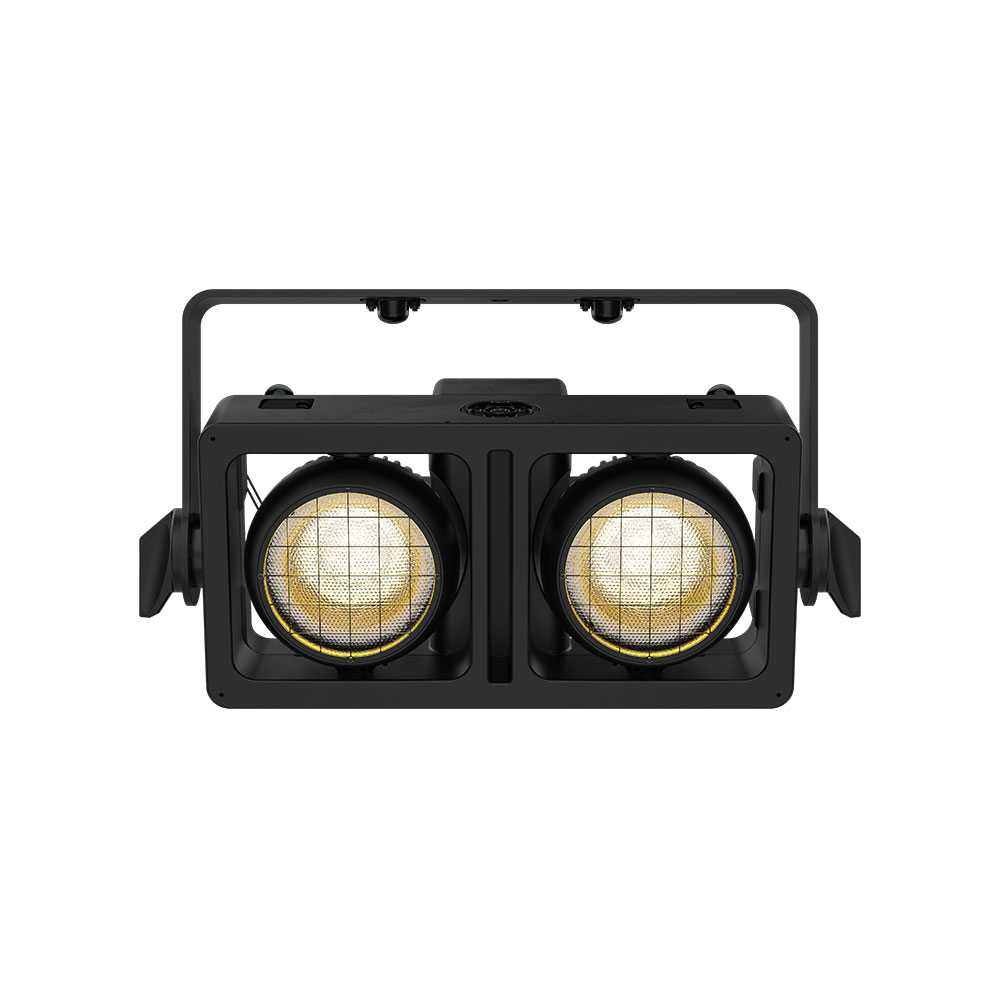

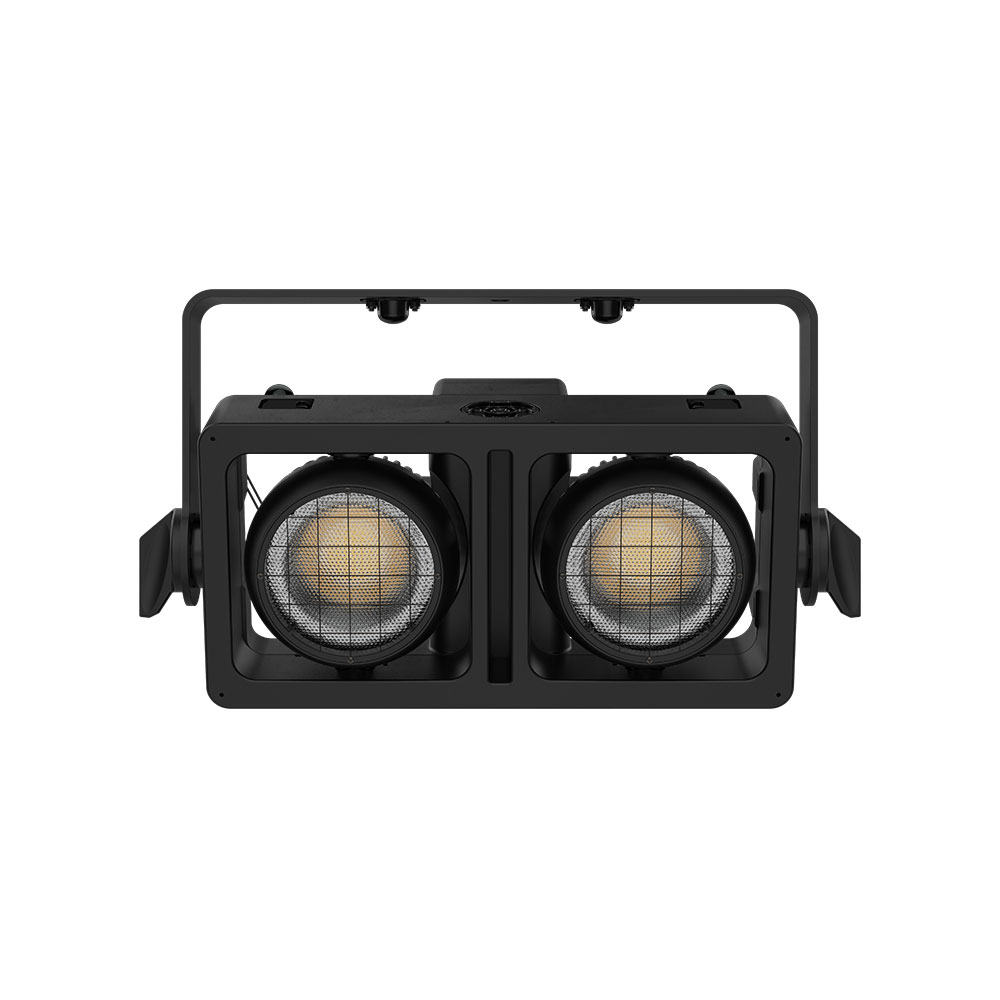

Chauvet Professional – STRIKE Array 2

Chauvet Professional

An IP65-rated audience blinder with two intense, independently focusable warm white LED pods that emulate a classic tungsten-style amber shift when dimming.

Perfect for broadcast applications, tours, and outdoor festivals that require a high-quality, scalable, and weather-resistant lighting fixture with a tool-free interlocking system.

Features

  • Features a high CRI of 92.9 and adjustable PWM for flicker-free, broadcast-ready performance.
  • Offers precise directional control with two independently adjustable pan and tilt pods.
  • Achieves exceptionally smooth fades and dimming with high-resolution 16-bit control.
  • Build large, scalable arrays quickly using the innovative tool-free interlocking system.
  • Supports both DMX and RDM protocols for flexible control and remote fixture management.
  • Streamlines rigging with Omega-Bracket locks and multiple mounting locations for versatile setup.
SKU: STRIKEARRAY2 Categories: , , ,

Description

STRIKE Array 2 is an outdoor-ready audience blinder powered by two intense warm white LEDs housed in independently focusable pods. An emulated “amber shift” warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 2 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder to give you a streamlined truss mounting process.

Features

IP65 All Weather Rating

This intense 2 pod blinder is rated for all-weather use, ensuring reliable operation in any environment.

Red Shift Emulation

Emulates the warm dimming curve of incandescent fixtures for a classic look.

Individual Pod Adjustment

Each head can be individually panned or tilted for directional control of the light output.

Interlocking System

An innovative interlocking system allows you to connect multiple fixtures together to create large arrays.

Flexible Mounting Options

Multiple mounting locations and quarter-turn adaptors provide creative and convenient rigging.

16-Bit Dimming Control

High-resolution dimming control ensures smooth, perfect fades without stepping.

High Impact Strobe

Integrated strobe functionality allows for the creation of high-impact effects on the fly.

OLED Display

An easy-to-use OLED display allows for simple navigation and configuration.

Advanced Control Features

Adjustable PWM and RDM provide added flexibility for broadcast and remote management.

What’s Included

  • Strike Array 2
  • Seetronic Powerkon IP65
  • Omega bracket with mounting hardware
  • Warranty Card
  • Quick Reference Guide or User Manual

Additional information

Optical

Light Source: 96 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy
Light Source: 10 LED (Amber) 2.63 W, (.750 A), 50,000 hours life expectancy
Color Temperature (at full): 2792 K
CRI: 92.9
TLCI: 91
Beam Angle: 60.3°
Field Angle: 99°
Illuminance (total): 360 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Certifications / Qualifications

Certifications: CE, MET
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon power linking cables
5-pin IP or Non-IP DMX Cables
STRIKE Array Flush Bracket
Dynamic Effects

Dimmer: Electronic
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 18.5 x 10.4 x 6.3 in (469 x 264.5 x 161 mm)
Dimensions (shipping size): 20.7 x 8.5 x 12.8 in (525 x 215 x 325 mm)
Weight: 17.6 lb (8 kg)
Weight (shipping weight): 21.6 lb (9.8 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Control

Control Protocol: DMX, RDM
DMX Channels: 1, 2, 3, 4, 5, 8 or 9
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 11 units @ 100 V; 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V;25 units @ 240 V
Power and Current: 124 W, 1.24 A @ 100 V, 60 Hz [3.1 A inrush]
Power and Current: 123 W, 1.04 A @ 120 V, 60 Hz [1.8 A inrush]
Power and Current: 127 W, 0.61 A @ 208 V, 60 Hz [1.9 A inrush]
Power and Current: 129 W, 0.56 A @ 230 V, 50 Hz [3.8 A inrush]
Power and Current: 130 W, 0.54 A @ 240 V, 50 Hz [1.2 A inrush]
Power and Current (resting): 3 W, .021 A @ 100 V, 60 Hz
Power and Current (resting): 4 W, .029 A @ 120 V, 60 Hz
Power and Current (resting): 7 W, .040 A @ 208 V, 60 Hz
Power and Current (resting): 9 W, .040 A @ 230 V, 50 Hz
Power and Current (resting): 10 W, .044 A @ 240 V, 50 Hz
