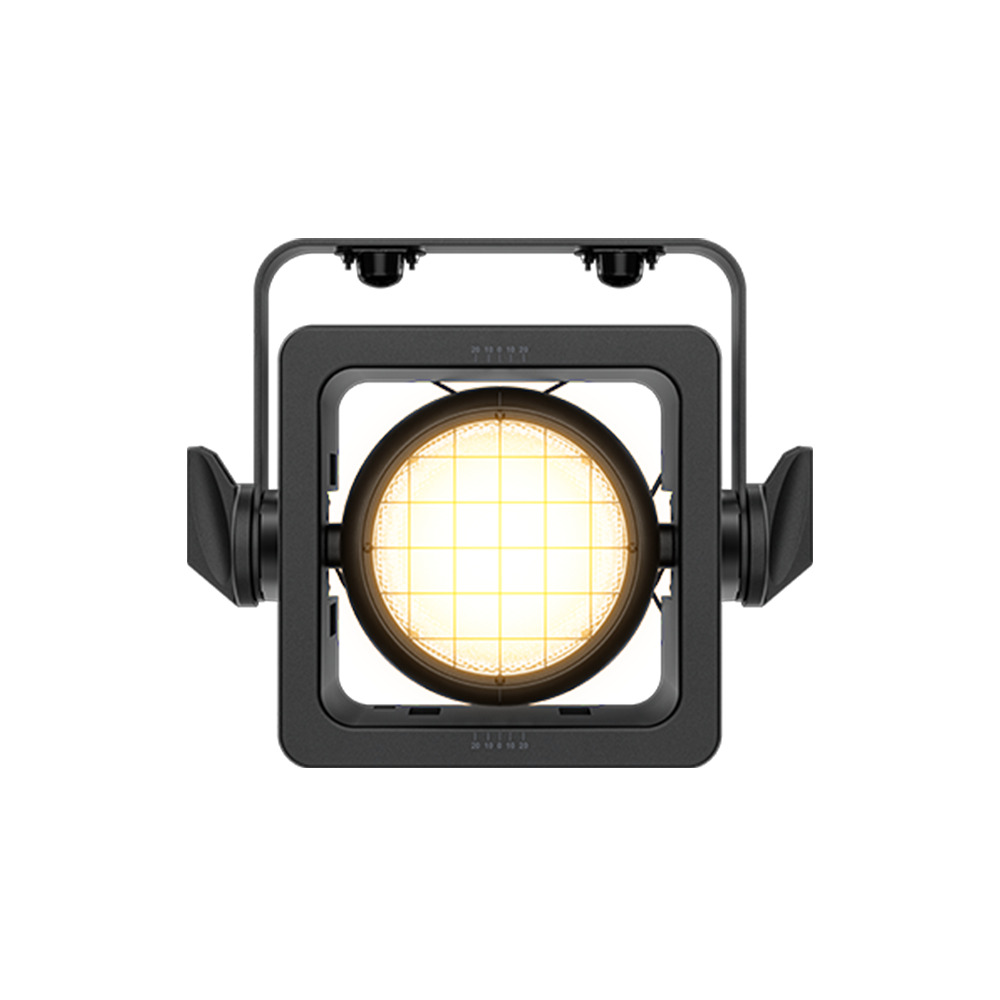

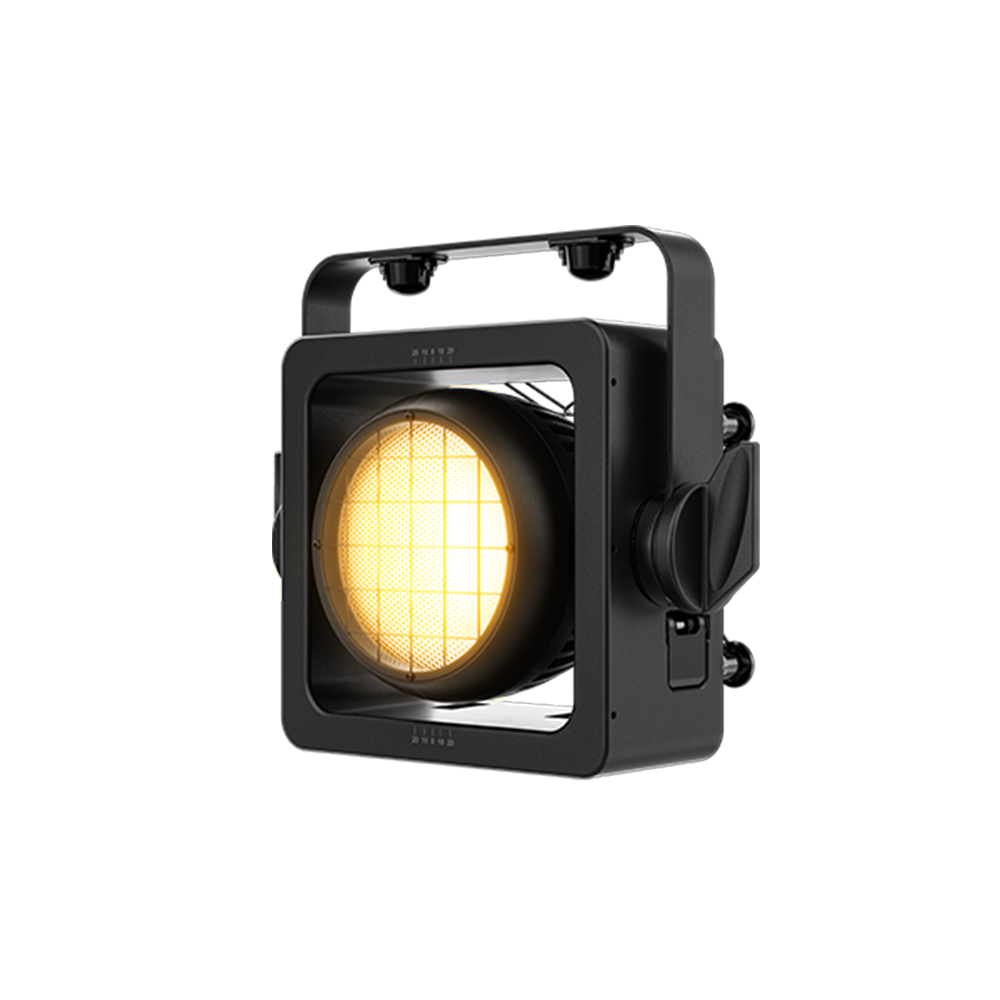

Chauvet Professional - STRIKE Array 1 Front right of light with outter frameChauvet Professional - STRIKE Array 1 Front right of light with outter frame

Chauvet Professional – STRIKE Array 1

Chauvet Professional

The STRIKE Array 1 is an IP65-rated audience blinder with intense, warm white LEDs in independently focusable, interlocking pods that provide scalable configurations and tungsten-emulating Red Shift dimming.

With its high CRI and variable PWM, this modular fixture is ideal for broadcast, touring, festivals, and any large-scale indoor or outdoor event requiring powerful and versatile audience lighting.

Features

  • Simplifies setup with a remote driver that automatically addresses up to eight connected pods.
  • Mount individual pods with an included yoke or interlock them for scalable array designs.
  • Delivers a broadcast-ready 2700 K output with a high CRI of 83.9.
  • Provides exceptionally smooth 18-bit dimming curves for seamless fades and transitions.
  • Allows precise directional control with manual pan and tilt adjustment on each pod.
  • Supports DMX, RDM, ArtNet, and sACN for flexible and professional control integration.
SKU: STRIKEARRAY1 Categories: , , ,

Description

STRIKE Array 1 is an IP65-rated audience blinder powered by intense warm white LEDs housed in an independently focusable pod. Its proprietary tool-free interlocking system enables STRIKE Array 1 to be easily interconnected with multiple units for scalable configurations. For additional rigging versatility, the STRIKE Array 1 pod can be removed from its frame and mounted using the included standard yoke. STRIKE Array 1 delivers superb low end dimming performance and Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make it an ideal blinder for broadcast applications.

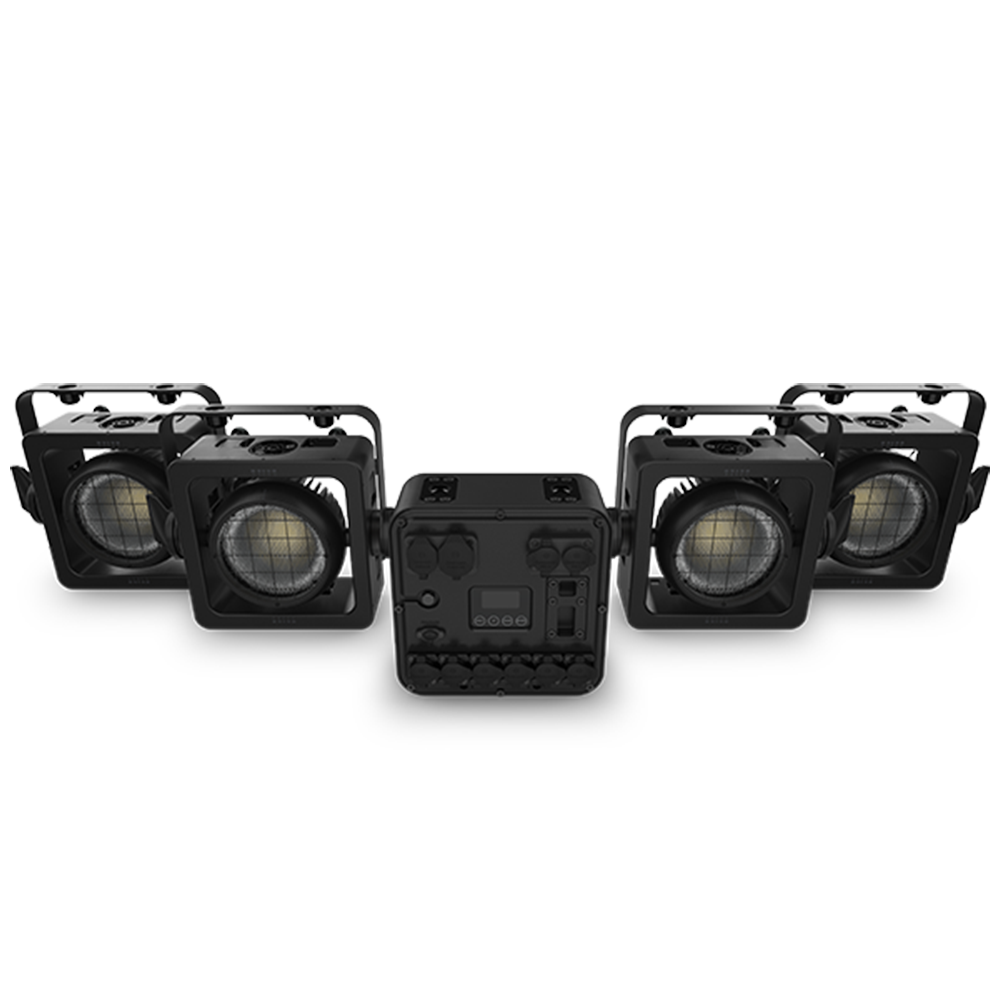

STRIKE Array 1 is a package that includes:

  • (4) STRIKE Array 1 pods mounted in square frame
  • (4) Linking cables (1m length)
  • (4) Hanging brackets for individual truss mounting (“head only yokes”)
  • (1) Driver (controls and powers up to 8 units)

The included remote Driver unit performs automatic addressing of up to (8) STRIKE Array 1 pods for ease of installation.

Features

All-Weather Blinder and Strobe

This intense, stacking fixture is IP65 rated for reliable performance as a blinder or strobe in any weather condition.

Remote Driver Unit

A remote driver unit simplifies installations by automatically addressing up to eight connected light pods for a clean setup.

Versatile Mounting Options

Individual heads can be removed from the frame and mounted in an included standard yoke for a more traditional look.

Incandescent Red Shift Emulation

The emulated red shift feature perfectly mimics the warm dimming glow of traditional incandescent fixtures.

Manual Head Adjustment

Each head offers manual pan or tilt adjustment, allowing for precise directional control of the light output.

Innovative Interlocking System

An innovative interlocking system allows you to easily connect multiple fixtures together to create larger arrays.

Smooth 18-Bit Dimming

Ultra-smooth 18-bit dimming curves provide seamless fades and transitions to complement any lighting scheme.

Additional information

Optical

Light Source (Single Pod): 48 LED (WW) 1.33 W, (1.1 A), 2700 K, 50,000 hours life expectancy
Light Source (Single Pod): 5 LED (Amber) 1.92 W, (.770 A), 50,000 hours life expectancy
Color Temperature (at full): 2657 K
CRI: 83.9
Beam Angle: 62.8°
Field Angle: 104.5°
Lumens (Single Pod): 4,353 lm @ 5 m
Illuminance (total) (Single Pod): 153 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Device Outputs (4): 4-pin XLR
Data Connectors: 5-pin IP65 XLR, Seetronic Etherkon IP65
Software Connection: USB
Cable Length (power): 5 ft (1.5 m)
Total max. cable length (shielded cables) between Driver and last Head: 147 ft (45 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current (4 PODS): 253 W, 2.13 A @ 120 V, 60 Hz
Power and Current (4 PODS): 248 W, 1.21 A @ 208 V, 60 Hz
Power and Current (4 PODS): 248 W, 1.09 A @ 230 V, 50 Hz
Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 11 units @ 230 V
Power and Current (8 PODS): 509 W, 4.22 A @ 120 V, 60 Hz
Power and Current (8 PODS): 494 W, 2.38 A @ 208 V, 60 Hz
Power and Current (8 PODS): 490 W, 2.14 A @ 230 V, 50 Hz
Dynamic Effects

Dimmer: Electronic
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 8.19 x 8.62 x 4.57 in (208 x 219 x 116 mm) (Single Unit with Bracket)
Dimensions: 7.48 x 7.48 x 4.57 in (190 x 190 x 116 mm) (Single Unit with Frame)
Dimensions: 10.87 x 9.06 x 4.57 in (276 x 230 x 116 mm) (Single Unit with Frame and Bracket)
Dimensions: 7.375 x 4.00 x 7.375 in (186.87 x 101.6 x 186.87 mm) (Control Box)
Weight: 3.2 lbs (1.5 kg) (Single Unit with Bracket)
Weight: 6.6 lbs (3.0 kg) (Single Unit with Frame)
Weight: 7.6 lbs (3.5 kg) (Single Unit with Frame and Bracket)
Weight: 6.4 lbs (2.9 kg) (Control Box)
Exterior Color: Black
Housing Material: Aluminum die-cast
Control

Control Protocol: DMX, RDM, ArtNet, sACN
DMX Channels: 1,2,5,4P-5CH,4P-14CH,4P-23CH,4P-26CH,8P-9CH,8P-26CH,8P-43,8P-46CH
Certifications / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M6 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
IP Rated DMX cables
IP Rated EtherCon Cables
UPLOAD 03 software uploader

Downloads

User Guide Download
Data Sheet Download
