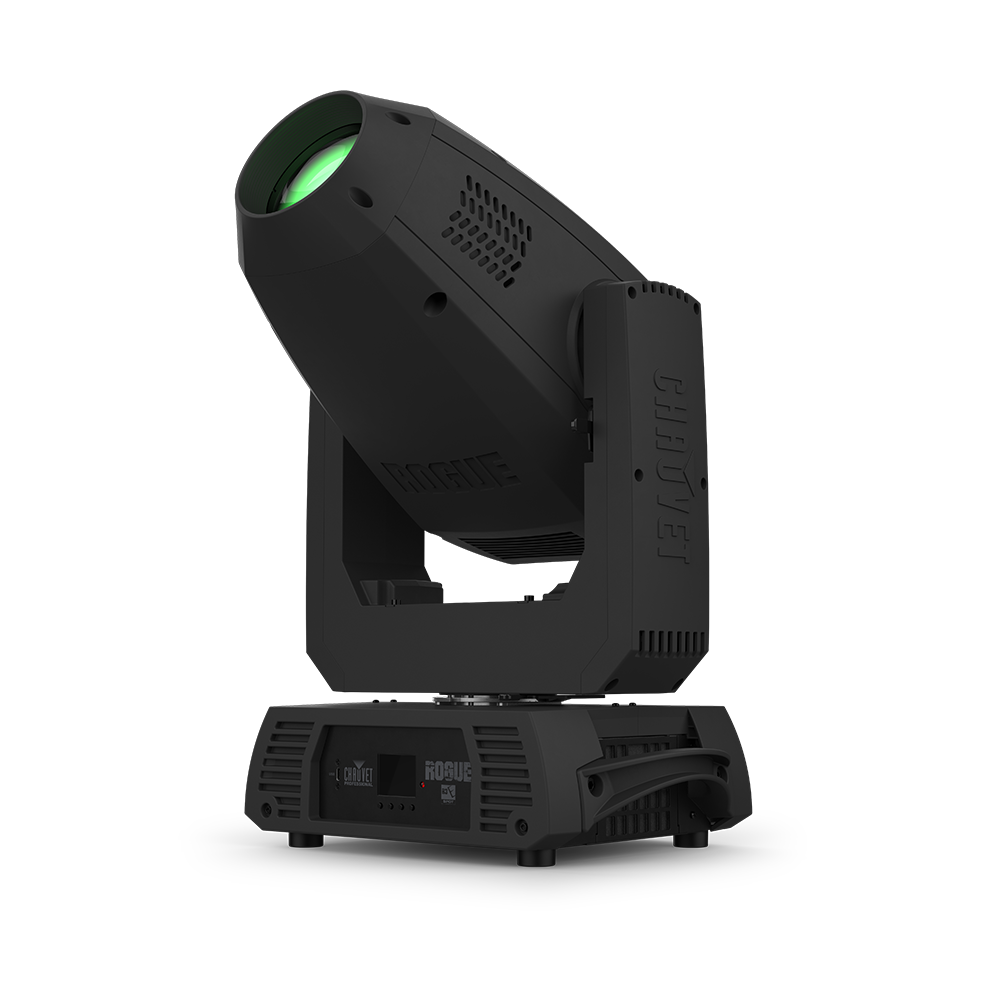

Chauvet Professional - ROGUE R3E Spot front right of fixtureChauvet Professional - ROGUE R3E Spot front right of fixture

Chauvet Professional – ROGUE R3E Spot

Chauvet Professional

A compact and lightweight 350W LED moving yoke spot that provides a wide zoom range and a complete effects package, including dual gobo and color wheels, a rotating prism, motorized iris, and frost.

Perfect for rental houses, touring productions, and installations in clubs or theaters seeking a versatile, feature-rich spot fixture that can integrate with existing lighting rigs.

Features

  • Features selectable LED output to match the brightness of legacy Rogue R1X Spot fixtures.
  • Provides a wide zoom range of 8.4° to 42.8° for flexible beam and wash applications.
  • Creates seamless gobo morphing effects using one rotating and one static gobo wheel.
  • Offers an expanded color palette with two wheels, featuring eight colors, white, and split-color ability.
  • Supports DMX and RDM protocols with 3-pin and 5-pin connectors for flexible system integration.
  • Ensures flicker-free on-camera performance with selectable Pulse Width Modulation (PWM) settings.
SKU: ROGUER3ESPOT Categories: , , ,

Description

Rogue R3E Spot features an expansive 8.4° to 42.8° zoom in a compact, lightweight moving yoke spot. Its intensely bright 350W LED light engine combines high output with a full effects arsenal: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Selectable LED max output settings enable matching brightness with legacy Rogue movers in your rig.

Features

Compact and Powerful Spot Fixture

A lightweight moving yoke spot fixture featuring an intense 350W LED light engine.

Smooth 16-Bit Dimming

Achieve exceptionally smooth control of fades with 16-bit dimming on the master dimmer.

Seamless Gobo Morphing

Create perfect transitions and visual effects by morphing between the two gobo wheels.

Dual Color Wheels

Expand your color palette with two wheels featuring eight colors each, split-color ability, and variable speed scrolling.

Dual Gobo Wheels

Utilize one fixed scrolling gobo wheel and one rotating, interchangeable gobo wheel for dynamic patterns.

Advanced Beam Control

Shape and modify the beam using the integrated iris, 3-facet prism, and frost filter.

Wide Zoom Range

Cover a variety of applications with a versatile zoom range from 8.4° to 42.8°.

Power Linking Capability

Simplify cabling with True 1 compatible power input and output connections for linking multiple units.

Flexible DMX Connectivity

Integrate into any lighting rig with both 3-pin and 5-pin DMX input and output connections.

RDM Enabled

Remotely address the fixture and troubleshoot issues from your console for easy setup and maintenance.

Legacy Fixture Matching

Select the maximum LED output to perfectly match the brightness of legacy Rogue R1X Spot fixtures.

Flicker-Free Operation

Selectable PWM settings ensure the light source remains flicker-free for on-camera use.

Versatile DMX Profiles

Choose between simple and complex DMX channel profiles for ultimate programming flexibility.

Whats Included

  • Rogue R3E Spot
  • Seetronic PowerKon power cord
  • 2 140D Omega brackets with mounting hardware

Additional information

Optical

Light Source: 1LEDs (CW) 350 W, (5 A), 8527 K, 50,000 hours life expectancy.
Color Temperature (at full): 8527 K
Front lens diameter: 90mm
CRI: 68.2
Beam Angle: 8.4° to 33°
Field Angle: 10.1° to 39.3°
Cutoff Angle: 11.5° to 42.8°
Zoom Range: 8.4° to 42.8°
Lumens – Source: 24,500
Lumens – Output: 15,705
Illuminance:
7°: 35,405 lux @ 5 m
42.8°: 2,492 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
Construction / Physical

Dimensions: 13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm)
Weight: 34 lb (15.4 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
Software update: USB-C
Control

Control Protocol: DMX, RDM
DMX Channels: 19 or 25
Modes/Personalities: 2 personalities (19, 25)
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Noise Levels:
Idle: 4.1 dB(A) @ 1 m
Max: 35.0 dB(A) @ 1 m
Auto: 33.3 dB(A) @ 1 m
Eco: 31.2 dB(A) @ 1 m
Full: 40.2 dB(A) @ 1 m
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors (1): 8 + white, split colors, continuous scroll at variable speeds
Colors (2): 8 + white, split colors, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Dimmer
Electronic: Shutter/Strobe
Electronic: Zoom
Motorized: Focus
Motorized: Frost
Motorized: Iris
Motorized: Prism
3 Facets, motorized, rotating
Strobe Rate: 0 to 25 Hz
Move in Black: Yes
Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65: Power Input
Seetronic Powerkon IP65: Power Output
Seetronic Powerkon IP65: Data Connectors
3- and 5-pin XLR: Cable Length (power)
5 ft (1.5 m)
Software Connection: USB-C
Electrical

Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V; 9 units @ 240 V
Power and Current: 535 W, 4.541 A @ 120 V, 60
Power and Current: 522 W, 2.576 A @ 208 V, 60 Hz
Power and Current: 523 W, 2.345 A @ 230 V, 50 Hz
Compatible Accessories

Clamps
Neutrik powerCON cables
Neutrik etherCON cables
DMX Cables
Flight Cases

Downloads

Data Sheet Download
User Guide Download
