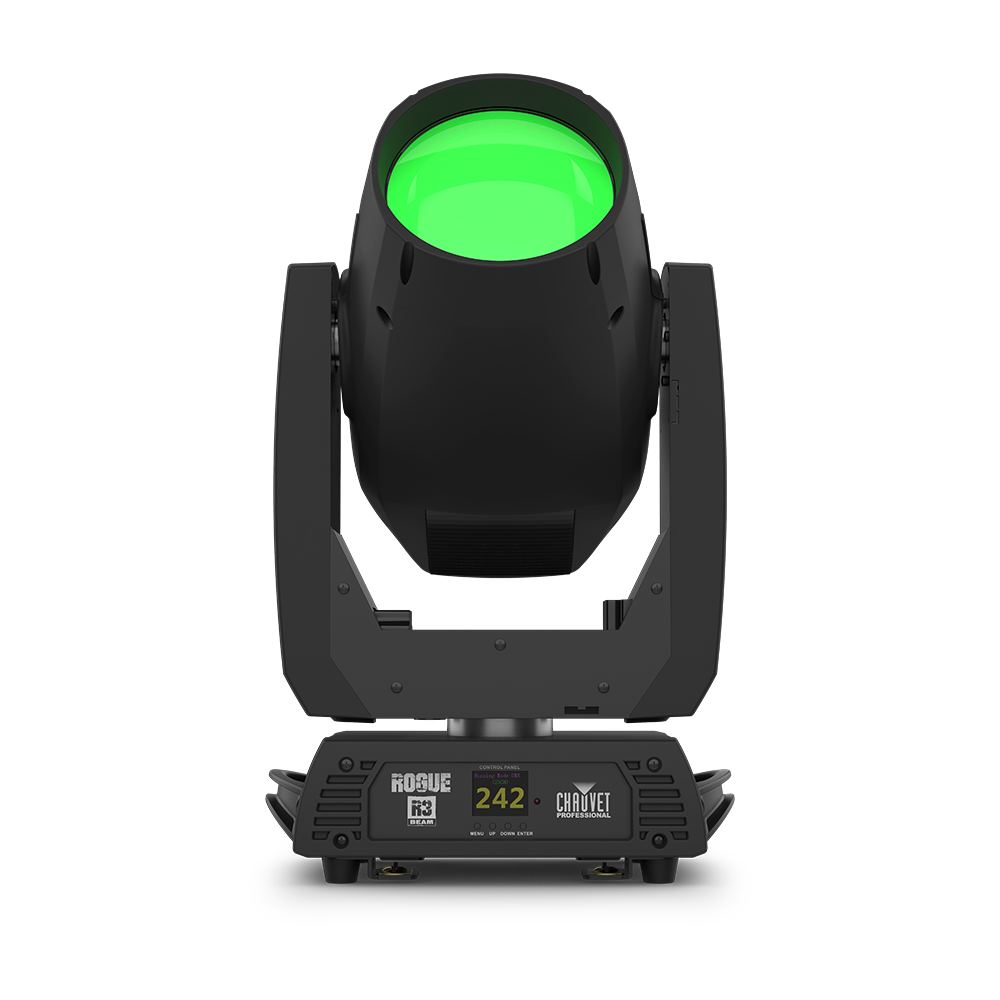

Chauvet Professional – Rogue R3 Beam Moving Head Front Right On GreenChauvet Professional – Rogue R3 Beam Moving Head Front Right On Green

Chauvet Professional – Rogue R3 Beam

Chauvet Professional

The Rogue R3 Beam is a powerful 300W moving head fixture that produces an intense, ultra-narrow 0.8° beam, featuring a 14-color wheel, a 17-gobo wheel, and dual overlapping 8 and 24-facet prisms for dynamic aerial effects.

Perfect for large-scale concerts, festivals, and productions requiring powerful, long-throw aerial beam effects that make a significant visual impact.

Features

  • Delivers an intense 208,000 lux at 15 meters from a 300W Ushio NSL lamp.
  • Offers a tight 0.8° beam angle with motorized frost and focus for versatile beam shaping.
  • Features individually controllable and stackable 8-facet and 24-facet prisms for complex aerial looks.
  • Includes a 14-color wheel and 17-gobo wheel, both with variable-speed continuous scroll.
  • Built for dynamic aerial effects with fast, precise 540° pan and 270° tilt movement.
  • Supports DMX and RDM control for simplified setup and remote troubleshooting.
SKU: ROGUER3BEAM Categories: , , ,

Description

Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

Features

High Powered Beam Fixture

A fully featured fixture powered by a long-life 300 W Ushio NSL lamp rated for 8,000 hours.

Fast and Precise Movement

Delivers rapid and accurate pan and tilt functions for creating dynamic, swift movements.

Layerable Dual Prisms

Create complex looks using the individually controllable and stackable 8-facet and 24-facet prisms.

Frost Filter

A built-in frost effect softens the beam for even light distribution and wash capabilities.

Narrow 0.8° Beam Angle

Produces an extremely tight 0.8-degree beam ideal for creating sharp, focused aerial effects.

RDM Enabled

Allows for remote addressing and troubleshooting to simplify setup and maintenance.

Static Gobo Wheel

Offers 17 static gobos on a single wheel for generating a massive visual impact.

What’s Included

  • Rogue R3 Beam
  • Neutrik powerCON power cord
  • 2 Omega brackets with mounting hardware

Additional information

Optical

Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy
Color Temperature (at full): 7044 K
Front lens diameter: 119 mm
CRI: 70
Beam Angle: 4.9° to 33.7°
Field Angle: 5.5° to 38°
Cutoff Angle: 5.6° to 38.7°
Zoom Range: 4.9° to 38.7°
Lumens – Source: 20,000
Lumens – Output: 14,989
Illuminance:
(4.9°): 56,916 lux @ 5 m
(38.7°): 2,145 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Construction / Physical

Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
Weight: 51 lb (23.2 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Certification / Qualifications

Certifications: CE, MET, UKCA
IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
Maximum Ambient Temperature (Ta): 45° C / 113° F
Noise Levels:
Idle: 24.2 dB(A) @ 1 m
Max: 33.9 dB(A) @ 1 m
Auto: 34.5 dB(A) @ 1 m
Eco: 31.0 dB(A) @ 1 m
Full: 46.9 dB(A) @ 1 m
Dynamic

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors (1): 7 + white, split colors, continuous scroll at variable speeds
Colors (2): 7 + white, split colors, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move in Black: Yes
Controls

Control Protocol: DMX, RDM
DMX Channels: 20 or 25
Modes/Personalities: 2 personalities (20, 25)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V; 6 units @ 240 V
Power and Current:
Electrical Detail: 510 W, 5.13 A @ 100 V, 60 Hz
Electrical Detail 2: 506 W, 4.24 A @ 120 V, 60 Hz
Electrical Detail 3: 493 W, 2.43 A @ 208 V, 60 Hz
Electrical Detail 4: 494 W, 2.19 A @ 230 V, 50 Hz
Electrical Detail 5: 494 W, 2.12 A @ 240 V, 50 Hz
Compatible Accessories

Clamps
IP65 5 pin DMX Cables
IP65 PowerKon Extension cables
Flight Case

Downloads

Data Sheet Download
User Guide Download
