Chauvet-Professional-Rogue-R2X-Wash-Front-RightChauvet-Professional-Rogue-R2X-Wash-Front-Right

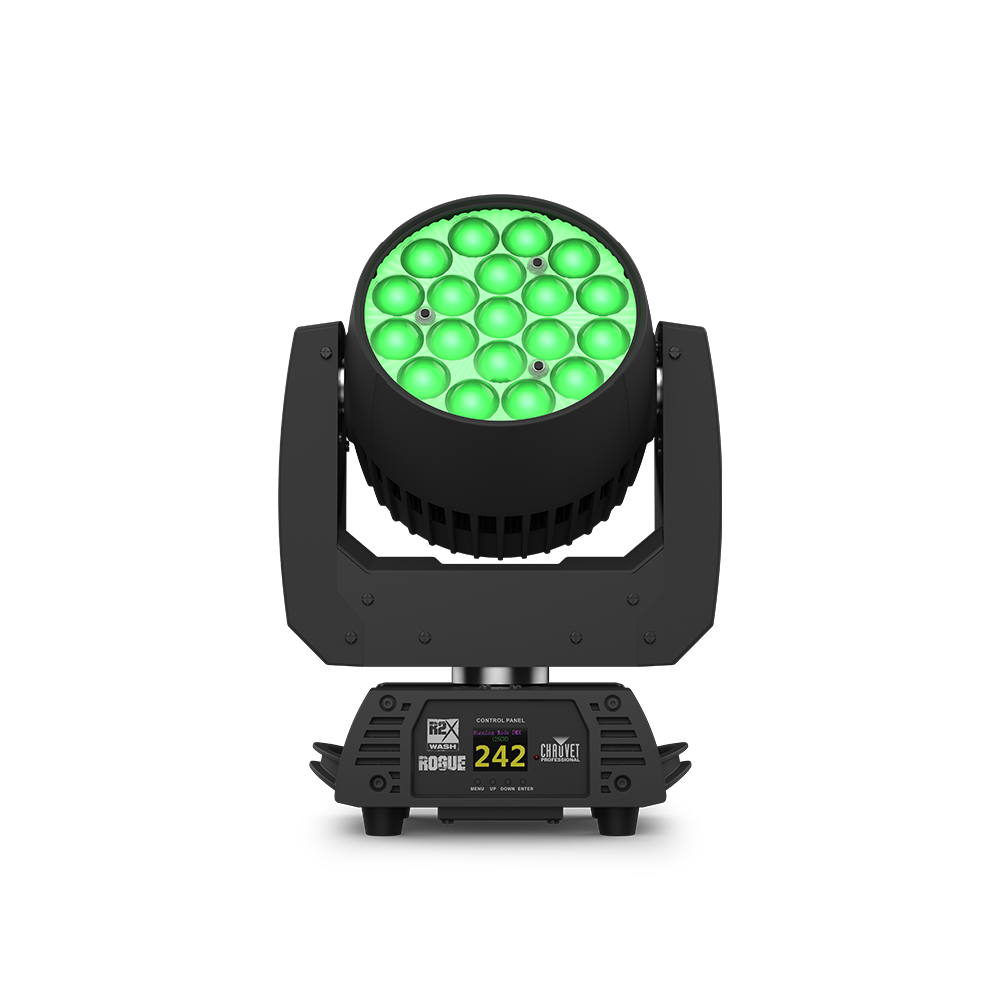

Chauvet Professional – Rogue R2X Wash

Chauvet Professional

A bright and durable moving wash workhorse featuring 19 RGBW quad-LEDs with five-zone pixel control and an expansive zoom range for versatile area coverage.

An essential addition for rental and production inventories, this fixture is perfectly suited for any application demanding powerful, wide-area washes and creative pixel-mapping effects.

Features

  • Delivers an expansive 7.3° to 64.3° zoom range for versatile beam and wash applications.
  • Offers a wide color temperature range from 2800 K to 10000 K for flexible white light.
  • Achieves exceptionally smooth fades with 16-bit dimming and six selectable dimming curves.
  • Simplifies setup and troubleshooting with RDM for remote addressing and fixture management.
  • Ensures flicker-free operation on camera with selectable Pulse Width Modulation settings.
  • Matches legacy fixtures with a selectable maximum output level for seamless integration.
SKU: ROGUER2XWASH Categories: , , , ,

Description

Rogue R2X Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (25 W) RGBW quad-LEDs. A standout zoom range of 7.3° to 64.3° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.

Feature Quick View

RGBW LED Yoke Wash Fixture

A fully featured wash light with powerful RGBW LEDs, zoom capability, and independent zone control.

16-Bit Dimming

Achieve exceptionally smooth fades with high-resolution dimming for the master dimmer and individual colors.

High-Power RGBW LEDs

Equipped with nineteen 25-watt RGBW LEDs for intense brightness and vibrant color output.

Versatile DMX Connections

Includes both 3-pin and 5-pin DMX input and output connections for flexible system integration.

Five-Zone LED Control

Create dynamic pixel-mapping effects with control over five independent zones of LEDs.

Superior Color Blending

A unique lens design ensures excellent color mixing and a smooth, even field of light.

Fast Pan and Tilt

Delivers quick and fluid pan and tilt movements for dynamic positioning and effects.

RDM Enabled

Allows for remote addressing and troubleshooting, simplifying setup and maintenance.

Legacy Fixture Matching

Select a maximum output level to seamlessly match the performance of older Rogue R2 Wash fixtures.

Camera-Ready Operation

Offers selectable Pulse Width Modulation settings to ensure flicker-free performance on camera.

Advanced Dimming Modes

Choose from six distinct dimming curves for advanced and customized lighting control.

Universal Mounting Bracket

The included Omega mounting bracket is compatible with all Rogue and Maverick series fixtures.

Easy-to-Read OLED Display

Navigate settings effortlessly using the clear OLED display and a simple, effective menu system.

Flexible DMX Profiles

Provides both simple and complex DMX channel profiles for programming versatility.

Video

Rogue R1X Wash, R2X Wash, and R3X Wash by CHAUVET Professional

Rogue R1X Wash, R2X Wash, and R3X Wash goes even more eXtreme with upgraded output that builds on the vibrant selection of colours and dynamic effects, including the NEW Rogue R2X Wash VW that produces a stunningly natural range of whites ideal for broadcast and exhibition markets.

What’s Included

  • Rogue R2X Wash
  • Neutrik® powerCON® power cord
  • Omega bracket with mounting hardware

Additional information

Optical

Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 7.3° to 35.2°
Field Angle: 11.2° to 51.2°
Cutoff Angle: 17.6° to 64.3°
Zoom Range: 7.3° to 64.3°
Lumens – Source: 10,300
Lumens – Output: 6,418
Illuminance:
Illuminance (11.2°): 8,149 lux @ 5 m
Illuminance (51.2°): 726 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Construction / Physical

Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
Weight: 22.8 lb (10.3 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Control

Control Protocol: DMX, RDM
DMX Channels: 15, 17, 22, 33, 54, or 56
Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Dynamic Effects

Pan and Tilt: 540°/230°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

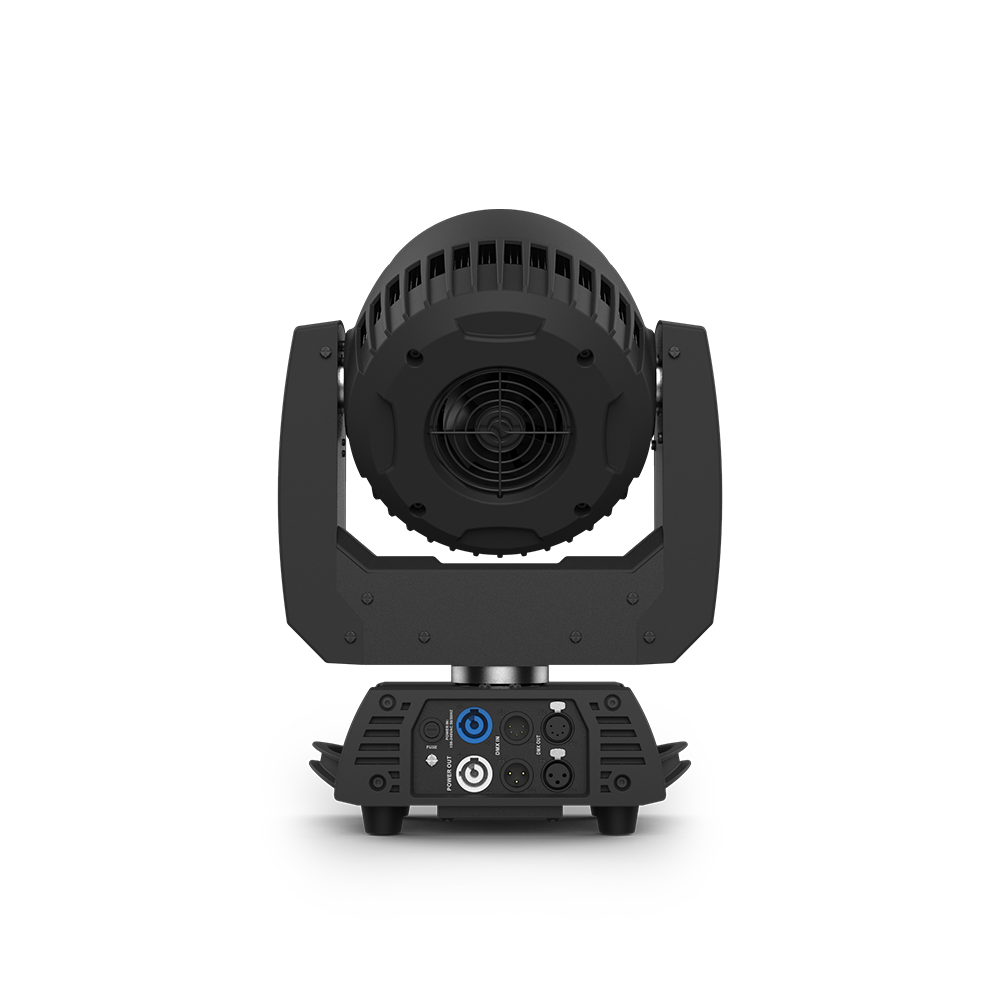

Connections

Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
Power and Current: 342 W, 2.85 A @ 120 V, 60 Hz
Power and Current: 338 W, 1.631 A @ 208 V, 60 Hz
Power and Current: 344 W, 1.488 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
Neutrik® powerCON® cables
DMX Cables
Flight Case:CP6CASER2W
