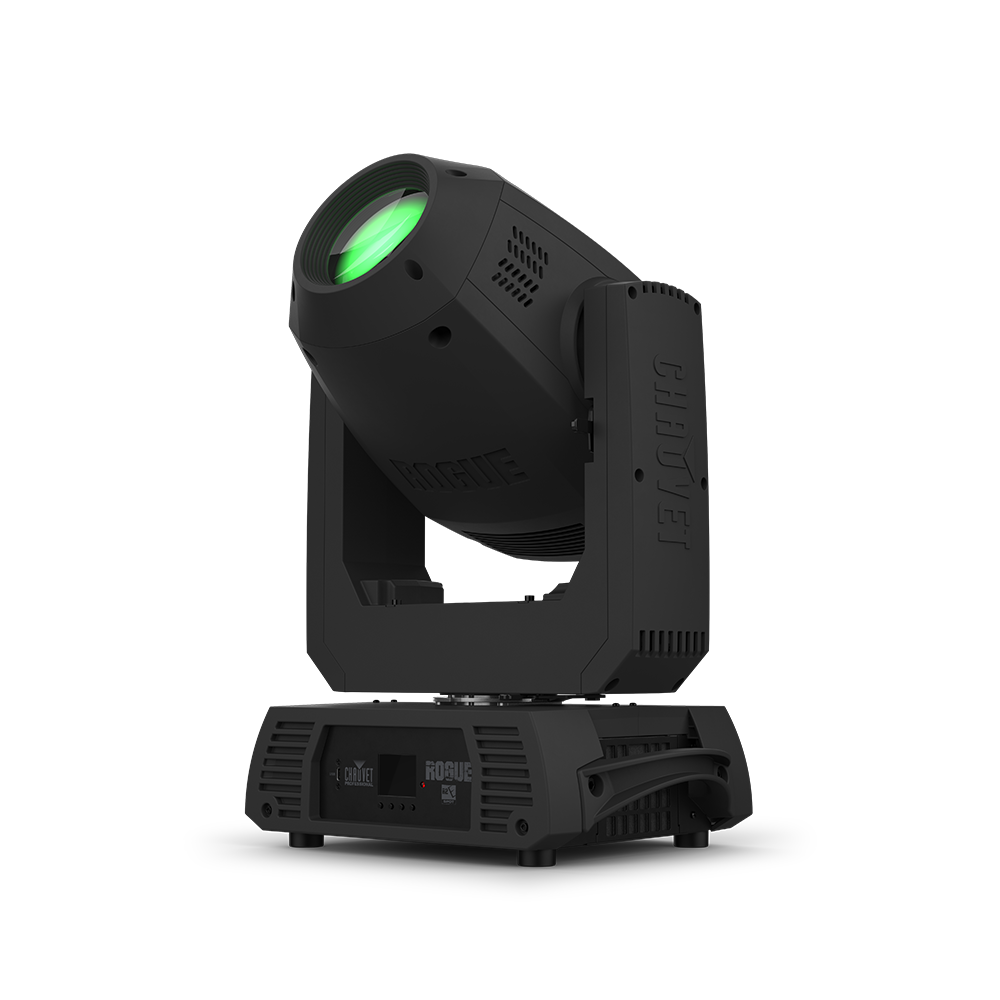

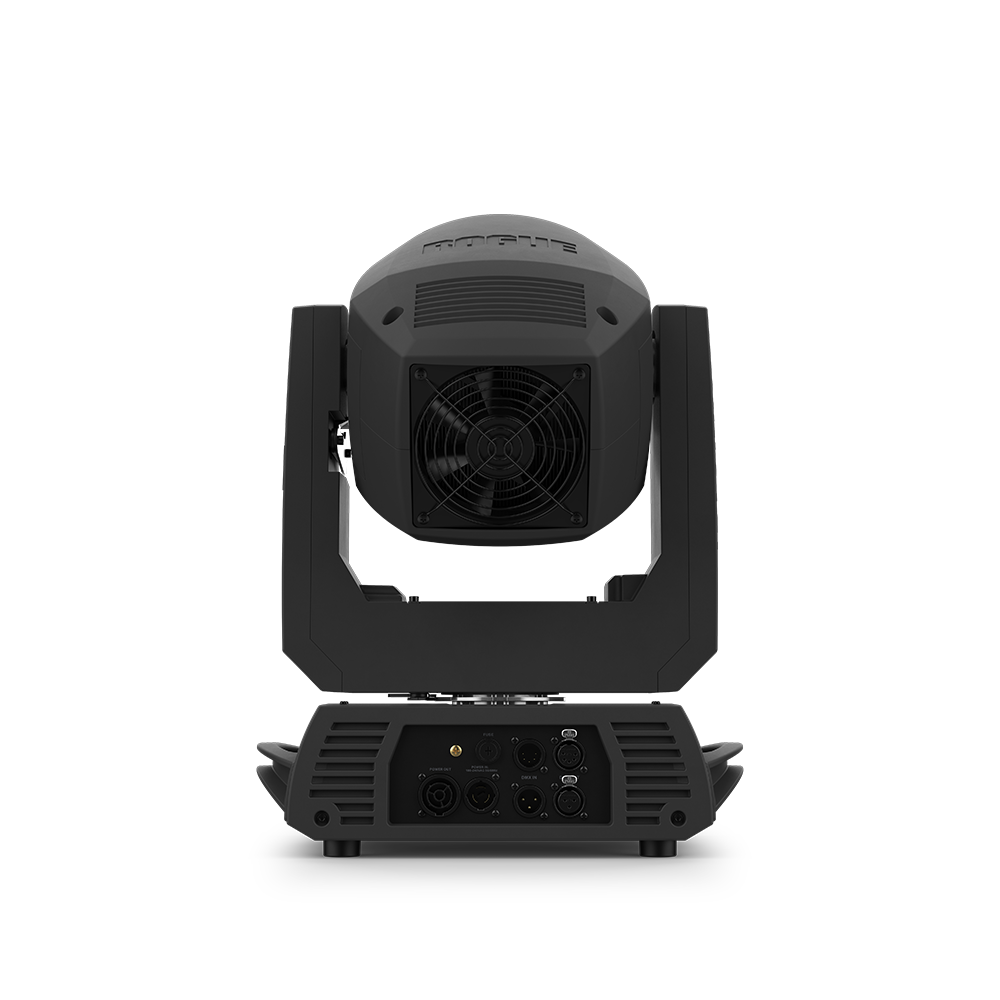

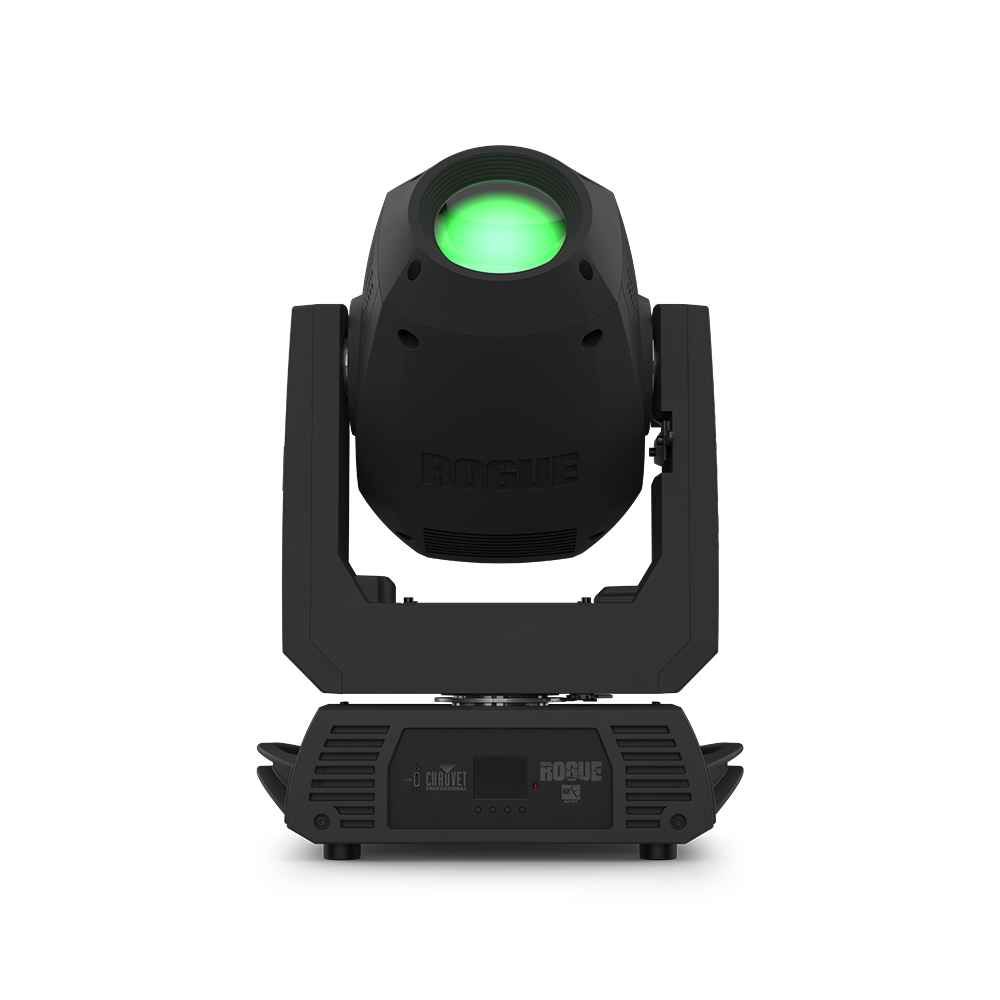

Chauvet Professional – ROGUE R2E Spot

Chauvet Professional

A compact and lightweight moving yoke spot powered by a 350W LED engine, featuring dual gobo and color wheels, a rotating prism, and motorized iris and frost to create a wide range of dynamic aerial and projection effects.

Ideal for mobile productions, concert stages, and permanent installations requiring a compact, feature-packed spot fixture for creating intricate lighting looks.

  • Delivers intense output from a 350W LED with a selectable mode to match legacy R2X Spots.
  • Layer and morph patterns with dual gobo wheels, including one with rotating, interchangeable gobos.
  • Features two color wheels with eight colors each, enabling split-color effects and continuous scrolling.
  • Delivers a crisp 15.9° beam angle with a motorized iris and frost for versatile beam control.
  • Offers flexible control via DMX and RDM, with selectable PWM settings for flicker-free video use.
  • Features True 1 compatible power linking to simplify setup and reduce cable clutter in any rig.
SKU: ROGUER2ESPOT Categories: , , ,

Description

Two gobo wheels and two color wheels pair up in the fully featured Rogue R2E Spot. This compact, lightweight moving yoke spot delivers intense output from its 350W LED light engine and brings a packed wheelhouse: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R2X Spots in your rig.

Features

Intense 350W LED Engine

A powerful and efficient light source is housed within a compact and lightweight moving yoke spot fixture.

Dual Gobo Wheels

Features one fixed scrolling wheel and one rotating, interchangeable wheel for a wide variety of pattern effects.

Dual Color Wheels

Two wheels with eight colors each offer split-color abilities and continuous variable speed scrolling.

16-Bit Dimming

Achieve exceptionally smooth fades and precise intensity control with high-resolution dimming.

Gobo Morphing

Create seamless visual transitions between patterns on the two gobo wheels.

Motorized Iris

Easily control the beam size for precise highlighting and dynamic effects.

3-Facet Prism

Multiply and split the beam for stunning aerial effects and wide coverage.

Frost Filter

Soften the beam edge to create a smooth wash effect for even lighting.

Power Linking Capability

Simplify setup and reduce cable clutter using True 1 compatible input and output connections.

Flexible DMX Connections

Includes both 3-pin and 5-pin DMX input and output connections for maximum compatibility.

RDM Enabled

Allows for remote addressing and troubleshooting directly from an RDM-compliant controller.

Selectable LED Output

Match the output of legacy Rogue R2X Spot fixtures for seamless integration into existing rigs.

Selectable PWM Settings

Ensure flicker-free performance on camera by choosing the appropriate Pulse Width Modulation setting.

Versatile DMX Profiles

Offers both simple and complex DMX channel profiles to suit various programming needs.

What’s Included

  • Rogue R2E Spot
  • Neutrik powerCON power cord
  • 2 140D Omega brackets with mounting hardware

Additional information

Optical

Light Source: 1 LEDs (CW) 350 W, (5 A), 7057 K, 50,000 hours life expectancy
Color Temperature (at full): 7057 K
Front lens diameter: 90mm
CRI: 70.4
Beam Angle: 15.9°
Field Angle: 18.1°
Cutoff Angle: 20.3°
Lumens – Source: 24,500
Lumens – Output: 16,345
Illuminance (total): 11,345 lux @ 5 m
Selectable LED Power output: 50-100
Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
Construction / Physical

Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
Weight (single unit): 31.2 lb (14.2 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Connections

Power Connection: Edison (local) plug to Seetronic PowerKon
Power Input: Seetronic PowerKon
Power Output: Seetronic PowerKon
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Compatible Accessories

Clamps
Neutrik powerCON cables
DMX Cables
Flight Cases
Flight Cases CP rack
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt.
Colors (1): 8 + white, split colors, continuous scroll at variable speeds
Colors (2): 8 + white, split colors, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds.
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating) size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
Framing Shutters: No
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 22 Hz
Standalone Color Mixing: No
Color Temperature Presets: No
Move-in-Black: Yes
Control

Control Protocol: DMX, RDM
DMX Channels: 19 or 22
Modes/Personalities: 2 personalities (19, 22)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power and Current: 481 W, 4.05 A @ 120 V, 60 Hz
Power and Current: 472 W, 2.32 A @ 208 V, 60 Hz
Power and Current: 469 W, 2.13 A @ 230 V, 50 Hz
