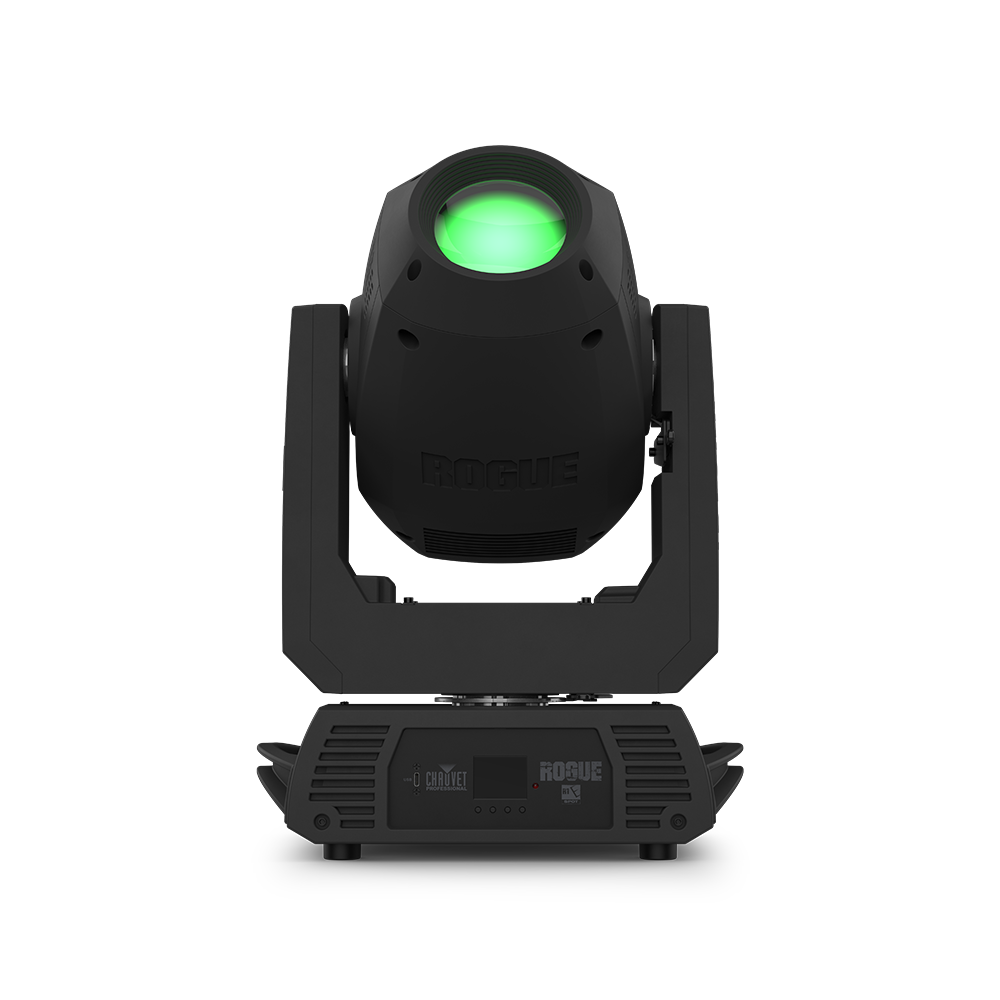

Chauvet Professional - ROGUE R1E Spot Front right of compact moving head spotChauvet Professional - ROGUE R1E Spot Front right of compact moving head spot

Chauvet Professional – ROGUE R1E Spot

Chauvet Professional

A compact and lightweight moving yoke spot that delivers intense output from a 200W LED engine, offering a full effects package with a rotating prism, dual gobo wheels, motorized iris, and frost for versatile beam shaping.

Perfect for mobile entertainers, small to medium-sized venues, and lighting designers seeking to expand an existing rig with a feature-packed yet compact spot fixture.

Features

  • Delivers intense, crisp beams from a powerful 200W cool white LED engine.
  • Create dynamic gobo morphing effects with one rotating and one static gobo wheel.
  • Features a color wheel with 8 brilliant colors, split-color ability, and continuous scroll.
  • Supports both DMX and RDM protocols with 3-pin and 5-pin DMX connections.
  • Selectable PWM settings ensure flicker-free performance for broadcast and video applications.
  • Selectable LED output allows for seamless matching with legacy Rogue R1X Spot fixtures.
SKU: ROGUER1ESPOT Categories: , , ,

Description

Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a color wheel with eight brilliant colors + white + split colors. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R1X Spots in your rig.

Features

Compact 200W LED Spot

A fully featured and lightweight moving yoke fixture powered by an intense 200W LED light engine.

Dual Gobo Wheels

Includes one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel for dynamic pattern effects.

Seamless Gobo Morphing

Create perfect visual transitions by morphing between the two gobo wheels.

Advanced Beam Shaping

Utilize the built-in iris, 3-facet prism, and frost filter for total beam control.

Smooth 16-Bit Dimming

Achieve exceptionally smooth fades with precise 16-bit control of the master dimmer.

Power Linking Connections

True 1 compatible power input and output connections allow for linking multiple fixtures.

Flexible DMX Connections

Equipped with both 3-pin and 5-pin DMX input and output connections for versatile setups.

RDM Enabled

Allows for remote addressing and troubleshooting, simplifying fixture management.

Selectable LED Output

Match the output of legacy Rogue R1X Spots with selectable maximum power settings.

Flicker-Free On Camera

Selectable PWM settings ensure flicker-free operation for video and broadcast applications.

Versatile DMX Profiles

Choose between simple and complex DMX channel profiles for programming flexibility.

What’s Included

  • Rogue R1E Spot
  • Seetronic PowerKon power cord
  • 2 140D Omega brackets with mounting hardware

Additional information

Optical

Light Source: 1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy
Color Temperature (at full): 7423 K
Front lens diameter: 90mm
CRI: 68
Beam Angle: 15.3°
Field Angle: 18.7°
Cutoff Angle: 20.3°
Lumens – Source: 17,900
Lumens – Output: 12,210
Illuminance (total): 9,021 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
Construction / Physical

Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
Weight (single unit): 31.2 lb (14.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
Software update: USB-C
Control

Control Protocol: DMX, RDM
DMX Channels: 16 or 19
Modes/Personalities: 2 personalities (16, 19)
Certifications / Qualifications

Certifications:CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 270° pan/270°, 180°, 90° tilt
Colors: 8 + white, split colors, continuous scroll at variable speeds: Gobos (1)
7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 22 Hz
Move in Black: Yes
Connections

Power Connection: Edison (local) plug to Seetronic PowerKon
Power Input: Seetronic PowerKon
Power Output: Seetronic PowerKon
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V
Power and Current: 315 W, 2.63 A @ 120 V, 60 Hz
Power and Current: 306 W, 1.50 A @ 208 V, 60
Power and Current: 303 W, 1.36 A @ 230 V, 50 Hz
