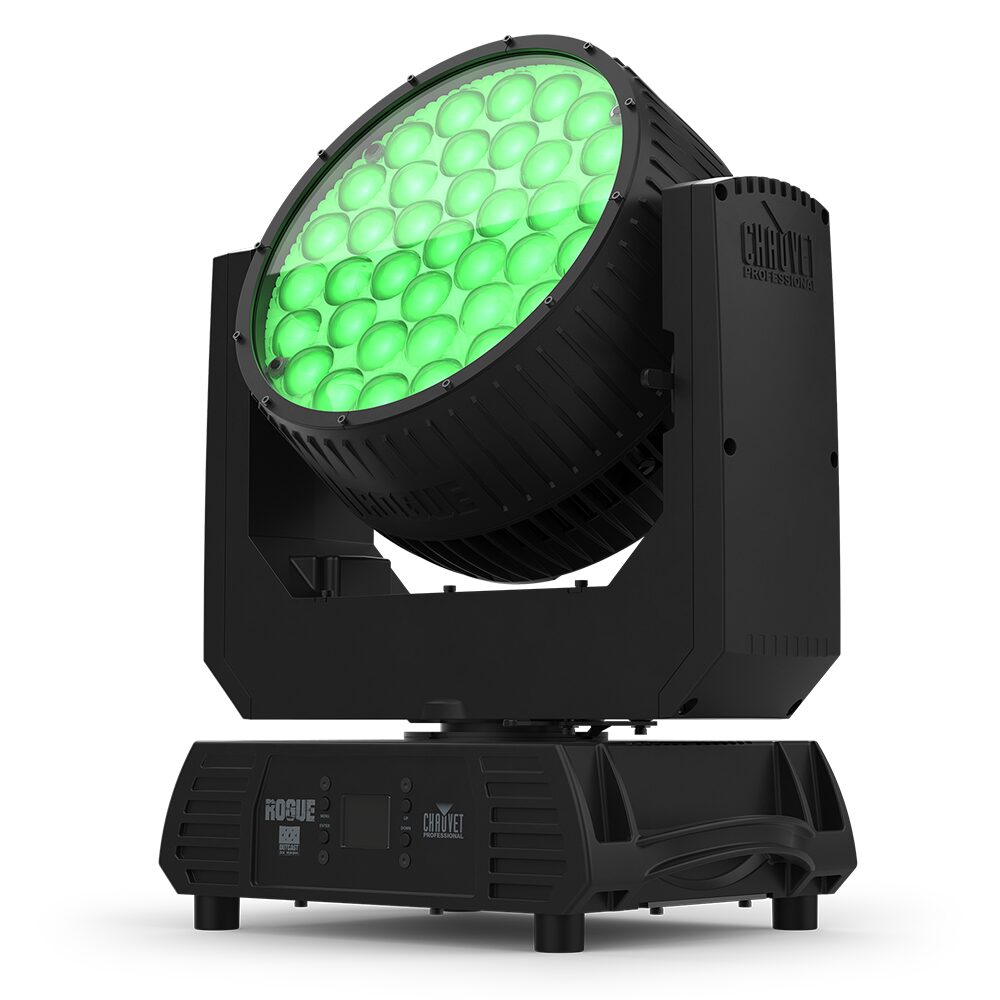

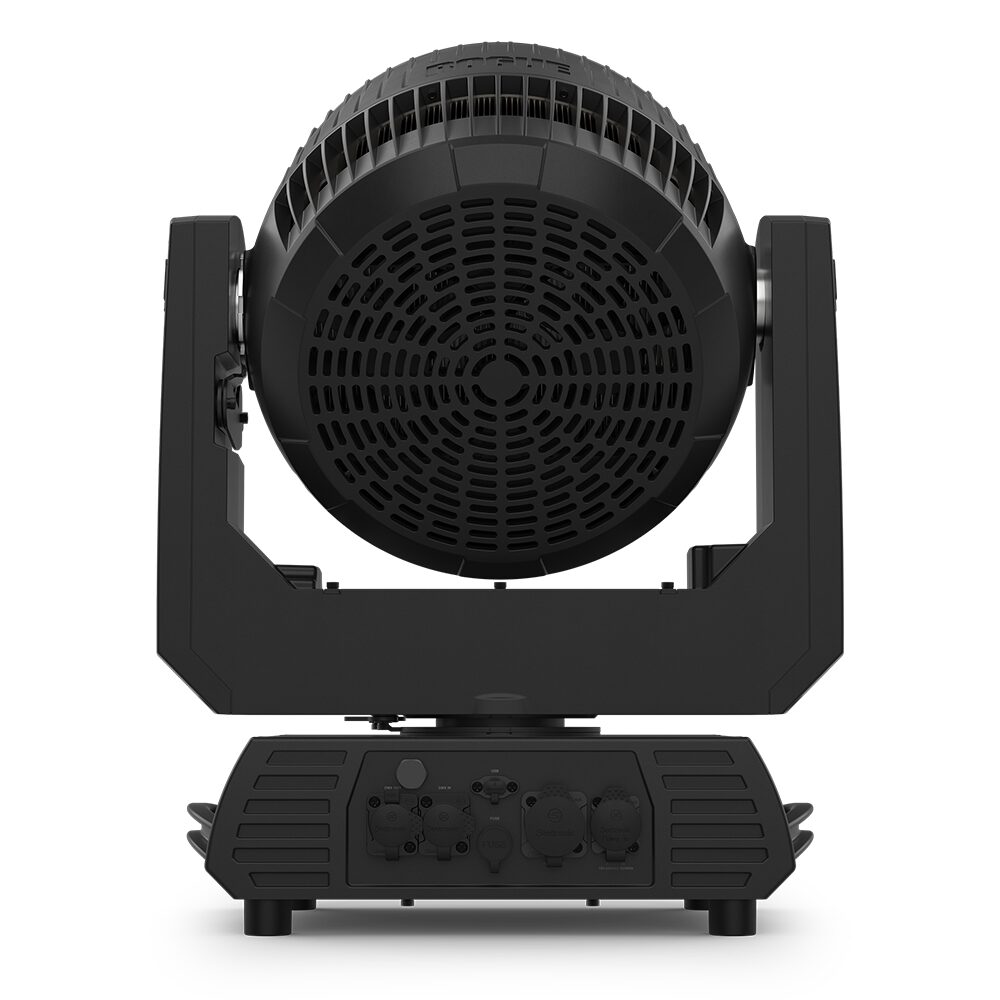

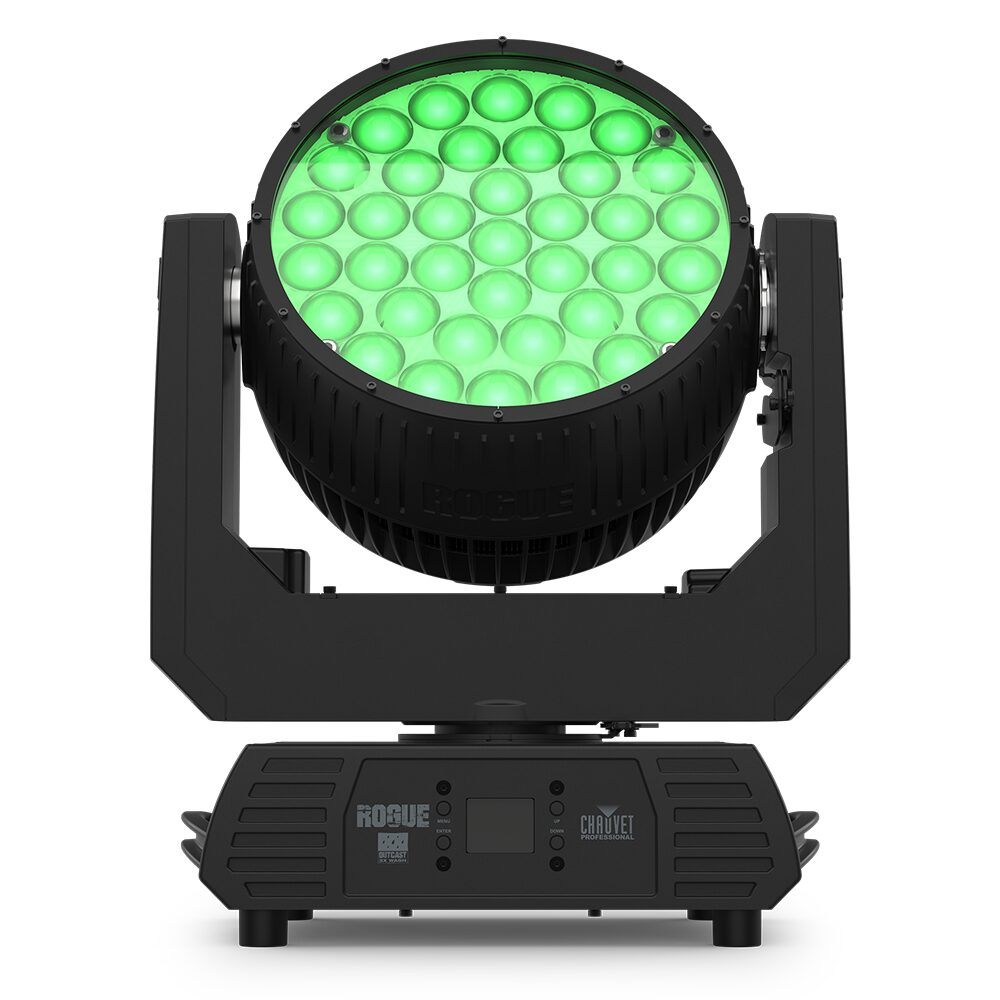

Chauvet Professional – Rogue Outcast 3X Wash

Chauvet Professional

An IP65-rated LED wash fixture featuring a fast zoom, nine pixel-mappable zones, and 37 powerful RGBW LEDs that deliver excellent color blending and a strong output.

Perfect for a wide range of applications from touring and outdoor festivals to on-camera use, especially in environments demanding durability against the elements.

Features

  • Generates a powerful, even field of light from thirty-seven 25 W RGBW LEDs.
  • Offers a versatile zoom range from a tight 9.3° beam to an expansive 62.6° wash.
  • Built with a rugged yet lightweight aluminum and magnesium alloy IP65-rated housing.
  • Ensures flicker-free on-camera operation with selectable PWM and a calibrated white setting.
  • Achieves exceptionally smooth fades with 16-bit dimming and six distinct dimming modes.
  • Provides flexible programming with four DMX personalities and RDM for remote setup.
SKU: ROGUEOUTCAST3XWASH Categories: , , ,

Description

Rogue Outcast 3X Wash brings a fast zoom from beam to wash, the power to punch through fog or haze, and alloy-armored IP65-rated durability that withstands the elements, from dust to rain, indoors or out. Offering the convenience of selecting simple or complex DMX personalities, this versatile workhorse suits the widest range of applications, including on-camera use with its user selectable calibrated white. 37 bright 25W RGBW LEDs occupy 9 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.

Features

Advanced RGBACM Color Engine

The integrated RGBACM engine produces a wide palette of vibrant colors and high-quality whites, ensuring superior color rendering for any application.

Compact And Discreet Form

Its small footprint allows for easy and unobtrusive installation in venues where space is limited, without sacrificing powerful output or performance.

Optimized For Key Venues

Engineered specifically for the nuanced demands of broadcast, theater, and worship, delivering consistent, high-fidelity light that enhances any production.

Professional Control And Operation

Offers flexible control options for seamless integration into existing lighting rigs, providing the reliability and precision required for professional use.

What’s Included

  • Rogue Outcast 3X Wash
  • Seetronic PowerKon IP65 power cord
  • (2) 140D Omega brackets with mounting hardware

Additional information

Optical

Light Source: 37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 9.3° to 33.9°
Field Angle: 11.6° to 49.5°
Cutoff angle: 13.1° to 62.6°
Zoom Angle: 9.3° to 62.6°
Lumens – Source: 17,000
Lumens – Output: 13,440
Illuminance:
Illuminance (9.3°): 18,260 lux @ 5 m
Illuminance (62.6°): 1,556 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Construction/Physical

Dimensions: 15.59 x 11.73 x 17.20 in (396 x 298 x 437 mm)
Dimensions (shipping size): 23.62x 14.17 x 18.70 in (600 x 360 x 475)
Weight: 38.2 lb. (17.38kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer.
Control

Control Protocol: DMX, RDM
DMX Channels: 21, 62, 71, 107
Modes/Personalities: 4 personalities
Certifications/Qualifications

Certifications: CE, MET, FCC, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use
Noise Levels:
Noise Level (Idle): 22.8 dB(A) @ 1 m
Noise Level (Auto): 47.5 dB(A) @ 1 m
Noise Level (Eco): 34.3 dB(A) @ 1 m
Noise Level (Full): 47.3 dB(A) @ 1 m
Noise Level (Max): 37.2 dB(A) @ 1 m
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 230° Tilt.
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No
Connections

Power Connection: Edison (local) plug to Seetronic PowerKON IP65
Power Input: Seetronic PowerKON IP65
Power Output: Seetronic PowerKON IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
Power and Current: 711 W, 5.98 A @ 120 V, 60 Hz
Power and Current: 701 W, 3.40 A @ 208 V, 60 Hz
Power and Current: 695 W, 3.07 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
Seetronic IP65 PowerKon cables
DMX Cables
UPLOAD 08 software uploader

Downloads

Data Sheet Download
User Guide Download
