Chauvet Professional – Rogue Outcast 3 Spot Moving Head Front RightChauvet Professional – Rogue Outcast 3 Spot Moving Head Front Right

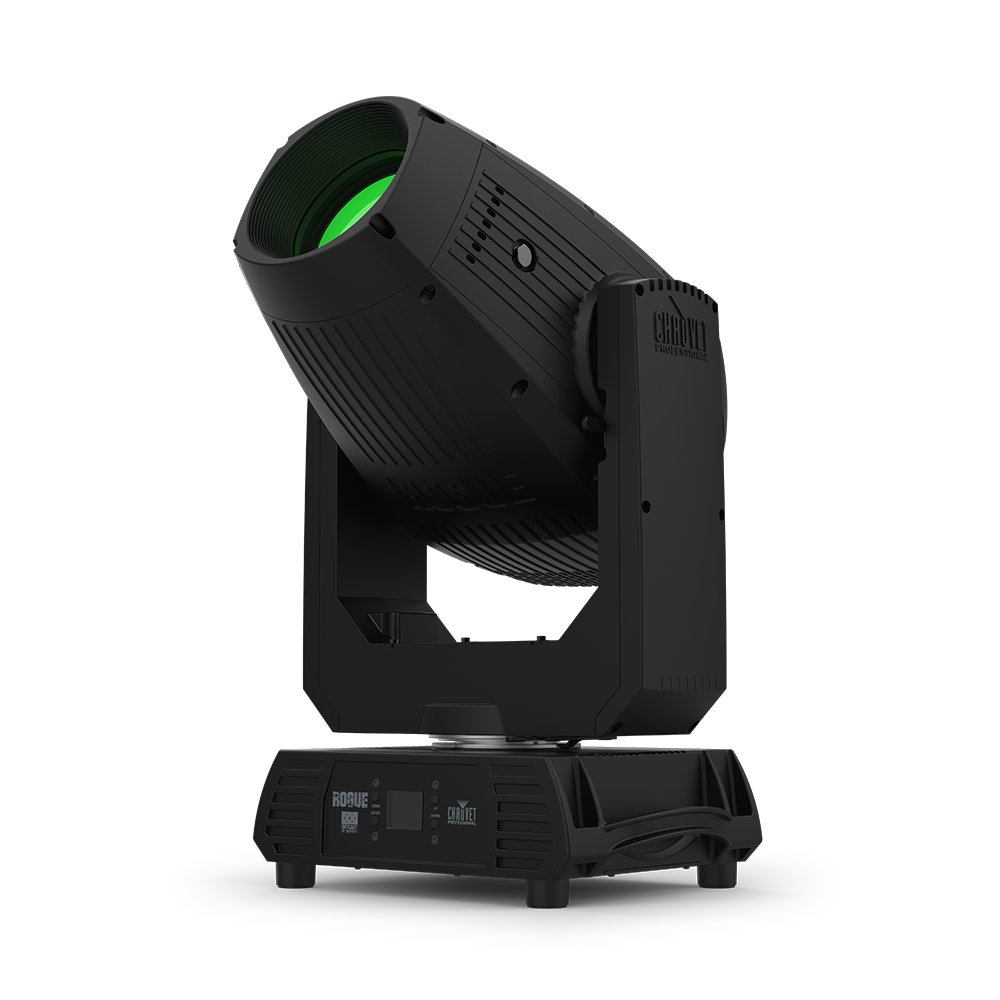

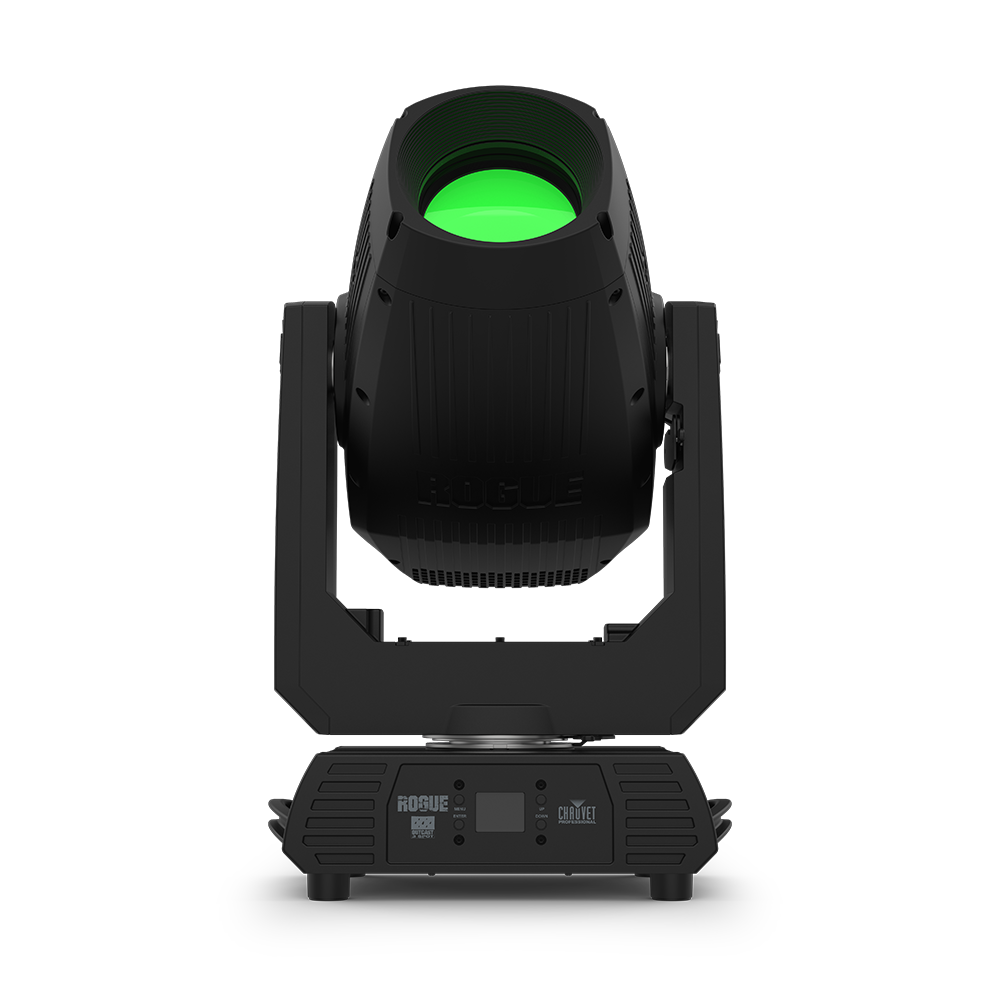

Chauvet Professional – Rogue Outcast 3 Spot

Chauvet Professional

A compact IP65 LED moving head spot that combines a wide zoom range with a full effects package including dual color wheels, dual gobo wheels, iris, prism, and frost.

Ideal for both outdoor events and indoor installations, its durable housing provides low-maintenance protection against the elements as well as particulates like fog and haze.

Features

  • Powered by a potent 300 W cool white LED with a 7044 K color temperature.
  • Offers one rotating and one fixed gobo wheel for seamless morphing and dynamic visual effects.
  • Create layered looks using two independent wheels with split-color and scrolling capabilities.
  • Provides advanced beam shaping with an integrated iris, 5-facet prism, and frost filter.
  • Features a versatile motorized zoom from a tight 4.9° beam to a wide 38.7° wash.
  • Supports DMX and RDM protocols for versatile control and remote fixture management.
SKU: ROGUEOUTCAST3SPOT Categories: , , ,

Description

Rogue Outcast 3 Spot is a compact IP65 LED moving head that combines lightweight alloy technology with a wheelhouse that delivers the color possibilities of dual color wheels, the dynamic morphing effects of dual gobo wheels, the beauty of smooth 16-bit fades, and a wide zoom range that adds flexibility to achieving desired coverage. Iris, prism and frost round out its effects, and its durable housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.

Features

IP65 Rated Construction

This LED spot is encased in a lightweight aluminum and magnesium alloy, making it durable and ready for any environment.

Wide Motorized Zoom Range

Offers a flexible zoom range from 4.9° to 38.7° to easily cover stages and surfaces from a distance.

Seamless Gobo Morphing

Achieve perfect transitions and morphing effects between the two gobo wheels for dynamic visuals.

Dual Color Wheels

Features two independent wheels with seven colors each, plus split-color ability and continuous variable speed scrolling.

Dual Gobo Wheels

Expand your creative options with one fixed scrolling gobo wheel and one rotating, interchangeable gobo wheel.

Advanced Beam Control

Shape and modify the beam with a built-in iris, a 5-facet prism, and a frost filter for wash effects.

High Resolution 16-Bit Dimming

Create exceptionally smooth fades and achieve ultimate lighting control with beautiful 16-bit LED dimming.

Weatherproof Power Linking

Safely link power between multiple units in any environment using IP65 rated input and output connections.

Professional DMX Connections

Integrates easily into professional lighting rigs with standard 5-pin DMX input and output connections.

Remote Device Management

RDM is enabled for convenient remote addressing and troubleshooting directly from your console.

Flicker-Free On Camera Operation

Selectable PWM settings ensure your lighting remains completely flicker-free for broadcast and recording applications.

Versatile DMX Profiles

Choose between simple and complex DMX channel profiles for ultimate programming flexibility and control.

Easy Software Updates

Keep your fixture’s software current with a convenient onboard USB-C port for easy uploads.

Video

Rogue Outcast 3 Spot • Rogue Outcast 2 Beam • Rogue Outcast 2 Hybrid | CHAUVET Professional

Meet the Family of True Outsiders that can Hang Anywhere.Light on Load. Light on Upkeep. IP65-Armored.

What’s Included

  • Rogue Outcast 3 Spot
  • Seetronic Powerkon IP65 power cord
  • (2) Omega brackets with mounting hardware

Additional information

Optical

Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy
Color Temperature (at full): 7044 K
Front lens diameter: 119 mm
CRI: 70
Beam Angle: 4.9° to 33.7°
Field Angle: 5.5° to 38°
Cutoff Angle: 5.6° to 38.7°
Zoom Range: 4.9° to 38.7°
Lumens – Source: 20,000
Lumens – Output: 14,989
Illuminance:
(4.9°): 56,916 lux @ 5 m
(38.7°): 2,145 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Construction / Physical

Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
Weight: 51 lb (23.2 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

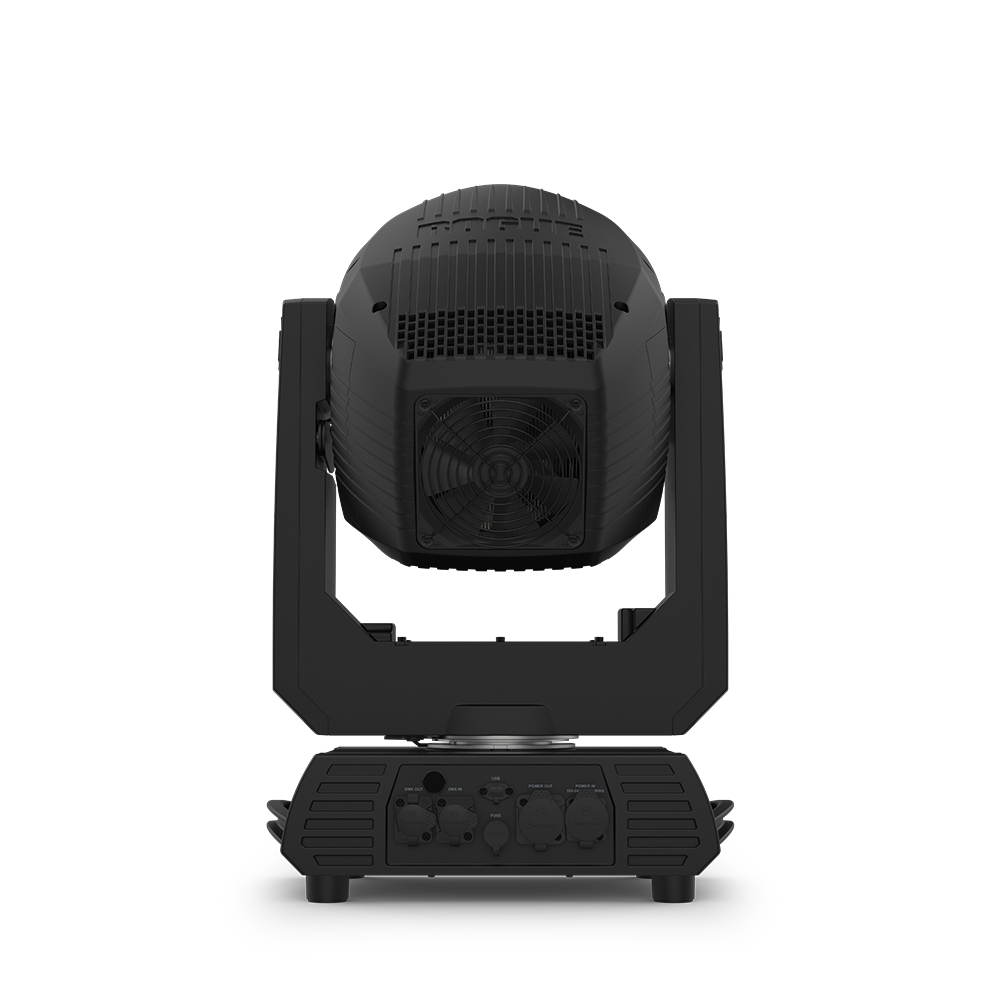

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Certifications and Qualifications

Certifications: CE, MET, UKCA
IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc)
80° C / 176° F
Maximum Ambient Temperature (Ta)
45° C / 113° F
Noise Levels:
Idle: 24.2 dB(A) @ 1 m
Max: 33.9 dB(A) @ 1 m
Auto: 34.5 dB(A) @ 1 m
Eco: 31.0 dB(A) @ 1 m
Full: 46.9 dB(A) @ 1 m
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors (1): 7 + white, split colors, continuous scroll at variable speeds
Colors (2): 7 + white, split colors, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move in Black: Yes
Control

Control Protocol: DMX, RDM
DMX Channels: 20 or 25
Modes/Personalities: 2 personalities (20, 25)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V; 6 units @ 240 V
Power and Current
Electrical Detail: 510 W, 5.13 A @ 100 V, 60 Hz
Electrical Detail 2: 506 W, 4.24 A @ 120 V, 60 Hz
Electrical Detail 3: 493 W, 2.43 A @ 208 V, 60 Hz
Electrical Detail 4: 494 W, 2.19 A @ 230 V, 50 Hz
Electrical Detail 5: 494 W, 2.12 A @ 240 V, 50 Hz
Compatible Accessories

Clamps
IP65 5 pin DMX Cables
IP65 PowerKon Extension cables
Flight Case

Downloads

Data Sheet Download
User Guide Download
