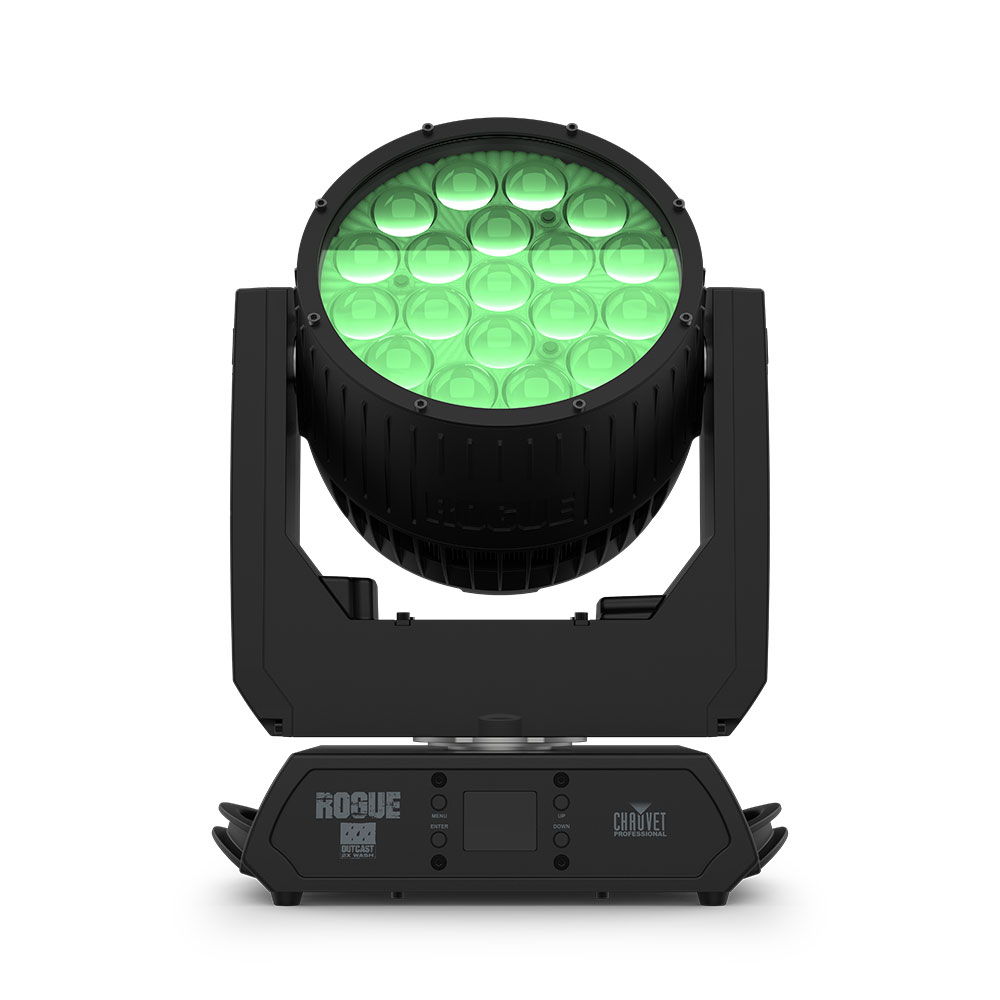

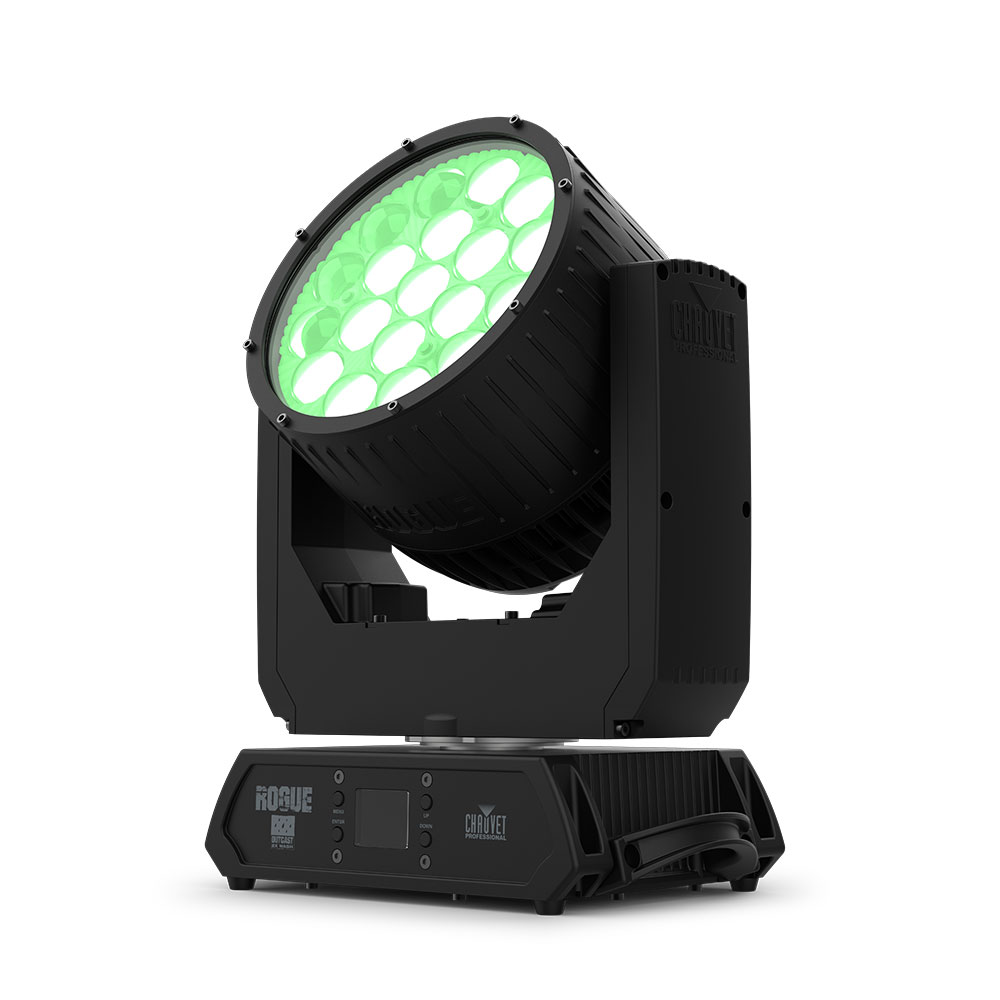

Chauvet Professional - Rogue Outcast 2X Wash Moving Head Front RightChauvet Professional - Rogue Outcast 2X Wash Moving Head Front Right

Chauvet Professional – Rogue Outcast 2X Wash

Chauvet Professional

A lightweight IP65-rated LED wash fixture featuring nineteen pixel-mappable RGBW quad-LEDs, an expansive zoom range, and smooth 16-bit dimming for vibrant color blending and effects.

Perfect for touring, festivals, broadcast, and any indoor or outdoor event requiring a versatile and robust wash light that performs well on camera.

Features

  • Powered by nineteen potent 25 W RGBW LEDs for exceptional brightness and color mixing.
  • Delivers a versatile zoom range from a narrow 8° to a very wide 66°.
  • Offers five individually controlled zones for creating dynamic pixel-mapping effects.
  • Built with a durable, lightweight aluminum and magnesium alloy IP65-rated housing.
  • Provides a wide 2800 to 10000 K color temperature range with selectable calibrated white.
  • Ensures flicker-free on-camera performance with user-selectable Pulse Width Modulation.
SKU: ROGUEOUTCAST2XWASH Categories: , , ,

Description

Rogue Outcast 2X Wash is a lightweight IP65 wash that goes wide and hangs anywhere, with a wide zoom range of 8° to 66°, wide 2800 to 10000 K color temp range, wide selection of simple to complex DMX personalities, and a durable alloy housing that suits this versatile workhorse to the widest range of both indoor and outdoor applications, including on-camera use with its user selectable calibrated white. 19 bright 25W RGBW quad-LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.

Features

IP65 Rated RGBW Wash Fixture

A fully featured yoke wash fixture with an IP65 rating, powered by vibrant RGBW LEDs.

Durable Lightweight Body

Constructed from a rugged yet lightweight aluminum and magnesium alloy for durability and easy handling.

16-Bit Dimming Control

Achieve exceptionally smooth fades with 16-bit resolution for individual colors and the master dimmer.

Wide Zoom Range

Offers an expansive zoom range from a tight 8 degrees to a wide 66 degrees for flexible beam control.

Powerful LED Source

Equipped with nineteen potent 25-watt RGBW LEDs for intense brightness and rich color mixing.

Professional DMX Connections

Includes industry-standard 5-pin DMX input and output connections for reliable control.

Zoned Pixel Control

Create compelling visual effects using five individually controllable zones of LEDs for pixel mapping.

Fast and Smooth Movement

Delivers quick, fluid, and precise pan and tilt movement for dynamic beam positioning.

RDM Enabled

Simplify fixture setup and maintenance with Remote Device Management for remote addressing and troubleshooting.

Selectable PWM

Ensures flicker-free performance on camera with user-selectable Pulse Width Modulation options.

Calibrated White Presets

Includes user-selectable calibrated white options with a 7500K default for consistent color temperature.

Multiple Dimming Modes

Choose from six distinct dimming modes to achieve the ideal fade for any application.

Intuitive OLED Display

An easy-to-read OLED display with a simple menu makes onboard configuration quick and effective.

Versatile DMX Profiles

Provides both simple and complex DMX channel profiles for maximum programming flexibility.

USB-C Software Updates

Keep the fixture’s software current with easy uploads via the convenient USB-C port.

Video

Rogue Outcast 1L Beam & Rogue Outcast 2X Wash | CHAUVET Professional

Whatever you think you know about IP65, think again. These Outcasts are rewriting the rules.

What’s Included

  • Rogue Outcast R2X Wash IP
  • Seetronic® powerCON® power cord

Additional information

Optical

Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 8° to 36.1°
Field Angle: 11.8° to 53°
Cutoff Range: 17.5° to 66.1°
Zoom Range: 8° to 66.1°
Lumens – Source: n/a
Lumens – Output: 6,258
Illuminance:
Illuminance (11.8°): 8,713 lux @ 5 m
Illuminance (53°): 694 lux @ 5 m
Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Construction / Physical

Dimensions: 11.92×8.58×14.1″ (303x218x361mm)
Weight: 21.2 lb. (9.6 kg)
Exterior Color: Black
Housing Material: Aluminum/magnesium alloy, High-impact flame-retardant polymer
Control

Control Protocol: DMX, RDM
DMX Channels: 15, 17, 22, 33, 54, or 56
Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
Certification / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP65 (temporary wet location)
Noise Levels:
Noise Level (Idle): 0.9 dB(A) @ 1 m
Noise Level (Max): 42.6 dB(A) @ 1 m
Noise Level (Full): 44.5 dB(A) @ 1 m
Noise Level (Eco): 27.8 dB(A) @ 1 m
Noise Level (Auto): 27.7 dB(A) @ 1 m
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 6
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No
Connections

Power Connection: Bare ended to Seetronic IP65 PowerKon
Power Input: Seetronic IP65 PowerKon
Power Output: Seetronic IP65 PowerKon
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
Power and Current: 291 W, 2.47 A @ 120 V, 60 Hz
Power and Current: 284 W, 1.41 A @ 208 V, 60 Hz
Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
Seetronic IP65 PowerKon cables
DMX Cables
Flight Case:CP6CASER2W

Downloads

Data Sheet Download
User Guide Download
