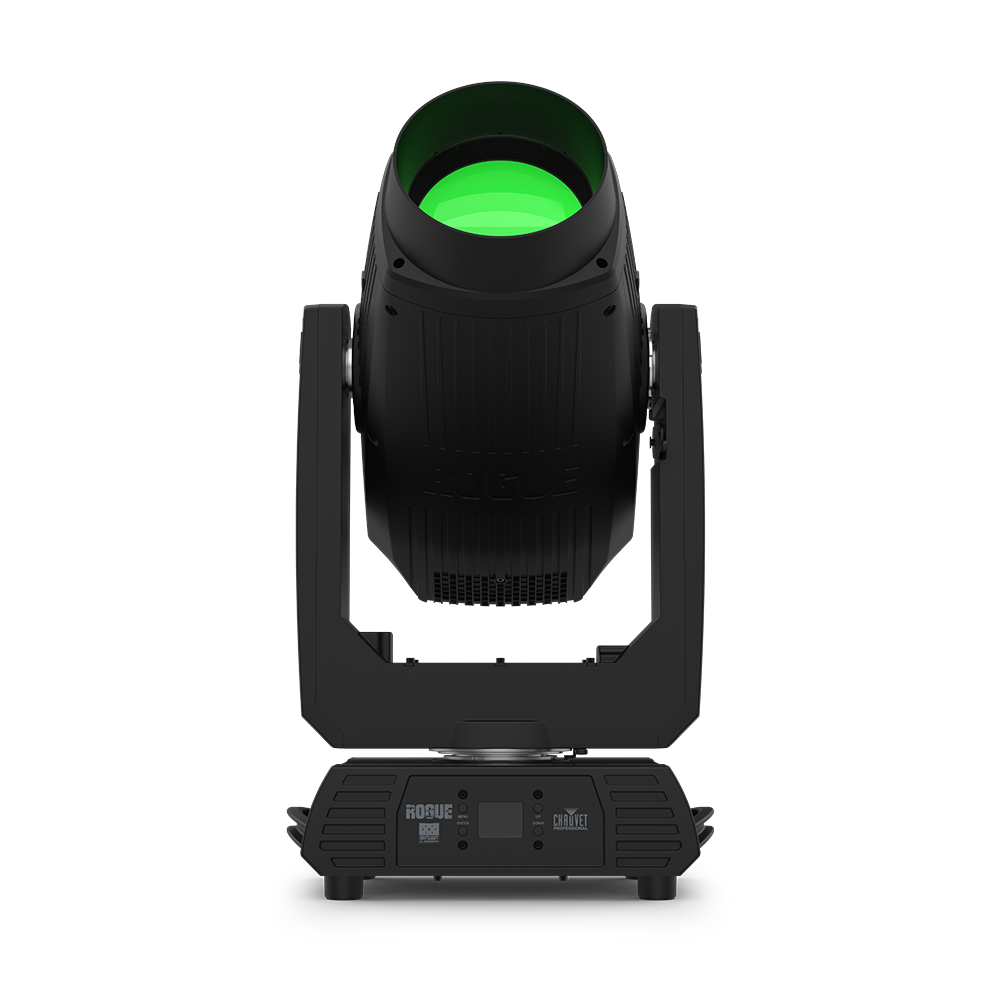

Chauvet Professional – Rogue Outcast 2 Hybrid Moving Head Front RightChauvet Professional – Rogue Outcast 2 Hybrid Moving Head Front Right

Chauvet Professional – Rogue Outcast 2 Hybrid

Chauvet Professional

A rugged IP65-rated hybrid moving head that delivers powerful spot, beam, and wash effects using a bright 400W lamp, an expansive zoom range, dual gobo wheels, and layerable prisms.

Its durable, all-weather design makes it the ideal all-in-one workhorse for outdoor festivals, concert tours, and any production requiring versatile lighting in demanding conditions.

Features

  • Features a powerful 400W Ushio lamp with an 8000K color temperature and 6,000-hour life.
  • Delivers a precise zoom from a tight 0.9° beam to a wide 14.5° spot.
  • Creates complex aerial effects with layerable 5-facet linear and 8-facet round prisms.
  • Offers two gobo wheels with 9 rotating glass and 13 static metal patterns.
  • Housed in a lightweight, IP65-rated aluminum/magnesium body for all-weather reliability.
  • Supports DMX and RDM protocols with flexible 20 and 25-channel control personalities.
SKU: ROGUEOUTCAST2HYBRID Categories: , , , , ,

Description

Rogue Outcast 2 Hybrid is a rugged IP65-rated Spot/Beam/Wash moving head with a lightweight alloy body housing a sophisticated optical system that delivers incredible brightness and a refined linear zoom that smoothly spans an expansive range of narrow to wide beam angles in every mode. The intense output of its 400W 8000K lamp can be precisely focused to project sharp midair beams and perfectly crisp spots or subtly softened with its frost and beam flattening features. Create stunning looks with dual gobo wheels and layerable prisms or shape luscious color washes with this versatile Outcast.

Features

Versatile 3-in-1 Fixture

A high-powered Spot, Beam, and Wash combination fixture designed for a wide range of applications.

Long Life Ushio Lamp

Equipped with an Ushio 400W, 8000K lamp that provides a 6,000-hour life expectancy.

IP65 Weatherproof Construction

Features a durable and lightweight aluminum/magnesium housing for reliable outdoor use.

Dual Layerable Prisms

Maximize visual impact with individually controllable 5-facet linear and 8-facet round prisms that can be layered.

Frost and Beam Flattening

Includes frost and beam flattening options to achieve smooth and even light distribution.

Narrow Beam Angle

Creates tight, focused air effects with a sharp 0.9° narrow beam angle.

Expansive Zoom Range

Offers a wide linear zoom in beam, spot, and wash modes for versatile coverage in any venue.

Dual Gobo Wheels

Provides massive visual effect with 9 rotating and 13 static gobos for numerous pattern options.

DMX and RDM Control

Supports both DMX and RDM protocols for comprehensive remote control and fixture management.

True 1 Power Input

Ensures a secure and reliable power connection with a True 1 compatible input.

OLED Display

An easy-to-read OLED display with a simple menu allows for quick and effective onboard adjustments.

Versatile DMX Channel Profiles

Includes both simple and complex DMX channel profiles for ultimate programming flexibility.

USB-C Software Port

Allows for convenient software uploads and updates through a modern USB-C port.

Video

Rogue Outcast 3 Spot • Rogue Outcast 2 Beam • Rogue Outcast 2 Hybrid | CHAUVET Professional

Meet the Family of True Outsiders that can Hang Anywhere.

What’s Included

  • Rogue Outcast 2 Hybrid
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware

Additional information

Optical

Light Source: Ushio NSL-400L W lamp, 8000 K, 6,000 hours life expectancy
Color Temperature (at full): 7009K
Front Lens size: 160mm
CRI: 86.1
Lumens – Output: 16,033
Spot Mode:
Beam Angle: 1.4° to 14.5°
Field Angle: 2.8° to 30°
Cutoff Angle: 3.5° to 37.2°
Zoom Range: 1.4° to 37.2°
Illuminance (1.4°): 790,297lux @ 5 m
Illuminance (37.2°): 6,787 lux @ 5 m
Beam Mode:
Beam Angle: 0.9° to 6.7°
Field Angle: 1.7° to 18.1°
Cutoff Angle: 2.1° to 20.7°
Zoom Range: 0.9° to 20.7°
Illuminance (0.9°): 180,594 lux @ 15 m
Illuminance (20.7°): 2,158 lux @ 15 m
Wash Mode:
Beam Angle: 5.4° to 32.1°
Field Angle: 9.5° to 39.4°
Cutoff Angle: 11.9° to 41.7°
Zoom Range: 5.4° to 41.7°
Illuminance (9.1°): 30,289 lux @ 5 m
Illuminance (41.7°): 1,309 lux @ 5 m
Construction / Physical

Dimensions: 14.41 x 10.04 x 27.76 in (366 x 255 x 705 mm)
Weight: 54.4 lb (24.7 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer

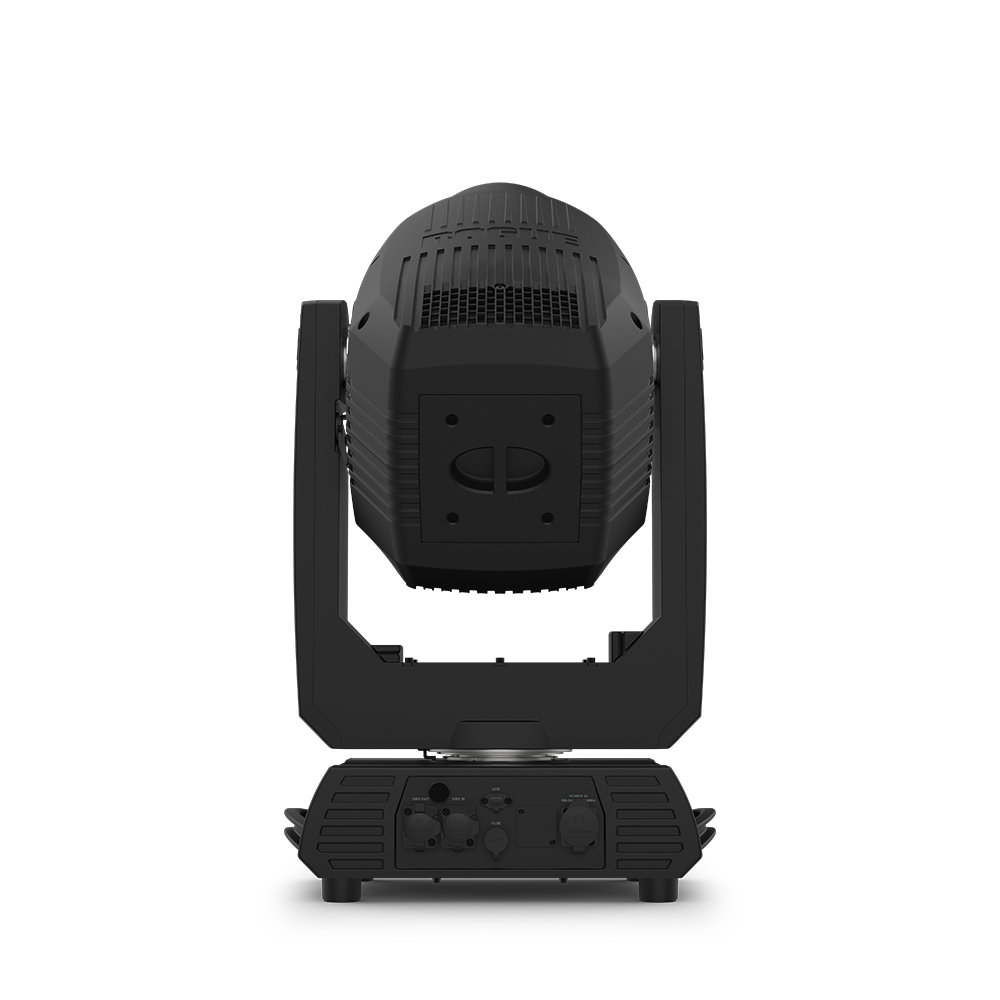

Connections

Power Connection: Bare-wired to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated
Cable Length (power): 5 ft (1.5 m)
Certifications / Qualifications

Certifications: CE, MET, CB, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

Clamps
DMX Cables
Flight Cases
Dynamic Effects

Pan and Tilt: 540°/260°
Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
Colors: 13 + White, split colors, continuous scroll at variable speeds
Gobos (1): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 13 + open (13 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 16 mm (outside), 12 mm (image), 1.1 mm (max. thickness)
Dimmer: Motorized
Shutter/Strobe: Motorized
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Prism (1): 5 Facets, motorized, rotating
Prism (2): 8 Facets, motorized, rotating
Move-in-Black: Yes
Control

Control Protocol: DMX, RDM
DMX Channels: 20 or 25
Modes/Personalities: 2 personalities (20, 25)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 581 W, 4.95 A @ 120 V, 60 Hz
Power and Current: 565 W, 2.76 A @ 208 V, 60 Hz
Power and Current: 568 W, 2.53 A @ 230 V, 50 Hz
