Chauvet-Professional-Rogue-Outcast-1M-Beam-Front-RightChauvet-Professional-Rogue-Outcast-1M-Beam-Front-Right

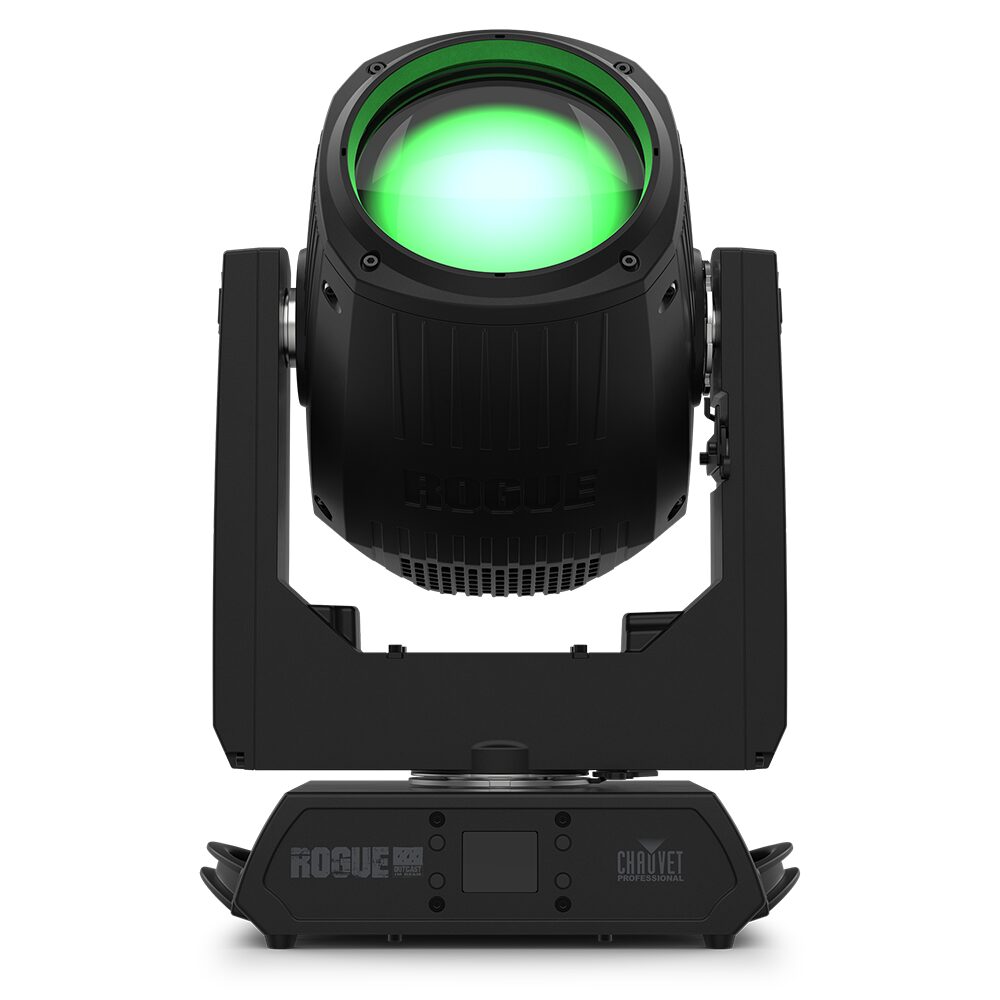

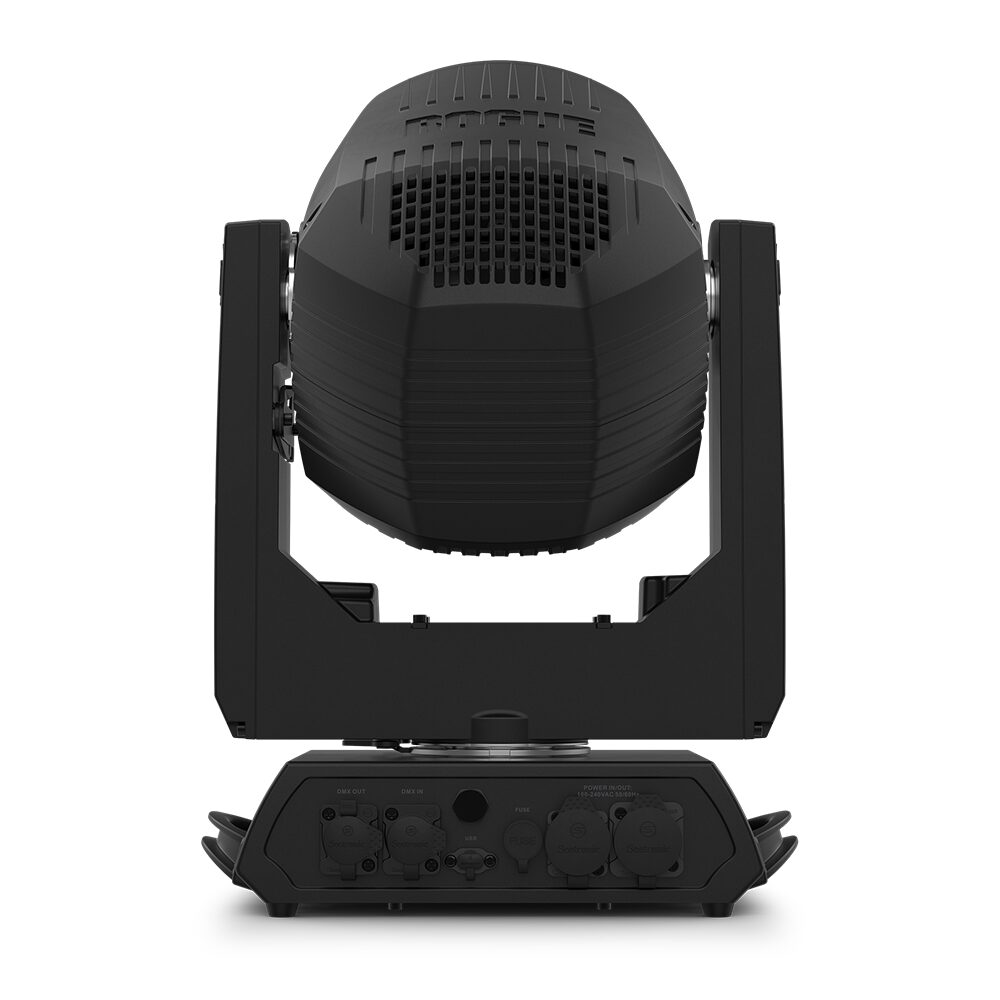

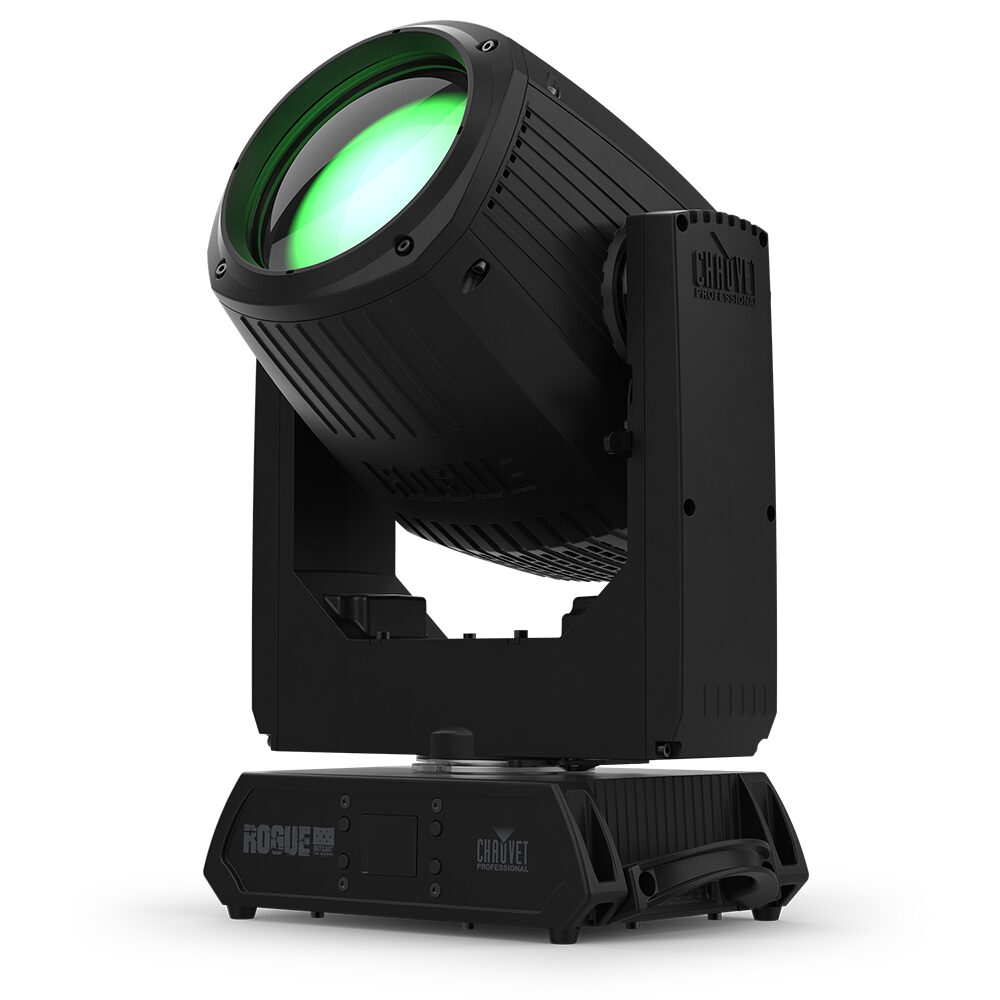

Chauvet Professional – Rogue Outcast 1M Beam

A compact, IP65-rated moving head beam fixture delivering sharp, multi-color beams and stunning aerial effects through continuous 360-degree rotation, a powerful LED engine, dual prisms, and aperture gobos.

Perfect for touring, festivals, and permanent installations where a compact, powerful, and weather-resistant beam fixture is needed for dynamic effects in any environment.

Features

  • Houses a 120W RMB LED engine for a wide color spectrum without a color wheel.
  • Projects a highly focused 1.9° beam for creating crisp, well-defined aerial effects.
  • Offers dual, layerable 6- and 8-facet prisms for creating complex aerial looks.
  • Provides infinite pan and tilt rotation for dynamic, continuous high-speed movement effects.
  • Housed in a lightweight, IP65-rated body for reliable performance and easy event setups.
  • Includes 17 static gobos and a frost filter for versatile beam shaping and wash effects.
SKU: ROGUEOUTCAST1MBEAM Categories: , ,

Description

Spin out with continuous 360 degree rotation. Stand out with a Mint-powered RMB light engine that sets Rogue Outcast 1M Beam apart from the rest of the pack by offering a multi-color LED solution and great optics to produce sharp beams of the highest quality white light and your choice of color. A compact beam fixture that weighs in under thirty pounds, designed to deliver fast and precise performance as well as easy event setups. Create stunning aerial effects with dual overlapping prisms or instantly punch up pencil-thin beams with a selection of aperture gobos. IP65-rated and ready to go anywhere, Rogue Outcast 1M Beam handles outdoor use as well as it handles haze, dust, confetti and other elements in permanent indoor installations with minimum need for upkeep.

Features

High Power IP65 Beam Fixture

A fully featured, high-powered beam fixture housed in a lightweight and durable aluminum and magnesium casing.

Advanced LED Color Mixing

A Red, Mint, and Blue LED source provides full color mixing for a wide spectrum of variations without a color wheel.

Static Gobo Wheel

One wheel features 17 static gobos to create a variety of dynamic aerial effects.

Layerable Prisms

Individually controllable 6- and 8-facet prisms can be layered for more complex looks.

Continuous Pan and Tilt

Achieve endless, fast, and precise movement effects with 360-degree pan and tilt rotation.

Frost Effect

A built-in frost filter provides even light distribution for soft-edged wash effects.

5-Pin DMX Connections

Professional 5-pin DMX input and output connections ensure reliable control.

Tight 1.9° Beam Angle

Project extremely focused and sharp aerial effects with a narrow 1.9-degree beam.

RDM Enabled

Remotely address and troubleshoot the fixture using its RDM (Remote Device Management) capability.

OLED Display

Easily read and navigate settings with a simple and effective menu on the OLED display.

Versatile DMX Profiles

Simple and complex DMX channel profiles offer programming versatility for any application.

USB-C Software Port

Conveniently upload software updates through the fixture’s integrated USB-C port.

What’s Included

  • Rogue Outcast 1M Beam
  • Seetronic Powerkon IP65 power cord
  • 105mm Omega bracket with mounting hardware

Additional information

Optical

Light Source: 1 LEDs (Red,Mint,Blue) 120 W, (3.34A), 50,000 hours life expectancy
Color Temperature (at full): 10,398 K
Front lens diameter: 140 mm
CRI: 80.8
Beam Angle: 1.9°
Field Angle: 2.7°
Cutoff Angle: 3.4°
Lumens (Output): 4,488
Illuminance (total): 117,690 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Construction/Physical

Dimensions: 11.9 x 7.56 x 17.9 in (302 x 192 x 455 mm)
Weight: 27.2 lb (12.34 kg)
Exterior Color: Black
Housing Material: Aluminum/Magnesium diecast
Control

Control Protocol: DMX, RDM
DMX Channels: 21 or 25
Modes/Personalities: 2 personalities (21, 25)
Certifications/Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Noise Levels:
Noise Level (Idle): 15.9 dB(A) @ 1 m
Noise Level (Auto): 38.3 dB(A) @ 1 m
Noise Level (Eco): 15.0 dB(A) @ 1 m
Noise Level (Full): 47.4 dB(A) @ 1 m
Noise Level (Max): 47.3 dB(A) @ 1 m
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Pan and Tilt: 360°/360° total movement
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Gobos (1): 17 + open (metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel (rotating): 6 mm (outside), .6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Motorized
Frost: Motorized
Prism: 6 Facets, motorized, linear, rotating
Prism: 8 Facets, motorized, round, rotating
Strobe Rate: 0 to 30 Hz
Dim Curves: 4
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: ; 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
Power and Current: 232 W, 1.95 A @ 120 V, 60 Hz
Power and Current: 223 W, 1.11 A @ 208 V, 60 Hz
Power and Current: 220 W, .990 A @ 230 V, 50 Hz
Compatible Accessories

Clamps
Seetronic PowerKON cables
DMX Cables
Flight Cases
CP Rack
PowerStream 4 IP

Downloads

Data Sheet Download
User Guide Download
