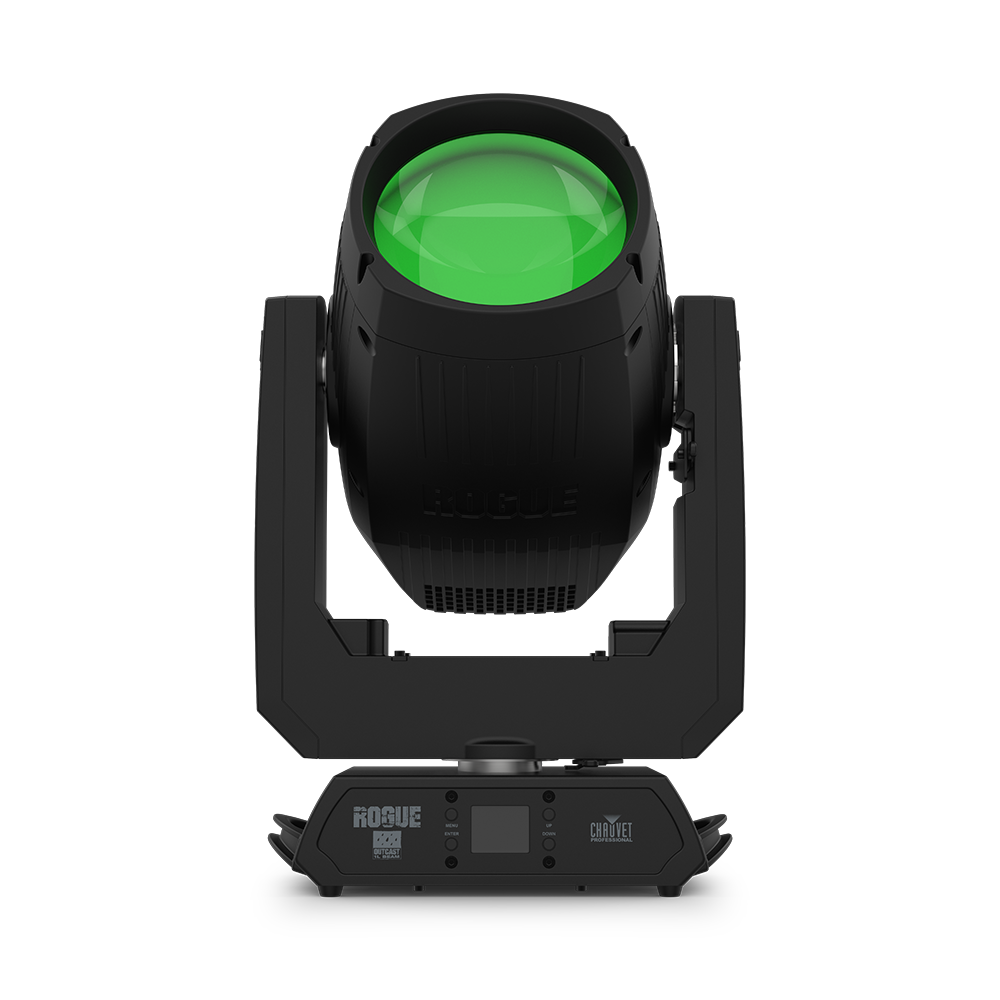

Chauvet Professional – Rogue Outcast 1L Beam Moving Head Front RightChauvet Professional – Rogue Outcast 1L Beam Moving Head Front Right

Chauvet Professional – Rogue Outcast 1L Beam

Chauvet Professional

A lightweight, fully-featured IP65 beam fixture that creates tight, focused aerial effects using a color wheel, a gobo wheel with rotating and static gobos, layerable dual prisms, and frost.

Ideal for both outdoor events and indoor installations, its durable, low-maintenance IP65 design is built to withstand weather as well as particulates like fog and haze.

Features

  • Features a 140W cool white LED engine for intense, bright aerial beam effects.
  • Projects an extremely narrow 1.4° beam for sharp, focused aerial effects.
  • Offers a versatile color wheel with 14 colors plus white and split-color capabilities.
  • A single wheel provides 7 rotating and 7 static gobos for a wide range of patterns.
  • Delivers exceptionally fast and precise pan and tilt movements for dynamic positioning.
  • Supports DMX and RDM protocols for flexible control and remote fixture management.
SKU: ROGUEOUTCAST1LBEAM Categories: , , ,

Description

Rogue Outcast 1L Beam is a lightweight IP65 beam that packs a punch with speed and precision. Its tight 1.4° beam projects extremely focused aerial effects. Create dynamic midair looks with this fully-featured fixture that includes a color wheel, single gobo wheel (with both rotating and static gobos), layerable dual prisms and frost. Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.

Features

High Powered IP65 LED Beam

A fully featured and high-powered LED beam fixture with an IP65 rating for outdoor use.

Durable, Lightweight Construction

Features a robust yet lightweight body made from an aluminum and magnesium alloy.

Precise Pan and Tilt Movement

Delivers exceptionally fast and accurate pan and tilt movements for dynamic positioning.

Dual Layerable Prisms

Create complex aerial effects with individually controllable and layerable 5-facet and 8-facet prisms.

Frost Filter

Includes a frost filter to soften the beam’s edge for wash-style effects.

Professional DMX Connections

Equipped with industry-standard 5-pin DMX input and output connections for reliable control.

Narrow 1.4° Beam Angle

Produces a tight and extremely focused 1.4-degree beam for sharp aerial effects.

RDM Enabled

Allows for remote addressing and troubleshooting of the fixture via RDM protocol.

Combined Gobo Wheel

A single wheel provides 7 rotating and 7 static gobos for a wide range of dynamic pattern effects.

Easy-to-Read OLED Display

Features a clear OLED display with a simple and effective menu for easy onboard configuration.

Versatile DMX Channel Profiles

Offers both simple and complex DMX channel profiles to suit various programming needs.

USB-C Software Port

A convenient USB-C port allows for easy software uploads and updates.

Video

Rogue Outcast 1L Beam & Rogue Outcast 2X Wash | CHAUVET Professional

Whatever you think you know about IP65, think again. These Outcasts are rewriting the rules.

What’s Included

  • Rogue Outcast 1L Beam
  • Seetronic Powerkon IP65 power cord
  • (2) Omega brackets with mounting hardware

Additional information

Optical

Light Source: 1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
Color Temperature (at full): 6928 K
Front lens diameter: 160 mm
CRI: 69.3
Beam Angle: 1.4°
Field Angle: 1.7°
Cutoff Angle: 1.8°
Lumens – Source: 5500
Lumens – Output: 3218
Illuminance (total): 224,670 lux @ 5 m
Construction / Physical

Dimensions: 12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)
Weight: 35.4 lb (16.1 kg)
Exterior Color: Black
Housing Material: Aluminum/Magnesium diecast
Control

Control Protocol: DMX, RDM
DMX Channels: 17 or 19
Modes/Personalities: 2 personalities (17, 19)
Certification / Qualifications

Certifications: CE, MET, UKCA,
IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
Maximum Ambient Temperature (Ta): 45° C / 113° F
Noise Levels:
Noise Level (Idle): 24.7 dB(A) @ 1 m
Noise Level (Max): 35.3 dB(A) @ 1 m
Noise Level (Auto): 36.4 dB(A) @ 1 m
Noise Level (ECO): 36.5 dB(A) @ 1 m
Noise Level (Full): 43.3 dB(A) @ 1 m
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Gobos: 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel (rotating): Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prism: 5 Facets, motorized, linear, rotating
Prism: 8 Facets, motorized, round, rotating
Move-in-Black: Yes

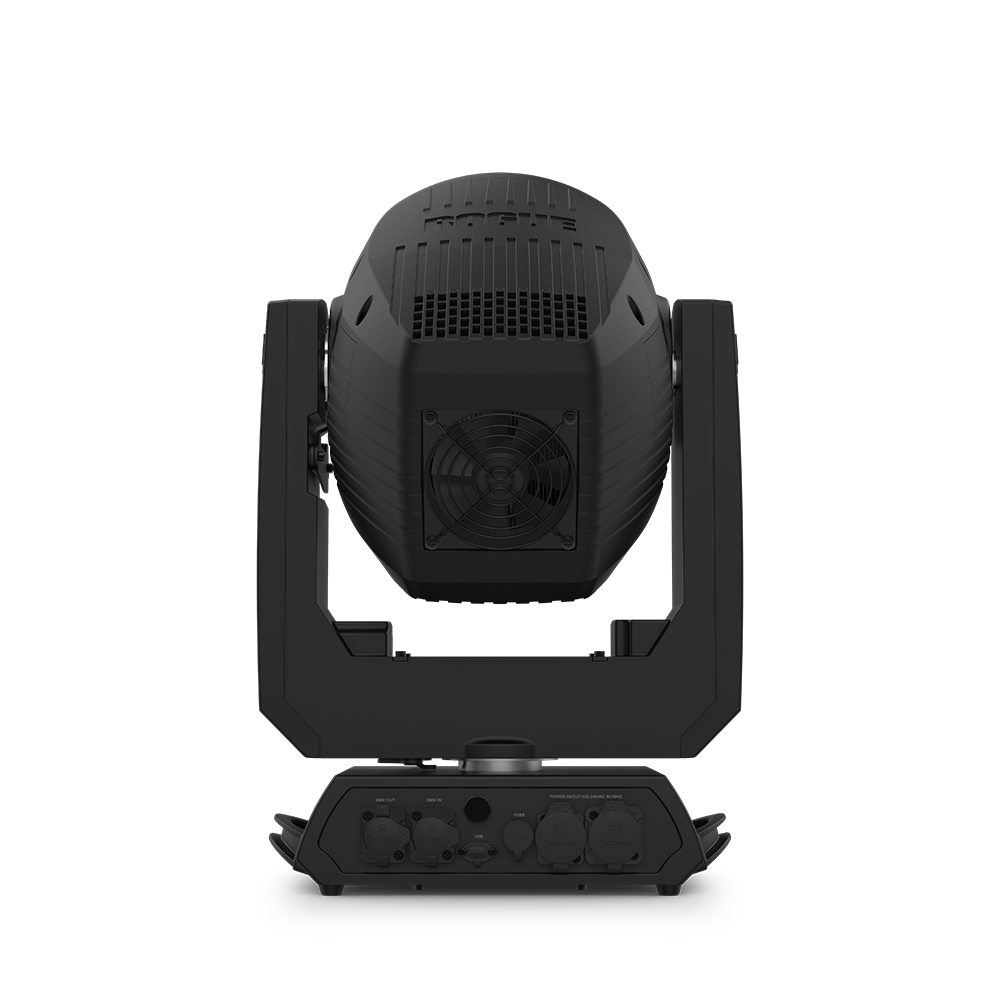

Connections

Power Connection: Bare ended to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 233 W, 2.08 A @ 120 V, 60 Hz
Power and Current: 226 W, 1.15 A @ 208 V, 60 Hz
Power and Current: 223 W, 1.04 A @ 230 V, 50 Hz
