Chauvet Professional - Ovation Rêve P-3 IP front right of LED par light on blueChauvet Professional - Ovation Rêve P-3 IP front right of LED par light on blue

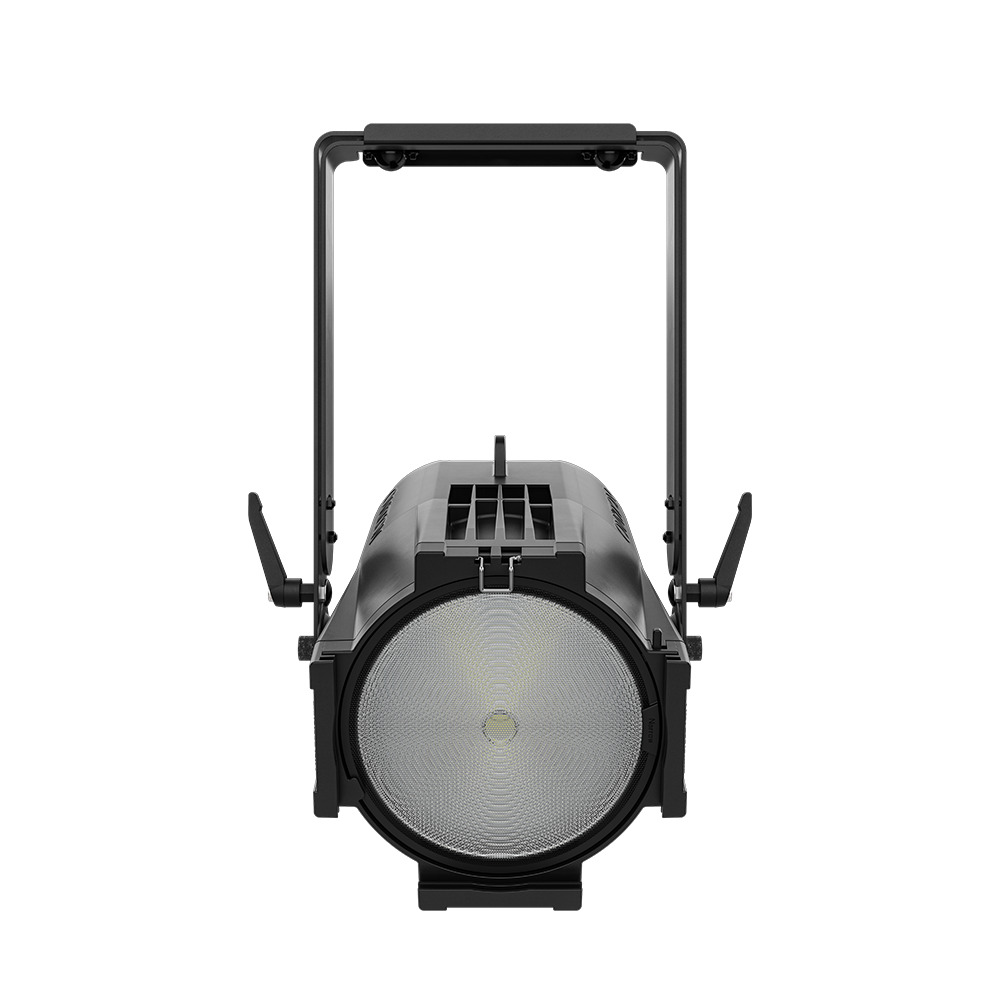

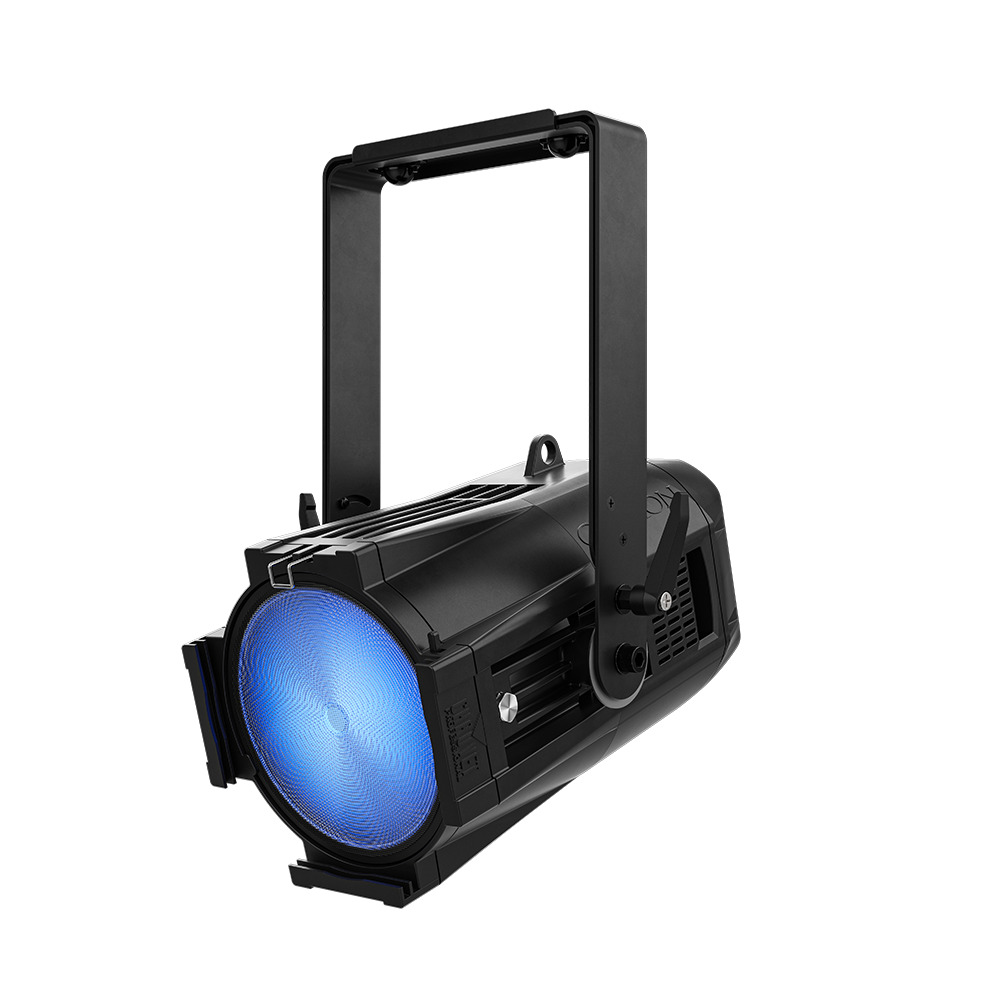

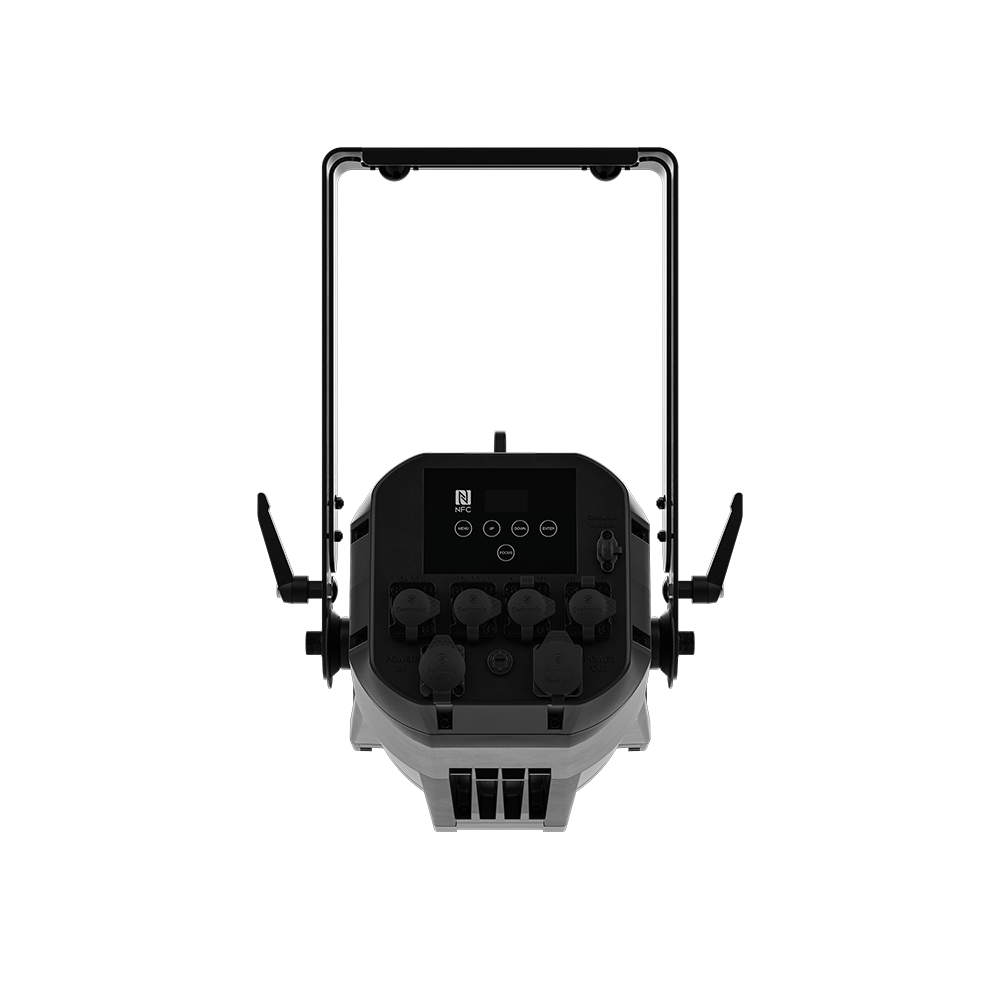

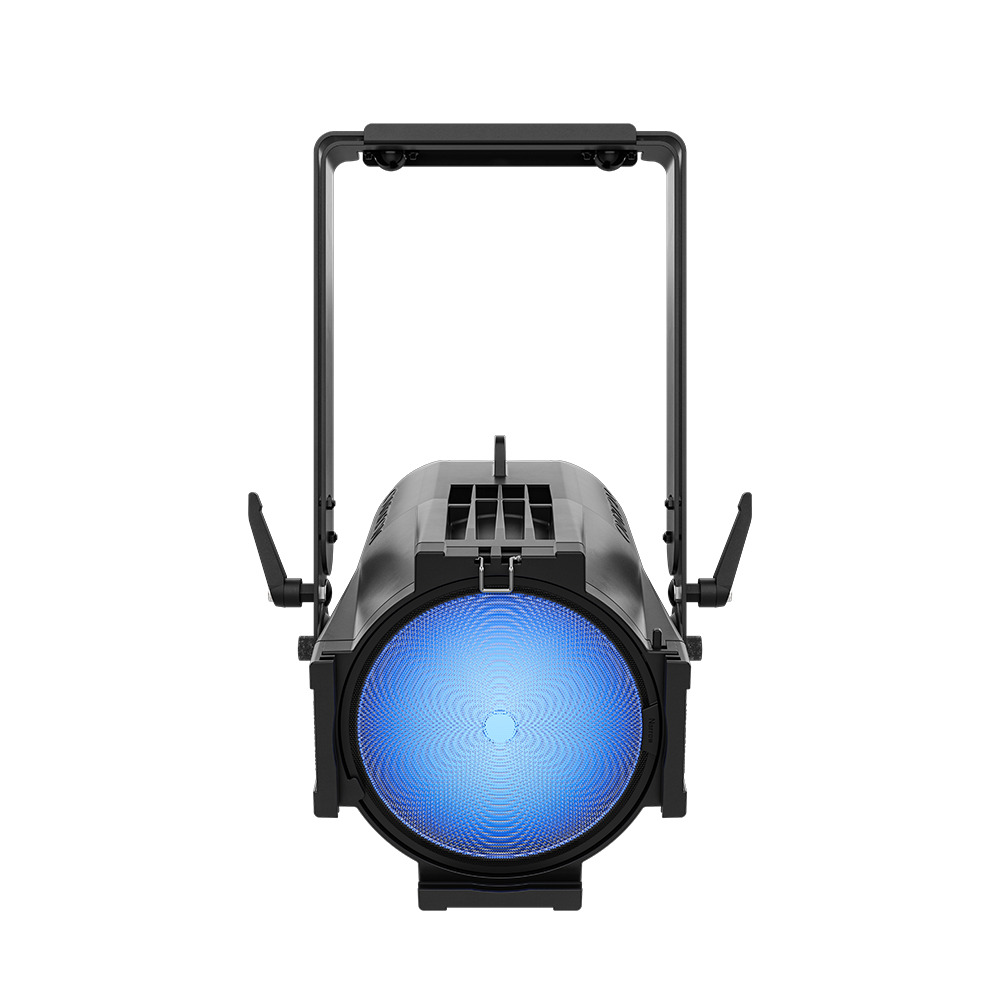

Chauvet Professional – Ovation Rêve P-3 IP

Chauvet Professional

A high-output, IP65-rated LED PAR fixture that delivers multi-color and full-spectrum-white light with exceptional color rendering and versatile beam shaping via four interchangeable lenses.

This powerful instrument is perfectly suited for indoor or outdoor theatrical productions, houses of worship, special events, and rental applications, especially where on-camera performance is critical.

Features

  • Delivers linear color temperature presets from 2800 K to 8000 K with high CRI.
  • Features a fully IP65-rated housing for dependable, all-weather use in any environment.
  • Includes four interchangeable lenses to easily adapt beam angles from narrow spot to wide flood.
  • Adjustable Pulse Width Modulation (PWM) ensures flicker-free operation for broadcast and film.
  • Offers flexible integration with DMX and RDM control across nine operating personalities.
  • An advanced RGBAM LED engine provides full-spectrum color mixing and superior white light.
SKU: OVATIONREVEP3IP Categories: , , ,

Description

Handle it all, from a narrow spot to a wide flood. Four interchangeable lenses, one unrivaLED light engine. Ovation Rêve P-3 IP is our brightest IP65-rated multi-color full-spectrum-white LED PAR. An outdoor fixture with unsurpassed power and quality of light that incorporates all the advancements of our Ovation Rêve RGBAM LED source, and offers the versatility of Narrow, Medium, Wide and Very Wide lenses. Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS. Adjustable PWM (Pulse Width Modulation) avoids on camera flicker. Indoors or out, a powerful instrument for theatrical, house of worship, special events, rental and production use.

Features

Versatile LED PAR Fixture

This full-spectrum LED PAR is ideal for rental, production, special events, and theatrical applications.

IP65 Weatherproof Rating

A full IP65 rating ensures reliable performance for seasonal use both indoors and outdoors.

Interchangeable Lens Options

Includes interchangeable narrow, medium, wide, and very wide lenses to easily adapt the beam angle.

USB Software Updates

A built-in USB port allows for simple fixture software updates.

Adjustable Color Temperature

Offers linear color temperature presets from 2800 K to 8000 K with high CRI and CQS for excellent color rendering.

Advanced Color Control

Fine-tune your look with plus/minus green adjustment and emulated red-shift, accessible via DMX or on-board controls.

What’s Included

  • Ovation Reve P-3 IP
  • Seetronic Powerkon power cord
  • Omega bracket with mounting hardware
  • Narrow, Medium, Wide, Very Wide Lens
  • Gel Frame

Additional information

Optical

Light Source: 80 LEDs (10 red, 10 green, 10 blue, 20 amber, 30 mint) 4.4 to 7.8 W, (2.4 A), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 5399 K
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Narrow Lens:
Beam Angle: 11.9°
Field Angle: 20.8°
Lumens: 10,051
Medium Lens:
Beam Angle: 25.6°
Field Angle: 37.8°
Illuminance: 1,950 lux @ 5 m
Lumens: 10,079
Wide Lens:
Beam Angle: 29.3°
Field Angle: 43.1°
Illuminance: 1,475 lux @ 5 m
Lumens: 9,936
Very Wide Lens:
Beam Angle: 43.5°
Field Angle: 87.9°
Illuminance: 401 lux @ 5 m
Lumens: 8,380
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65: Power Input
Seetronic Powerkon IP65: Power Output
Seetronic Powerkon IP65: Data Connectors
5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
Power and Current: 274 W, 2.31 A @ 120 V, 60 Hz
Power and Current: 267 W, 1.38 A @ 208 V, 60 Hz
Power and Current: 265 W, 1.25 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
TRUE1 Style Power Extension Cables
5-pin IP65 DMX Cables
RDM2go
USB Jump Drive
Ovation F 7.5” Barndoor V2
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 18.82 x 11.81 x 8.27 in (478 x 300 x 210 mm)
Weight: 21.4 lb. (9.8 kg)
Exterior Color: Black
Housing Material: Aluminum diecast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Control

Control Protocol: DMX, RDM
DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, HSV)
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Noise Levels:
Idle: 17.4 dB(A) @ 1 m
Auto: 30.7 dB(A) @ 1 m
On: 31.9 dB(A) @ 1 m
Off: 2.3 dB(A) @ 1 m
Silent: 11.3 dB(A) @ 1 m
