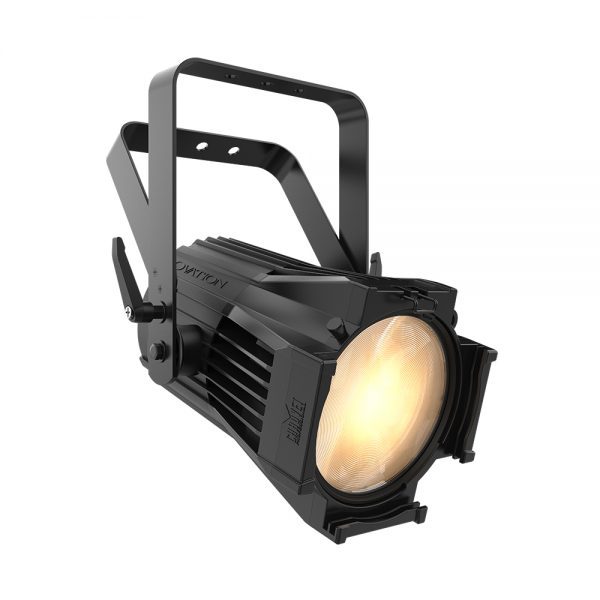

Chauvet Professional - Ovation P-56WW Front right of LED ParChauvet Professional - Ovation P-56WW Front right of LED Par

Chauvet Professional – Ovation P-56WW

Chauvet Professional

A compact and virtually silent warm white LED par light featuring exceptionally high CRI, a homogenized single-source beam, interchangeable lenses, and smooth 16-bit dimming.

Ideal for theatrical and studio applications where quiet operation and a high-quality, flat, and even field of light are paramount.

Feautres

  • Delivers powerful output comparable to a conventional 1,000 W PAR 64 lamp.
  • Offers superior color accuracy for broadcast applications with an extremely high CRI of 97.9.
  • Includes interchangeable lens plates for narrow, medium, and wide beam angles (11.8° to 70.9°).
  • Provides four selectable dimming modes for ultra-smooth fades and versatile programming.
  • Supports both DMX and RDM protocols for simplified setup and flexible system integration.
  • Accepts standard 7.5-inch beam shaping accessories for expanded creative options.
SKU: OVATIONP56WW-2 Categories: , , ,

Description

Ovation P-56WW is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenized, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are included for narrow, medium and wide beam angles. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease. The unit accepts standard 7.5” beam shaping accessories.

Features

Powerful PAR Performance

This warm white fixture provides an impressive output comparable to a conventional 1,000 W PAR 64 lamp.

Smooth 16-Bit Dimming

Achieve exceptionally smooth fades and precise intensity control with high-resolution 16-bit dimming.

Compact Single Source Design

Features a compact body and a homogenous single source of light for a clean, consistent look.

Flat and Even Light Field

Projects a perfectly flat and even field of light for consistent coverage without hotspots.

Quiet Operation

Its silent performance makes it ideal for use in any situation, including sound-sensitive environments.

Interchangeable Lenses

Included lens plates allow you to easily modify the beam angle to narrow, medium, or wide for maximum versatility.

Video

Ovation P-56VW

Equipped with the same LED systems found in our award-winning ellipsoidals, our Ovation pars feature advanced precision optics to produce homogenized, flat and even fields of light with high CRI.

What’s Included

  • Ovation P-56WW
  • Seetronic Powerkon IP65 power cord
  • Gel Frame holder (7.5 in/191 mm accessories)
  • Wide, medium and narrow lenses

Additional information

Optical

Light Source:1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy
Color Temperature (at full): 3228 K
CRI: 97.9
Beam Angle:
(Narrow lens): 11.8°
(Medium lens): 23.9°
(Wide lens): 70.9°
(Wide lens w/ egg crate): 37°
Field Angle:
(Narrow lens):26.6°
(Medium lens): 40°
(Wide lens): 106°
(Wide lens w/egg crate): 68°
Lumens (w/Narrow lens): 10,326
Lumens (w/Medium lens): 10,728
Lumens (w/Wide lens): 10,687
Illuminance:
Illuminance (w/Narrow Lens): 5,468 lux @ 5 m
Illuminance (w/Medium Lens): 2,264 lux @ 5 m
Illuminance (w/Wide Lens): 363 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB-C
Certifications & Qualifications

Certifications: CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5″ Barndoor
Ovation 60deg, 7.5” Honeycomb
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Construction & Physical

Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
Weight: 11.6 lb (5.3 kg)
Exterior Color: Black
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Control

Control Protocol: DMX, RDM
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1, 2, 3, 6)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 100 V; 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; 15 units @ 240 V
Power and Current: 210 W, 2.278 A @ 100 V, 60 Hz
Power and Current: 205 W, 1.806 A @ 120 V, 60 Hz
Power and Current: 197 W, 1.023 A @ 208 V, 60 Hz
Power and Current: 195 W, 0.916 A @ 230 V, 50 Hz
Power and Current: 194 W, 0.886 A @ 240 V, 50 Hz

Downloads

Data Sheet Download
User Guide Download
