Chauvet-Professional-Ovation-P-56FC-Front-RightChauvet-Professional-Ovation-P-56FC-Front-Right

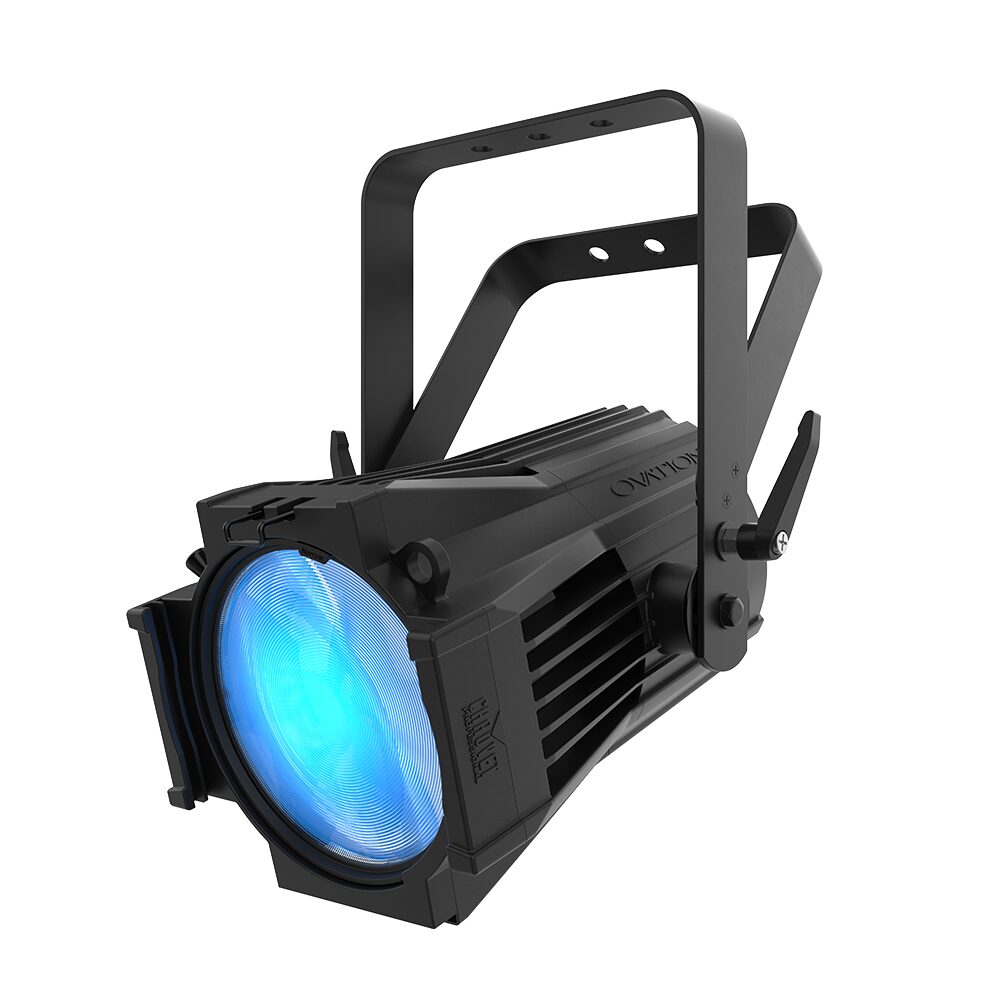

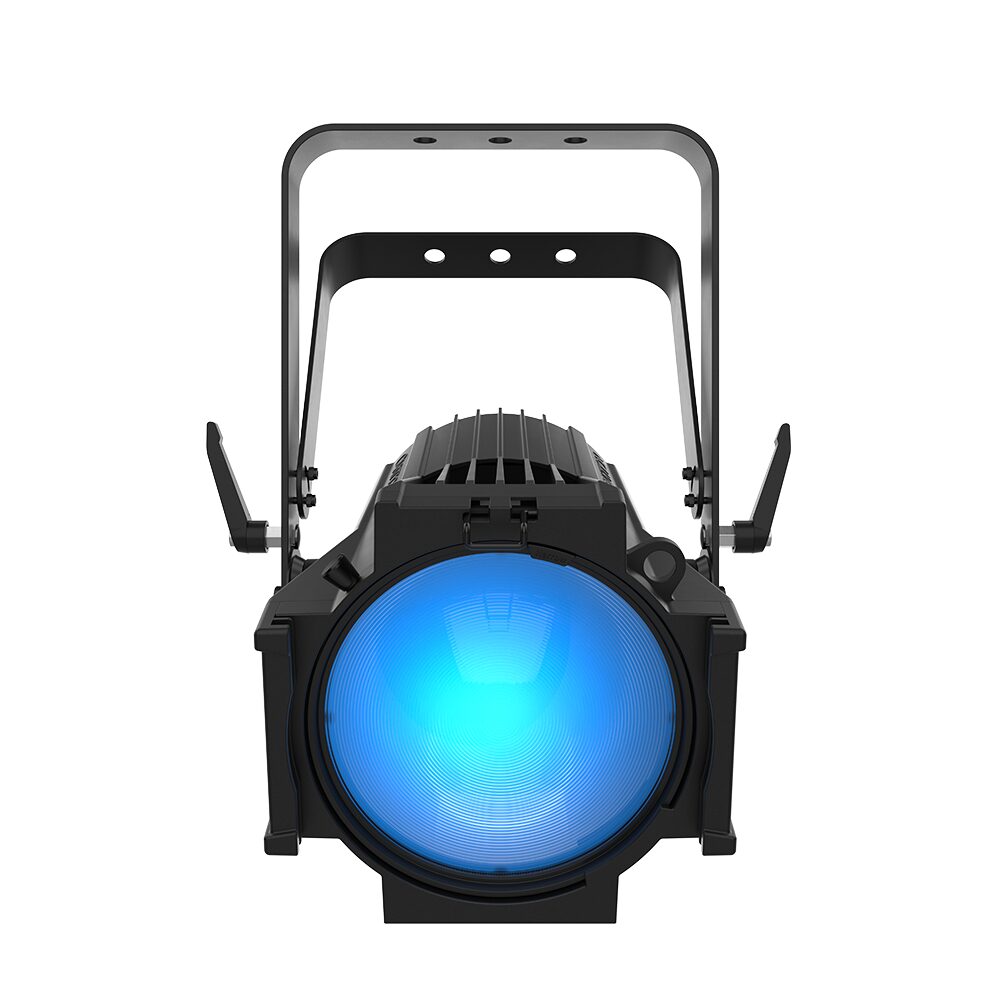

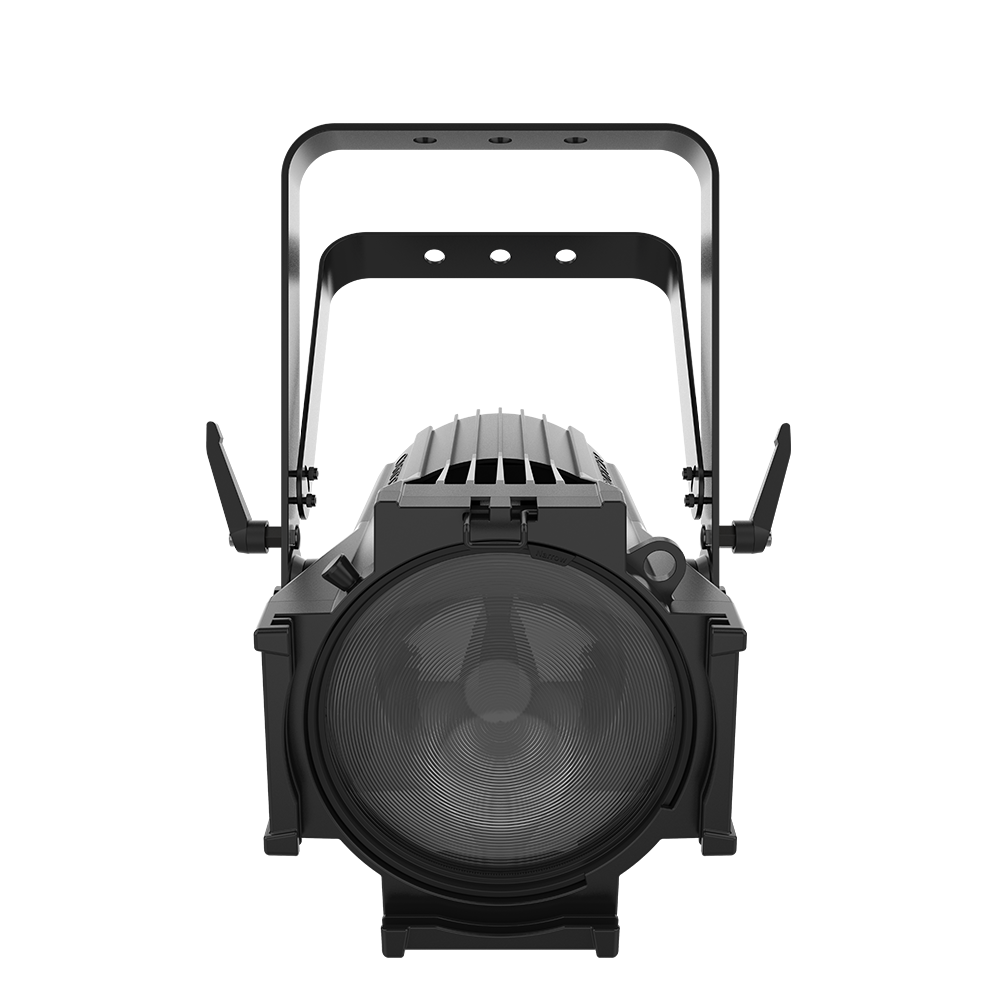

Chauvet Professional – Ovation P-56FC

Chauvet Professional

A compact and virtually silent par light that utilizes an advanced RGBAL LED system to produce a high-CRI, homogenized, and flat field of light with interchangeable lens plates for versatile beam control.

Ideal for theatrical and studio applications requiring silent operation and a high-quality, even field of color-mixed light.

Features

  • Features an advanced RGBAL LED system for a full color spectrum and variable white temperatures.
  • Includes interchangeable medium and wide lens plates for flexible beam shaping and versatile coverage.
  • Provides adjustable fan speed for virtually silent operation, ideal for studio and theatre use.
  • Achieves exceptionally smooth fades and dimming control with 16-bit resolution.
  • Supports DMX and RDM protocols with selectable PWM for easy setup and flicker-free on-camera use.
  • Accepts standard 7.5-inch beam shaping accessories for expanded creative and control possibilities.
SKU: OVATIONP56FC-2 Categories: , , ,

Description

Ovation P-56FC is a compact, virtually silent par that produces a homogenized, single-source, flat and even field of light with high CRI. The bright unit utilizes the same advanced full color-mixing RGBAL LED system found in the popular Ovation E-910FC ellipsoidal to produce subtle pastels to punchy saturates and nearly any temperature of white. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories. Ideal for theatrical and studio applications, the virtually silent par features extremely smooth 16-bit dimming, as well as RDM and PWM for ease of set-up.

Features

Homogenized Color Source

Functions as a full-color PAR fixture with a single, blended source of light for seamless color mixing.

Interchangeable Lenses

Includes both medium and wide beam angle lens plates for flexible beam control.

Even Light Field

Produces a flat and consistent field of light for smooth, even coverage.

Quiet Operation

Offers adjustable fan speed control to ensure quiet performance suitable for any environment.

Advanced Setup Control

Features RDM and variable Pulse Width Modulation for simplified setup and flicker-free operation.

Accessory Compatibility

Accepts standard 7.5-inch beam shaping accessories for expanded creative options.

High Resolution Dimming

Provides 16-bit dimming resolution to achieve exceptionally smooth and precise fades.

Video

Ovation P-56FC

Equipped with the same LED systems found in Chauvet’s award-winning ellipsoidals, Chauvet’s Ovation pars feature advanced precision optics to produce homogenized, flat and even fields of light with high CRI.

What’s Included

  • Ovation P-56FC
  • Seetronic Powerkon IP65 power cord
  • Gel frame (7.5 in/191 mm accessories)
  • Narrow, Medium and Wide Lens

Additional information

Optical

Light Source: 62 LEDs (12 red, 11 green, 11 blue, 14 amber, 14 lime) 6 to 8 W, (1 A), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 6500 K
Color Temperature (at full): 6229 K
CRI (3200): 87.9
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Narrow Lens:
Beam Angle: 12.8°
Field Angle: 24.7°
Illuminance: 3,404 lux @ 5m
Medium Lens:
Beam Angle: 23.2°
Field Angle: 40.9°
Illuminance: 1,251 lux @ 5 m
Illuminance: 1251 lux @ 5 m
Wide Lens:
Beam Angle: 73.2°
Field Angle: 103.7°
Illuminance: 197 lux @ 5 m

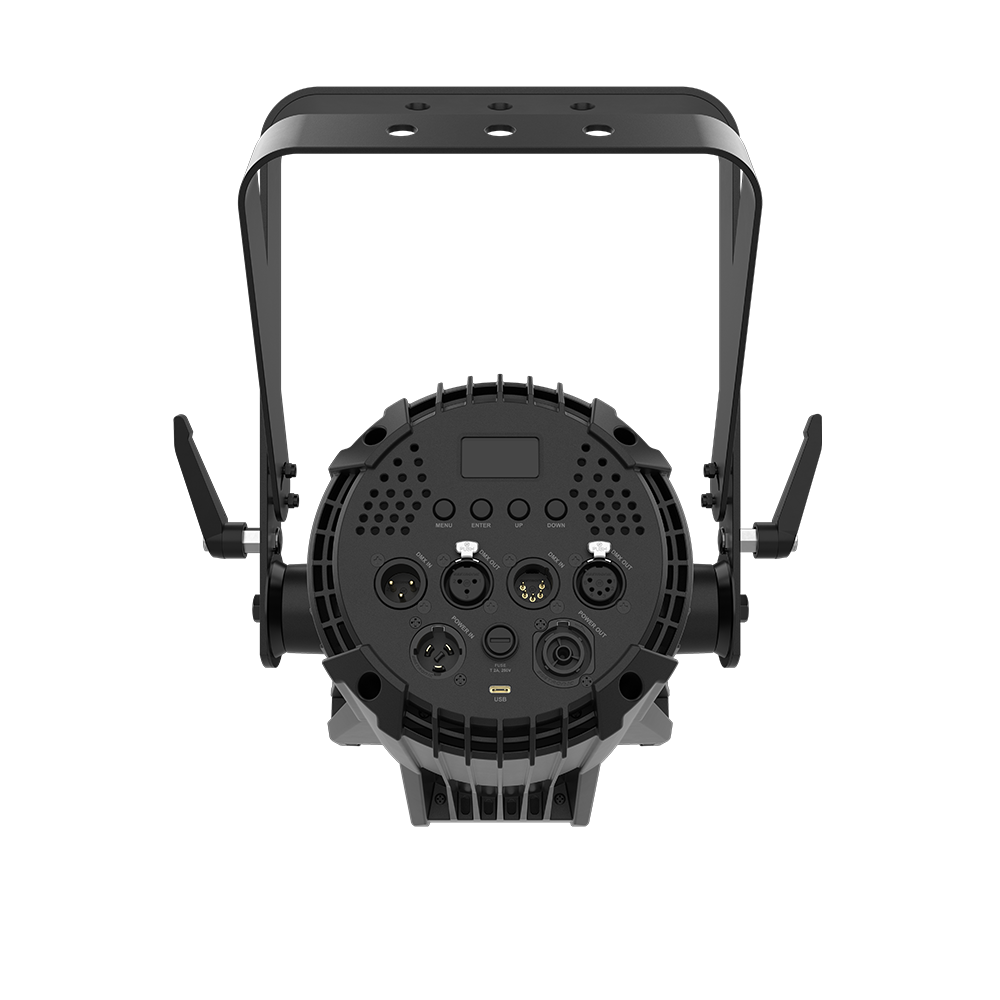

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65: Power Input
Seetronic Powerkon IP65: Power Output
Seetronic Powerkon IP65: Data Connectors
3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V; 16 units @ 240 V
Power and Current: 167 W, 1.68 A @ 100 V, 60 Hz [4.6 A inrush]
Power and Current: 161 W, 1.36 A @ 120 V, 60 Hz [6.0 A inrush]
Power and Current: 160 W, 0.80 A @ 208 V, 60 Hz [8.2 A inrush]
Power and Current: 159 W, 0.75 A @ 230 V, 50 Hz [9.8 A inrush]
Power and Current: 158 W, 0.73 A @ 240 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
TRUE1 Style Power Extension cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5” Barndoor V2
Ovation 60 deg, 7.5” Honeycomb
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
Weight: 12.2 lb (5.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Control

Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 16, HSV)
Certifications / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Noise Levels:
Noise Level (Idle): 31.5 dB(A) @ 1 m
Noise Level (Auto): 31.4 dB(A) @ 1 m
Noise Level (On): 31.3 dB(A) @ 1 m
Noise Level (Off): 4.0 dB(A) @ 1 m
Noise Level (silent): 19.3 dB(A) @ 1 m
