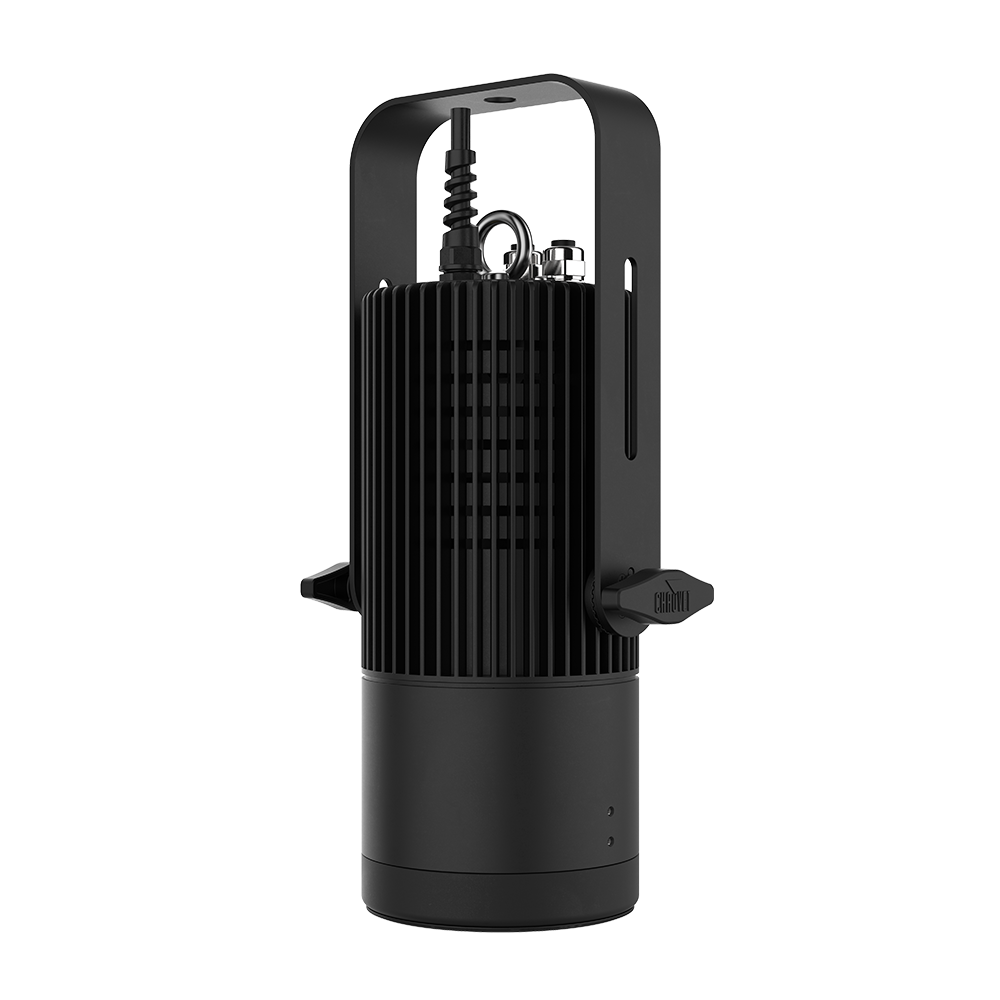

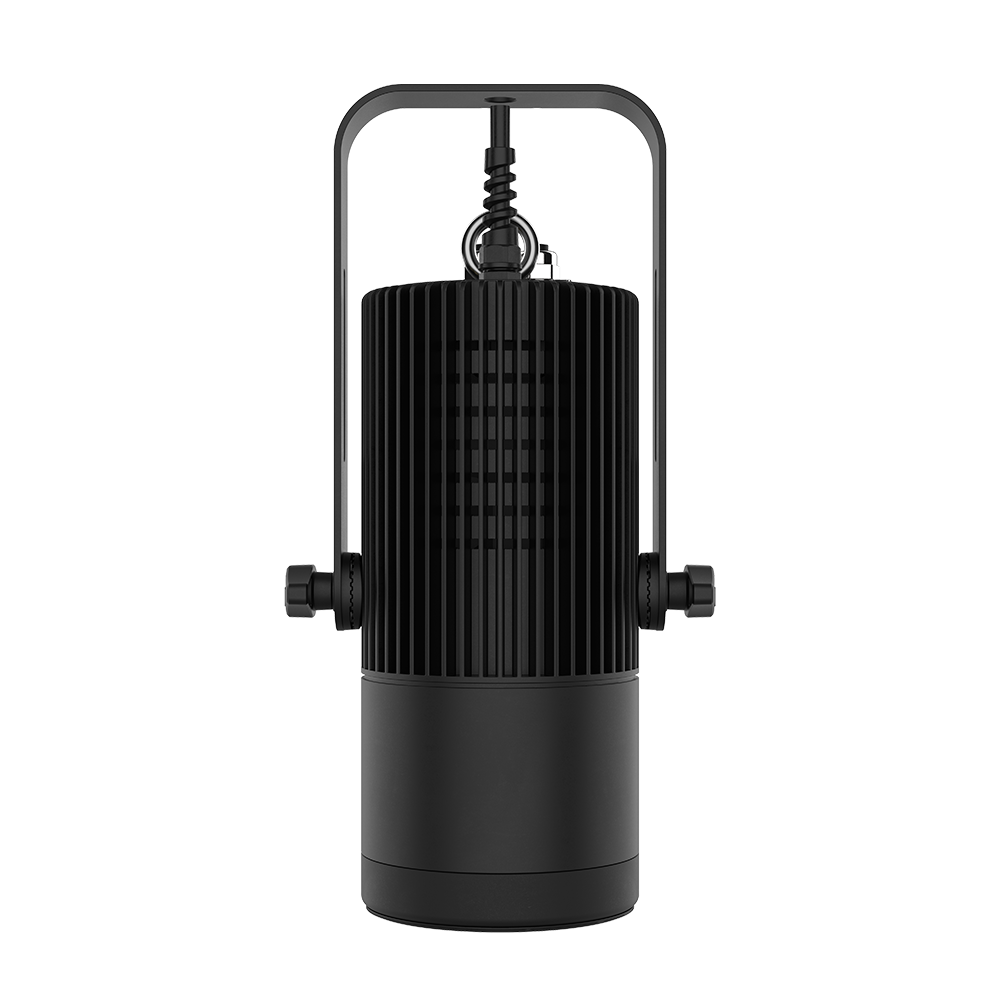

Chauvet Professional – Ovation H-55WW

Chauvet Professional

The Ovation H-55WW is a compact and silent, convection-cooled LED houselight delivering a high-CRI warm white output with versatile features including interchangeable lenses, 16-bit dimming, and flicker-free PWM control.

Ideal for theatres, houses of worship, recital halls, and broadcast applications, particularly in spaces with lower trim heights where silent, high-quality lighting is essential.

Features

  • Features a 129.5 W warm white LED source for high-quality light with an exceptional 93 CRI.
  • Adapt the beam angle for various mounting heights with included interchangeable 40°, 65°, and 80° lens plates.
  • Its fanless, convection-cooled design ensures completely silent operation for noise-sensitive environments.
  • Supports DMX, W-DMX, and RDM protocols for versatile control and remote device management.
  • Offers flexible installation with a removable yoke, integrated loop-eye, and included recess or sconce kits.
  • Features both 5-pin XLR and terminal block connections for easy DMX integration into any system.
SKU: OVATIONH55WW Categories: , , ,

Description

Ovation H-55WW is a small and silent, convection cooled LED houselight with a punchy warm white output and a high CRI, ideal for theatres, worship venues and recital halls or any other application with a smaller trim height. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate.

Features

Compact Convection Cooled Design

Provides a warm white house light with completely silent, fan-less operation in a compact form factor.

Interchangeable Lens Plates

Adapt the beam angle for various mounting heights with the included interchangeable lens plates.

Versatile DMX Connections

Offers both 5-pin XLR and terminal block connections for flexible DMX integration into any system.

Flexible Mounting Options

Mount the fixture using the included yoke or suspend it directly from the integrated loop-eye.

Included Installation Kits

Comes with both recess and sconce mounting kits for even more installation possibilities.

16-Bit Dimming

Achieve exceptionally smooth fades and precise intensity control with high-resolution 16-bit dimming.

Advanced Control Protocols

Supports DMX, WDMX, and RDM for expanded programming flexibility and remote device management.

Adjustable PWM

Eliminate on-camera flicker by adjusting the Pulse Width Modulation frequency.

What’s Included

  • Ovation H-55WW
  • 65°, 40° and 25° Lens
  • 80° Filter
  • Egg Crate
  • Recess and Sconce Mounting Kits

Additional information

Optical

Light Source: 1 LEDs (WW) 129.5 W, (1.45 A), 3157 K, 50,000 hours life expectancy
Color Temperature (at full): 3157 K
CRI: 93
Beam Angle: Field Angle
Lumens (w/80° filter): 3314
Lumens (w/65° lens): 3797
Lumens (w/40° lens): 4007
Lumens (w/25° lens): 4079
Illuminance:
Illuminance (w/80° filter): 131 lux @ 5 m
Illuminance (w/65° lens): 212 lux @ 5 m
Illuminance (w/40° lens): 400 lux @ 5 m
Illuminance (w/25° lens): 728 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Control

Control Protocol: DMX, W-DMX, RDM
DMX Channels: 1, 2 or 5
Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)
Certifications/Qualifications

Certifications: CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Certification / Physical

Dimensions: 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)
Weight: 7.4 lb (3.4 kg)
Exterior Color: Black
Connections

Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current: 60 W, 0.497 A @ 120 V, 60 Hz
Power and Current: 61 W, 0.297 A @ 208 V, 60 Hz
Power and Current: 63 W, 0.269 A @ 230 V, 50 Hz
Compatible Accessories

W-DMX™ Transmitter
Professional Clamps: CTC-50HC, CTC-50HCN
5-pin DMX Cables
RDM2go™

Downloads

Data Sheet Download
User Guide Download
