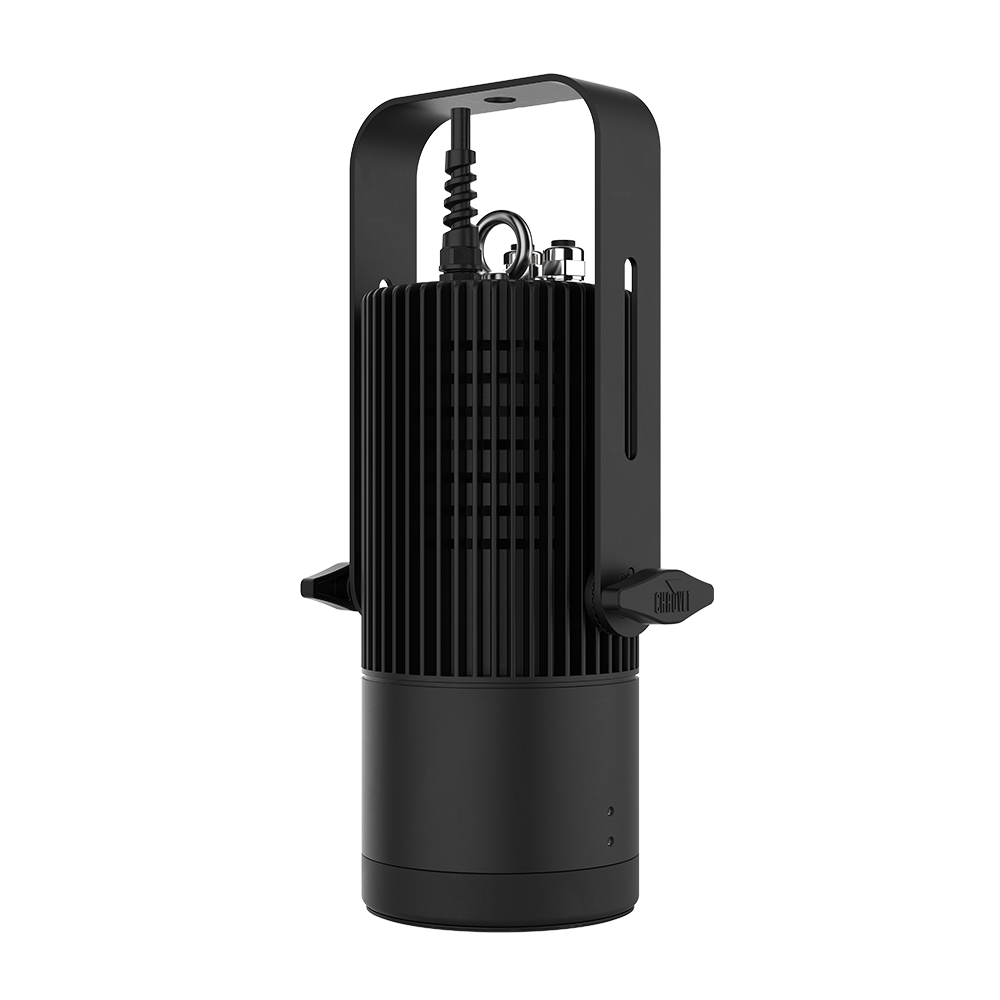

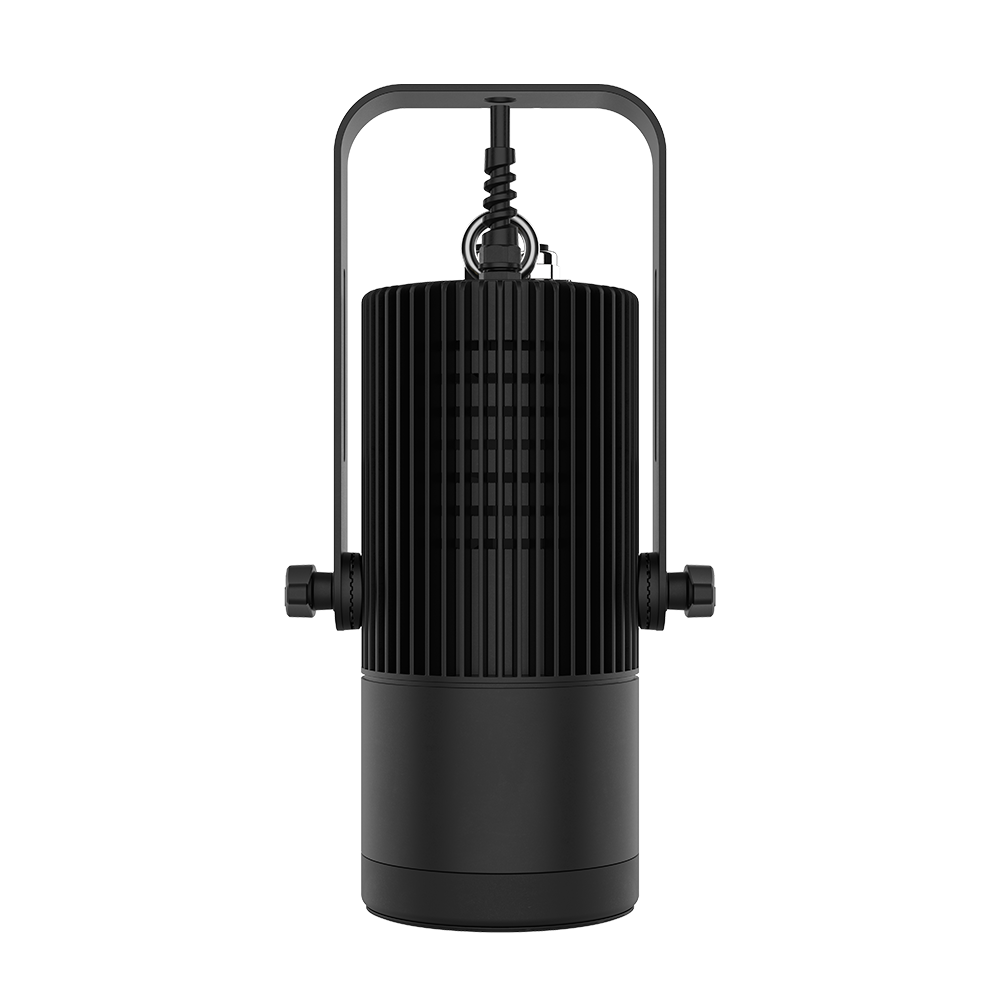

Chauvet Professional – Ovation H-55FC

Chauvet Professional

A compact, silent, convection-cooled LED houselight that provides high-CRI, full-color output with flicker-free performance, advanced control options, and interchangeable lenses.

Ideal for theaters, recital halls, houses of worship, and televised performances, particularly in venues with lower trim heights that require silent, high-quality illumination.

Features

  • Delivers rich, full-spectrum color and high-quality whites from an advanced RGBAL LED engine.
  • Swap between included lens plates to optimize beam coverage for any mounting height.
  • A fanless convection cooling system ensures completely silent operation in sensitive environments.
  • Supports DMX, W-DMX, and RDM protocols for flexible and professional control integration.
  • Ensures flicker-free on-camera operation with adjustable PWM and smooth 16-bit dimming resolution.
  • Offers versatile installation solutions with included yoke, recess, and sconce mounting kits.
SKU: OVATIONH55FC Categories: , , ,

Description

Ovation H-55FC is a small, silent, convection cooled LED houselight with a punchy, full color output and high CRI that makes it ideal for theaters, recital halls, worship venues, or any other application with a smaller trim height. The compact unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. The interchangeable lenses are a must-have feature in theatrical and house of worship applications. The compact houselight also includes multiple mounting options with removable fixture yoke, a recess mounting, and a sconce mounting kit. White housing not available in European Markets.

Features

Full Color Convection Cooled Houselight

This compact fixture provides rich, full color mixing with an RGBAL engine and operates silently thanks to convection cooling.

Interchangeable Lens Plates

Adapt the beam angle for different mounting heights by easily swapping the included lens plates.

Versatile DMX Connections

Connect via standard 5-pin XLR or terminal blocks for flexible DMX and data integration.

Multiple Rigging Options

Install the light using the included yoke for standard mounting or suspend it from its integrated loop-eye.

Included Mounting Kits

Comes with both recess and sconce mounting kits for seamless integration into walls or ceilings.

16-Bit Dimming

Achieve exceptionally smooth, high-resolution fades from 100% to 0 with 16-bit dimming control.

Flexible Control Protocols

Utilize DMX, WDMX, and RDM for a wide range of programming and remote device management capabilities.

Adjustable PWM

Eliminate on-camera flicker for broadcast applications by adjusting the fixture’s Pulse Width Modulation.

Video

Ovation H-55FC | CHAUVET Professional

Ovation H-55FC is a small, silent, convection cooled LED house light with a punchy, full color output and high CRI that makes it ideal for theaters, recital halls, worship venues, or any other application with a smaller trim height.

What’s Included

  • Ovation H-55FC
  • 65°, 40° and 25° Lens
  • 80° Filter
  • Egg Crate
  • Recess and Sconce Mounting Kits

Additional information

Optical

Light Source: 26 LEDs (6 red, 6 green, 6 blue, 5 amber, 4 lime) 2.62 to 5.25 W, (840 mA), 4807 K, 50,000 hours life expectancy.
Color Temperature (at full): 4807 K
CRI: 82
Beam Angle:
(W/80° Filter): 46.1°
(W/65° Lens): 63.3°
(W/45° Lens): 38.8°
(W/25° Lens): 24.7°
Field Angle:
(W/80° Filter): 76.8°
(W/65° Lens): 86.9°
(W/45° Lens): 78.4°
(W/25° Lens): 46.7°
Illuminance:
Illuminance (w/80° filter): 152 lux @ 5 m
Illuminance (w/65° lens): 115 lux @ 5 m
Illuminance (w/45° lens): 173 lux @ 5 m
Illuminance (w/25° lens): 430 lux @ 5 m
Lumens (w/80° filter): 2,698
Lumens (w/65° lens): 2,928
Lumens (w/45° lens): 2,691
Lumens (w/25° lens): 2,849
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz
Control

Control Protocol: DMX, W-DMX, RDM
DMX Channels: 4, 5, 8, 11, 13, 14, 16 or HSV
Modes/Personalities: 8 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)
Certifications / Qualifications

Certifications: CE, MET,
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-10 °C to 45 °C)
Required Accessories

RDM2go or other RDM capable interface for fixture set-up
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Color Temperature Presets: Yes/No
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)
Weight: 7.4 lb (3.4 kg)
Exterior Color: Black
Connections

Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 62 W, 0.541 A @ 120 V, 60 Hz
Power and Current: 64 W, 0.308 A @ 208 V, 60 Hz
Power and Current: 64 W, 0.278 A @ 230 V, 50 Hz
Compatible Accessories

W-DMX™ Transmitter
Professional Clamps: CTC-50HC, CTC-50HCN
5-pin DMX Cables
RDM2go™

Downloads

Data Sheet Download
User Guide Download
