Chauvet Professional – Ovation H-265WW

Chauvet Professional

A silent, convection-cooled LED houselight delivering a powerful, high-CRI warm white output with professional features including 16-bit dimming, flicker-free PWM control, and versatile mounting options.

Perfect for theatres, worship venues, recital halls, and broadcast applications where completely silent operation and high-quality, flicker-free lighting are essential.

Features

  • Features a 230 W LED source with an exceptional 97 CRI for superior color rendering.
  • Operates in complete silence with a fanless, convection-cooled design for sensitive environments.
  • Interchangeable lenses adapt the beam angle for various mounting heights and venue sizes.
  • Offers versatile mounting with a removable yoke or a direct-to-pipe pendant-style option.
  • Supports DMX, W-DMX, and RDM protocols for comprehensive and flexible control integration.
  • Adjustable PWM ensures flicker-free performance for broadcast and recording applications.
SKU: OVATIONH265WW Categories: , , ,

Description

Ovation H-265WW is a silent, convection cooled LED houselight with a powerful warm white light output and a high CRI, ideal for theatres, worship venues and recital halls or any other application where silent operation is crucial. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate. White housing not available in European Markets.

Features

High Power Houselight

Provides a powerful warm white light source with silent, fanless convection cooling.

Interchangeable Lens Plates

Adapt the beam angle for different mounting heights by easily swapping the lens plates.

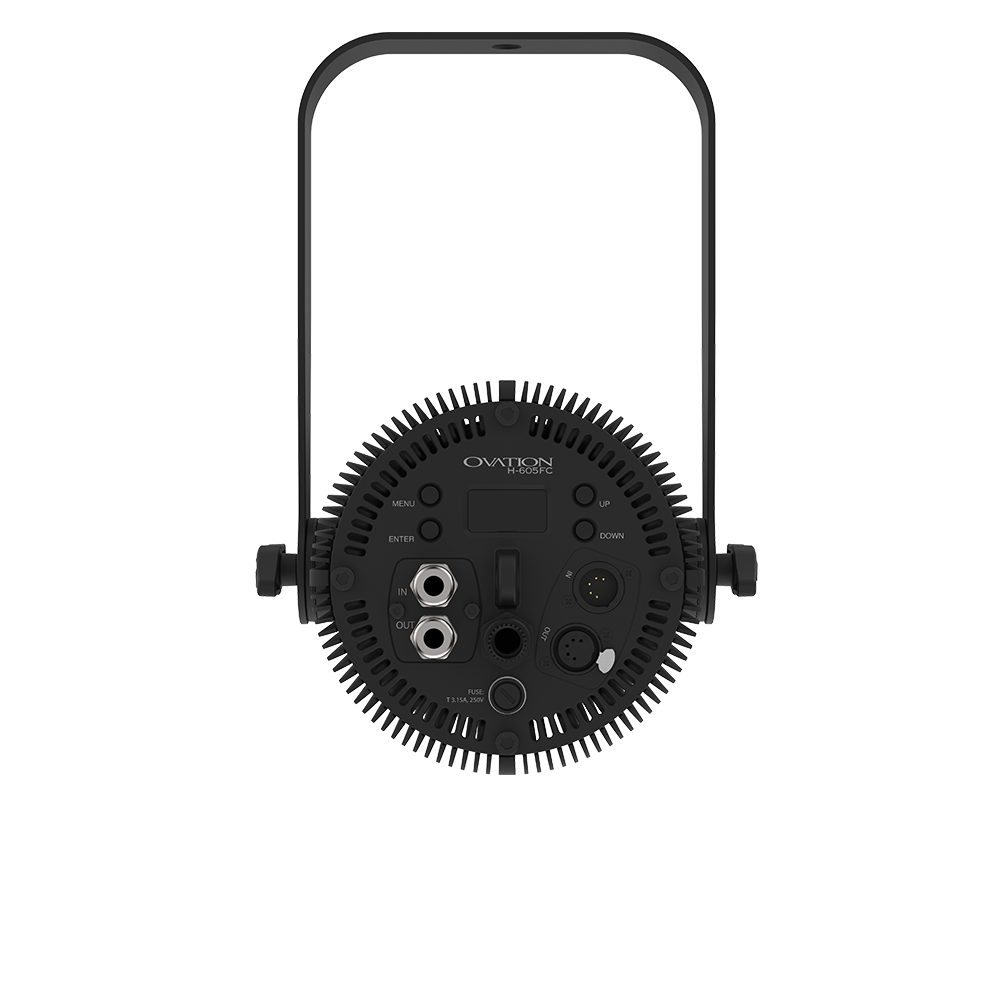

Flexible DMX Connections

Connect via 5-pin XLR or terminal blocks for seamless DMX and data integration.

Versatile Mounting Options

Use the included yoke for standard mounting or suspend the fixture from its integrated loop-eye.

16-Bit Dimming

Achieve exceptionally smooth and seamless fades from 0 to 100 percent.

Advanced Control Protocols

Enjoy added programming flexibility with support for DMX, WDMX, and RDM.

Adjustable PWM

Avoid on-camera flickering by fine-tuning the Pulse Width Modulation frequency.

What’s Included

  • Ovation H-265WW
  • 65°, 45° and 25° Lenses
  • 80° Filter
  • Egg Crate

Additional information

Optical

Light Source: 1 LEDs (WW) 230 W, (2.3 A), 3258 K, 50,000 hours life expectancy
Color Temperature (at full): 3258 K
CRI: 97
Beam Angle:
(W/80° Filter): 40°
(W/65°): 50°
(W/45° Lens): 39°
(W/25° Lens): 19°
Beam Angle (w/80° filter): 40°
Field Angle:
(W/80° Filter): 132.9°: (W/45° Lens): 69°
(W/25° Lens): 36°
Lumens (w/80° filter): 7,912
Lumens (w/65° lens): 8,505
Lumens (w/45° lens): 8,885
Lumens (w/25° lens): 9,139
Illuminance:
Illuminance (w/80° filter): 325 lux @ 5 m
Illuminance (w/65°): 400 lux @ 5 m
Illuminance (w/45° lens): 623 lux @ 5 m
Illuminance (w/25° lens): 1,933 lux @ 5 m
Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25 kHz
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 149 W, 1.314 A @ 120 V, 60 Hz
Power and Current: 141 W, .738 A @ 208 V, 60 Hz
Power and Current: 140 W, .691 A @ 230 V, 50 Hz
Breaker Size: T3.15 A, 250 V
Compatible Accessories

W-DMX Transmitter
Professional Clamps: CTC-50HC, CTC-50HCN
5-pin DMX Cables
RDM2go
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
Weight: 17.8 lb (8.1 kg)
Conections

Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)
Control

Control Protocol: DMX, W-DMX, RDM
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1CH, 2CH, 3CH, 6CH)
Certifications / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included

Ovation H-265WW
65°, 45° and 25° Lenses
80° Filter
Egg Crate

Downloads

Data Sheet Download
User Guide Download
