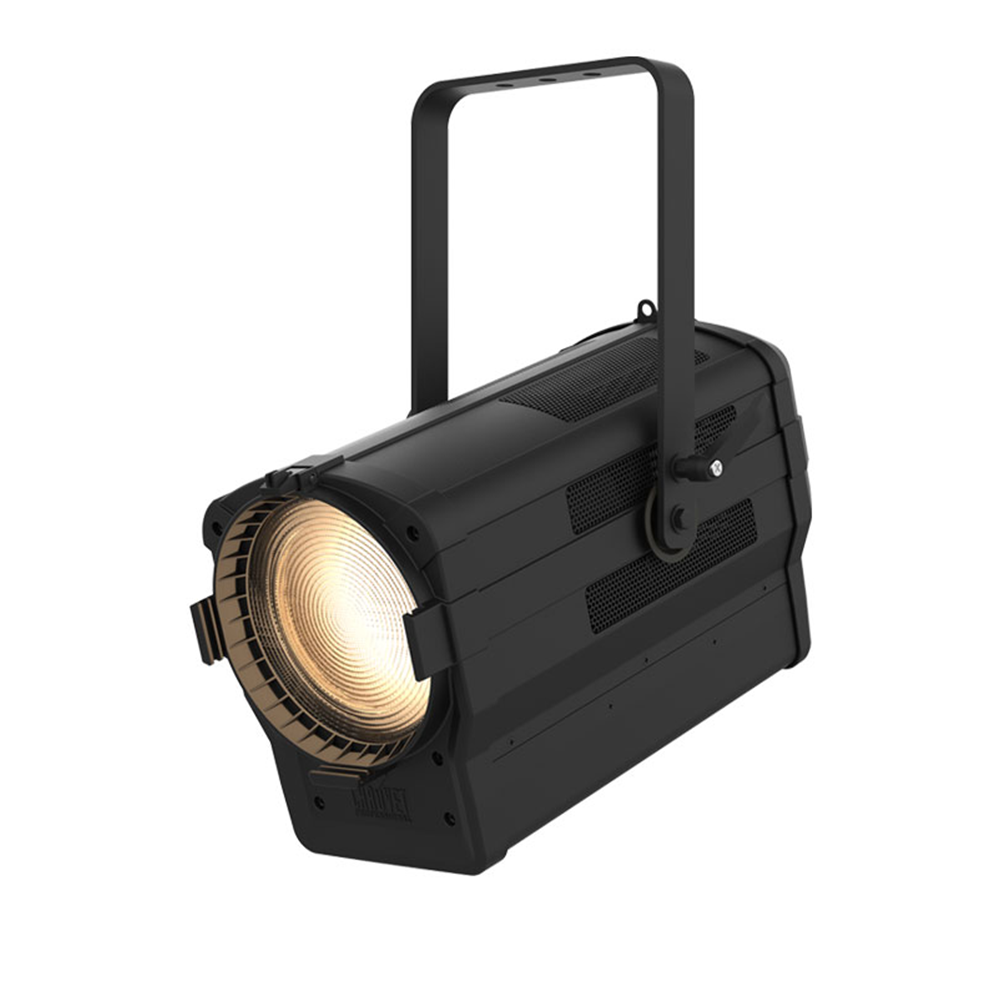

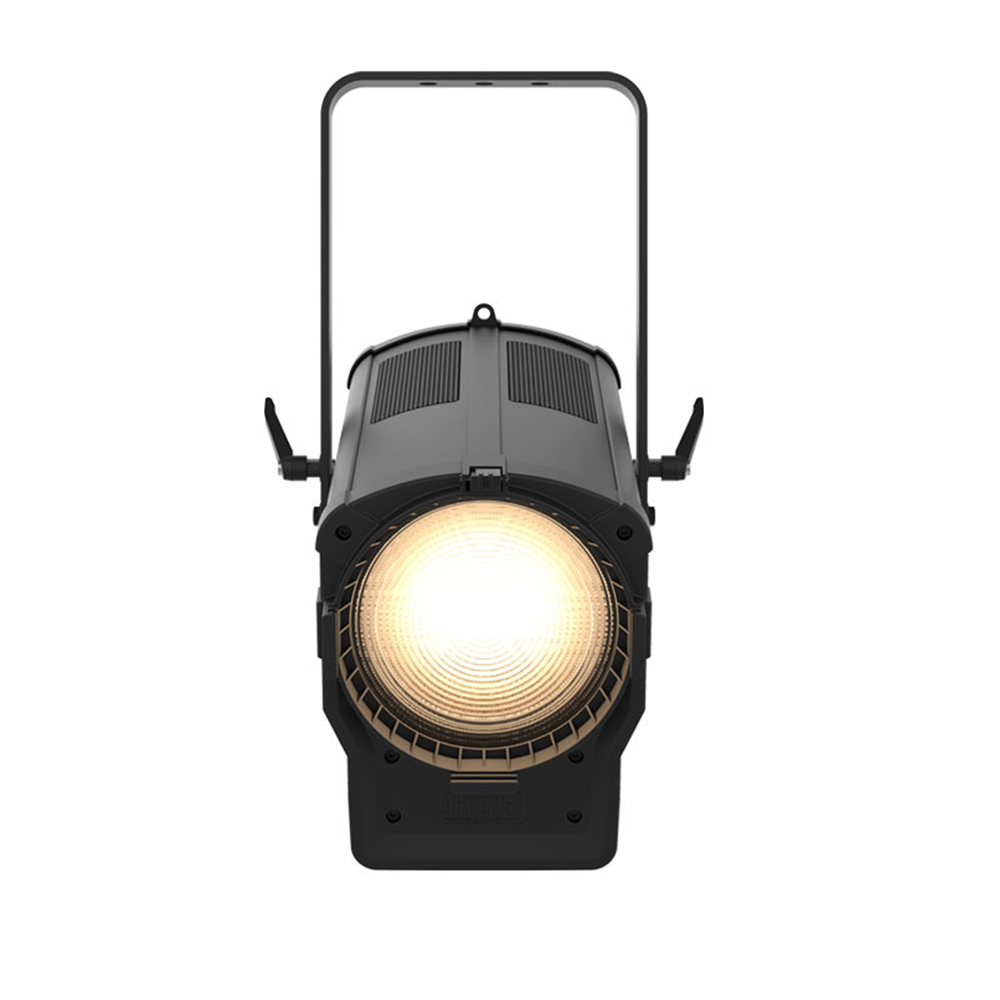

Chauvet Professional – Ovation F-915VW

Chauvet Professional

A high-power, variable white Fresnel-style fixture utilizing a 6-color LED system to project a bright, soft field of high-CRI light with motorized zoom and adjustable color temperature.

Ideal for theatre and TV studio applications requiring a beautifully soft field of light with superior color rendering and precise temperature control.

Features

  • Features a 6-color engine with +/- green adjustment for precise on-camera color control.
  • Provides a versatile motorized zoom range of 17° to 85° for flexible beam shaping.
  • Achieves adjustable color temperatures from 2800 K to 8000 K with consistent output.
  • Ensures smooth, high-resolution fades with 16-bit dimming and four selectable curves.
  • Delivers broadcast-ready, flicker-free operation with adjustable Pulse Width Modulation (PWM).
  • Offers both DMX/RDM control and on-board dials for fast, direct adjustments.
SKU: OVATIONF915VW-2 Categories: , , ,

Description

Ovation F-915VW is a high-power, variable white Fresnel-style fixture that utilizes our unique 6-color LED system. This fixture projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 17° – 85° field range allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials.

Variable White LED Fresnel

A versatile lighting fixture designed for professional theatre, film, and production applications.

Soft and Even Light Field

Produces a consistently soft and uniform field of light suitable for any scene.

Motorized Zoom

Offers a smooth, motorized zoom with a wide beam range from 17° to 85°.

Wide Color Temperature Range

Features adjustable color temperature presets from 2800 K to 8000 K, ensuring high color rendering.

16-Bit Dimming

Achieve exceptionally smooth and precise dimming transitions with high-resolution 16-bit control.

Consistent Light Output

A proprietary LED engine ensures powerful and consistent output across the entire color temperature range.

On-Board Control

Easily adjust color temperature, zoom, and dimming directly on the fixture for quick access.

Green Adjustment Control

Fine-tune the green output through either DMX or on-board controls for perfect camera matching.

Full Color Control

Utilize the 6-color engine for independent color control when a vibrant splash of color is required.

Remote Device Management

RDM capability allows for remote addressing and configuration, adding operational flexibility.

Adjustable PWM

Avoid on-camera flickering with adjustable Pulse Width Modulation for broadcast-ready performance.

Silent Operation

Operates virtually silently, making it ideal for noise-sensitive studio and theatre environments.

Video

Ovation Fresnels: F-915FC, F-265WW, F-915VW by CHAUVET Professional

Introducing our high performance 8-inch LED Fresnel equivalents engineered with energy-efficient optical systems in Full Color, Warm White, and Variable White versions to satisfy the diverse needs of lighting designers.

What’s Included

  • Ovation F-915VW
  • Seetronic Powerkon IP65 power cord
  • Gel frame (7.5 in/191 mm accessories)

Additional information

Optical

Light Source: 89 LEDs (6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, 32 lime) 3 W, (960 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 88-92
Beam Angle: 17° to 54°
Field Angle: 30° to 85°
Zoom Range: 17° to 85°
Lumens (30°): 4,143
Lumens (85°): 6,792

Illuminance:
Illuminance (30°): 1,748 lux @ 5 m
Illuminance (85°): 414 lux @ 5 m

Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Certification

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location

Temperatures
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
Dynamic Effects

Dimmer: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: No
Construction / Physical

Dimensions: 22.41 x 12.59 x 10.82in (569.44 x 320 x 275 mm)
Weight: 18.6 lb (8.5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Control

Control Protocol: DMX, RDM
DMX Channels: 1, 4, 6, 7, 9, 13, 16 or 19
Modes/Personalities: 8 personalities (1, 4, 6, 7, 9, 13, 16, 19)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
Power and Current: 271 W, 2.3 A @ 120 V, 60 Hz
Power and Current: 262 W, 1.433 A @ 208 V, 60 Hz
Power and Current: 258 W, 1.209 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
TRUE1 Style Power Extensions Cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5” Barndoor V2
Ovation 8″ Pole Operated Yoke

Downloads

Data Sheet Download
User Guide Download
