Chauvet-Professional-Ovation-F-915FC-Front-RightChauvet-Professional-Ovation-F-915FC-Front-Right

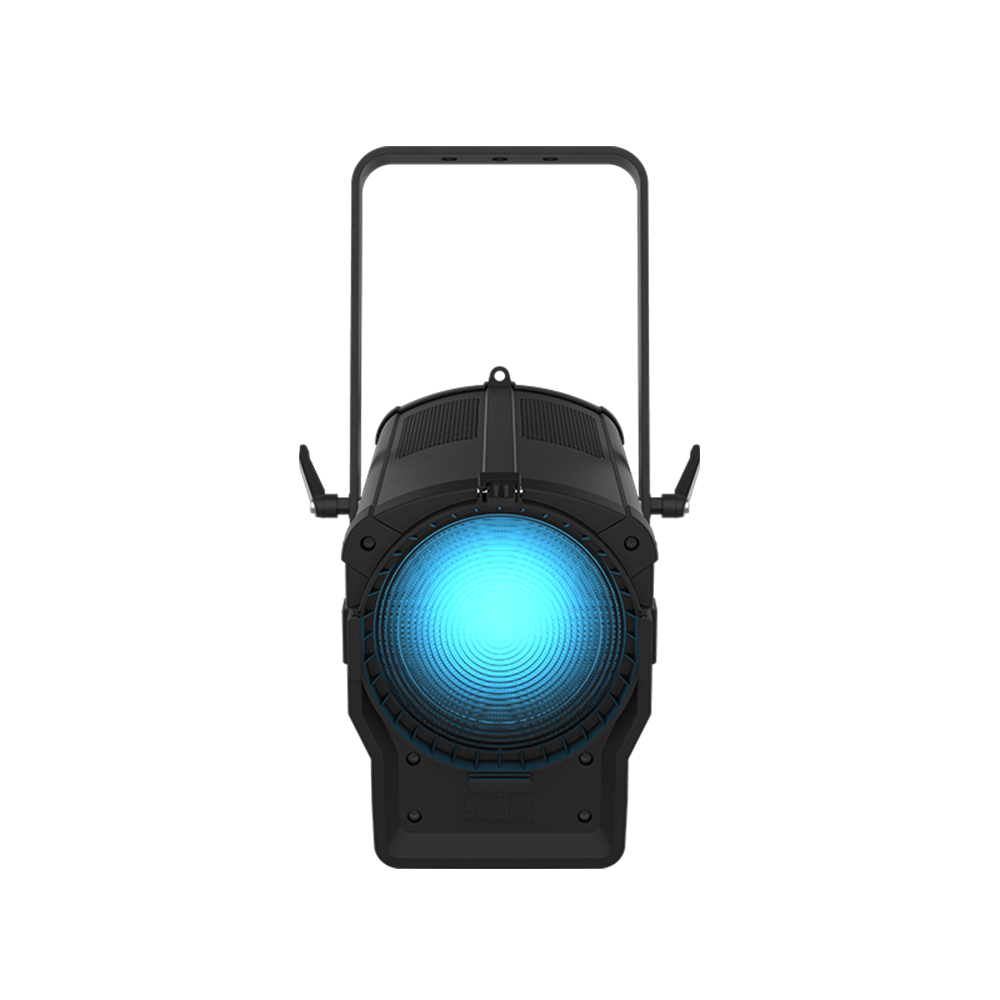

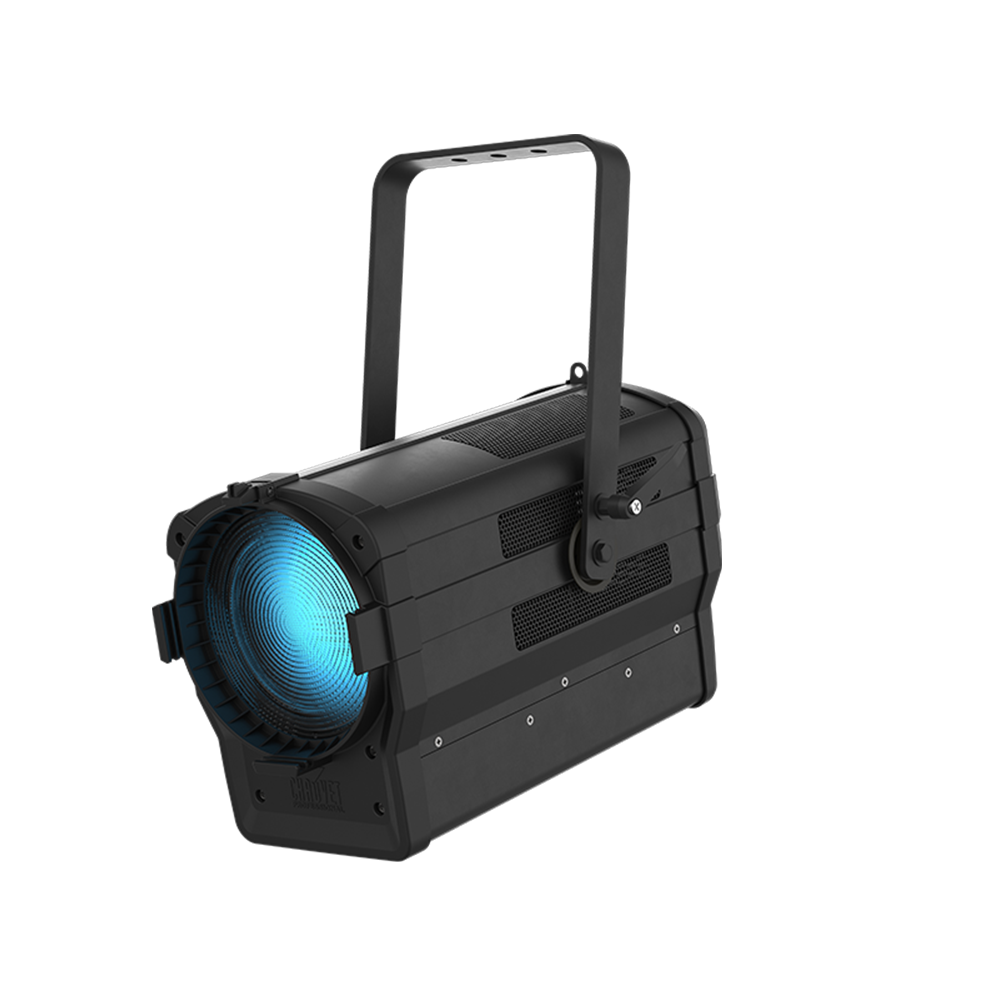

Chauvet Professional – Ovation F-915FC

Chauvet Professional

A high-power, full-color Fresnel fixture utilizing an RGBAL LED system to project a bright, soft field of light with a versatile motorized zoom.

Suited for theatrical stages, broadcast studios, and event spaces that demand a high-quality, soft-edged wash with full-color mixing and precise zoom control.

Features

  • Features an advanced RGBAL LED system for a full spectrum of vibrant colors and whites.
  • Delivers a versatile motorized zoom range, adjustable from a tight 17° to a wide 85° wash.
  • Includes a virtual color wheel and variable CCT presets from 2800 K to 6500 K.
  • Ensures smooth fades with 16-bit dimming and flicker-free output via adjustable PWM.
  • Built for sound-sensitive environments with a virtually silent convection cooling system.
  • Offers flexible control via DMX and RDM, plus onboard dials for manual adjustments.
SKU: OVATIONF915FC-2 Categories: , , ,

Description

Ovation F-915FC is a high-power, full color mixing Fresnel style fixture that utilizes our RGBAL LED system. This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white. A motorized zoom with a 17° – 85° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials.

Features

Full Color RGBAL Fresnel

Provides a full-spectrum, five-color LED engine for rich color rendering in theatre, film, and production.

Soft, Even Light Field

Produces a beautifully soft and consistent field of light for flawless illumination.

Motorized Zoom

Offers a smooth, motorized zoom range from a narrow 17° spot to a wide 85° wash.

High-Resolution 16-Bit Dimming

Achieve exceptionally smooth fades with precise 16-bit control over the master dimmer and individual colors.

Onboard Control

Easily adjust color, zoom, and dimming directly on the fixture for quick, manual operation.

Virtual Color Wheel

Instantly access a range of popular gel colors using the convenient virtual color wheel.

Variable White Color Temperature

Select from a wide range of preset color temperatures from a warm 2800 K to a cool 6500 K.

Remote Device Management (RDM)

Remotely configure and monitor the fixture using RDM for enhanced operational flexibility.

Adjustable PWM

Eliminate on-camera flicker by adjusting the Pulse Width Modulation to match your camera’s frame rate.

Silent Operation

Operates with virtually no noise, making it perfect for sound-sensitive studio and theatre environments.

Video

Ovation Fresnels: F-915FC, F-265WW, F-915VW by CHAUVET Professional

Introducing our high performance 8-inch LED Fresnel equivalents engineered with energy-efficient optical systems in Full Colour, Warm White, and Variable White versions to satisfy the diverse needs of lighting designers.

What’s Included

  • Ovation F-915FC
  • Neutrik® powerCON® power cord
  • Gel frame (7.5 in/191 mm accessories)

Additional information

Optical

Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
CRI (3200 K): 90
Beam Angle: 17° to 54°
Field Angle: 30° to 85°
Zoom Range: 17° to 85°
Lumens (30°): 4,294
Lumens (73°): 6,661
Illuminance (30°): 1,980 lux @ 5 m
Illuminance (85°): 433 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V
Power and Current: 304 W, 2.576 A @ 120 V, 60 Hz
Power and Current: 293 W, 1.490 A @ 208 V, 60 Hz
Power and Current: 293 W, 1.358 A @ 230 V, 50 Hz
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 17.80 x 12.59 x 10.82 in (452 x 320 x 275 mm)
Weight: 19 lb (8.6kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Controls

Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 11, 13, 14 or 17
Modes/Personalities: 8 personalities (1, 3, 5, 7, 11, 13, 14, 17, HSV)
Certification / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location

Noise Levels:
Idle: 0.4 dB(A) @ 1 m
Auto: 16.8 dB(A) @ 1 m
On: 30.2 dB(A) @ 1 m
Off: 11.6 dB(A) @ 1 m
Silent: 18.8 dB(A) @ 1 m
