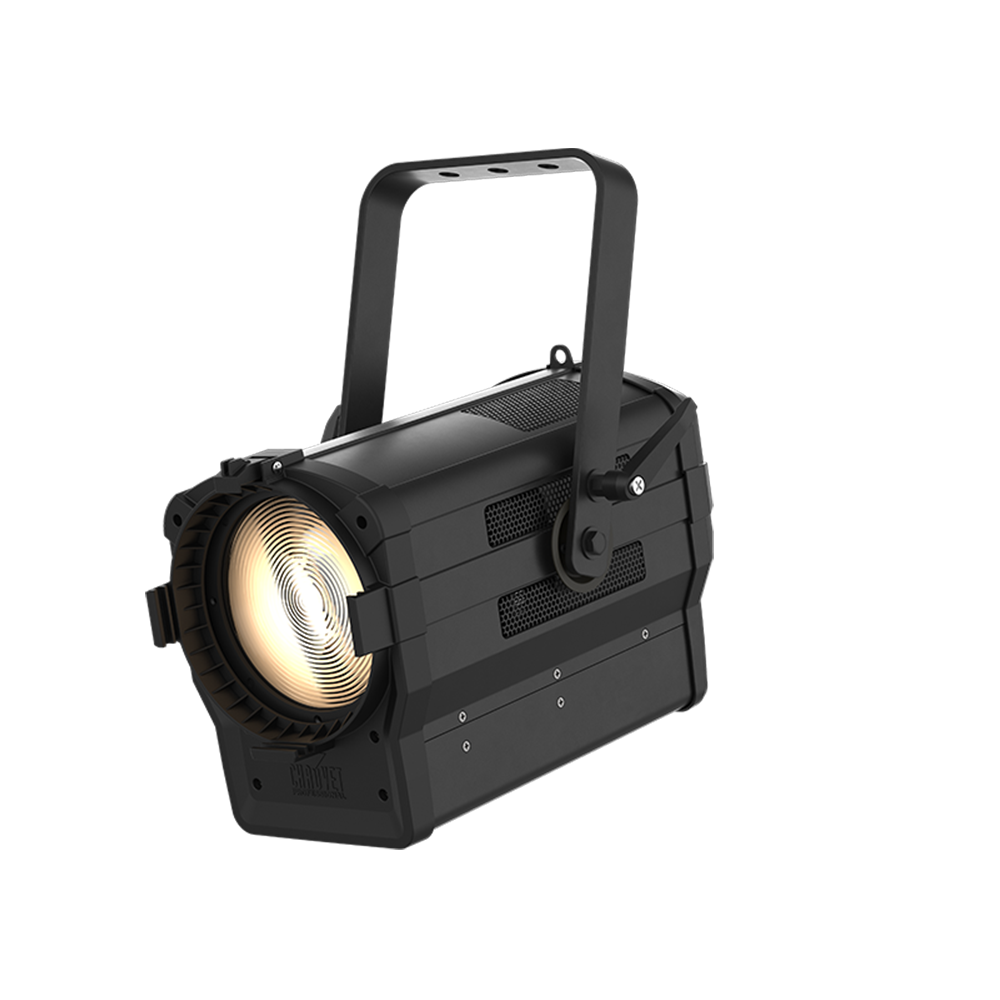

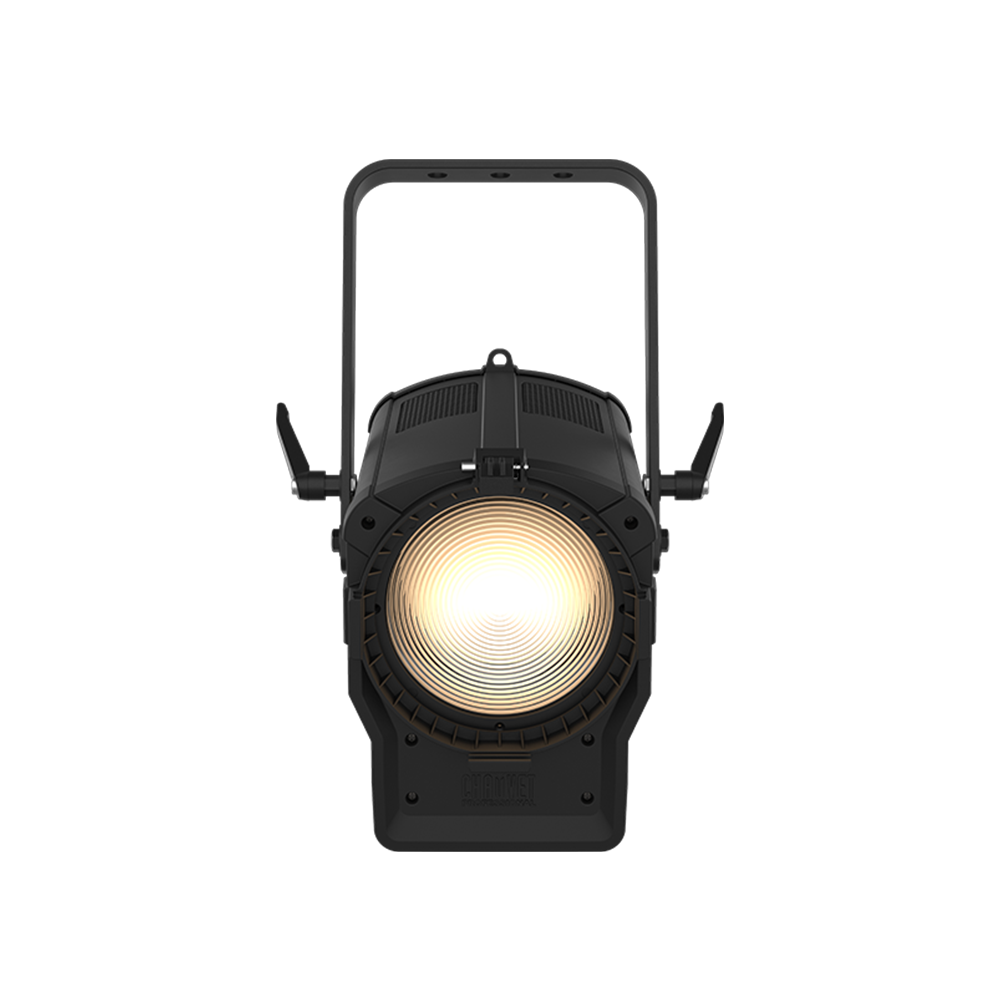

Chauvet Professional – Ovation F-415VW

Chauvet Professional

A 6-inch Fresnel-style fixture that leverages a unique 6-color LED system to project a bright, soft, variable white field of light with high CRI, motorized zoom, and precise +/- green adjustment.

Perfectly suited for theatre and television studio applications, its high-quality color rendering, flicker-free operation, and battery power option provide ultimate versatility.

Features

  • Features a smooth, motorized zoom with a versatile field range from 14° to 68°.
  • Delivers an expansive color temperature range from 2800 K to 8000 K.
  • Achieves exceptionally smooth fades with high-resolution 16-bit dimming control.
  • Supports 28 VDC external battery power via 3-pin XLR for mobile applications.
  • Provides virtually silent operation, ideal for noise-sensitive studio and theatre environments.
  • Offers independent 6-color engine control for vibrant color accents when needed.
SKU: OVATIONF415VW-2 Categories: , , ,

Description

Ovation F-415VW is a 6” Fresnel style variable white fixture that utilizes our unique 6-color LED system. The unit projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 14° – 68° field range that allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials. Adding to its versatility, the RDM-enabled unit enables a 28 V external battery operation and offers adjustable PWM for flicker-free use on camera.

Features

Versatile LED Fresnel

A variable white LED Fresnel fixture designed for professional theatre, film, and production applications.

Superior Light Quality

Delivers a consistently soft and even field of light for flawless illumination.

Motorized Zoom

Offers a smooth, motorized zoom range from a narrow 14 degrees to a wide 68 degrees.

Wide Color Temperature Range

Features presets from 2800 K to 8000 K, ensuring high color rendering with excellent CRI and CQS ratings.

External Battery Power Option

A 28 VDC power input via 3-pin XLR allows the fixture to be powered by an external battery pack.

High-Resolution Dimming

Achieves exceptionally smooth fades and intensity changes with beautiful 16-bit dimming control.

Consistent Light Output

The proprietary LED engine ensures powerful and equal output across the entire color temperature range.

Simple Onboard Controls

Easily adjust color temperature, zoom, and dimming directly on the fixture with an intuitive interface.

Plus/Minus Green Adjustment

Fine-tune your lighting with plus or minus green correction, accessible via DMX or on-board controls.

6-Color Engine Control

Gain independent control over the 6-color engine to introduce a vibrant splash of color when desired.

Remote Device Management

RDM capability allows for remote addressing and configuration, adding operational flexibility.

Flicker-Free Operation

Adjustable Pulse Width Modulation (PWM) eliminates on-camera flickering, making it perfect for broadcast.

Silent Operation

Its virtually silent performance is ideal for noise-sensitive environments like studios and theatres.

Video

Ovation 6″ Mid-Sized Fresnels by CHAUVET Professional

Ovation F-415VW is a 6” Fresnel style variable white fixture that utilizes our unique 6-colour LED system.

What’s Included

  • Ovation F-415VW
  • Seetronic Powerkon IP65 power cord
  • Gel frame holder (6.25 in/158.75 mm accessories)

Additional information

Optical

Light Source: 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 89 to 93
Beam Angle: 14° to 43°
Field Angle: 27° to 68°
Zoom Range: 14° to 68°
Lumens (27°): 1,631
(68°) : 2,408
Illuminance (27°): 800 lux @ 5 m
(68°): 152 lux @ 5 m
Illuminance drop percentage (fan silent): 23%
(fan off) : 59%
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Connector: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Power Connection: 3-pin XLR
Power Input: 28 VDC, 3-pin XLR
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Certifications & Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Noise Levels:
Noise Level (Idle): 3.1 dB(A) @ 1 m
Noise Level (Auto): 17.0 dB(A) @ 1 m
Noise Level (On): 28.3 dB(A) @ 1 m
Noise Level (Off): 4.4 dB(A) @ 1 m
Noise Level (silent): 20.9 dB(A) @ 1 m
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon IP65 cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 6.25″ Barndoor V1
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: No
Construction & Physical

Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
Weight: 12.79 lb (5.8 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
Control

Control Protocol: DMX, RDM
DMX Channels: 2, 5, 7, 10, 14, 17 or 19
Modes/Personalities: 8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)
Electrical

Control Protocol: DMX, RDM
DMX Channels: 2, 5, 7, 10, 14, 17 or 19
Modes/Personalities: 8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)

Downloads

Data Sheet Download
User Guide Download
