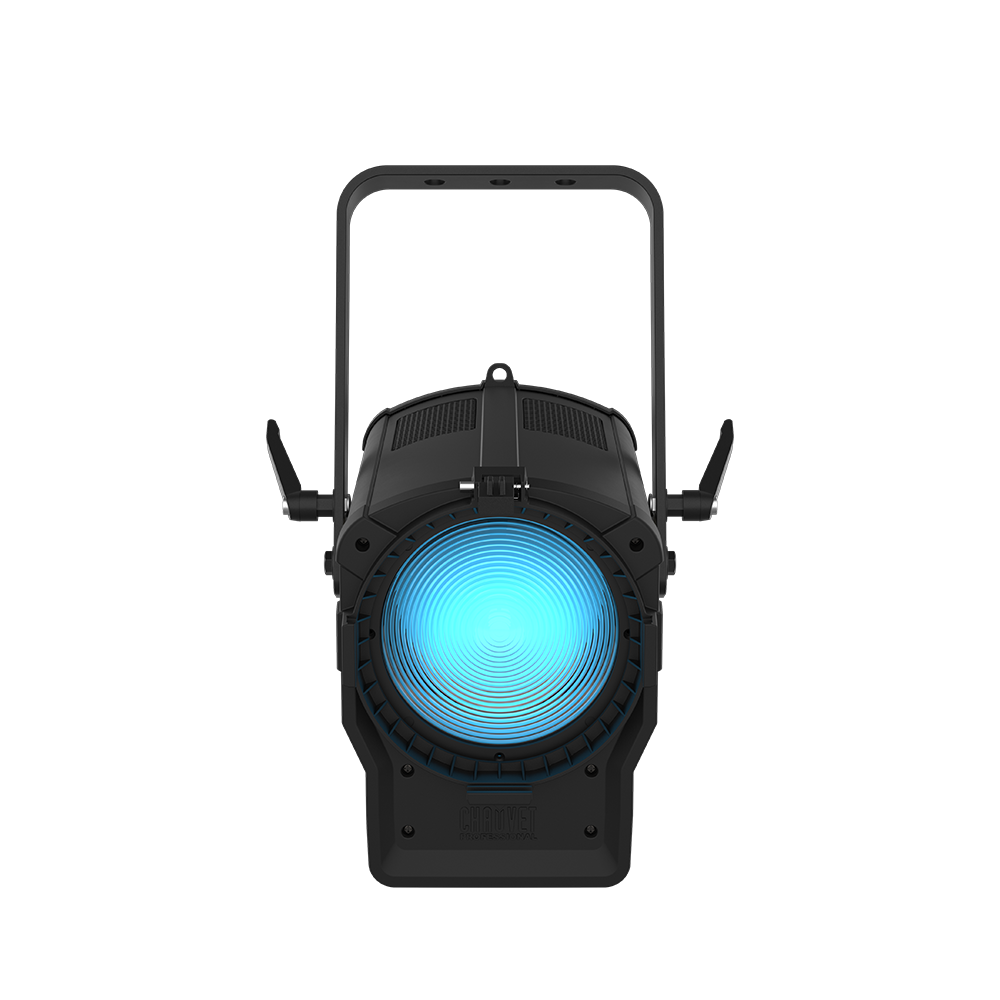

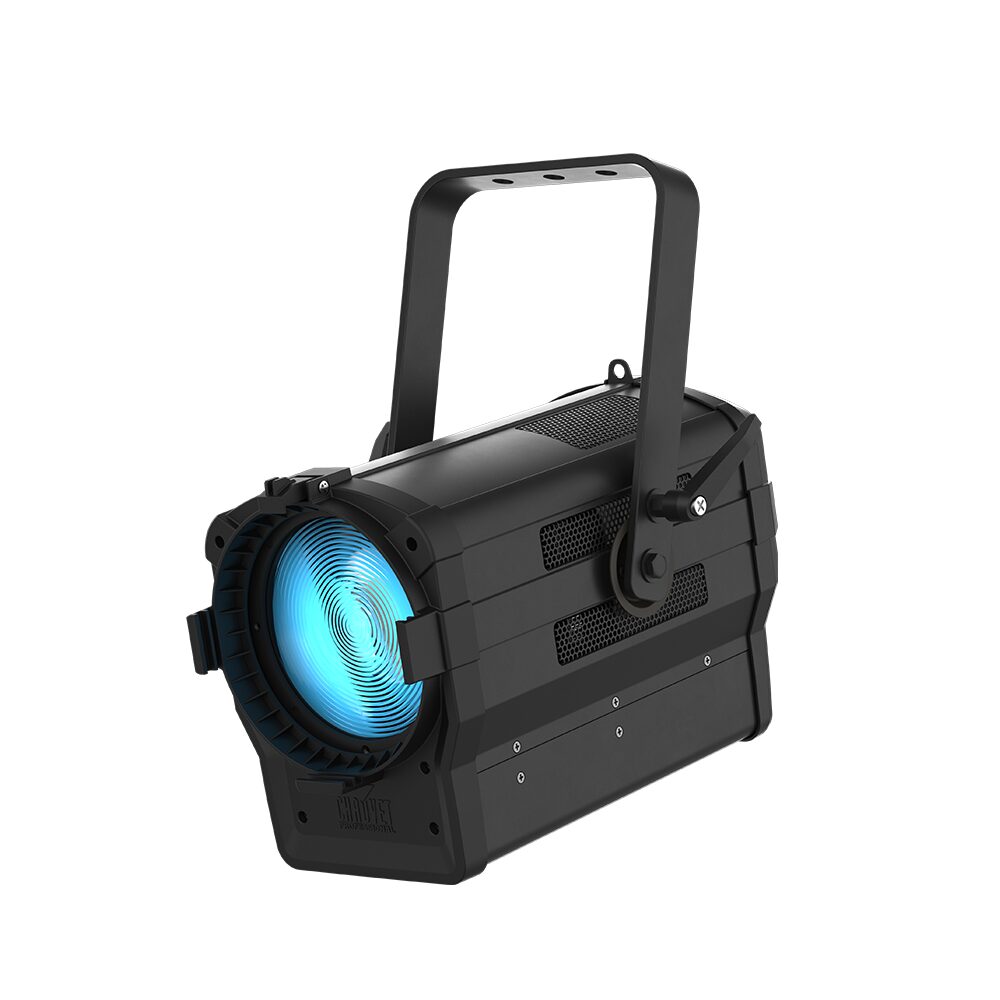

Chauvet Professional – Ovation F-415FC

Chauvet Professional

The Ovation F-415FC is a 6-inch Fresnel style fixture featuring an advanced RGBAL LED system and a motorized zoom to project a bright, soft, and beautifully colored field of light.

Ideal for theatrical, broadcast, and film applications where high-quality, flicker-free, and adaptable soft lighting is required.

  • Advanced RGBAL LED system produces a full color spectrum and whites from 2800K to 6500K.
  • Provides a versatile motorized zoom with a wide 14° to 68° field angle for flexible coverage.
  • Features 16-bit dimming for smooth fades and adjustable PWM for flicker-free camera operation.
  • A fanless cooling system ensures completely silent operation ideal for studios and theatres.
  • Offers flexible control options with onboard dials, DMX, and RDM for simplified fixture management.
  • Includes a virtual color wheel and CCT presets for quick access to popular colors and whites.
SKU: OVATIONF415FC-2 Categories: , , ,

Description

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 14° – 68° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

Features

Full Color RGBAL Fresnel

Provides a complete spectrum of color mixing for professional theatre, film, and production applications.

Soft and Even Light Field

Produces a high-quality, consistent wash of light without harsh edges or hotspots.

Motorized Zoom

Offers a smooth, wide-ranging motorized zoom from a narrow 14 degrees to a broad 68 degrees.

High Resolution Dimming

Achieve exceptionally smooth fades with 16-bit dimming control over the master dimmer and individual colors.

Onboard Controls

Easily adjust color, zoom, and dimming directly from the fixture’s intuitive interface.

Virtual Color Wheel

Instantly access a range of pre-programmed colors matched to popular gel filters.

Color Temperature Presets

Quickly select white light presets ranging from a warm 2800 K to a cool 6500 K.

Remote Device Management

Utilize RDM for remote addressing and configuration, adding flexibility to your setup.

Adjustable PWM

Eliminate on-camera flicker by adjusting the Pulse Width Modulation to match your camera’s frame rate.

Silent Operation

The fanless design ensures virtually silent performance, making it ideal for noise-sensitive environments.

Video

Ovation 6″ Mid-Sized Fresnels by CHAUVET Professional

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white.

What’s Included

  • Ovation F-415FC
  • Seetronic Powerkon IP65 power cord
  • Gel frame (6.25 in / 158.75 mm accessories)

Additional information

Optical

Light Source: 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 6500 K
CRI (3200 K): 91
Beam Angle: 14° to 43°
Field Angle: 27° to 68°
Zoom Range: 14° to 68°
Lumens (27°): 1,877
(68°): 2,815
Illuminance (27°): 915 lux @ 5 m
(68°): 190 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65: Power Input
Seetronic Powerkon IP65: Power Output
Seetronic Powerkon IP65: Data Connectors
3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
Power and Current: 130 W, 1.101 A @ 120 V, 60 Hz
Power and Current: 127 W, 0.638 A @ 208 V, 60 Hz
Power and Current: 127 W, 0.585 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
TRUE1 Style Power Extension cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F6.25” Barndoor
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction & Physical

Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
Weight: 12 lb (5.6 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
Control

Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13 or 15
Modes/Personalities: 9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)
Certifications & Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
