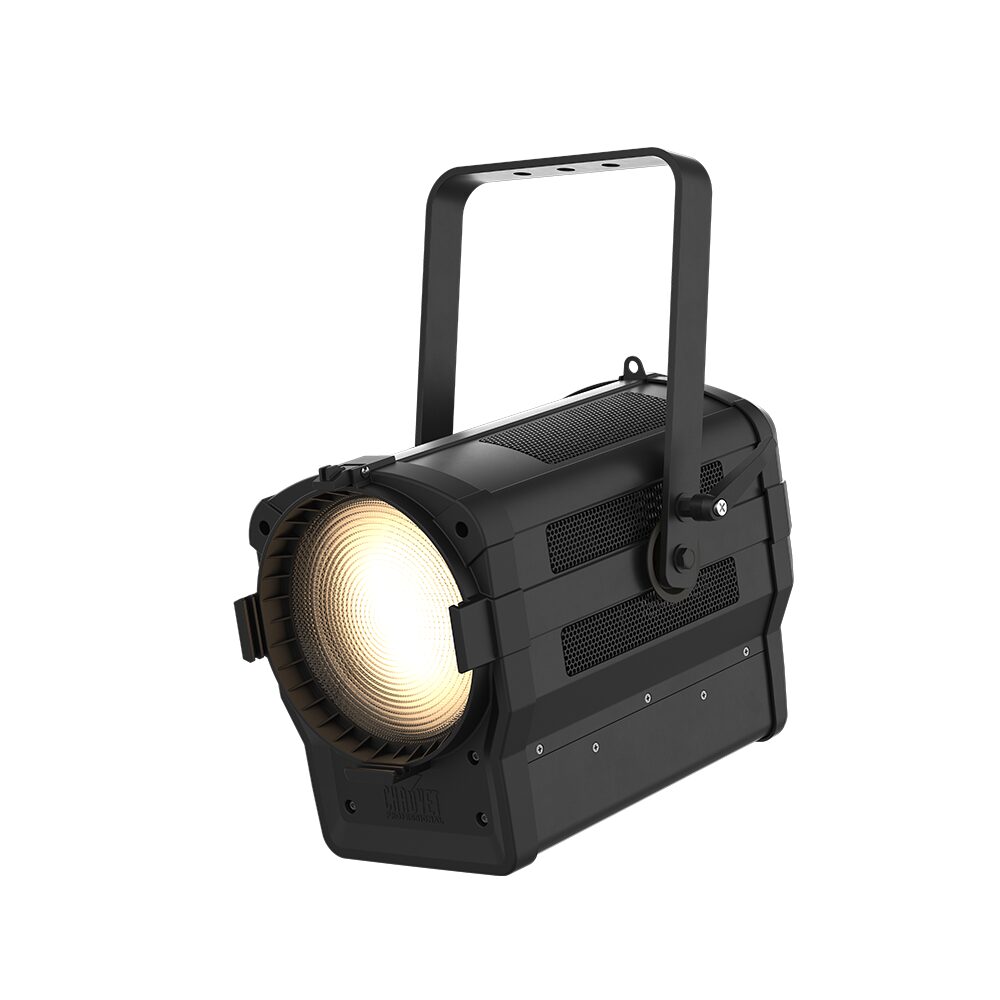

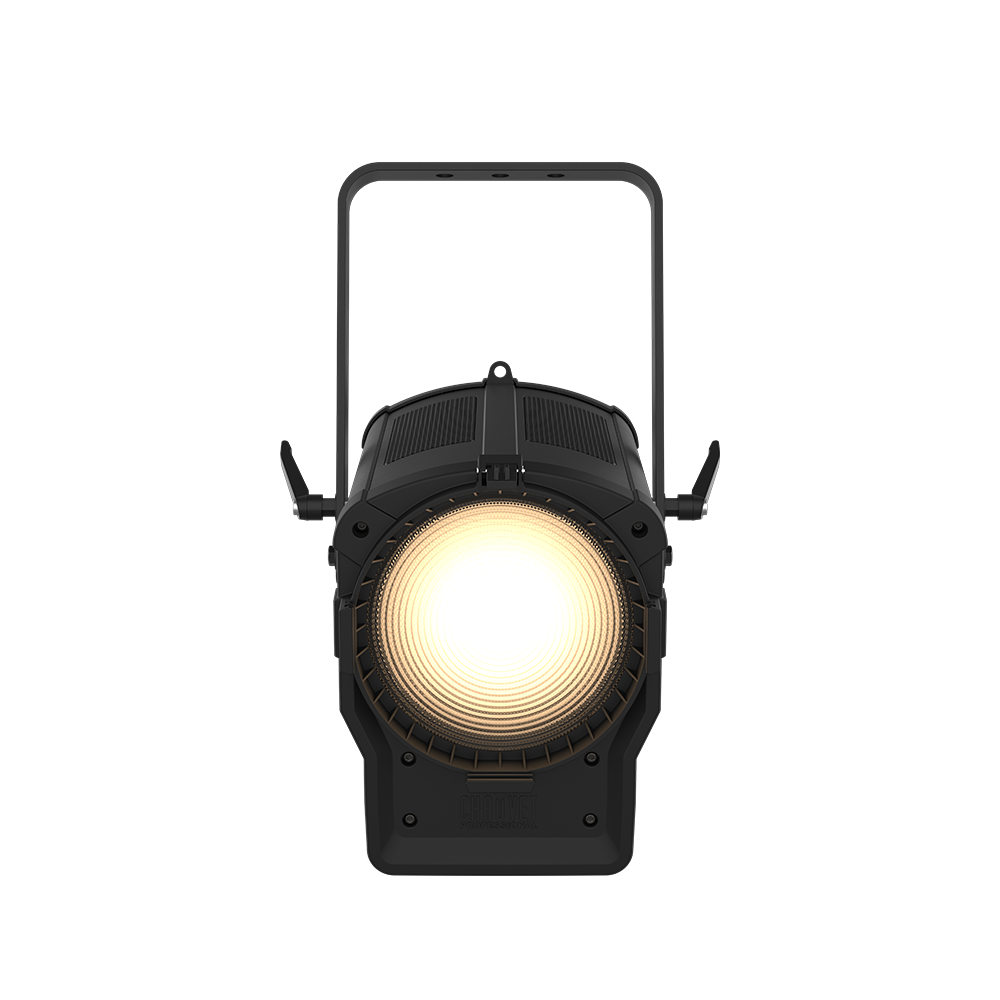

Chauvet Professional – Ovation F-265WW

Chauvet Professional

This high-power, Fresnel-style fixture utilizes an efficient warm white LED system to project a bright, soft, and high-CRI (95+) field of light with a versatile motorized zoom.

Ideal for theatres and television studios, this fixture excels in any application requiring a high-quality, soft-edged warm white wash light.

Features

  • Features a 230 W LED with output comparable to a 2,000 W traditional tungsten Fresnel.
  • Delivers exceptional color rendering with a high CRI of 96 and a warm 3142 K color temperature.
  • Offers a versatile motorized zoom with a wide 16° to 68° field angle for flexible coverage.
  • Achieves exceptionally smooth fades via 16-bit dimming and four selectable dimming curves.
  • Operates with virtual silence, ideal for noise-sensitive theatre and broadcast applications.
  • Supports DMX and RDM protocols with power linking for up to seven units at 120 V.
SKU: OVATIONF265WW-2 Categories: , , ,

Description

Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theatres and television studios. A motorized zoom with a 16°- 68° field range and the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM and an easy to navigate OLED full text display.

Features

Powerful Fresnel Output

Delivers a warm white light with an intensity comparable to a traditional 2,000-watt Fresnel fixture.

Even Light Field

Produces a soft and consistent field of light perfect for wash applications.

Smooth 16-Bit Dimming

Features 16-bit dimming resolution to achieve exceptionally smooth and seamless fades.

Silent Operation

Operates virtually silently, making it ideal for any noise-sensitive environment.

Motorized Zoom Control

Offers a versatile motorized zoom range from 16° to 68° that can be controlled either manually or through DMX.

Video

Ovation Fresnels: F-915FC, F-265WW, F-915VW by CHAUVET Professional

Introducing our high performance 8-inch LED Fresnel equivalents engineered with energy-efficient optical systems in Full Color.

What’s Included

  • Ovation F-265WW
  • Seetronic Powerkon IP65 power cord
  • Gel Frame

Additional information

Optical

Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
Color Temperature (at full): 3142 K
CRI: 96
Beam Angle: 16° to 46°
Field Angle: 27° to 68°
Zoom Range: 16° to 68°
Lumens (27°): 9,283
Lumens (68°): 12,802

Illuminance:
Illuminance (27°): 4,010 lux @ 5 m
Illuminance (68°): 1,162 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic powerKon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Certifications/Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 30 Hz
Dim Modes: 4
Construction & Physical

Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)
Weight: 17.2 lb (7.9 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Control

Protocol(s): DMX, RDM
DMX Channels: 1, 2, 2 or 5
Modes/Personalities: 4 personalities (1, 2, 2, 5)
Electrical

Electrical Detail: 222 W, 1.84 A @ 120 V, 60 Hz
Electrical Detail 2: 231 W, 1.10 A @ 208 V, 60 Hz
Electrical Detail 3: 230 W, 1.01 A @ 230 V, 50 Hz

Downloads

Data Sheet Download
User Guide Download
