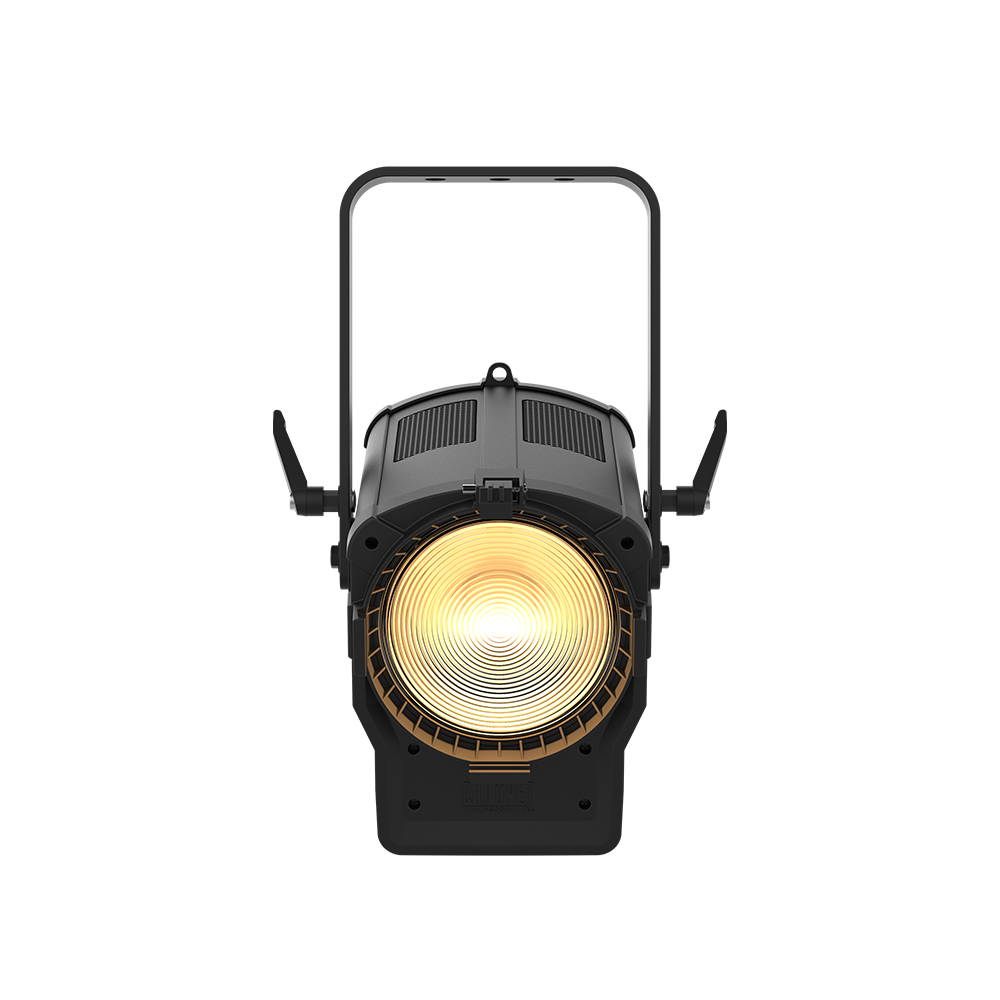

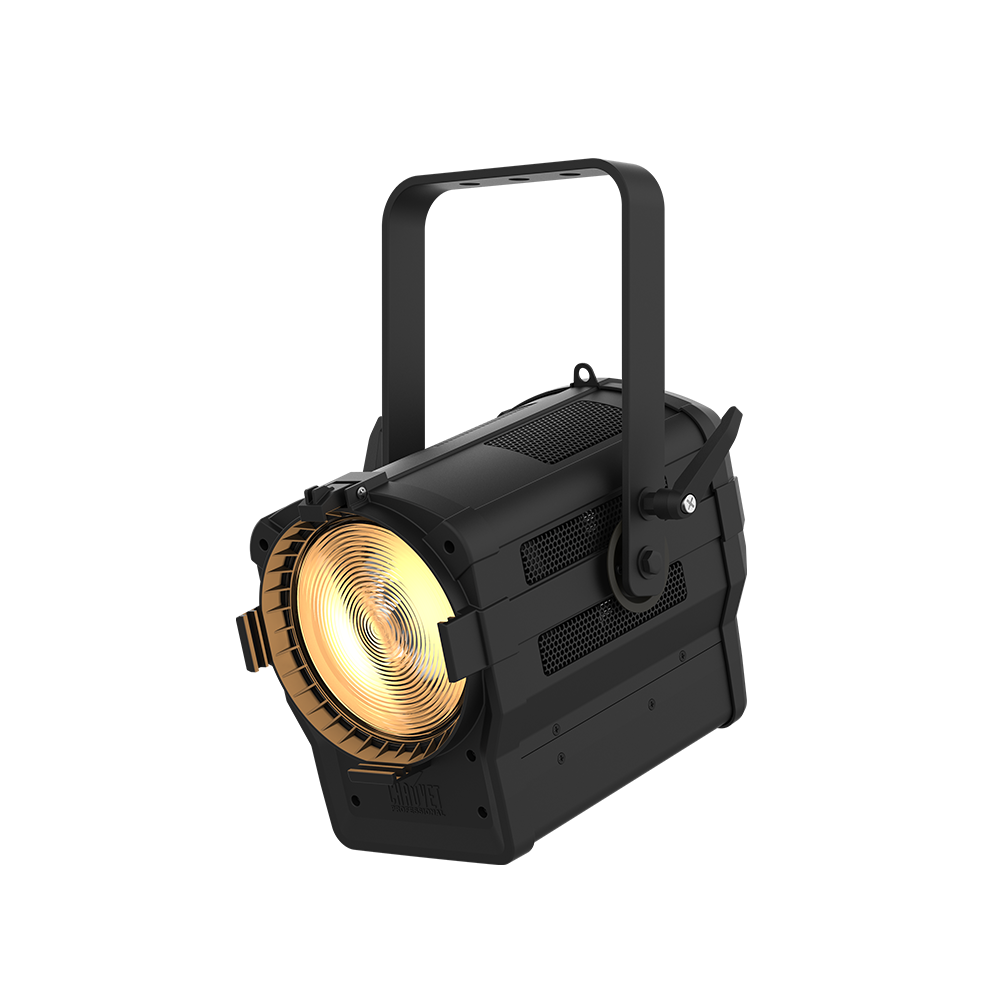

Chauvet Professional – Ovation F-145WW

Chauvet Professional

A versatile LED Fresnel delivering a soft, flat field of high-CRI warm white light, complete with a motorized zoom range of 16° to 65° and smooth 16-bit dimming control.

Perfect for theatrical and studio applications where virtually quiet operation and high-quality, controllable illumination are required.

Features

  • Features a 70W warm white LED with output comparable to a 650W incandescent Fresnel.
  • Delivers superior color rendering with a high CRI of 97 and 3096 K color temperature.
  • Offers exceptionally smooth fades with 16-bit dimming and four selectable dim modes.
  • Engineered for virtually silent operation, ideal for noise-sensitive theatrical and studio use.
  • Supports both DMX and RDM protocols for versatile and simplified fixture management.
  • Allows for simple power linking of up to 35 units at 230 V for fast setups.
SKU: OVATIONF145WW-2 Categories: , , ,

Description

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorized zoom range of 16° to 65°, making it a versatile LED replacement for aging incandescent six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a great choice for theatrical and/or studio applications.

Features

Powerful Fresnel Output

This warm white Fresnel delivers a powerful output comparable to a traditional 6-inch, 650-watt Fresnel.

Even Light Distribution

Produces a consistently soft and even field of light for flawless illumination.

High Resolution Dimming

Achieve exceptionally smooth fades with high-resolution 16-bit dimming control.

Silent Operation

Its virtually silent operation makes it ideal for use in any noise-sensitive situation.

Motorized Zoom

Easily adjust the beam angle from a narrow 16° to a wide 65° using the motorized zoom, controllable manually or via DMX.

Video

Ovation 6″ Mid-Sized Fresnels by CHAUVET Professional

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorized zoom range.

What’s included

  • Ovation F-145WW
  • Seetronic Powerkon IP65 power cord
  • Gel Frame

Additional information

Optical

Light Source: 1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
Color Temperature (at full): 3096 K
CRI: 97
Beam Angle: 16° to 48°
Field Angle: 25° to 65°
Zoom Rang: 16° to 65°
Lumens (25°): 2,787
Lumens (65°): 4,266
Illuminance:
Illuminance (25°): 1,290 lux @ 5 m
Illuminance (65°): 252 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Connections

Power Connection:Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Certification & Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
TRUE1 Style Power Extension cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F6.25” Barndoor
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 30 Hz
Dim Modes: 4
Construction & Physical

Dimensions: 11.69 x 11.22 x 15.03 in (297 x 285 x 382 mm)
Weight: 11 lb (5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
Control

Protocol(s): DMX, RDM
DMX Channels: 1, 2, 2 or 5
Modes/Personalities: 4 personalities (1, 2, 2, 5)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 18 units @ 120 V; 32 units @ 208 V; 35 units @ 230 V
Power and Current: 75 W, 0.635 A @ 120 V, 60 Hz
Power and Current: 73 W, 0.373 A @ 208 V, 60 Hz
Power and Current: 73 W, 0.337 A @ 230 V, 60 Hz
