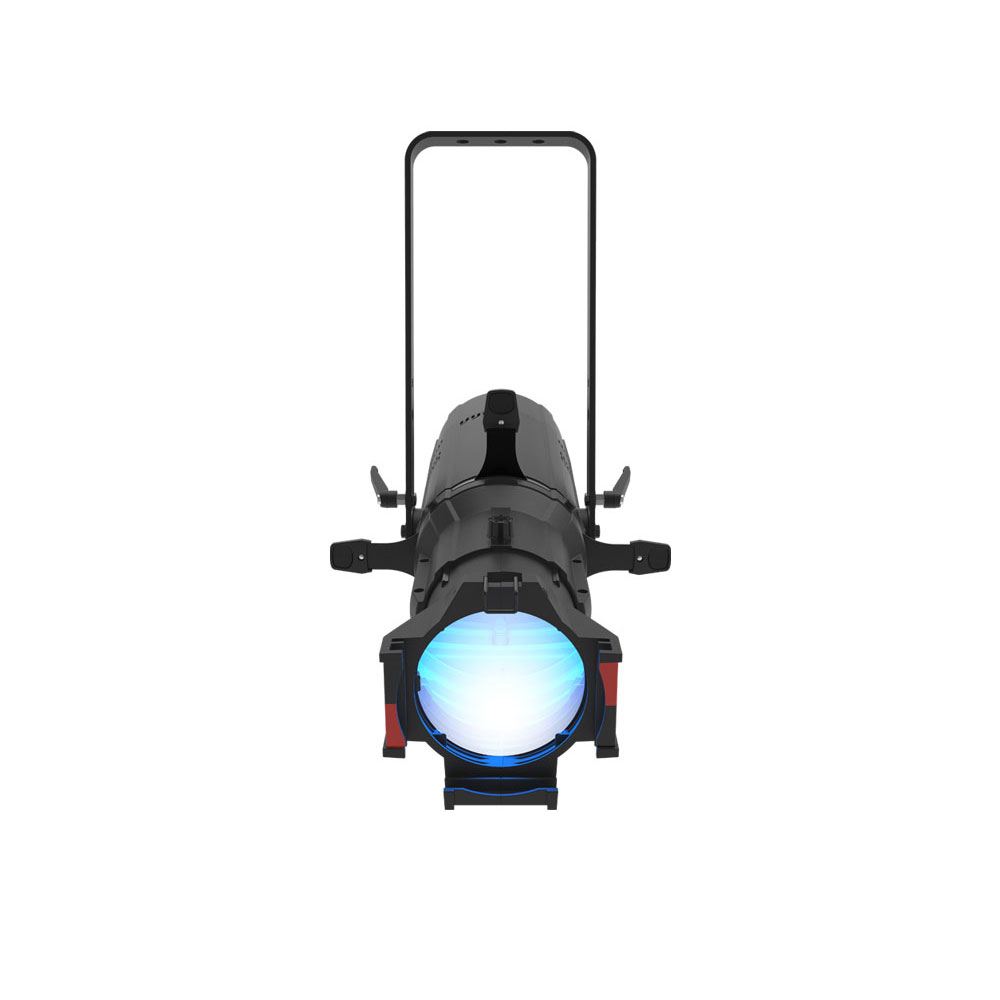

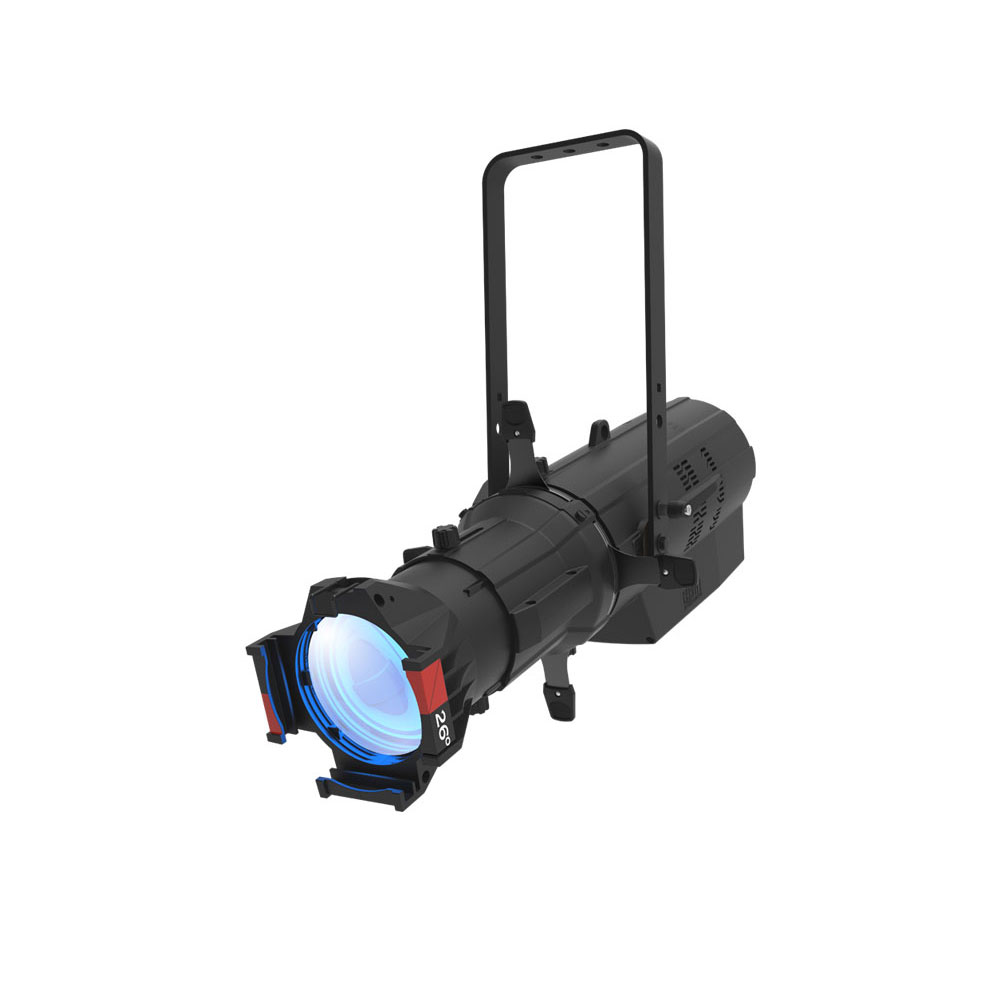

Chauvet Professional - Ovation E-910FC IP Front LeftChauvet Professional - Ovation E-910FC IP Front Left

Chauvet Professional – Ovation E-910FC IP

Chauvet Professional

An IP65-rated ERS-style fixture offering high-performance, full RGBA-Lime color mixing, adjustable color temperature presets, and a virtual color wheel for versatile theatrical lighting.

Perfect for outdoor theatrical productions, amphitheaters, and event spaces where a high-quality, weather-resistant ERS fixture with precise color control is required.

Features

  • Features a 91-LED RGBA-Lime engine for a full spectrum of rich colors and high CRI.
  • Housed in an IP65-rated enclosure for dependable, all-weather theatrical and event lighting.
  • Utilizes standard Ovation lenses and shutters for seamless integration and familiar operation.
  • Delivers smooth 16-bit dimming fades and flicker-free operation with selectable PWM settings.
  • Projects sharp, high-contrast gobos with an exceptionally flat and even field of light.
  • Offers flexible control with multiple DMX personalities and RDM for remote device management.
SKU: OVATIONE910FCIP Categories: , , ,
Clear

Description

Ovation E-910FC IP takes the high-performance, full RGBA-Lime color-mixing marvel of the Ovation E-910FC outdoors. Our standard shutter assembly and lenses lend familiarity and ease of use to this IP65 ERS style fixture that offers Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full bit dimming (per color and master), selectable PWM, RDM and onboard dimming curves selection. Also accessible is our virtual color wheel which matches popular color gels.

Features

Full Color ERS Style Fixture

This RGBAL LED light provides rich, vibrant color for theatre, film, and production applications.

IP65 Weatherproof Rating

A fully IP65 rating ensures reliable performance for seasonal use both indoors and outdoors.

Standard Ovation Optics

The fixture is compatible with standard Ovation beam shaping shutters and lenses for familiar operation and ease of use.

Virtual Color Wheel

Access a virtual color wheel with colors precisely matched to the most popular gel filters.

Adjustable Color Temperature

Select from a range of color temperature presets from 2800 K to 6500 K, all with high CRI and CQS for accurate color rendering.

Advanced Dimming Control

Achieve ultra-smooth fades with 16-bit dimming, plus 8-bit dimming curves to match any lighting scheme.

Superior Gobo Projection

A flat and even field of light ensures crisp, high-quality gobo projection.

Remote Device Management

RDM functionality is included for increased flexibility in setup and configuration.

Flicker-Free Operation

Adjust the Pulse Width Modulation (PWM) to ensure flicker-free performance on camera.

Video

Ovation E-910FC IP | CHAUVET Professional

Ovation E-910FC IP takes the high-performance, full RGBA-Lime color-mixing marvel of the Ovation E-910FC outdoors…

What’s Included

  • Ovation E-910FC IP
  • Seetronic Powerkon IP65

Additional information

Optical

Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
Color Temperature (at full): 6031 K
CRI (3200 K): 86
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000Hz
5° Lens:
Beam Angle: 7°
Field Angle: 7°
Illuminance: 16,300 lux @ 5 m
Lumens: 1,807
10° Lens:
Beam Angle: 10°
Field Angle: 10°
Illuminance: 7,430 lux @ 5 m
Lumens: 3,961
14° Lens:
Beam Angle: 11°
Field Angle: 14°
Illuminance: 4,420 lux @ 5 m
Lumens: 2,827
15°–30° Lens (Narrow):
Beam Angle: 13°
Field Angle: 15°
Illuminance: 4,260 lux @ 5 m
Lumens: 4,028
15°–30° Lens (Wide):
Beam Angle: 24°
Field Angle: 29°
Illuminance: 1,620 lux @ 5 m
Lumens: 1,553
19° Lens:
Beam Angle: 19°
Field Angle: 19°
Illuminance: 2,530 lux @ 5 m
Lumens: 3,236
25°–50° Lens (Narrow):
Beam Angle: 23°
Field Angle: 26°
Illuminance: 1,790 lux @ 5 m
Lumens: 5,261
25°–50° Lens (Wide):
Beam Angle: 36°
Field Angle: 50°
Illuminance: 825 lux @ 5 m
Lumens: 7,263
26° Lens:
Beam Angle: 24°
Field Angle: 26°
Illuminance: 1,720 lux @ 5 m
Lumens: 4,316
36° Lens:
Beam Angle: 28°
Field Angle: 34°
Illuminance: 1,020 lux @ 5 m
Lumens: 3,918
50° Lens:
Beam Angle: 41°
Field Angle: 51°
Illuminance: 457 lux @ 5 m
Lumens: 3,813
Controls

Control Protocol: DMX, RDM
DMX Channels: 1, 4, 6, 8, 11, 13, 14, 16 or HSV
Modes/Personalities: 9 personalities (1, 4, 6, 8, 11, 13, 14, 16 or HSV)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
Power and Current: 225 W, 1.88 A @ 120 V, 60 Hz
Power and Current: 236 W, 1.14 A @ 208 V, 60 Hz
Power and Current: 241 W, 1.05 A @ 230 V, 50 Hz
Required Accessories

Lens Tube: 19°, 26°, 36°, 50°
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 28 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions:
Dimensions (fixture only): 26 x 11.33 x 10.4 in (660 x 287.9 x 264.6 mm)
Dimensions (w/5° lens extended): 47.04 x 14.17 x 14.48 in (1195 x 360 x 368 mm)
Dimensions (w/10° lens extended): 38.3 x 12.16 x 12.48 in (973 x 309 x 317 mm)
Dimensions (w/14° lens extended): 35.2 x 11.33 x 10.4 in (894.2 x 287.9 x 264.6 mm)
Dimensions (w/26° lens extended): 32.37 x 11.33 x 10.4 in (822.3 x 287.9 x 264.6 mm)
Dimensions (w/15°–30° lens): 38.6 x 11.33 x 10.4 in (980.6 x 287.9 x 264.6 mm)
Dimensions (w/25°–50° lens): 31.3 x 11.33 x 10.4 in (795.1 x 287.9 x 264.6 mm)
Weights:
Weight (fixture only): 23.2 lb (10.5 kg)
Weight (w/14° lens): 28.6 lb (12.9 kg)
Weight (w/26° lens): 27.4 lb (12.4 kg)
Weight (w/15°–30° lens): 35.8 lb (16.2 kg)
Weight (w/25°–50° lens): 32.8 lb ( 14.8 kg)
Exterior Color: Black
Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size:
(5° Lens): 14 in (356 mm)
(10° Lens): 12 in (304 mm)
(14° Lens): 7.5 in (191 mm)
(19°, 26°, 36°, And 50° Lens): 6.25 in (159 mm)
(15°–30° Lens): 7.5 in (191 mm)
(25°–50° Lens): 7.5 in (191 mm)

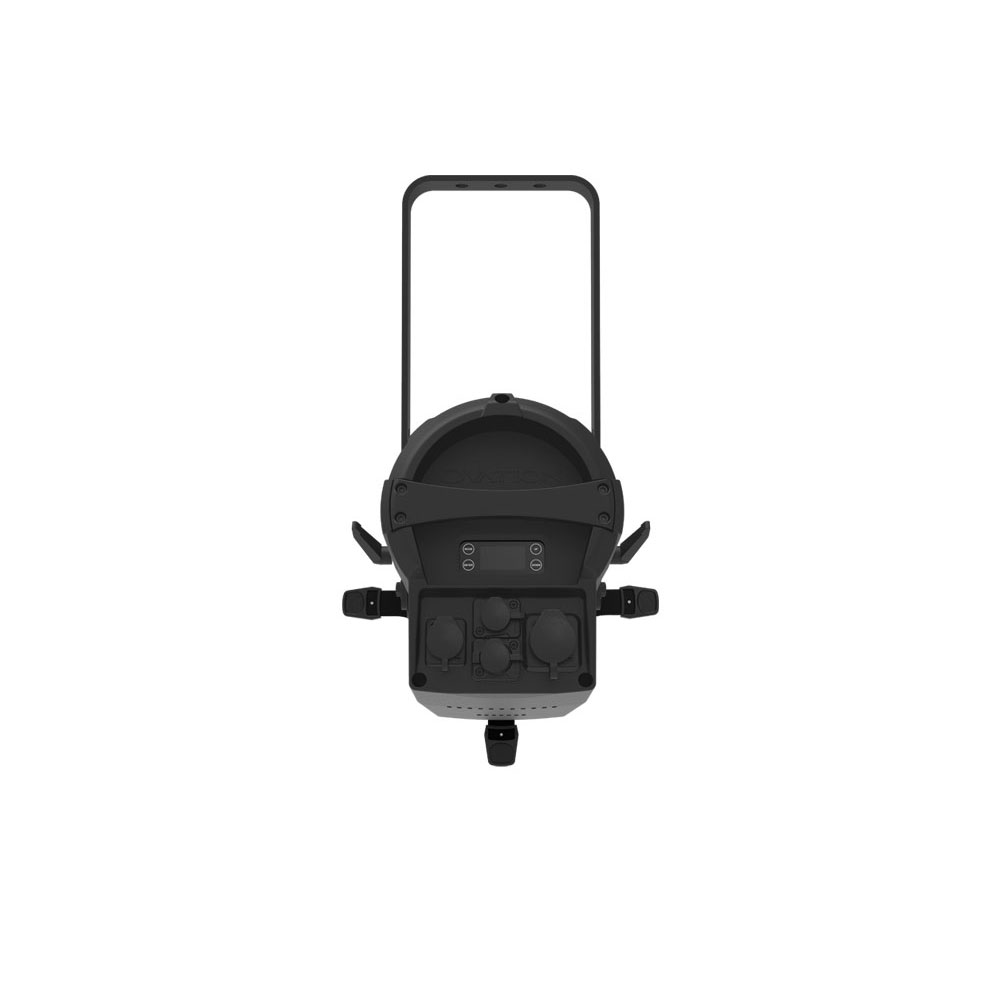

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Certification / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve: Noise Levels

Downloads

Data Sheet Download
User Guide Download
