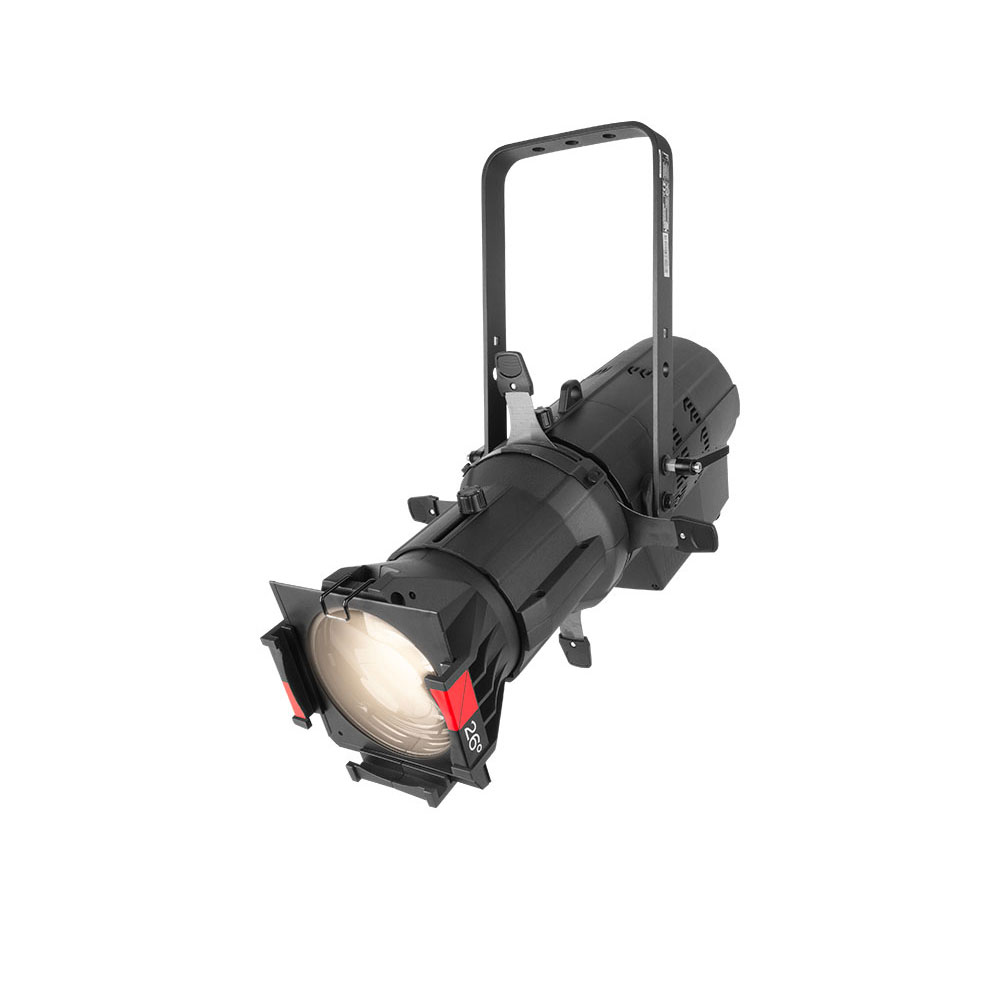

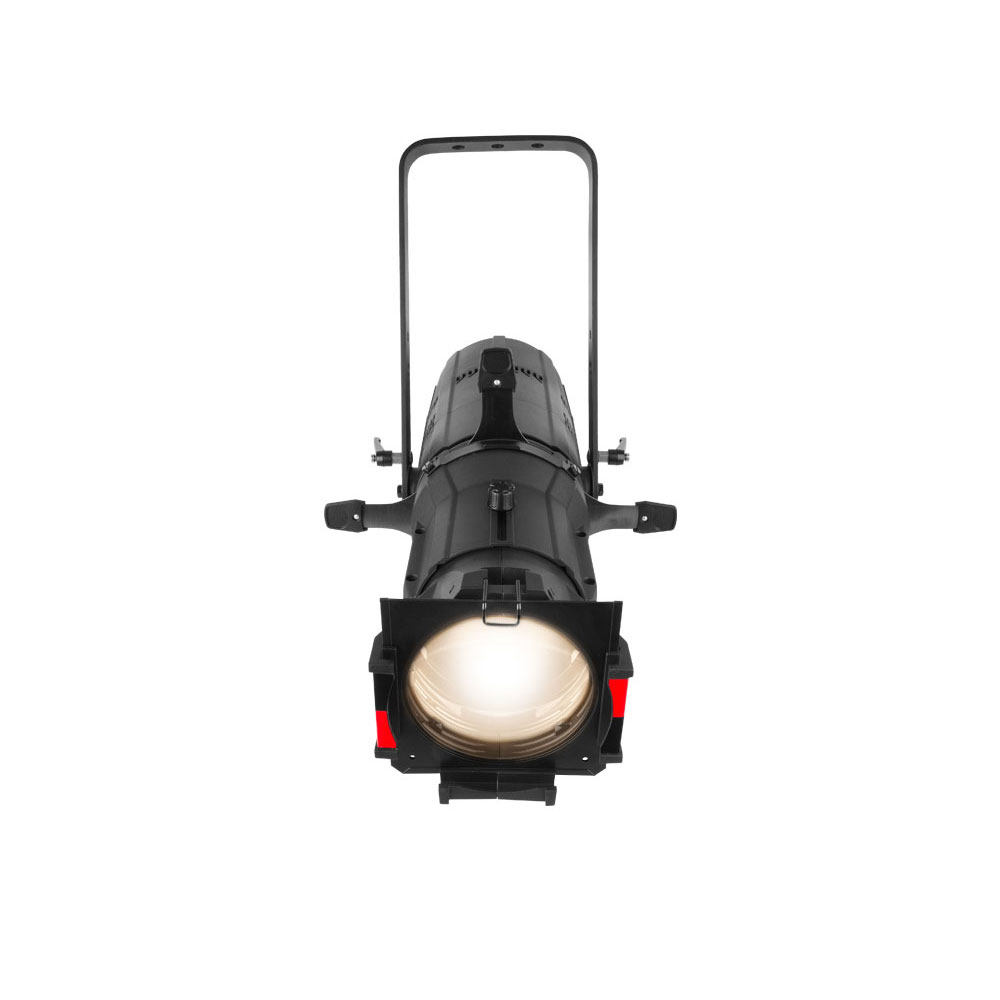

Chauvet Professional – Ovation E-260WW IP

Chauvet Professional

An IP65-rated, warm-white ERS-style fixture that delivers an output surpassing a 750W HPL source, featuring smooth dimming and a flat, even field for superior gobo projection.

Ideal for outdoor theatre, architectural applications, and events that demand a high-performance, weather-resistant ellipsoidal fixture.

Features

  • Features a 230W warm white LED engine with a high 96 CRI for excellent color rendering.
  • Built with a rugged IP65-rated housing to ensure reliable performance in any weather.
  • Works with standard Ovation shutter assemblies and lenses for seamless system integration.
  • Offers ultra-smooth 16-bit dimming and four selectable curves for precise intensity control.
  • Supports both DMX and RDM protocols for flexible setup and remote device management.
  • Features adjustable PWM to provide flicker-free operation for broadcast and video applications.
SKU: OVATIONE260WWIP Categories: , , ,
Clear

Description

Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.

Features

Powerful Warm White Output

This ERS-style fixture delivers a bright, warm white light that surpasses the output of a traditional 750W tungsten source.

IP65 All Weather Rating

A full IP65 rating ensures reliable performance for both indoor and outdoor seasonal applications.

Familiar Beam Shaping

Utilizes standard Ovation beam shaping shutters and lenses for an intuitive and user-friendly experience.

Smooth Dimming Control

Features ultra-smooth 16-bit dimming and selectable 8-bit dimming curves to complement any lighting scheme.

Superior Gobo Projection

A flat and even field of light ensures crisp, high-quality gobo projections without hot spots.

Remote Device Management

RDM capability allows for convenient remote addressing and configuration for added operational flexibility.

Flicker Free Operation

Adjustable Pulse Width Modulation (PWM) eliminates on-camera flicker, making it ideal for broadcast and recording.

Video

Ovation E-260WW IP by CHAUVET Professional

Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors.

What’s Included

  • Ovation E-260WW IP
  • Seetronic Powerkon IP65 power cord

Additional information

Optical

Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy
Color Temperature (at full): 3149 K
CRI: 96
Beam Angle: Field Angle
Dimming Modes: 4
Lumens (w/5° lens): 9,605
Lumens (w/10° lens): 10,047
Lumens (w/14° lens): 11,308
Lumens (w/19° lens): 10,546
Lumens (w/26° lens): 12,455
Lumens (w/36° lens): 12,793
Lumens (w/50° lens): 12,258
Lumens (w/15°–30° lens)(Narrow): 11,300
Lumens (w/15°–30° lens)(Wide): 11,836
Lumens (w/25°–50° lens)(Narrow): 13,220
Lumens (w/25°–50° lens)(Wide): 13,632
Illuminance:
Illuminance (w/5° lens): 42,658 lux @ 5 m
Illuminance (w/10° lens): 23,747 lux @ 5 m
Illuminance (w/14° lens): 12,648 lux @ 5 m
Illuminance (w/19° lens): 7,983 lux @ 5 m
Illuminance (w/26° lens): 5,817 lux @ 5 m
Illuminance (w/36° lens): 3,755 lux @ 5 m
Illuminance (w/50° lens): 1,613 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): 13,155 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): 5,884 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): 6,535 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): 2,554 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Control

Control Protocol: DMX, RDM
DMX Channels: 2, 3, 4 or 7
Modes/Personalities: 4 personalities (2, 3, 4, 7)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 100 V; 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V; 13 units @ 240 V
Power and Current: 230 W, 2.30A @ 100 V
Power and Current: 221 W, 1.95 A @ 120 V, 60 Hz
Power and Current: 215 W, 1.05 A @ 208 V, 60 Hz
Power and Current: 213 W, 1.03 A @ 230 V, 50 Hz
Power and Current: 228 W, 1.03 A @ 240 V
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
RDM2go
Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
Gobo Holder: Ovation GR-1IP, Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Color Temperature Presets: No
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions:
Dimensions (fixture only): 19.49 x 11.14 x 18.42 in (495 x 342 x 506 mm)
Dimensions (w/5° lens extended): 43.58 x 14.17 x 14.48 in (1107 x 360 x 368 mm)
Dimensions (w/10° lens extended): 34.88 x 12.16 x 12.48 in (886 x 309 x 317 mm)
Dimensions (w/14° lens extended): 28.7 x 11.14 x 18.42 in (790 x 342 x 506 mm)
Dimensions (w/26° lens extended): 23.5 x 13.46 x 19.92 in (597 x 342 x 506 mm)
Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
Weights:
Weight (fixture only): 20.2 (9.2 kg)
Weight (w/5° lens): 26 lb (11.9 kg)
Weight (w/10° lens): 24 lb (11 kg)
Weight (w/14° lens): 25.6 lb (11.6 kg)
Weight (w/26° lens): 24.4 lb (11 kg)
Weight (w/15°–30° lens): 34.2 lb (15.5 kg)
Weight (w/25°–50° lens): 31.8 lb (14.4 kg)
Exterior Color: Black
Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size:
(5° Lens): 14 in (356 mm)
(10° Lens): 12 in (304 mm)
(14° Lens): 7.5 in (191 mm)
(19°, 26°, 36°, And 50° Lens): 6.25 in (159 mm)
(15°–30° Lens): 7.5 in (191 mm)
(25°–50° Lens): 7.5 in (191 mm)

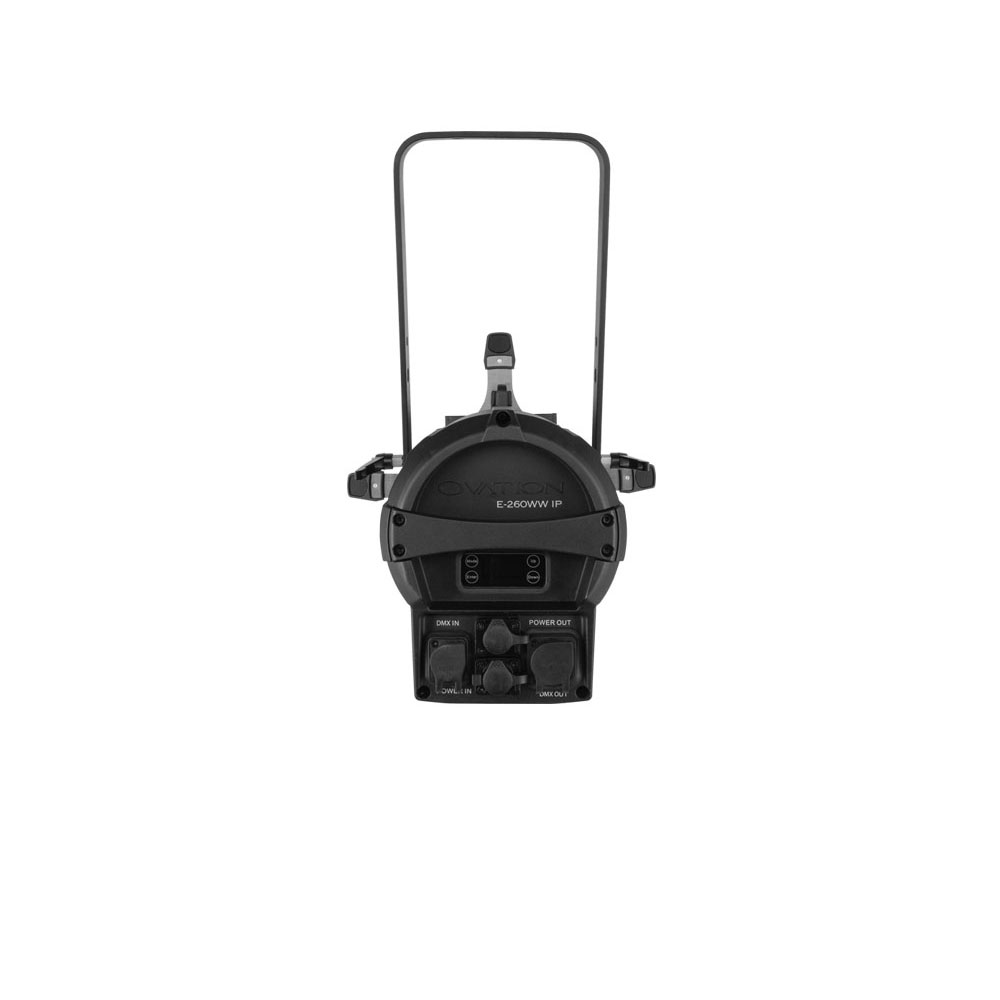

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Certificaitons / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
