Chauvet Professional - Ovation CYC 3 FCChauvet Professional - Ovation CYC 3 FC

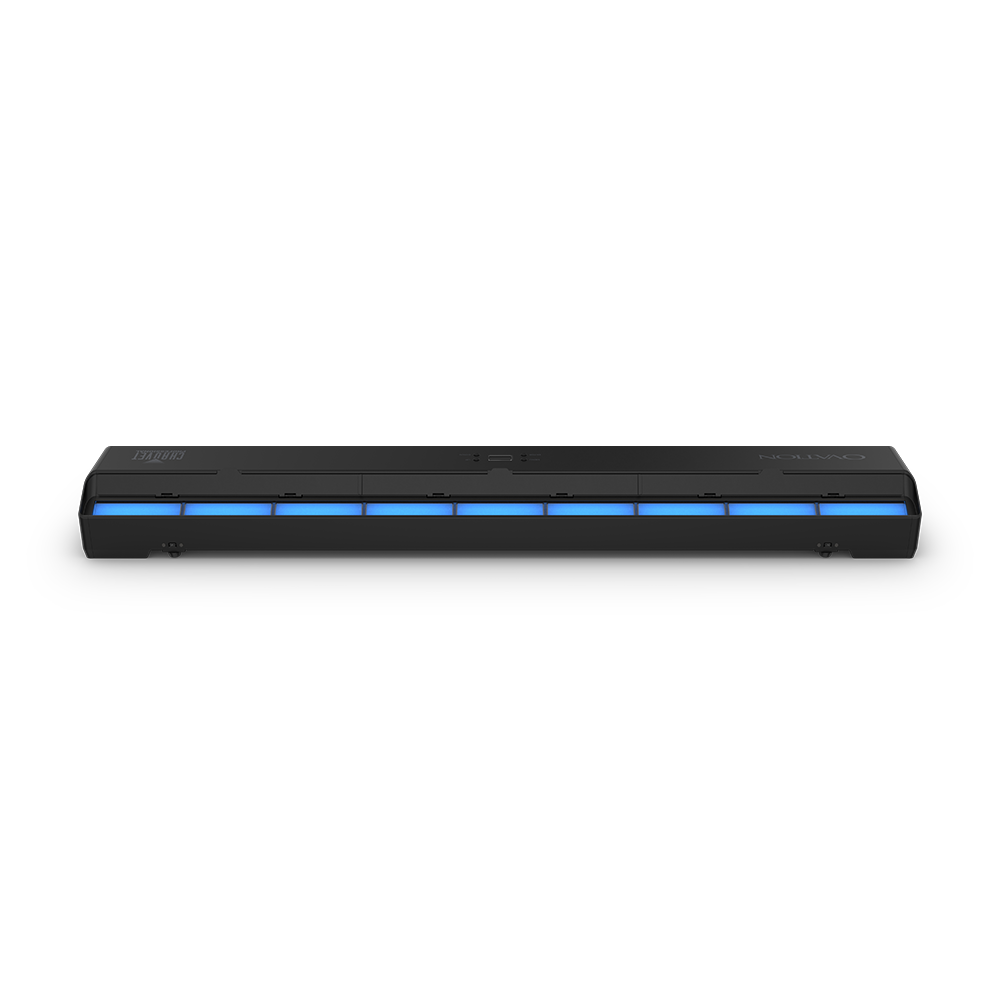

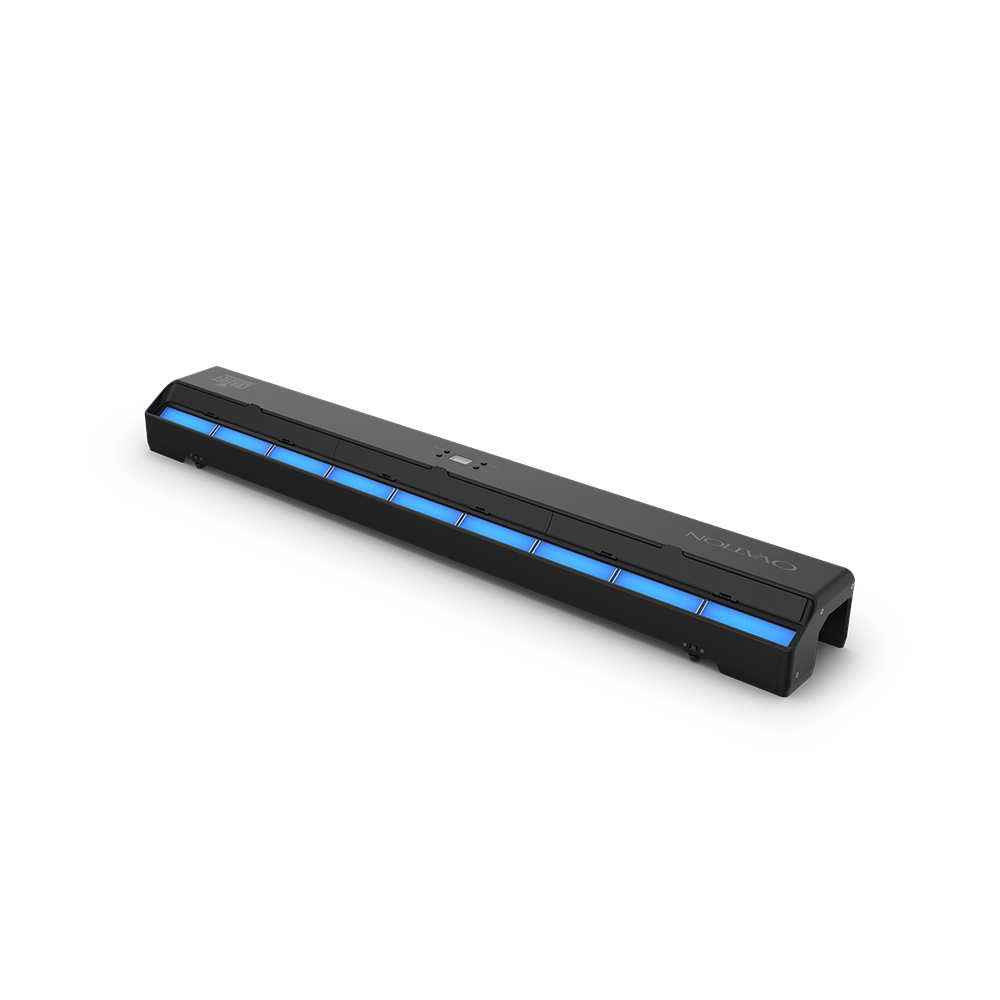

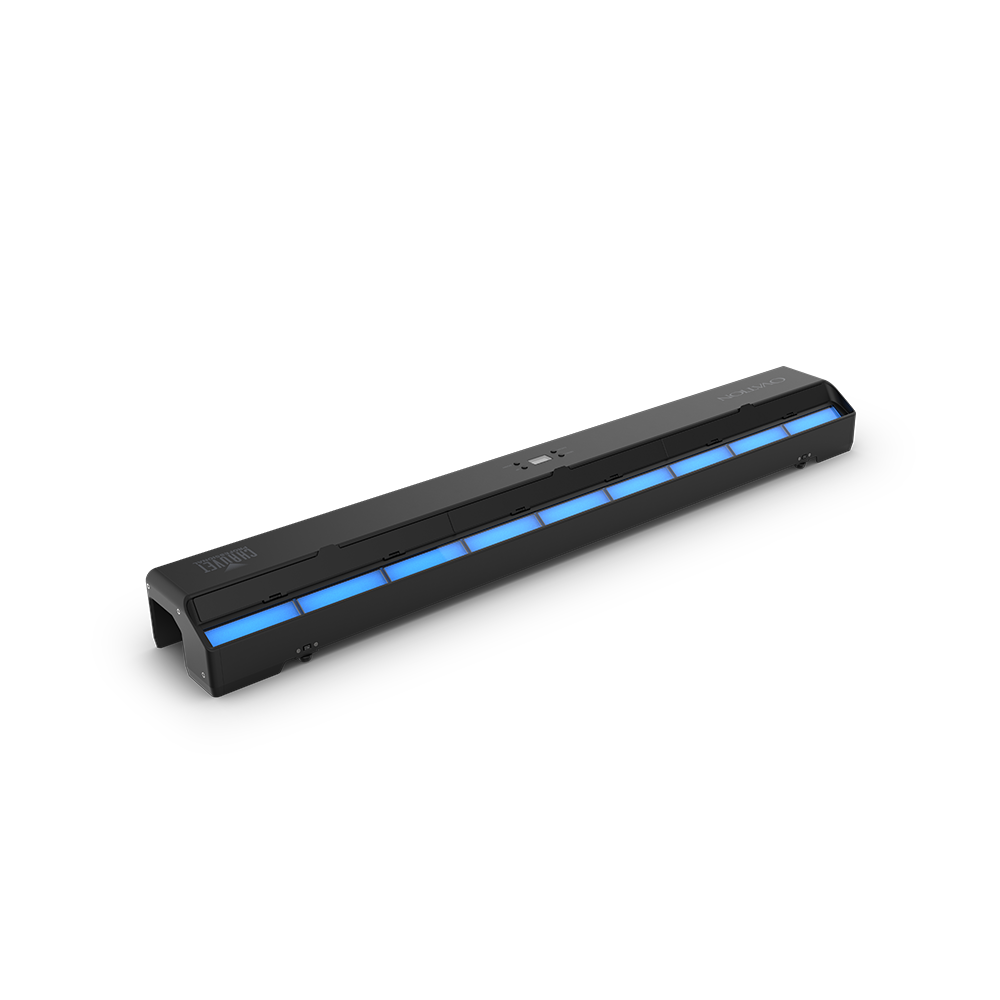

Chauvet Professional – Ovation CYC 3 FC

Chauvet Professional

A versatile, low-profile, and convection-cooled fixture that serves as a cyc wash or footlight, delivering a silent and homogeneous field of light with realistic, saturated colors from its advanced RGBAL system.

Perfect for theatrical, broadcast, and other noise-sensitive applications where a discreet and seamless wash of light is critical for the stage set.

Features

  • Features an advanced RGBAL LED system with a high CRI of 90 for exceptional color fidelity.
  • Offers theatre-ready, 16-bit dimming control for exceptionally smooth fades to black.
  • Includes an integrated kick stand and adjustable glare shield for precise beam shaping.
  • Eliminates on-camera flicker for broadcast and film with adjustable Pulse Width Modulation.
  • Supports both DMX and RDM protocols for versatile control and remote device management.
  • Designed to seamlessly extend coverage when paired with the Ovation CYC 1 FC.
SKU: OVATIONCYC3FC Categories: , , ,

Description

Ovation CYC 3 FC goes to new lengths to deliver a homogeneous field of light with significant reach. Its sleek low profile blends discreetly into stage sets as either a cyc wash or footlight and pairs perfectly with the CYC 1 FC to easily extend coverage with seamless consistency in interchangeable configurations. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation CYC 3 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low profile of the unit, it can also be used effectively as a footlight. This versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features included omega brackets.

Features

Low-Profile Design

Functions as a lightweight cyclorama wash or footlight in a one-meter length designed to complement the Ovation CYC 1 FC.

Full Spectrum Color System

An advanced RGBAL LED system displays a full spectrum of hues perfect for theatre, film, and production environments.

16-Bit Dimming Control

Achieve exceptionally smooth fades with theatre-ready 16-bit dimming of the master dimmer and individual colors.

Integrated Beam Shaping

Modify the light beam using built-in kick stands and an adjustable glare shield for precise control.

Even Field of Light

Delivers a flat, even field of light with superior and seamless color mixing.

Virtual Color Wheel

Access popular gel colors and various color temperature presets with a convenient virtual color wheel.

Remote Device Management

RDM capability adds flexibility for remote addressing and configuration of the fixture.

Adjustable PWM

Eliminate on-camera flickering for broadcast and film use with adjustable Pulse Width Modulation.

Silent Operation

A fanless cooling design ensures completely silent operation for use in studio and theatre applications.

Video

Ovation CYC 3 FC by CHAUVET Professional

The Ovation CYC FC family is growing to new lengths with an extended design for quicker runs. Ovation CYC 3 FC is a sleek, silent, low-profile cyclorama wash and footlight that achieves tremendous realism and saturation, with impressive throw and the same advanced RGBAL colour mixing system found in our Full Colour Ovation fixtures. Perfectly pair and complement with Ovation CYC 1 FC to pick up the pace and fit any space.

Whats included

  • OVATION CYC-3 FC
  • Seetronic Powerkon power cord
  • Omega brackets with mounting hardware

Additional information

Optical

Light Source: 180 LEDs (36 red, 36 green, 36 blue, 36 amber, 36 lime) 2.5 W to 3.5, (725 mA)
Color Temperature (range): 2800 to 6500 K
CRI (3200K): 90
Beam Angle (Horizontal): 111.4°
Field Angle (Horizontal): 151.8°
Beam Angle (Vertical): 76.7°
Field Angle (Vertical): 134.4°
Lumens: 19,575
Illuminance (total): 280 lux @ 5 m
PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
Power and Current: 345 W, 2.93 A @ 120 V, 60 Hz
Power and Current: 338 W, 1.77 A @ 208 V, 60 Hz
Power and Current: 334 W, 1.64 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon power linking cables
3-pin or 5-pin DMX Cables
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No
Construction / Physical

Dimensions: 47.13 x 6.30 x 4.33 in (1197 x 160 x 110 mm)
Weight: 24.6 lb (11.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Control

Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16, 17, 33
Modes/Personalities: 11 personalities (1, 3, 5, 7, 10, 12, 13, 16, 17, 33, HSV)
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating:
IP20, dry location
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)

Downloads

Data Sheet Download
User Guide Download
