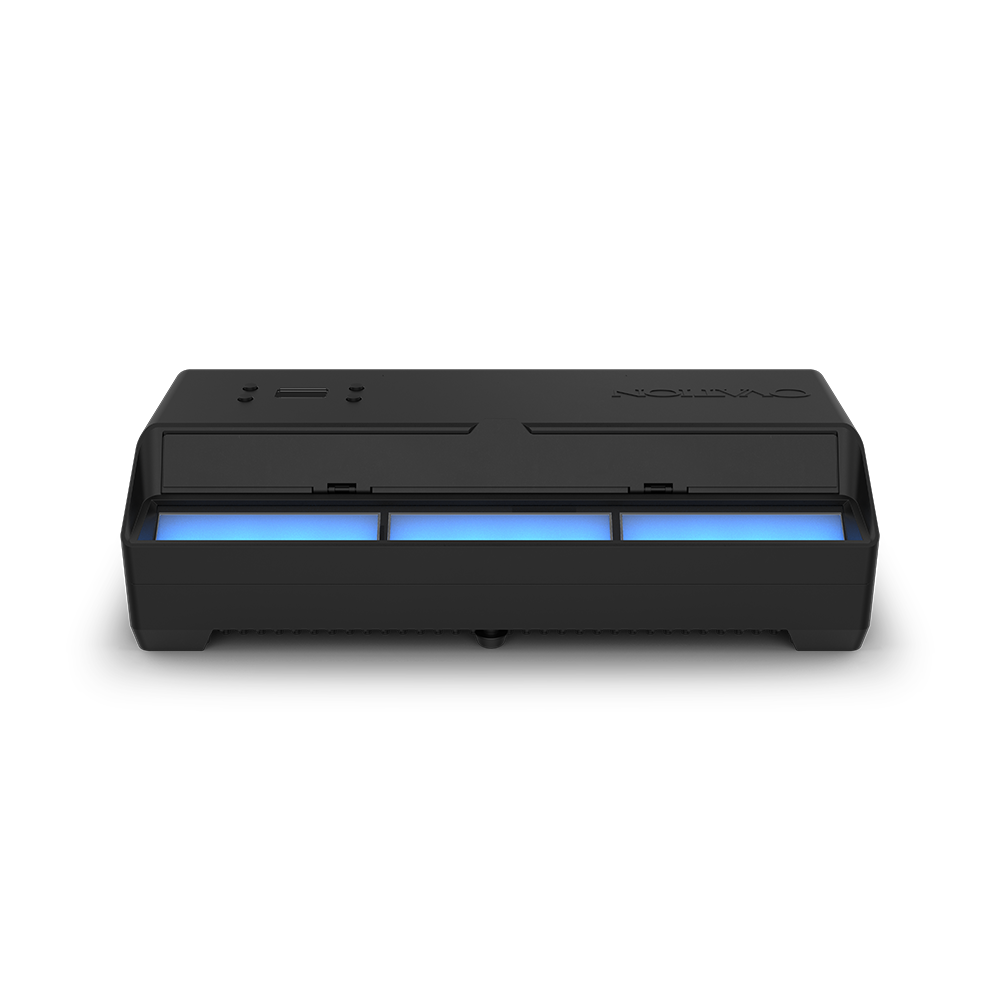

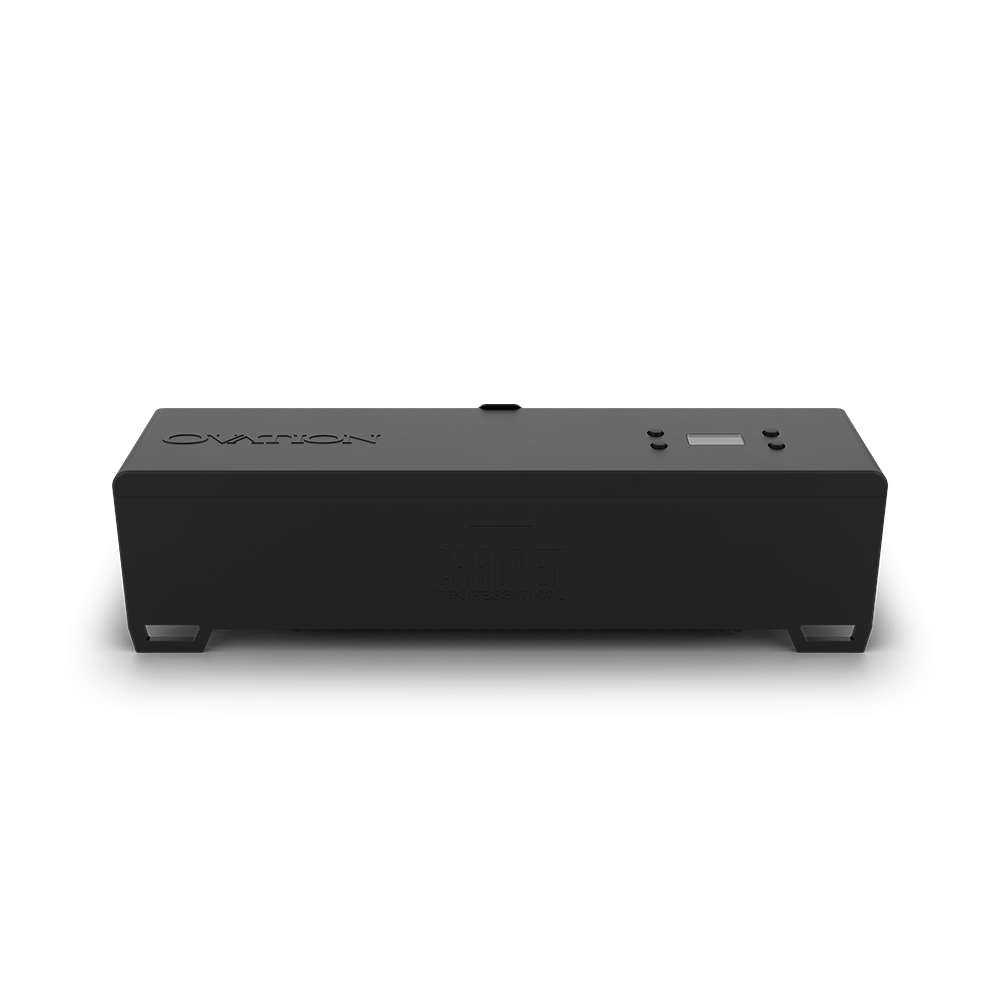

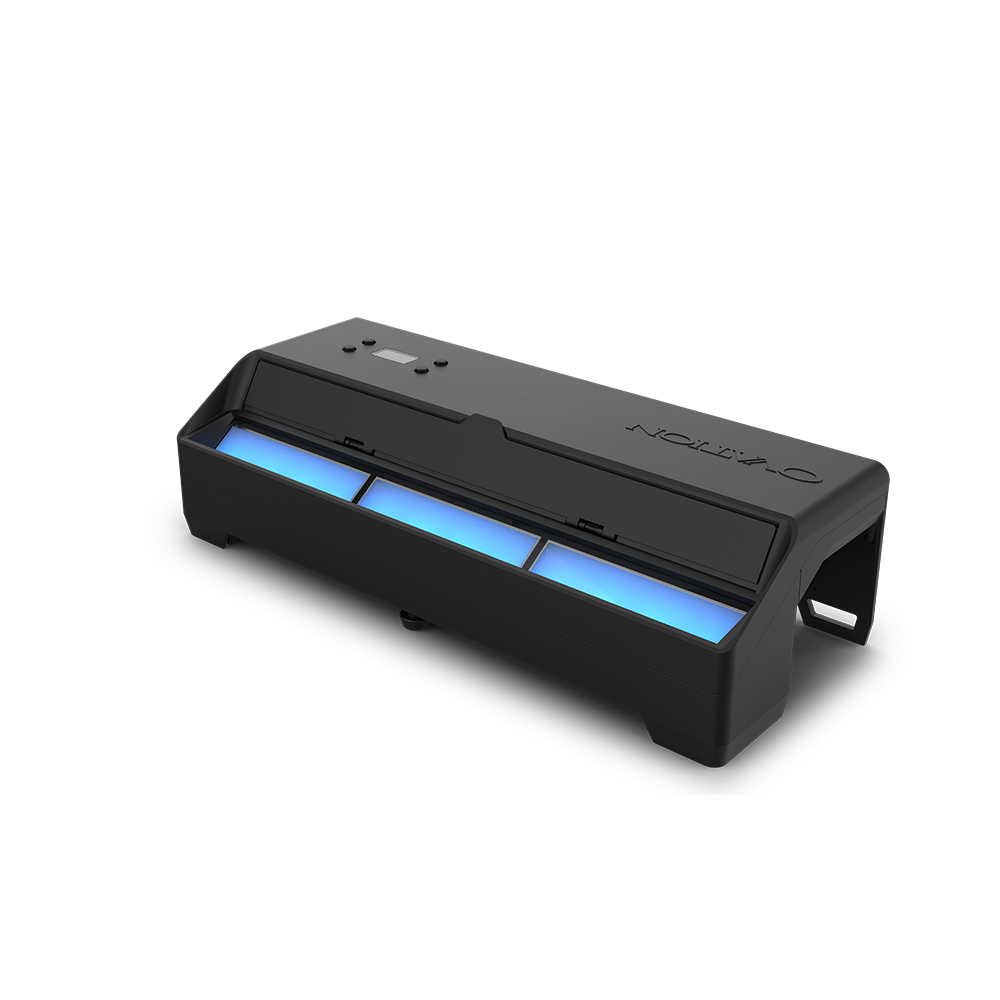

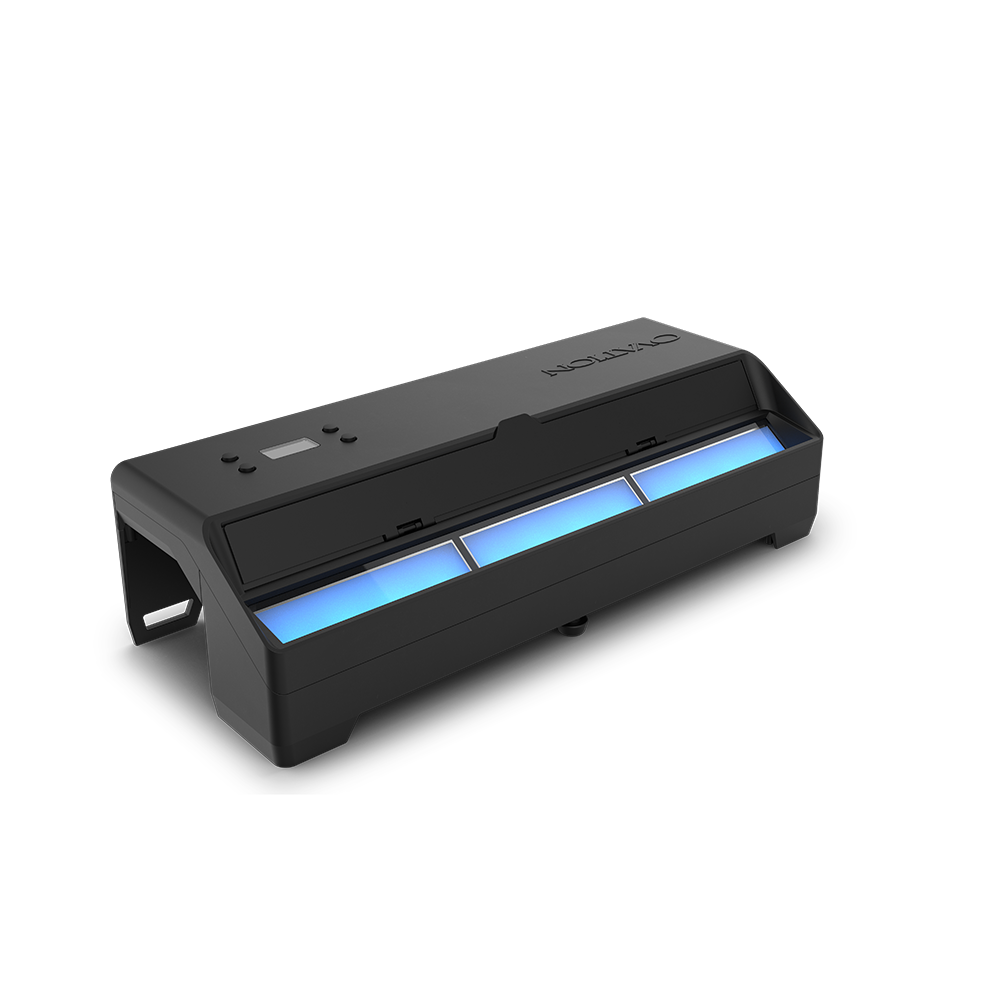

Chauvet Professional - Ovation CYC 1 FC Front Left of Wash LightChauvet Professional - Ovation CYC 1 FC Front Left of Wash Light

Chauvet Professional – Ovation CYC 1 FC

Chauvet Professional

A sleek and silent convection-cooled cyclorama fixture featuring an advanced RGBAL color-mixing system to deliver a wide, smooth, and richly saturated field of light.

Its fanless operation makes it ideal for theatrical and broadcast applications where silence is critical, while its low-profile design also allows for versatile use as a footlight.

Features

  • Features an advanced RGBAL engine for a full color spectrum with a high CRI.
  • Provides precise beam control with an integrated kickstand and adjustable glare shield.
  • Delivers exceptionally smooth fades with 16-bit dimming and four selectable curves.
  • Adjustable PWM ensures flicker-free performance on camera for broadcast applications.
  • Simplifies setup by power linking up to 11 units from a single 120 V source.
  • Offers a virtual color wheel with presets that emulate popular gel colors.
SKU: OVATIONCYC1FC Categories: , , ,

Description

Ovation CYC 1 FC is an incredibly sleek, discreet, and light weight CYC that delivers a wide, smooth field of light with significant reach. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation Cyc 1 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low-profile of the unit, it can also be used effectively as a footlight. The versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features an included omega bracket.

Features

Versatile, Low-Profile Design

Functions as a lightweight cyclorama wash or footlight fixture for flexible placement.

Full Spectrum Color

Utilizes RGBAL LEDs to produce a wide range of hues for theatre, film, and production.

Theatre-Ready Dimming

Achieve smooth fades with 16-bit dimming of the master dimmer and individual colors.

Integrated Beam Control

Easily modify the light beam using the built-in kickstand and an adjustable glare shield.

Superior Light Quality

Produces a flat, even field of light with exceptional color mixing.

Virtual Color Wheel

Access presets matched to popular gel colors and various color temperatures.

Remote Device Management

RDM capability allows for convenient remote configuration and added flexibility.

Flicker-Free On Camera

Adjustable PWM (Pulse Width Modulation) ensures flicker-free performance for video applications.

Silent Operation

Designed for quiet use in noise-sensitive studio and theatre environments.

Video

Ovation CYC 1 FC by CHAUVET Professional

Ovation CYC 1 FC is super sleek, ultra-quiet, and ideal for applications where silent operation is paramount. The unit realistically renders nearly any color at full saturation with the advanced RGBAL color-mixing system found in our Full Color Ovation fixtures. Lightweight and versatile, this fixture has an integrated kick stand and adjustable glare shield to manipulate shape its throw and has an included omega bracket for multipurpose usage.

What’s Included

  • OVATION CYC-1FC
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware

Additional information

Optical

Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy.
Color Temperature (range): 2800 to 6500 K
CRI (3200 K): 90.6
Beam Angle: 81.1° (Horizontal)
Beam Angle: 87.1° (Vertical)
Field Angle: 124.6° (Horizontal)
Field Angle: 148.1° (Vertical)
Lumens: 8,966
Illuminance: 210 lux @ 5 m
PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000 Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 11 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
Power and Current: 139 W, 1.14 A @ 120 V, 60 Hz
Power and Current: 137 W, 0.64 A @ 208 V, 60 Hz
Power and Current: 137 W, 0.58 A @ 230 V, 50 Hz
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No
Construction / Physical

Dimensions: 16.14 x 6.29 x 4.33 in (410 x 160 x 110 mm)
Weight: 9 lb (4.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Control

Control Protocol: DMX, RDM
DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16 HSV)
Certifications / Qualifications

CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
