Description

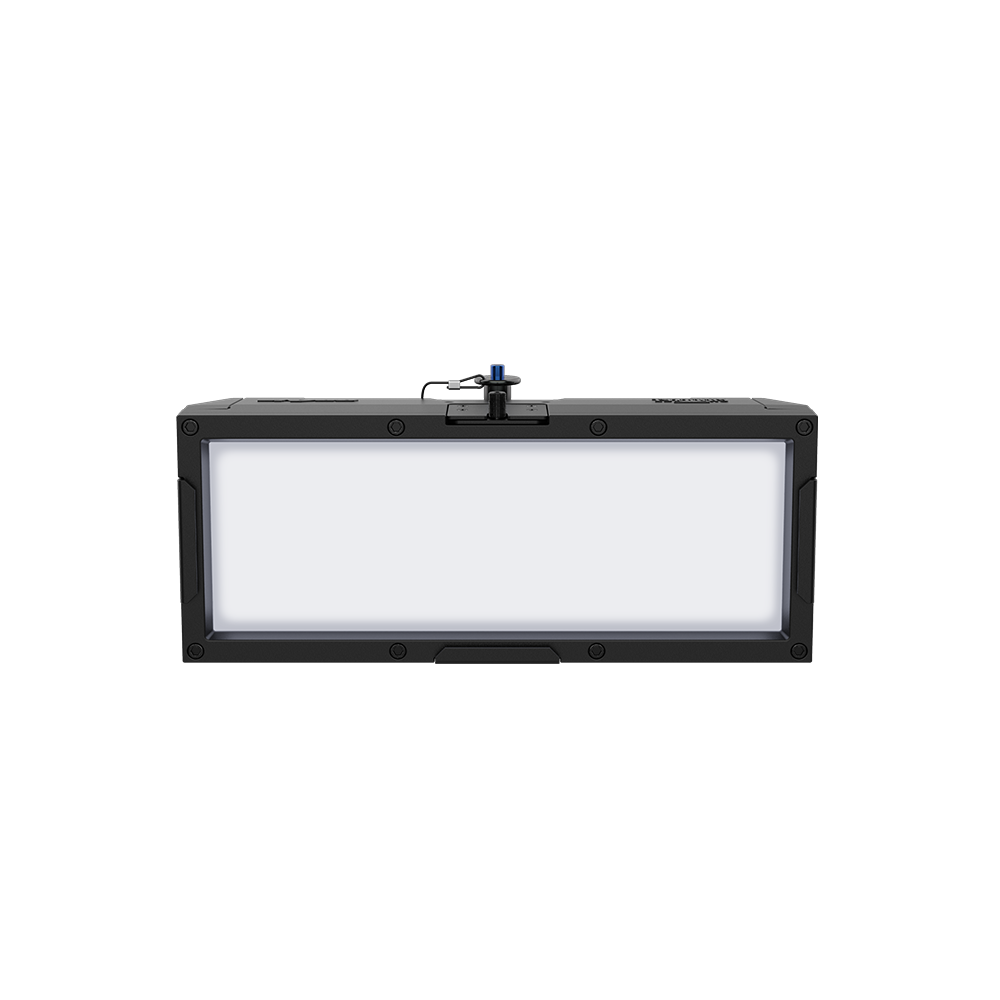

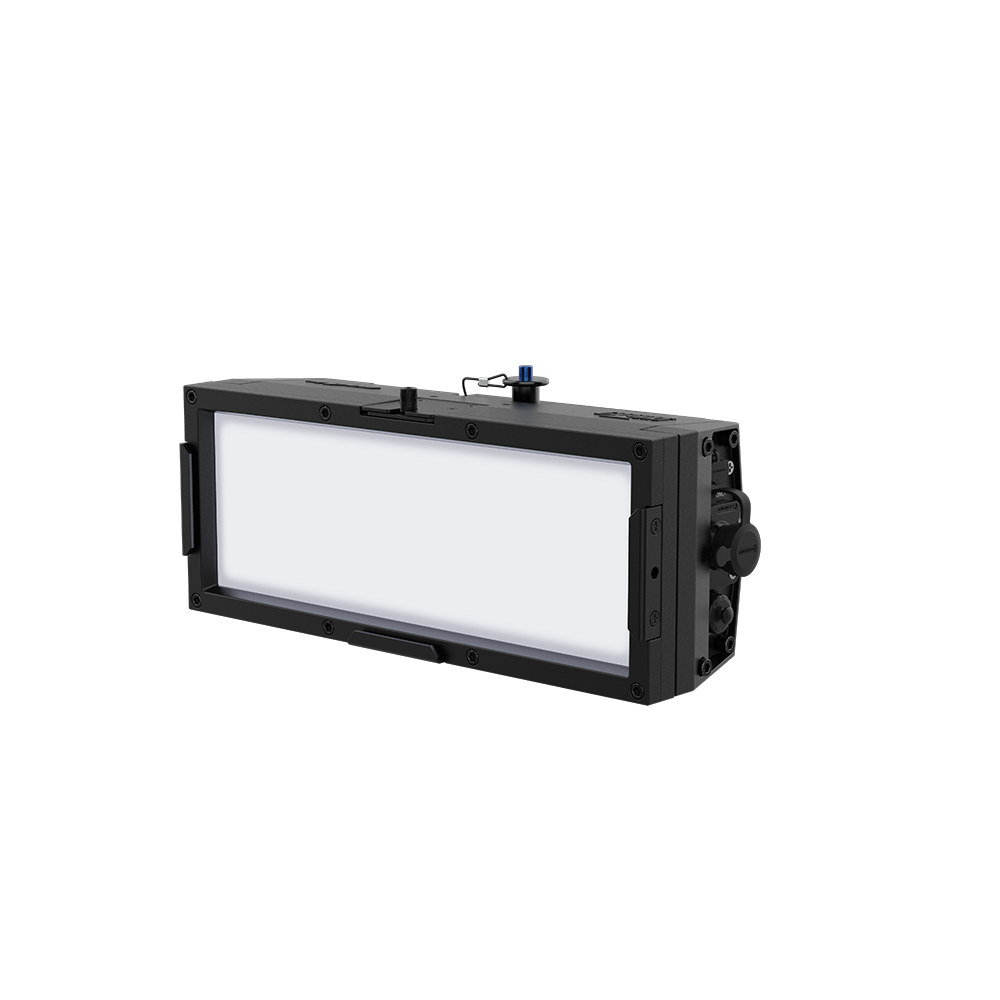

onAir Panel Min IP is a small and rugged IP65, full-spectrum LED soft light capable of facing all of the elements, outdoors or in. Ready to go on-location, or squeeze into any studio space with a low-trim, onAir Panel Min IP also features a superior quality of white light with high CRI/TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard LED menu. Conveniently switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX and an onboard control option ensure camera-ready use. Its small size makes it super portable, and you can remove the main power supply for a 28 VDC input via 3-pin XLR to power the fixture from an external battery pack to add increased flexibility for all of your remote needs.
Features
Full Spectrum Soft Light Panel
A mini soft light panel fixture designed to provide full-spectrum LED light for broadcast, film, and special events.
IP65 All Weather Rating
Certified for reliable indoor or outdoor use in any weather conditions.
Wide Color Temperature Range
Adjust the color temperature linearly from 2800 K to 8000 K while maintaining high color rendering accuracy.
Virtual Color Wheel
Instantly access a range of popular gel colors digitally without the need for physical filters.
Precise Color Control
Fine-tune your lighting with plus/minus green adjustment and emulated red-shift for perfect color matching.
Advanced Wireless Control
Offers enhanced flexibility through RDM for remote configuration and CRMX for wireless DMX operation.
Flicker-Free Operation
Adjustable Pulse Width Modulation ensures the light output is completely flicker-free for any camera frame rate.
Silent Operation
Features a fanless cooling system for completely silent performance, perfect for sound-sensitive studio environments.
Smooth 16-Bit Dimming
Achieve seamless fades and intensity changes with ultra-smooth 16-bit dimming curves.

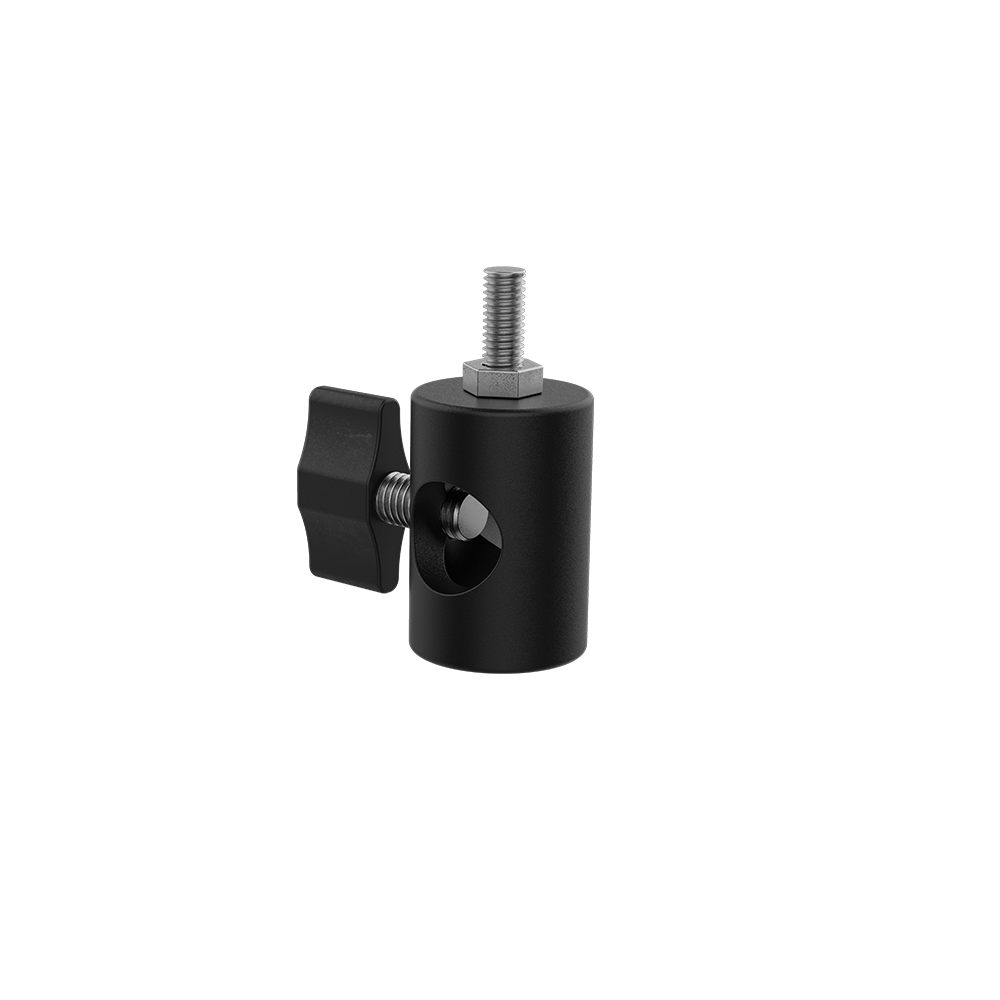

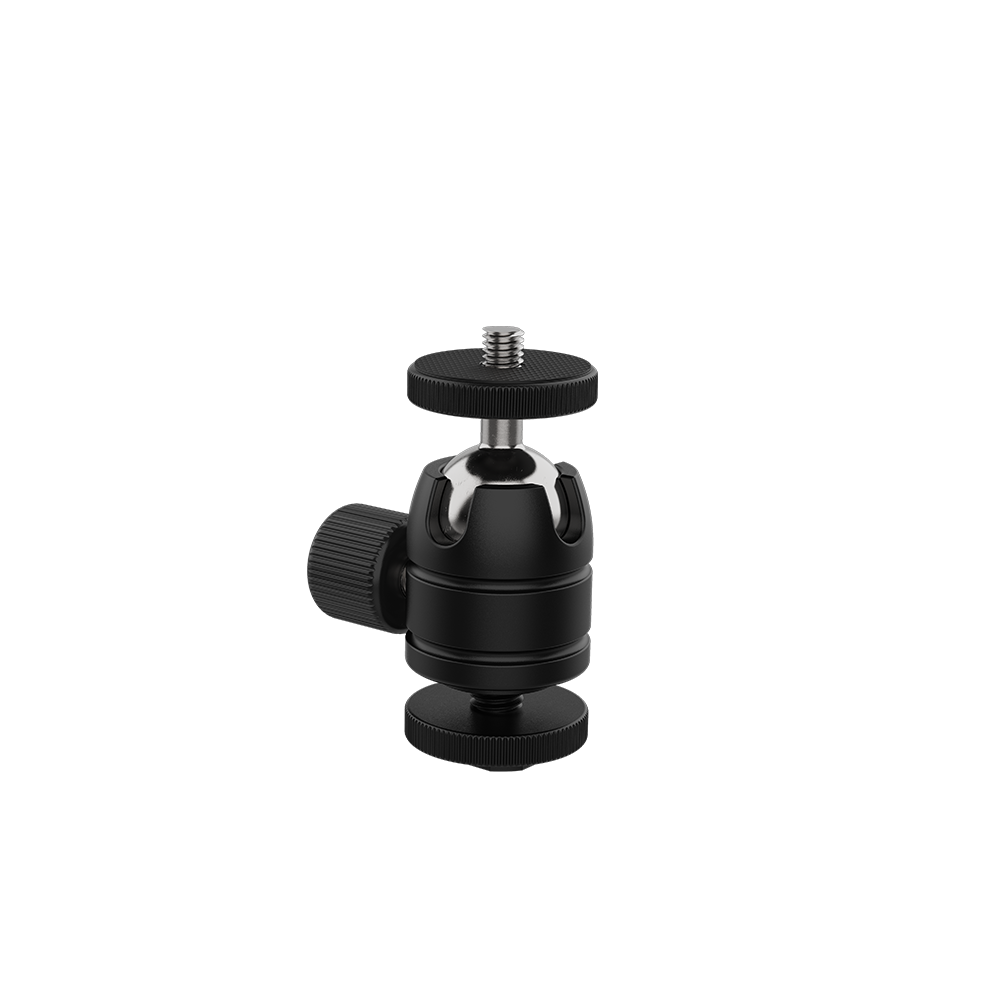

Versatile Mounting Options
Quickly swap between a clamp mount on a ball head and a standard Baby Pin for flexible rigging.
Accessory Slot
A built-in drop-in slot allows for the easy addition of light-shaping accessories.
Rugged and Durable Design
Built to withstand years of demanding use in even the most extreme production conditions.
Intuitive On-Board Control
Access all fixture features directly through a simple on-board interface without requiring an external controller.
USB Port for Updates
Keep the fixture’s software current with easy updates via a convenient USB port.
Compact and Portable
Its small and lightweight design is ideal for mobile run-and-gun shoots and discreet permanent installations.
External Battery Power
Power the unit on location using an external battery pack via the 28 VDC 3-pin XLR input.
Video
LDI 2021: onAir IP by Chauvet Professional
Watch Product Manager Ben Dickmann show the next must-have unit for broadcast application, the premiere outdoor-rated onAir IP, showcased at LDI 2021.
What’s Included
- onAir IP Panel Min IP
- Seetronic Powerkon IP65
- mounting hardware
