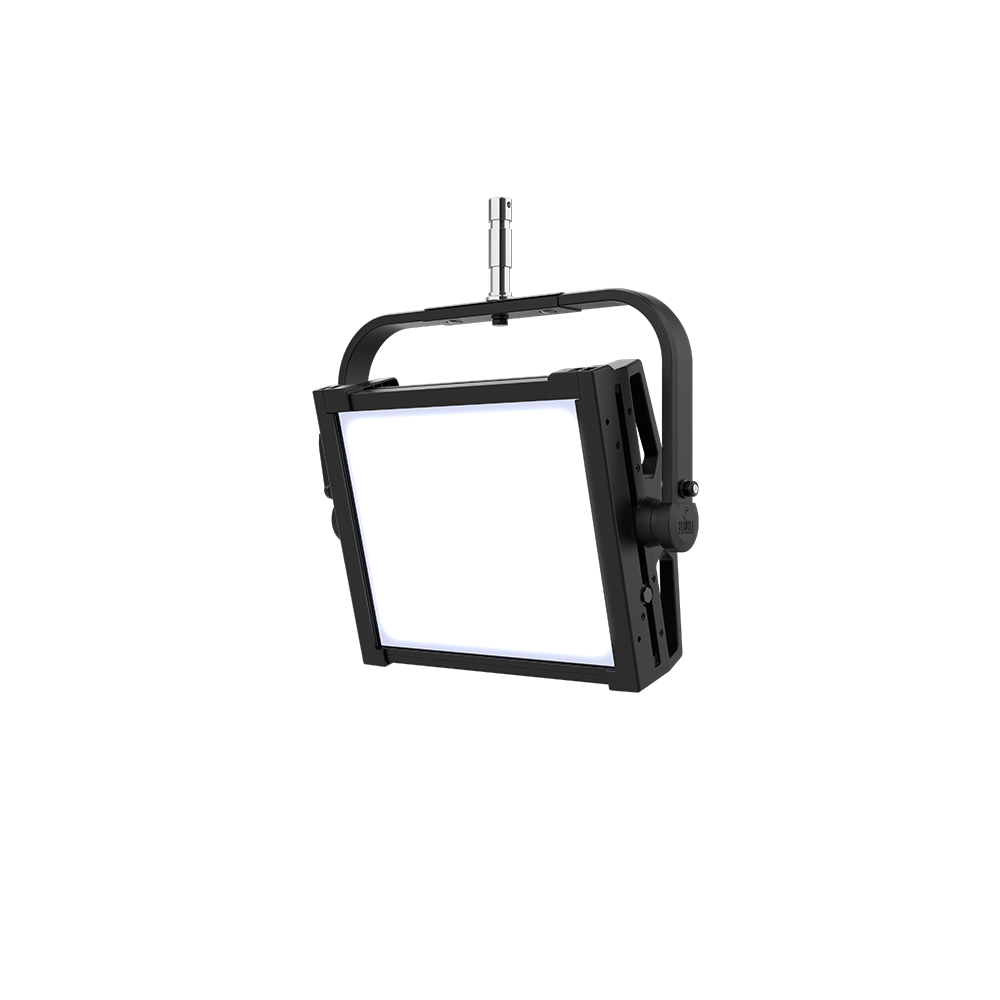

Chauvet Professional - onAir IP Panel 1 Front right of fixtureChauvet Professional - onAir IP Panel 1 Front right of fixture

Chauvet Professional – onAir Panel 1 IP

Chauvet Professional

A rugged, IP65-rated 1×1 full-spectrum LED soft light panel delivering superior quality white light, vibrant color creation, and a comprehensive suite of professional control and power options.

Ideally suited for on-location broadcast, film, and production applications requiring a durable, high-performance lighting fixture for any indoor or outdoor environment.

Features

  • Offers a wide 2800 K to 8000 K CCT range with +/- green adjustment for precise color control.
  • Supports DMX, RDM, CRMX, Art-Net, and sACN for versatile system integration.
  • Provides completely silent operation ideal for studio use with a fanless cooling system.
  • Adds on-location flexibility with a 28 VDC input for external battery pack power.
  • Ensures flicker-free on-camera performance with adjustable Pulse Width Modulation.
  • Features versatile mounting options, easily switching between a Jr Pin and Omega Bracket.
SKU: ONAIRPANEL1IP Categories: , , ,

Description

onAir Panel 1 IP is a rugged IP65, full-spectrum LED soft light with a 1×1 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir IP Panel 1 features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.

Features

  • Full-spectrum LED 1×1 format soft light panel style fixture for broadcast, film, and special events
  • IP65 rating for all weather use indoors or out.
  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
  • Virtual color wheel with color matched to popular gel colors
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio applications
  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
  • Easily switch mounting options from Jr Pin to Omega Bracket
  • Drop-in slot for diffusers and intensifier filter (sold separately)
  • Rugged design for years of rough use in the most extreme conditions.
  • Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
  • USB port for fixture software updates
  • 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Video

LDI 2021: onAir IP by Chauvet Professional

Watch Product Manager Ben Dickmann show the next must-have unit for broadcast application, the premiere outdoor-rated onAir IP, showcased at LDI 2021.

What’s Included

  • onAir Panel 1 IP
  • Seetronic Powerkon IP65
  • Omega bracket with mounting hardware

Additional information

Optical

Light Source: 224 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.
Light Source: 224 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 7566 K
CRI: 95
Beam Angle: 99.3°
Field Angle: 154°
Lumens: 10,092
Illuminance: 165 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 28 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 22 x 5.74 x 21.81 in (559 x 146 x 554 mm)
Weight: 28 lb (12.7 kg)
Exterior Color: Black
Housing Material: Aluminum alloy
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Power Input: 28 VDC, 3-pin IP65 XLR
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Control

Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16
Art-Net Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16
Modes/Personalities: 12 personalities (1, 3, 4, 5, 6, 8Ch1, 8Ch2, 10, 11, 15Ch1, 15Ch2, 16)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V, 17 units @ 240 V
Power and Current: 184 W, 1.524 A @ 120 V, 60 Hz
Power and Current: 187 W, .891 A @ 208 V, 60 Hz
Power and Current: 180 W, .824 A @ 230 V, 50 Hz
Certification / Qualifications

CE, MET, FCC,
IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
