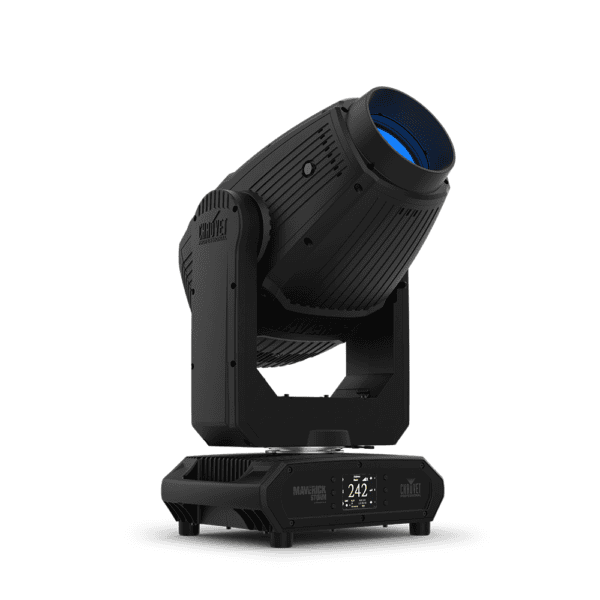

Chauvet Professional - Maverick Storm 2 Profile Front Right of light head tilt upChauvet Professional - Maverick Storm 2 Profile Front Right of light head tilt up

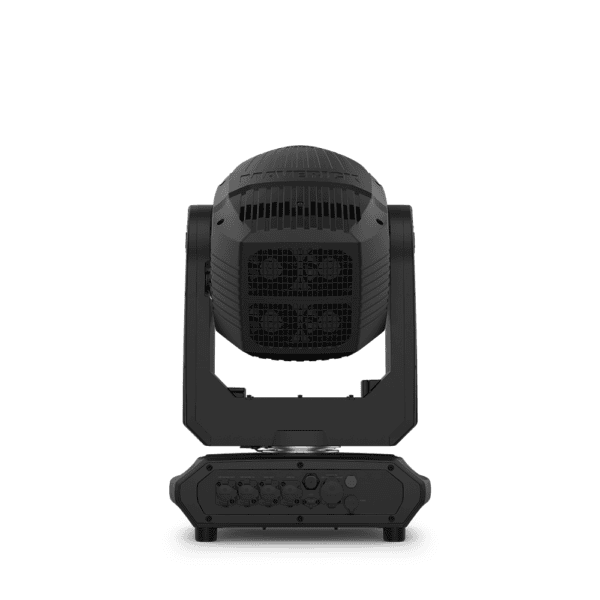

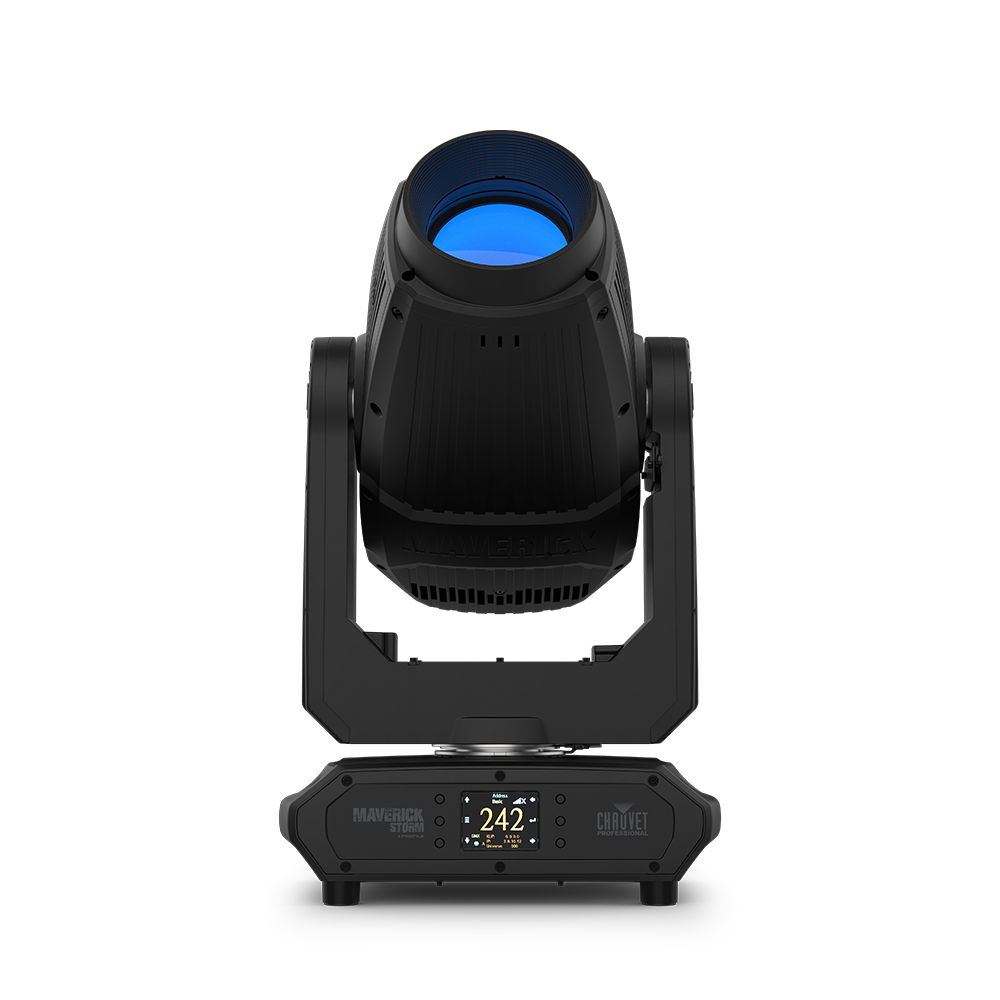

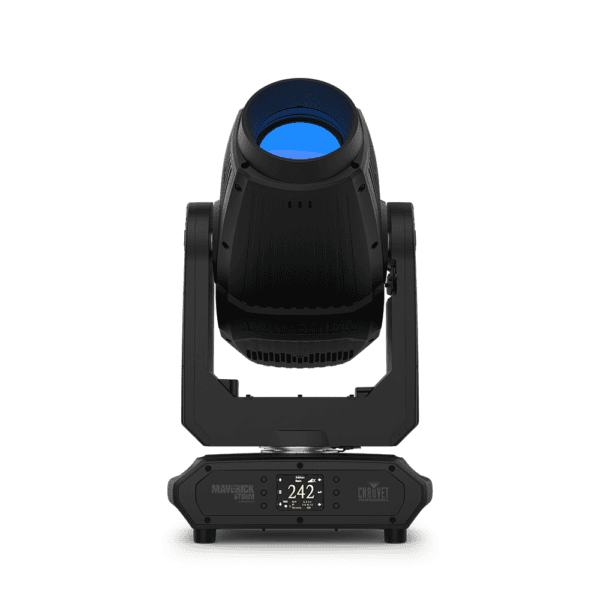

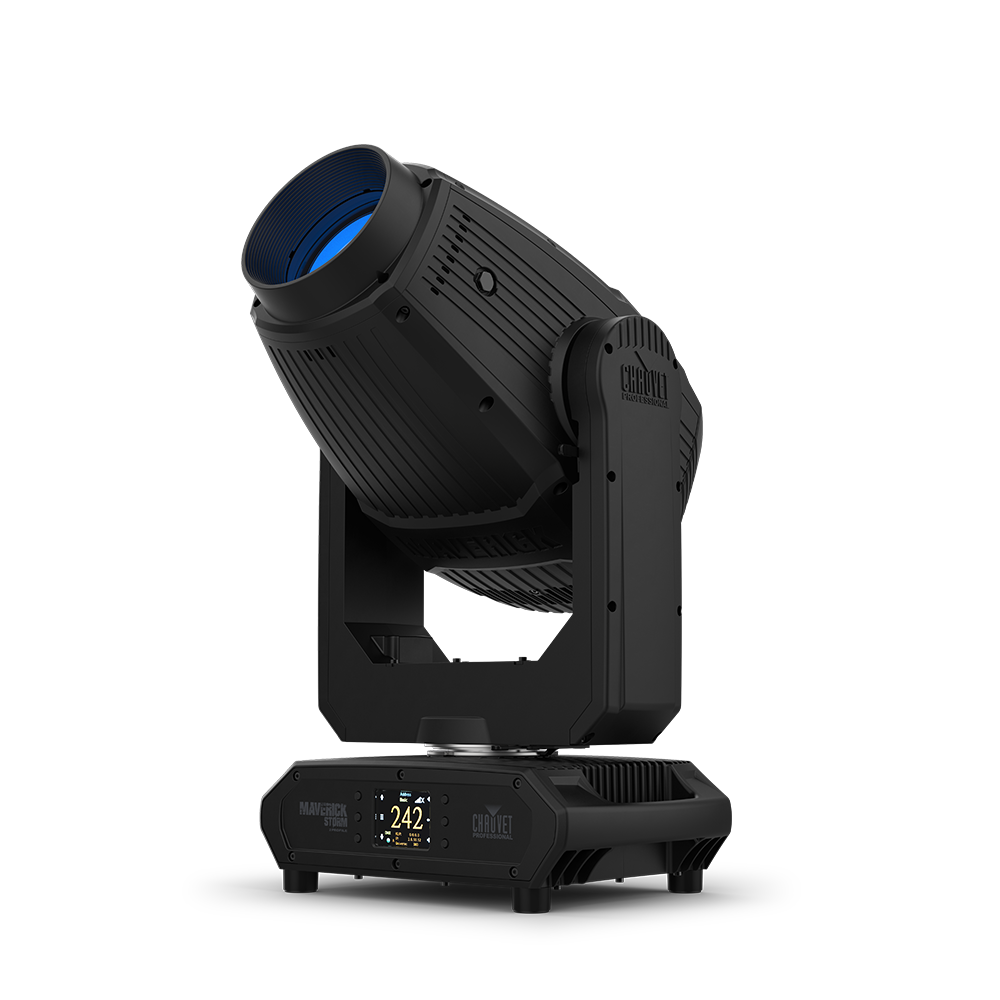

Chauvet Professional – Maverick Storm 2 Profile

Chauvet Professional

A lightweight, IP65-rated moving profile that delivers a powerful output and a full suite of features, including a framing shutter system, CMY + CTO color mixing, gobos, and effects.

Perfect for any indoor or outdoor application, from touring and festivals to theatre, where a compact, feature-rich, and weather-resistant luminaire is required.

Features

  • Delivers 28,000 lumens of output from a powerful 580W cool white LED engine.
  • Features a fully rotatable, 4-blade framing system for precise and versatile beam shaping.
  • Expands creative options with dual gobo wheels, a 5-facet prism, iris, and frost filter.
  • Offers a dedicated color wheel with CRI and CTB filters for enhanced color flexibility.
  • Protects internal optics with SunShield technology, ideal for outdoor festival and event use.
  • Supports DMX, W-DMX, Art-Net, and sACN protocols for flexible system integration.
SKU: MAVERICKSTORM2PROFILE Categories: , , ,

Description

Maverick Storm 2 Profile fits a full armory of features into the lightest midsized IP65 moving profile in its division. Drafted to fill designer demand for a double-duty compact powerhouse that combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Sculpt its 28,000 lumens of output with an exquisitely sharp framing shutter system, zoom down to a slicing 5.5 degree beam, and freely create with a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down.

Features

Compact IP65 Profile Fixture

A fully-featured and lightweight 580W LED yoke profile fixture designed for any environment.

Full CMY + CTO Color Mixing

Create a wide pallet of colors with the variable CMY and CTO color mixing system.

Rotatable Framing System

Shape the beam accurately with a 4-blade framing shutter system that includes full rotation.

Advanced Color Wheel

Achieve added color flexibility with a dedicated color wheel featuring CRI and CTB filters.

Dual Gobo Wheels

Expand creative options with one rotating, interchangeable gobo wheel and one static gobo wheel.

Comprehensive Beam Control

Manipulate the beam with an iris, a 5-facet prism, and a frost filter for wash effects.

Wide Zoom Range

Cover a variety of beam sizes with an expansive 6.3° to 58.6° zoom range.

Flexible Control Options

Integrate into any system using DMX, WDMX, sACN, and Art-Net control protocols.

Smooth 16-Bit Dimming

Execute seamless fades with precise 16-bit dimming of the master dimmer.

RDM Fixture Reporting

Remotely monitor and manage the fixture using RDM control over DMX.

Integrated Sun Shield

Protects the internal optical path from direct sunlight damage when the fixture is powered off.

Professional Power Input

Ensures a secure and reliable power connection with a True 1 compatible input.

Simplified Fleet Setup

Use three menu presets and preset sync to quickly configure multiple identical fixtures.

USB Software Port

Easily upload new fixture software and updates via the onboard USB slot.

Battery Powered Display

Access the menu without main power using the auto-rotating, battery-backed display.

Video

Maverick Storm by CHAUVET Professional

Defy all expectation and keep them wanting more. Maverick ideas demand Maverick Storm. Meet the newest additions to the Maverick family: Maverick Storm 4 Profile, Maverick Storm 2 Profile, and Maverick Storm 2 BeamWash. Coming soon and packed with expressive features to customize the wildest shows.

What’s Included

  • Maverick Storm 2 Profile
  • Seetronic Powerkon IP65 power cord to Edison
  • Omega bracket with mounting hardware

Additional information

Optical

Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7500 K, 50,000 hours life expectancy
Color Temperature (at full): 7268 K
CRI: 71.3
CRI with CRI Filter: 89.8
Front Lens Diameter: 127 mm
Beam Angle: 5.5° to 41.8°
Field Angle: 7.8° to 52.6°
Cutoff Angle 8.3° to 56.5°
Zoom Range: 5.5° to 56.5°
Lumens – Source: 35,000
Lumens – Output: 28,000
Illuminance (6.8°) 65,964 lux @ 5 m
Illuminance (54.8°) 2,588 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Construction/Pysical

Dimensions: 9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)
Weight: 67.0 lb (30.4 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, High-impact flameretardant polymer, Steel

Control

Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
DMX Channels: 32 or 48
Art-Net Channels: 32 or 48
Modes/Personalities: 2 personalities (32, 48)

Certifications/Qualifications

Certifications: CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Noise Levels:
Noise Level (Idle): 34.4 dB(A) @ 1 m
Noise Level (Max): 42.4 dB(A) @ 1 m
Noise Level (ECO): 41.3 dB(A) @ 1 m
Noise Level (Auto): 41.9 dB(A) @ 1 m
Noise Level (Full): 51.1 dB(A) @ 1 m
Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 (including CRI and CTB fi lters) + white, split colors, continuous scroll at variable speeds
Colors: CMY fl ags, CTO fl ag
Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (glass), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
Framing Shutter rotation: +/- 60° rotation.
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

Connections

Power Connection: Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 800 W, 6.82 A @ 120 V, 60 Hz
Power and Current: 779 W, 3.77 A @ 208 V, 60 Hz
Power and Current: 763 W, 3.41 A @ 230 V, 50 Hz
Breaker Size: F15 A, 250 V

Compatible Accessories

Professional Clamps : CTC-50HC, CTC-50HCN
Safety Cable: SC-08
DMX Cables
IP Rated Seetronic® Powerkon Extensions
UPLOAD 08 software uploader
Micro T-1 TRX G5 WDMX Transceiver
FLIGHT CASE TBA

Downloads

Data Sheet Download
User Guide Download
