Chauvet Professional – Maverick Storm 1 Hybrid Moving Head Front RightChauvet Professional – Maverick Storm 1 Hybrid Moving Head Front Right

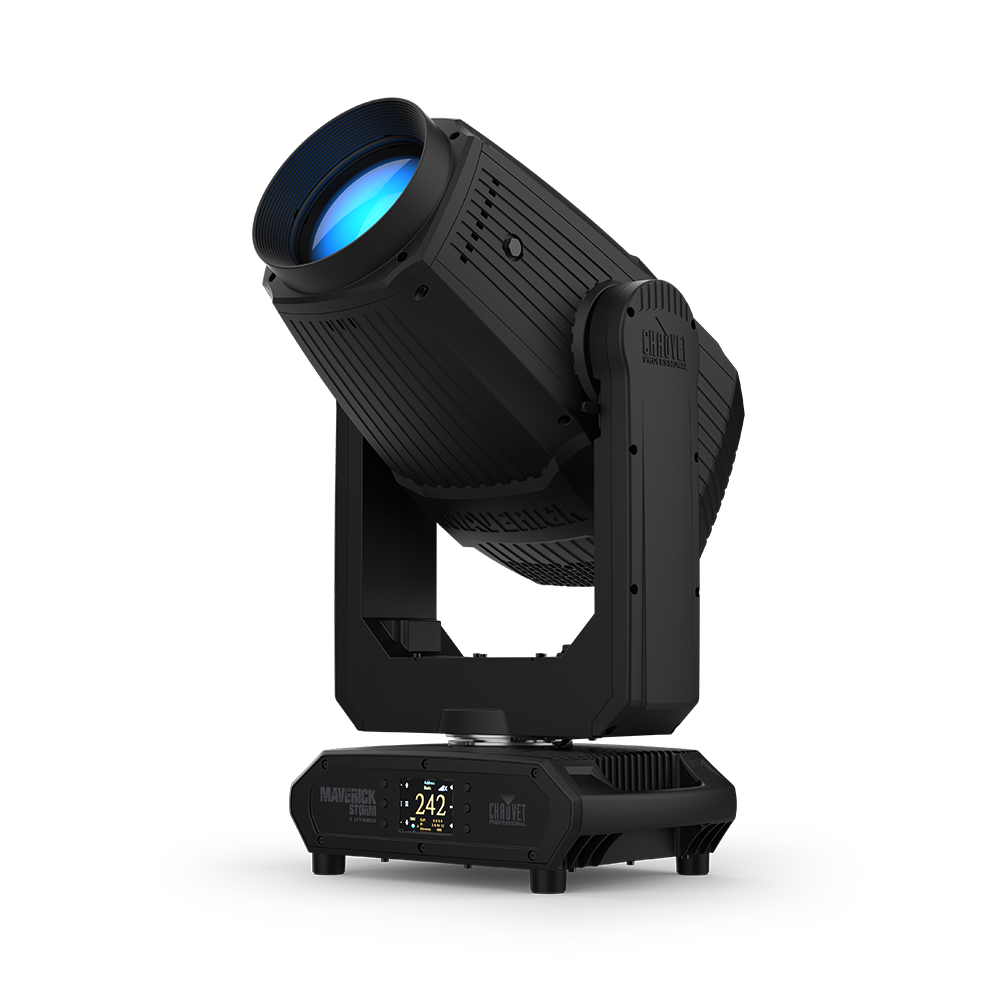

Chauvet Professional – Maverick Storm 1 Hybrid

Chauvet Professional

A high-output, IP65-rated hybrid moving head fixture that combines beam, spot, and wash capabilities, featuring full CMY color mixing and an extensive package of professional effects.

Ideal for large-scale touring, concert, and outdoor event applications requiring a powerful, versatile, and weatherproof all-in-one lighting fixture.

Features

  • Powered by a 420W Osram 7700K lamp for intense, stadium-scale output.
  • Offers an expansive zoom range for tight beams, crisp spots, and smooth wash effects.
  • Equipped with dual gobo wheels and two stackable prisms for dynamic layered projections.
  • Achieves a vast color spectrum with a full CMY system and a 14-position color wheel.
  • Built with a rugged, IP65-rated housing for dependable performance in all weather conditions.
  • Supports DMX, Art-Net, sACN, and W-DMX for seamless integration into professional control systems.
SKU: MAVERICKSTORM1HYBRID Categories: , , , , , ,

Description

Maverick Storm 1 Hybrid brings the latest Maverick series IP65 technology together with an advanced optical system designed to optimize output from its Osram 420W 7700K source. This combination Beam/Spot/Wash fixture delivers stadium-scale output and CMY color mixing that produces the boldest reds, greens and blues while perfectly matching its fellow Mavericks in the rig. Its linear zoom smoothly delivers precise coverage in both projection modes, from tightly focused beams to crisp even spots, offering a zoom range of 0.9° to 23.7° in Beam mode and 1.1° to 36° in Spot mode. This hybrid houses a full arsenal of features: static and rotating gobo wheels, stackable independent prisms, animation wheel and a heavy frost to shift to a distinctive wash. Maverick Storm 1 Hybrid speaks DMX, ArtNet, sACN, RDM and W-DMX.

Features

Versatile 3-in-1 Fixture

A high-powered Spot, Beam, and Wash combination fixture designed for a wide range of applications.

IP65 Rated Construction

Features a rugged yet lightweight aluminum and magnesium housing for all-weather, outdoor use.

Long Life Osram Lamp

Utilizes a powerful Osram 420W, 7700K lamp with a life expectancy of up to 4,500 hours.

Full CMY Color Mixing

Achieve a vast spectrum of rich, saturated colors with the smooth CMY color mixing system.

Dynamic Animation Wheel

Create unique flowing and textured lighting effects with a dedicated animation wheel.

Dual Gobo Wheels

Expand your creative options with two gobo wheels, featuring 9 rotating and 17 static patterns.

Layerable Dual Prisms

Maximize visual impact by layering the individually controllable 5-facet linear and 8-facet round prisms.

Expansive Zoom Range

A large zoom range provides precise beam control for both tight beams and wide washes.

Frost and Beam Flattening

Integrated frost and beam flattening options allow you to achieve soft, even light distribution.

DMX and RDM Control

Offers professional control and remote device management through DMX and RDM protocols.

True 1 Power Input

Ensures a secure, locking power connection with a True 1 compatible input.

Easy to Read OLED Display

Quickly navigate settings and fixture status using the clear OLED display and simple menu structure.

Flexible DMX Channel Profiles

Choose between simple and complex DMX channel profiles for ultimate programming versatility.

USB-C Software Port

Conveniently upload software updates directly to the fixture via the built-in USB-C port.

Failsafe Ethernet Connectivity

Maintains data pass-through with failsafe Ethernet connectivity even if the fixture loses power.

Built-in Sky Tracker Mode

Link up to four fixtures to create powerful, synchronized sky tracker effects.

Video

Maverick Ideas Enter the Arena | Maverick STORM | CHAUVET Professional

Now entering the arena: the newest members of our Maverick Storm family of lighter, brighter, stadium-power moving heads built to rugged IP65 standards.

What’s Included

  • Maverick Storm 1 Hybrid
  • Seetronic Powerkon IP65 power cord to Edison Plug
  • (2) 140 Omega brackets with mounting hardware

Additional information

Optical

Light Source: Osram Sirius HRI 420 W lamp, 7700 K (Color Temp), up to 4,500 hours life expectancy
Color Temperature (at full): 6,995 K
CRI: 80.6
CQS: 76.8
TLCI: 59
Front lens diameters: 174mm
Lumens: 30,978
Spot Mode:
Beam Angle: 1.3° to 17.7°
Field Angle: 2.2° to 31.9°
Cutoff Angle: 2.6° to 40.8°
Zoom Range: 1.3° to 40.8°
Illuminance (2.2°): 1,075,418 lux @ 5 m
Illuminance (31.9°): 5,422 lux @ 5 m
Beam Mode:
Beam Angle: .8° to 7.4°
Field Angle: 1.5° to 19.9°
Cutoff Angle: 1.9° to 25.6°
Zoom Range: .8° to 25.6°
Illuminance (1.5°): 226,074 lux @ 15 m
Illuminance (19.9°): 2,144 lux @ 15 m
Wash Mode:
Beam Angle: 3.6° to 16.6°
Field Angle: 6.7° to 30.1°
Cutoff Angle: 9.2° to 32.2°
Zoom Range: 3.6° to 32.2°
Illuminance (30.1°): 3,005 lux @ 5 m
Illuminance (6.7°): 71,522 lux @ 5 m
Construction / Physical

Dimensions: 15.27 x 10.78 x 29.72 in (388 x 274 x 755 mm)
Weight: 64.4 lb (29.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel

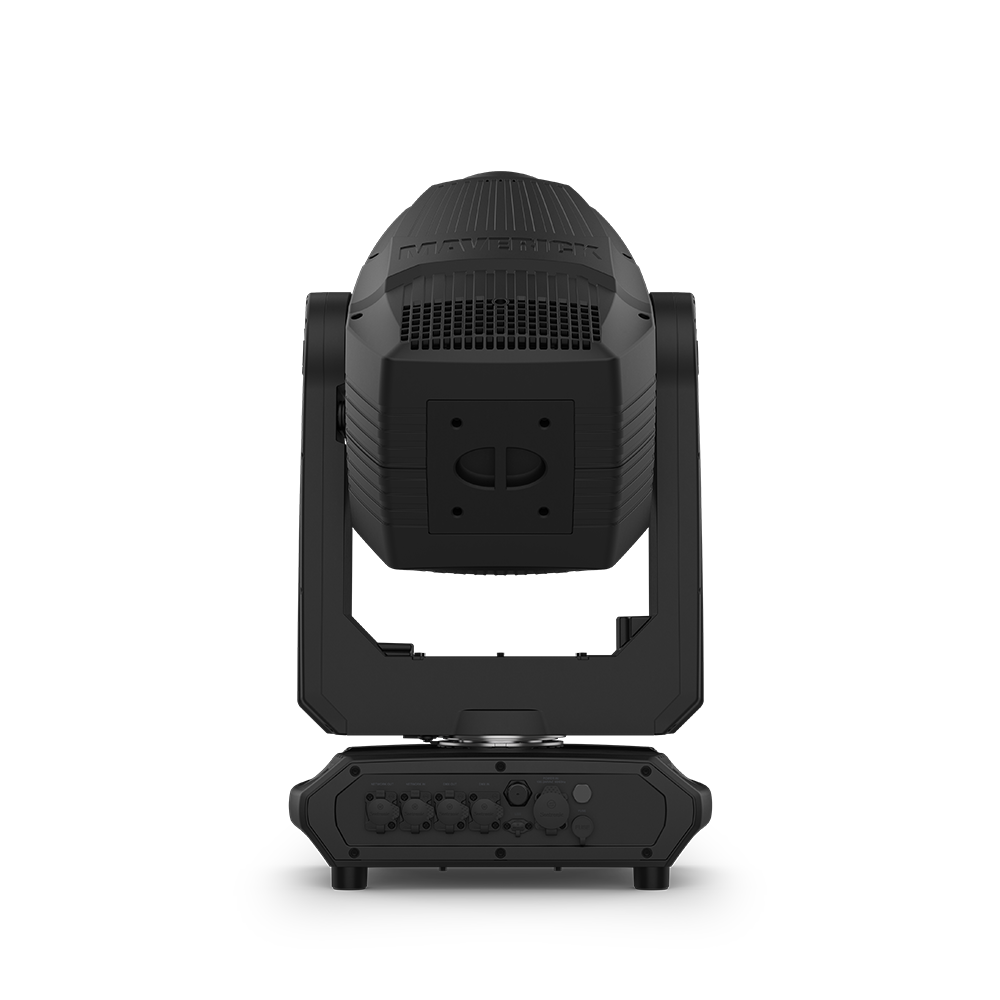

Connections

Power Connection: Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out: Cable Length (power)
5 ft (1.5 m)
Software Connection: Type-C USB
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 660 W, 5.540 A @ 120 V, 60 Hz
Power and Current: 648 W, 3.124 A @ 208 V, 60 Hz
Power and Current: 647 W, 2.800 A @ 230 V, 50 Hz
Compatible Accessories

Clamps
Neutrik powerCON cables
Neutrik etherCON cables
5 Pin DMX Cables
Flight Cases
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags
Gobos (1): 9 + open (1 empty slot + 8 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos Static: 17 + open (17 metal), rotating, continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 16 mm (outside), 10 mm (image), 1.1 mm (max. thickness)
Animation Wheel: 1
Dimmer: Motorized
Shutter/Strobe: Motorized
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Prism (1): 6 Facets, motorized, rotating
Prism (2): 8 Facets, motorized, rotating
Move-in-Black: Yes
Built in Sky Tracker Mode: Yes
Control

Control Protocol: Art-Net, sACN, RDM, DMX, WDMX
DMX Channels: 24 or 29
Art-Net/sACN Channels: 24 or 29
Modes/Personalities: 2 personalities (24, 29)
Certifications / Qualifications

Certifications: CE, MET, FCC, CB, UKCA
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Noise Levels:
Noise Level (Idle): 40.0 dB(A) @ 1 m
Noise Level (Max): 41.2 dB(A) @ 1 m
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
