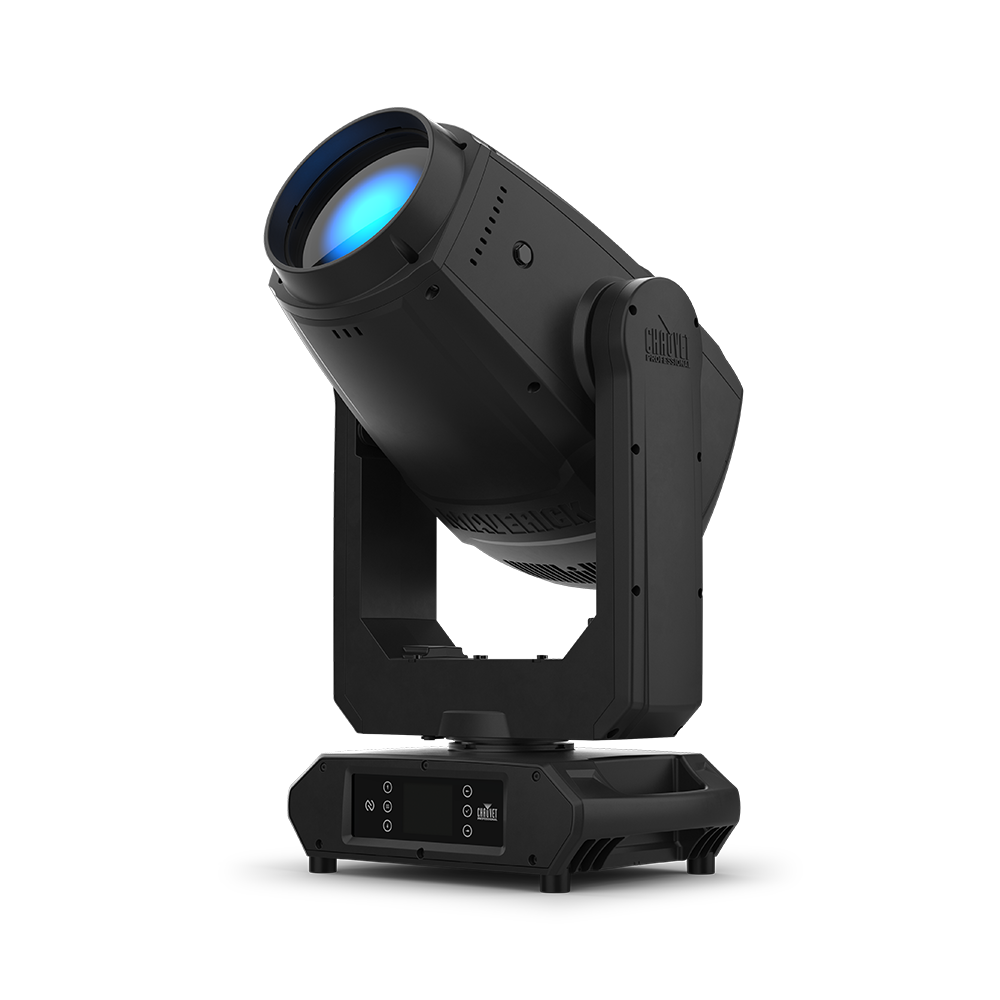

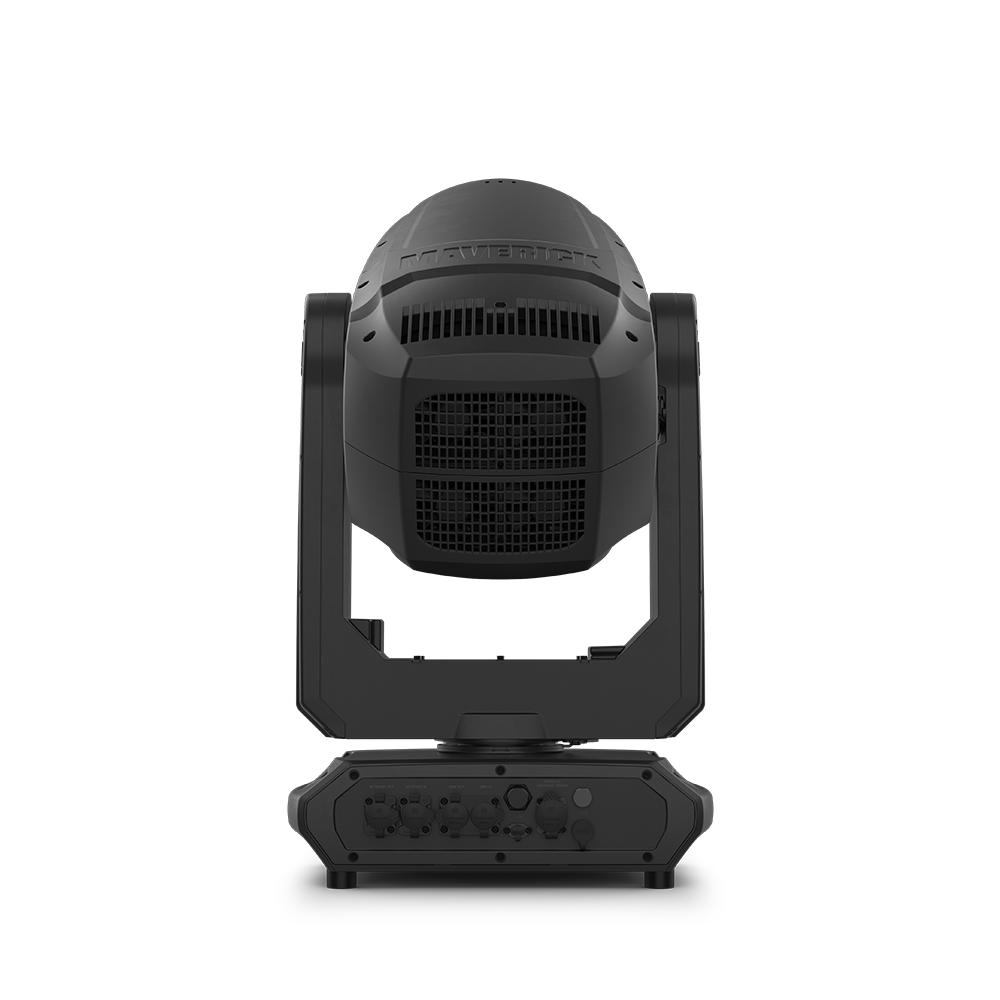

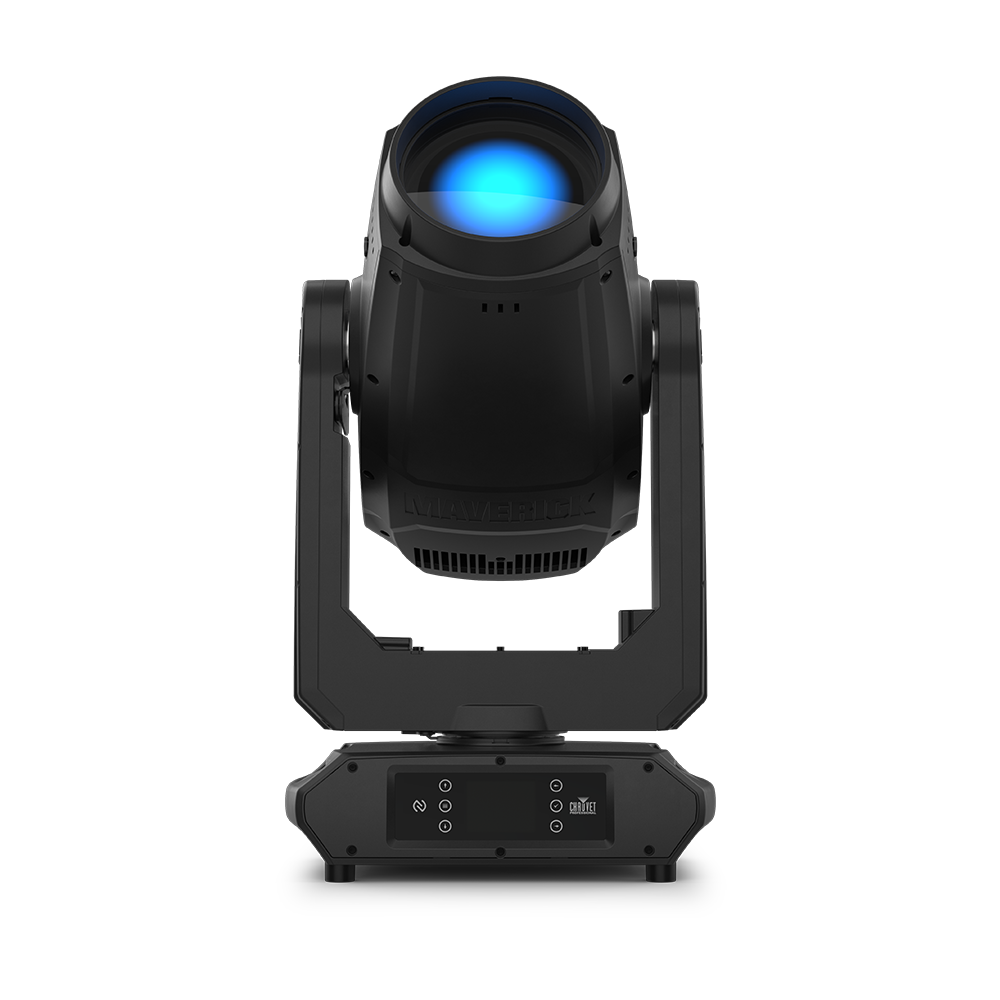

Chauvet Professional – Maverick Storm 1 Flex

Chauvet Professional

The Maverick Storm 1 Flex is a compact, intensely bright, IP65-rated LED moving head that delivers perfectly even output, versatile beam-to-spot functionality, and a full effects package including gobos, a prism, and animation.

Ideal for tours, festivals, and large-scale productions, this fixture provides lighting designers with a powerful and weather-resistant tool for creating stunning textured looks and solid beams in any environment.

Features

  • Features a powerful 520W LED source for intensely bright and even output.
  • Offers a full CMY and variable CTO color mixing system for a rich palette.
  • Delivers a wide zoom range from 3.1° to 46.6° for flexible beam and spot effects.
  • Layers complex visuals using dual gobo wheels and two independent, stackable prisms.
  • Creates unique kinetic and textured visuals with a dedicated animation wheel.
  • Supports versatile control options including DMX, Art-Net, sACN, and CRMX.
SKU: MAVERICKSTORM1FLEX Categories: , , , , ,

Description

Outperform expectations with the intense brightness of this compact member of our Maverick Storm family of lighter, brighter, stadium-power moving heads built to rugged IP65 standards. No lamp. No hot spot. Only perfectly even output at every angle from a multifunctional LED powerhouse. Maverick Storm 1 Flex goes flat out from narrow beams to wide spots, while producing excellent color rendering and offering lighting designers a full effects wheelhouse for layering gobo, prism and animation effects. Draw on Maverick Storm 1 Flex to release stunning textured looks, send totally solid beams and hit the deepest colors.

Features

High Power 3-in-1 Fixture

A versatile IP65-rated Spot, Beam, and Wash fixture powered by a bright 520W LED source in a lightweight housing.

Variable Color Mixing/.p>

The CMY + CTO color mixing system allows for the creation of a wide and rich palette of colors.

Animation Wheel

Create unique kinetic and textured visual effects with the dedicated animation wheel.

Dual Gobo Wheels

Expand your visual effects with one rotating wheel of 7 gobos and one static wheel of 10 gobos.

Layerable Prisms

Features two separate prisms that can be layered for complex and dynamic aerial effects.

Wide Zoom Range

Offers a large zoom range, including a tight 2.6-degree narrow beam for creating focused air effects.

Smooth 16-Bit Dimming

Achieve seamless and smooth control over fades with 16-bit dimming on the master dimmer.Achieve seamless and smooth control over fades with 16-bit dimming on the master dimmer.

Advanced Color Filters

Includes CRI and CTB filters on the color wheel for enhanced color rendering and temperature flexibility.

Versatile Control Protocols

Full flexibility of control is provided through DMX, CRMX, sACN, and Art-Net compatibility.

RDM Fixture Management

Utilize RDM control over DMX for convenient remote fixture reporting and configuration.

Professional Power Input

Features a True 1 compatible power input for secure and reliable connections.

Integrated Sun Shield

An internal shield protects the optical path from direct sunlight when the fixture is powered off.

Easy Setup Presets

Simplify shop setup with three menu presets and a sync function for loading settings across multiple fixtures.

USB-C Software Updates

Easily upload new software to the fixture using the convenient built-in USB-C slot.

Battery Powered Display

The display features battery backup and auto-rotates for easy viewing regardless of fixture orientation.

Failsafe Ethernet Connectivity

Data continues to pass through the fixture via the Ethernet connection even if power is lost.

Built-in Sky Tracker Mode

Link up to four fixtures to work in unison for creating impressive, synchronized sky tracker effects.

What’s Included

  • Maverick Storm 1 Flex
  • Seetronic Powerkon IP65 power cord to Edison Plug
  • (2) 140 Omega brackets with mounting hardware

Video

Maverick Storm 1 Flex: Outperform Expectations | CHAUVET Professional

No lamp. No hot spot. Only perfectly even output at every angle. Meet Maverick Storm 1 Flex, the newest member of our family of lighter, brighter, stadium-power moving heads built to rugged IP65 standards – a multifunctional LED powerhouse that is already outperforming expectations!…

Additional information

Optical

Light Source: 1 Led, 6595K, up to 50,000 hours life expectancy
Color Temperature (at full): 6595 K
Front lens diameters: 165 mm
Lumens: 33587 lm
Spot Mode:
Beam Angle: 3.1° to 46.6°
Field Angle: 4.1° to 57.9°
Cutoff Angle: 4.5° to 55.5 °
Zoom Range: 3.1° to 55.5°
Illuminance: (3.1 °) 154,697 lux @ 5 m
Illuminance: (55.5 °) 2,675 lux @ 5 m
Beam Mode:
Beam Angle: 2.6° to 43 °
Field Angle: 3° to 47.3°
Cutoff Angle: 3.4° to 50.7°
Zoom Range: 2.6° to 50.7°
Illuminance: (2.6°) 17,538 lux @ 15 m
Illuminance: (50.7 °) 295 lux @ 15 m
Wash Mode:
Beam Angle: 2.8° to 45.8 °
Field Angle: 3.7° to 53.1°
Cutoff Angle: 3.9° to 57°
Zoom Range: 2.8° to 57°
Illuminance: (2.8°) 146,171lux @5 m
Illuminance: (57 °) 2478 lux @ 5 m
Construction / Physical

Dimensions: 15.27 x 10.55 x 29 in (388 x 268 x 738 mm)
Weight: 63.5lb (28.8 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
Connections

Power Connection: Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out: Cable Length (power)
5 ft (1.5 m)
Software Connection: Type-C USB
Certifications/Qualifications

Certifications: CE, MET, FCC, CB, UKCA
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Noise Levels:
Noise Level (Idle): 29.0 dB(A) @ m
Noise Level (Auto): 40.0 dB(A) @ m
Noise Level (Full): 51.2 dB(A) @ m
Noise Level (Eco): 46.4 dB(A) @ m
Noise Level (TV25): 40.7 dB(A) @ m
Noise Level (TV35): 40.7 dB(A) @ m
Noise Level (Max): 41.0 dB(A) @ m
Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 + white, split colors, continuous scroll at variable speeds
Colors: CMY + CTO flags
Gobos (1): 7+ open (1 empty slot + 6 glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds) and (1) steel dual layer non-removable rotating, continuous scroll at variable speeds)
Gobos Static: 10 + open (11 metal), rotating, continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 23.9 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
Animation Wheel: 1
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Prism (1): 6 Facets, motorized, rotating
Prism (2): 8 Facets, motorized, rotating
Move-in-Black: Yes
Built in Sky Tracker Mode: Yes
Control

Control Protocol: Art-Net, sACN, RDM, DMX, CRMX
DMX Channels: 26 or 33
Art-Net/sACN Channels: 26 or 33
Modes/Personalities: 2 personalities (26, 33)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 754 W, 6.25 A @ 120 V, 60 Hz
Power and Current: 734 W, 3.60 A @ 208 V, 60 Hz
Power and Current: 738 W, 3.30 A @ 230 V, 50 Hz
Compatible Accessories

Clamps – CTC-50HC, CTC-50G, CTC-50HCBLK, CTC-50HCN, CTC-50FCNBLK
Rig Link PowerKon IP65 cables
Rig Link etherCON cables
Rig Link 5 Pin DMX Cables
Flight Cases – CP2CASELARGE

Downloads

Data Sheet Download
User Guide Download
