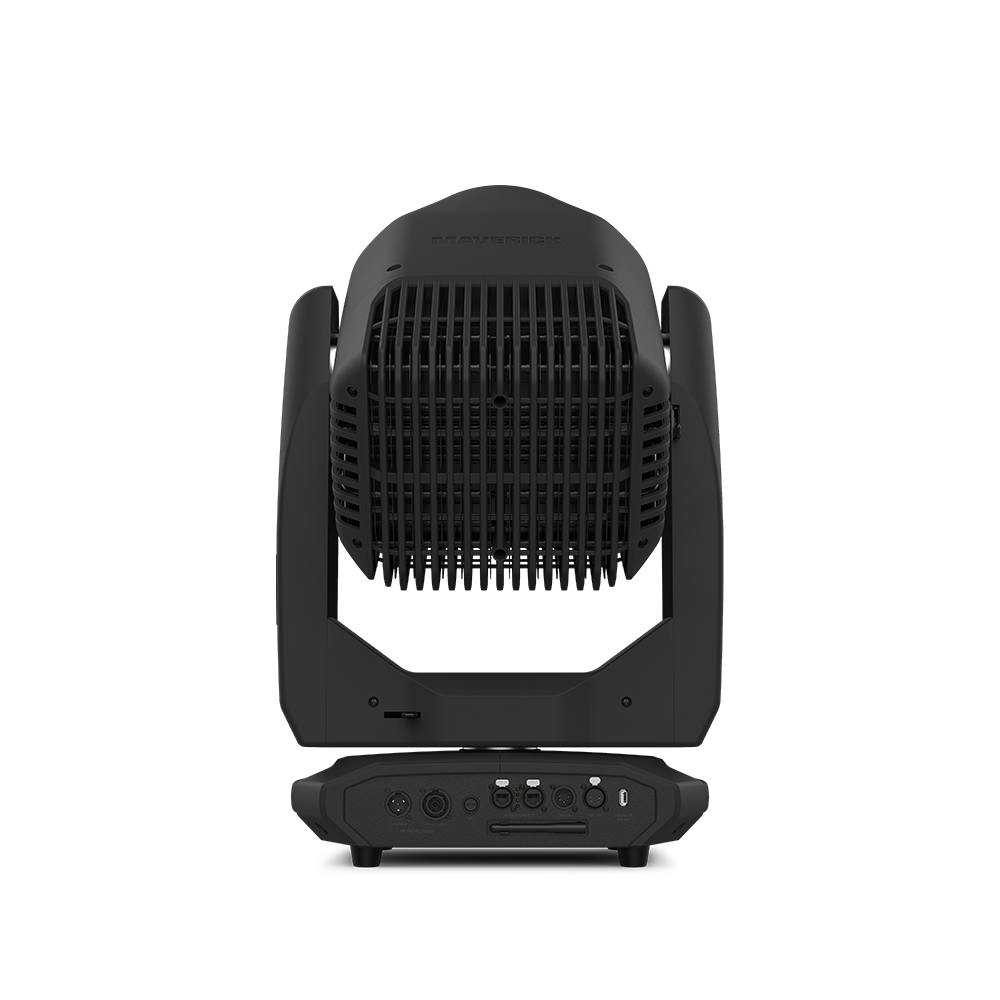

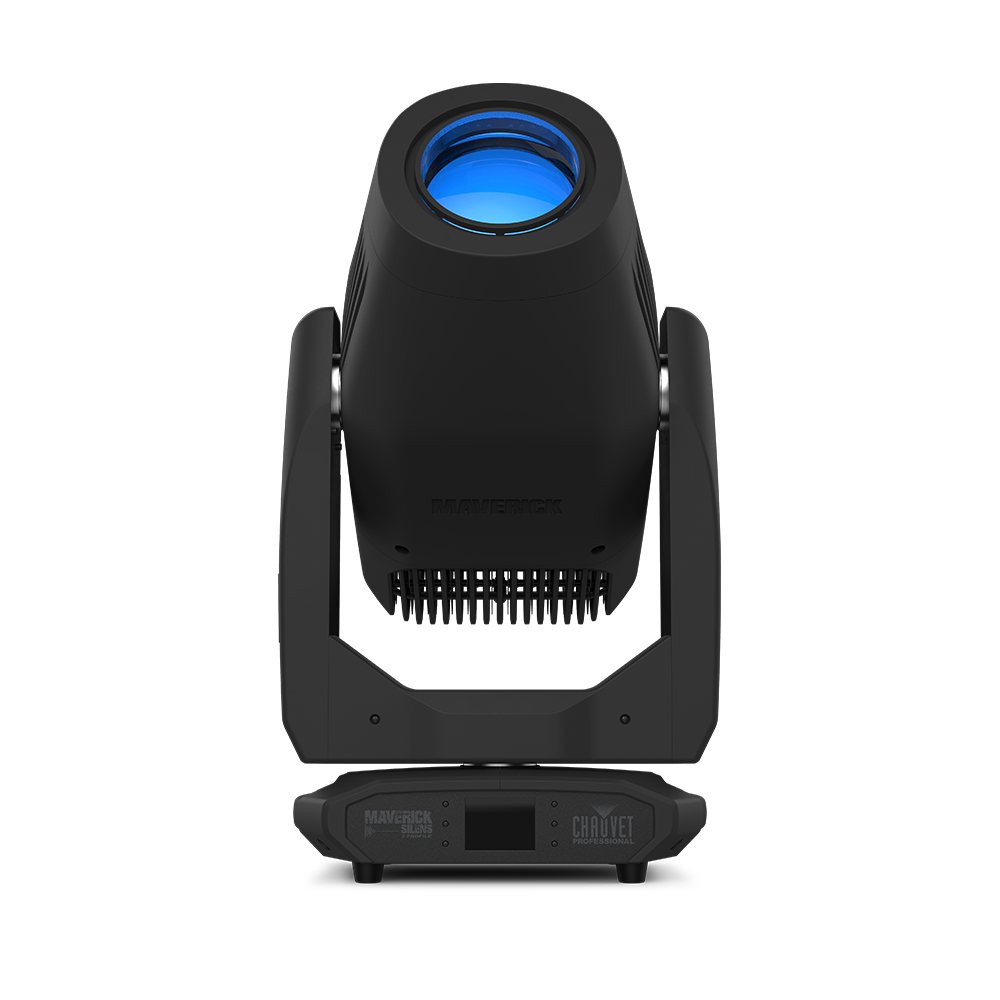

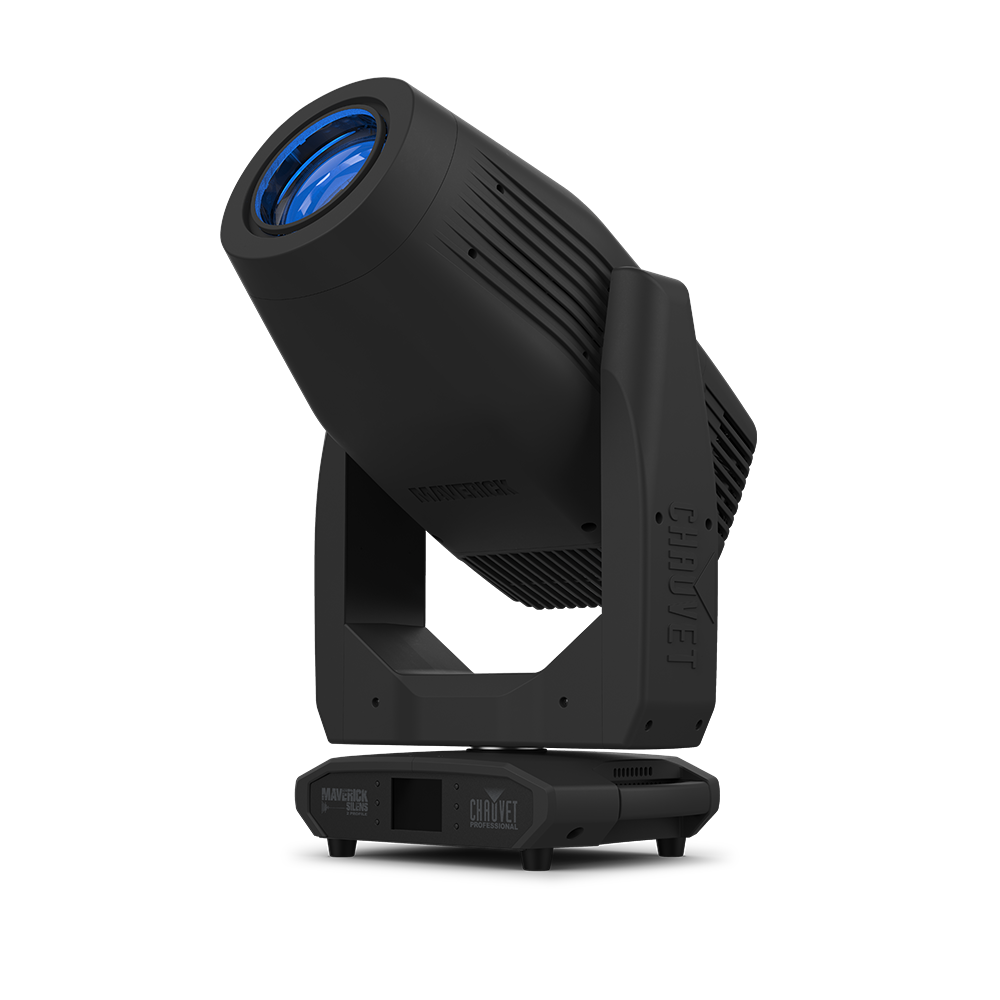

Chauvet Professional - Maverick Silens 2X Profile front right of moving head tilted up on blueChauvet Professional - Maverick Silens 2X Profile front right of moving head tilted up on blue

Chauvet Professional – Maverick Silens 2X Profile

Chauvet Professional

A powerful and completely silent 760W LED profile fixture featuring a high-CRI source, precise four-blade framing, full CMY + CTO color mixing, and a complete effects package.

Its fanless design makes it the ideal choice for the most demanding theatre and studio applications where silent operation is critical.

Features

  • Operates in complete silence with a 100% fanless, convection-cooled design.
  • Delivers exceptional color rendering with a high-output 760W LED source and 94+ CRI.
  • Offers a wide 5.5° to 57.9° zoom range for flexible beam shaping and coverage.
  • Enables precise beam shaping with a four-blade framing system offering +/- 60° rotation.
  • Features dual gobo wheels, an animation wheel, and a variable frost system for dynamic effects.
  • Supports versatile control options including DMX, RDM, Art-Net, sACN, and CRMX.
SKU: MAVERICKSILENS2XPROFILE Categories: , , ,

Description

Powerful member of our award-winning Silens range. 760W 94+ CRI LED source in an uncompromising design that offers the highest quality of light, flawless 16-bit dimming with selectable red shift and dimming curves, precise 4-blade shutter framing, and accurate color rendering. Completely fanless operation makes this totally silent fixture ideal for the most demanding theatre and studio applications. Featuring dual gobo wheels (rotating + static), variable CMY + CTO and a full effects wheelhouse. Control via Art-Net, sACN, DMX, RDM or CRMX.

Features

Silent Convection Cooling

Operates with zero fan noise thanks to a 100% convection-cooled design, ensuring completely silent motion and effects.

High-Output LED Engine

A powerful 760 W LED source provides exceptional brightness and a high 94+ CRI for superior color rendering.

Advanced Color Mixing

The variable CMY + CTO system allows for the creation of a wide and precise palette of colors.

Rotatable Framing System

A four-blade framing shutter system with plus or minus 60 degrees of rotation enables precise beam shaping and positioning.

Dedicated Color Wheel

Includes a color wheel for quick access to a range of rich, saturated colors.

Animation Wheel

Create dynamic moving textures and other enhanced visual effects with the dedicated animation wheel.

Wide Zoom Range

Offers a versatile 5.5° to 57.9° zoom angle to produce a variety of beam sizes for any application.

Beam-Splitting Prism

A built-in prism multiplies the beam to create stunning aerial effects and wide coverage.

Variable Frost System

Soften the beam and create smooth washes with a fully variable frost filter.

Dual Gobo Wheels

Features one rotating and one static gobo wheel loaded with unique, theatrical-based designs for versatile pattern projection.

Interchangeable Gobos

Gobos can be easily swapped between the static and rotating wheels for maximum creative flexibility.

High-Resolution Dimming

Achieve exceptionally smooth fades with 16-bit dimming control, including a selectable red shift on the master dimmer.

Motorized Iris

A fast-acting iris provides total beam control for sharp, focused projections of any size.

RDM Control

Utilize RDM (Remote Device Management) over DMX for convenient fixture monitoring and reporting.

Power Linking Capability

Features True 1 compatible power input and throughput for easily linking power between multiple units.

Battery-Powered Display

The onboard display has a battery backup and auto-rotates based on fixture orientation for easy setup without main power.

What’s Included

  • Maverick Silens 2 Profile
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware
  • Gel Frame Holder and Gel Frame

Additional information

Optical

Light Source: 1 LEDs (CW) 750 W, (12 A), 6331 K, 30,000 hours life expectancy
Light Source: 1 LED (RGB) 13 W, (3.7 A), 50,000 hours life expectancy
Color Temperature (at full): 6317 K
CRI: 94.8
TM-30 Rf: 93.2
TM-30 Rg: 101.5
Front Lens Diameter: 138mm
Beam Angle: 5.8° to 50.8°
Field Angle: 6.4° to 53.6°
Cutoff Angle: 6.5° to 58.5°
Zoom Range: 5.5° to 58.5°
Lumens – Output: 12,748
Illuminance:
Illuminance (5.8°): 30,672 lux @ 5 m
Illuminance (58.5°): 697 lux @ 5 m
Selectable PWM: 20,000, 40,000
Construction / Physical

Dimensions: 17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)
Weight: 75.5 lb. (34.4 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant Polymer
Control

Control Protocol: Art-Net, DMX, CRMX, RDM, sACN
DMX Channels: 32, 33, 41 or 42
Art-Net Channels: 32, 33, 41 or 42
Modes/Personalities: 4 personalities (32, 33, 41, and 42)
Certifications / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
IP Rated Seetronic® Powerkon Extensions
DMX cables
Ethernet cables
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 6 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag, color correction
Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
Gobo Size:
Gobo Wheel 1 (rotating): 26.9 mm (outside), 22 mm (image)
Gobo Wheel 2: 26.9 mm (outside), 22 mm (image)
Effect Wheel: 1 effect
Framing Shutters: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Variable Frost – Motorized
Iris: Motorized – 15 Leaf
Prism: 5 Facets, round, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4
Connections

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
Power and Current: 650 W, 6.53 A @ 100 V, 60 Hz
Power and Current: 640 W, 5.45 A @ 120 V, 60 Hz
Power and Current: 639 W, 3.10 A @ 208 V, 60 Hz
Power and Current: 648 W, 2.82 A @ 230 V, 50 Hz
Power and Current: 654 W, 2.75 A @ 240 V, 50 Hz
