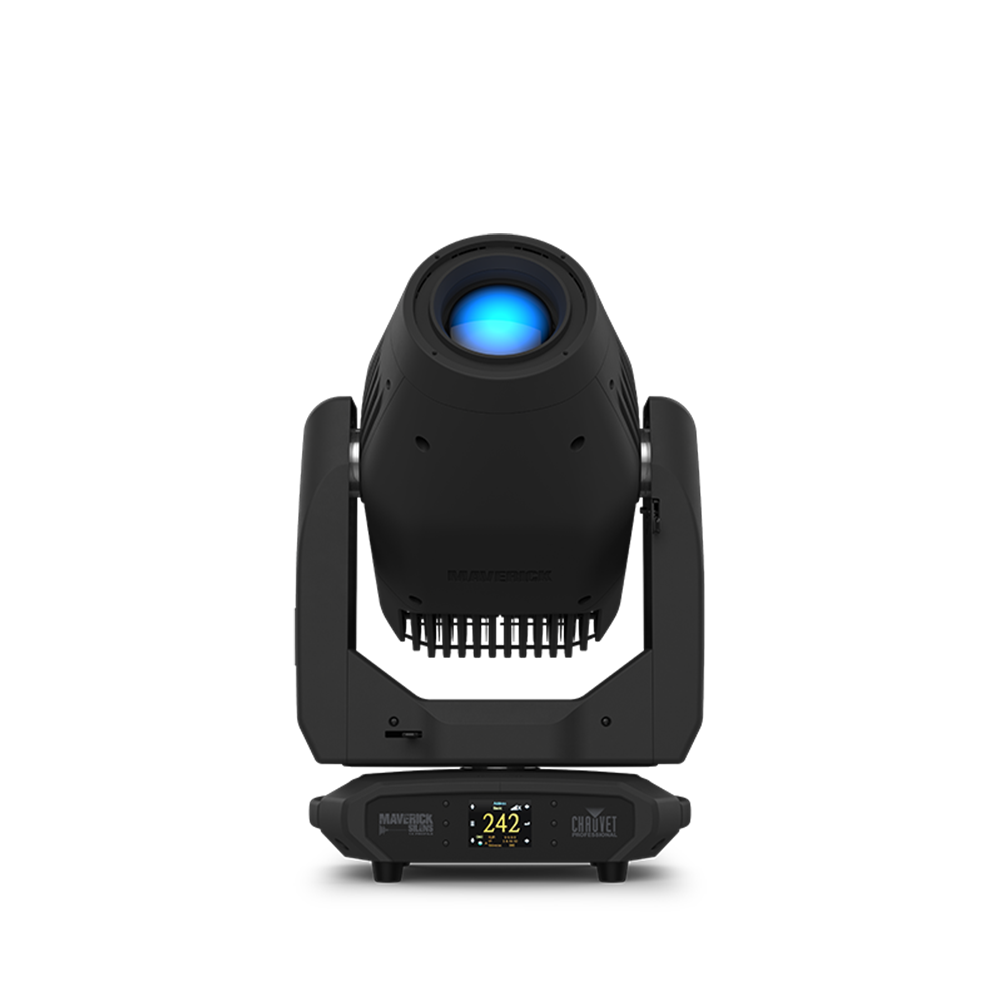

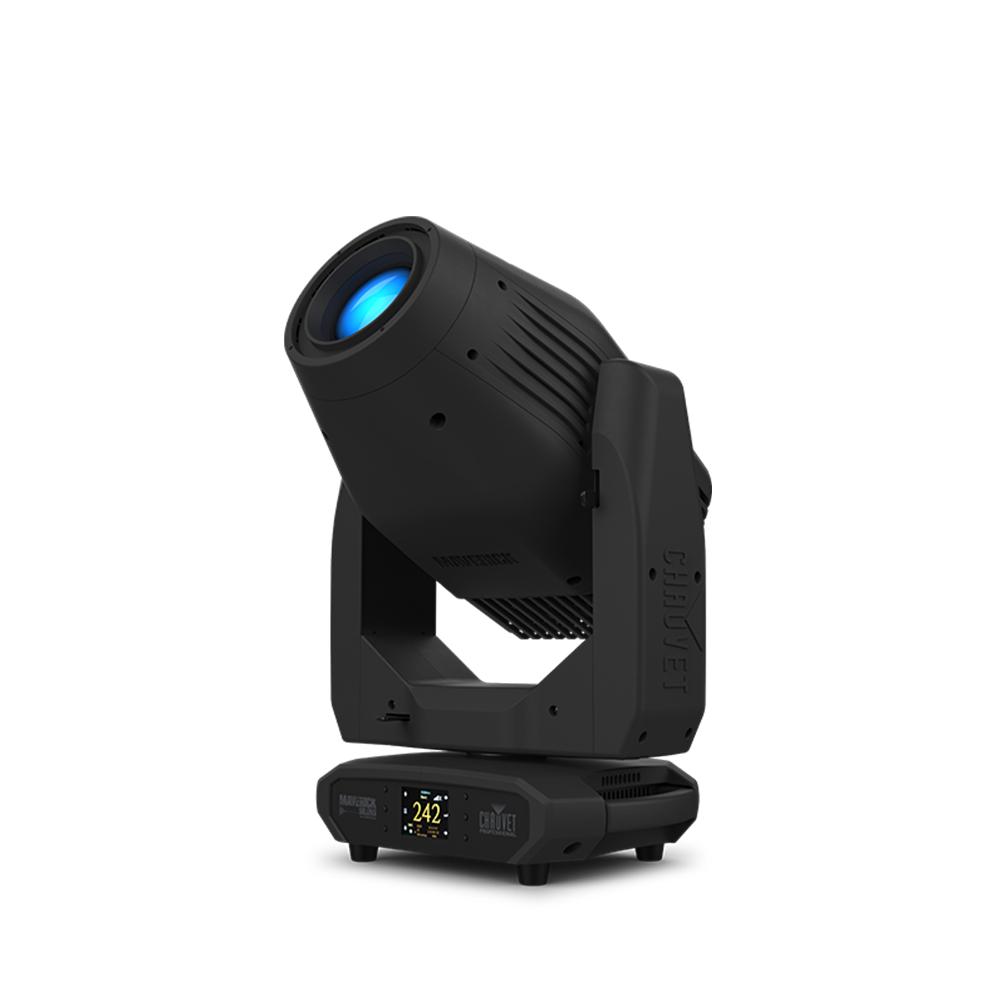

Chauvet Professional - Maverick Silens 1X Profile Front left of compact Moving headChauvet Professional - Maverick Silens 1X Profile Front left of compact Moving head

Chauvet Professional – Maverick Silens 1X Profile

Chauvet Professional

A compact and totally silent 430W LED framing fixture featuring a high 96+ CRI source, precise 4-blade shuttering, variable CMY + CTO color mixing, and a rotating gobo wheel.

Its completely fanless operation makes it the ideal choice for the most demanding theatre, broadcast, and studio applications where silent performance is essential.

Features

  • Delivers superior color rendering from a 420W LED source with an exceptionally high 97.1 CRI.
  • Offers a wide 6° to 57° zoom range for flexible beam shaping and coverage.
  • Includes an animation wheel for dynamic textures and a variable frost for soft-edged washes.
  • Achieves exceptionally smooth fades with 16-bit dimming and a selectable red shift emulation.
  • Simplify setup with a battery-backed, auto-rotating display for easy menu access in any orientation.
  • Provides versatile system integration with DMX, RDM, Art-Net, and CRMX wireless control.
SKU: MAVERICKSILENS1XPROFILE Categories: , , ,

Description

Compact member of our award-winning Silens range. 430W 96+ CRI LED source in an uncompromising design that offers the highest quality of light, flawless 16-bit dimming with selectable red shift and dimming curves, precise 4-blade shutter framing, and accurate color rendering. Completely fanless operation makes this totally silent fixture ideal for the most demanding theatre and studio applications. Featuring a single rotating gobo wheel, variable CMY + CTO and a full effects wheelhouse. Control via Art-Net, sACN, DMX, RDM or CRMX.

Features

Silent Operation

Features 100% convection cooling for zero fan noise along with completely silent motion and effects.

High-Resolution Dimming

Provides smooth control of fades with 16-bit dimming and a selectable red shift on the master dimmer.

Advanced Color Mixing

A variable CMY + CTO color mixing system allows you to create a wide pallet of rich colors.

Rotating Gobo Wheel

Features one rotating gobo wheel loaded with unique, theatrical-based designs for projecting patterns.

Variable Frost System

Includes an integrated variable frost system to create soft-edged wash effects.

Rotatable Framing Shutters

The four-blade framing shutter system rotates up to 60 degrees for precise and flexible beam shaping.

Animation Wheel

An integrated animation wheel adds dynamic, flowing textures and enhanced visual effects to your lighting.

Motorized Iris

A built-in iris allows for total control over the beam’s diameter.

RDM Control

Supports RDM (Remote Device Management) over DMX for convenient fixture monitoring and reporting.

Wide Zoom Range

Offers a versatile 6° to 57° zoom angle to produce a wide range of variable beam sizes.

Power Linking

Equipped with True 1 compatible power input and throughput for easily linking power between multiple units.

Smart Display

The battery-backed display automatically rotates based on the fixture’s orientation for easy menu access.

Video

Quiet On Set – Maverick Silens 1X Profile | CHAUVET Professional

Join Senior Product Manager Ben Dickmann from the CHAUVET Professional booth at NAB 2024 for a sneak peek of the latest compact addition to our our award-winning Silens range, because you won’t hear it coming…!

What’s Included

  • Maverick Silens 1X Profile
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware
  • Gel Frame Holder and Gel Frame

Additional information

Optical

Light Source: 1 LEDs (CW) 420 W, (12A), 50,000 hours life expectancy
Light Source: 1 LEDs (RGB) 13 W, (2.091A), 50,000 hours life expectancy
Color Temperature (range): 2569 to 6126 K
Color Temperature (at full): 6126 K
Front lens diameters: 106 mm
CRI: 97.1
Beam Angle: 6° to 48.4°
Field Angle: 7° to 53.4°
Cutoff Angle: 7.5° to 56.2°
Zoom Range: 6° to 56.2°
Lumens – Output: 6081
Illuminance:
Illuminance (6°): 18,525 lux @ 5 m
Illuminance (56.2°): 398 lux @ 5 m
Selectable PWM: 20,000, 40,000
Construction / Physical

Dimensions: 15.75 x 9.68 x 24.25 in (400 x 246 x 616 mm)
Weight: 56.2 lb (25.5 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Control

Control Protocol: Art-Net, DMX, CRMX, RDM
DMX Channels: 31 or 39
Art-Net Channels: 31 or 39
Modes/Personalities: 2 personalities (31, 39)
Certifications / Qualifications

Certifications: CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180°, 90° pan/270°, 180°, 90° tilt
Colors: 6 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag, color correction
Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 22.9 mm (outside), 15.5 mm (image), 1.1 mm (max. thickness)
Effect Wheel: 1 effect
Framing Shutters: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: 15 leaf, Motorized
Prism: 5 Facets, round, motorized, rotating
Strobe Rate: 0 to 28.8 Hz
Move-in-Black: Yes
Dim Curves: 4
Connections

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
Power and Current: 441 W, 3.31 A @ 120 V, 60 Hz
Power and Current: 425 W, 1.91 A @ 208 V, 60 Hz
Power and Current: 422 W, 1.70 A @ 230 V, 50 Hz
Compatible Accessories

Clamps
Barn Doors
Seetronic powerKON cables
Seetronic etherCON cables
DMX Cables
Flight Cases

Downloads

Data Sheet Download
User Guide Download
