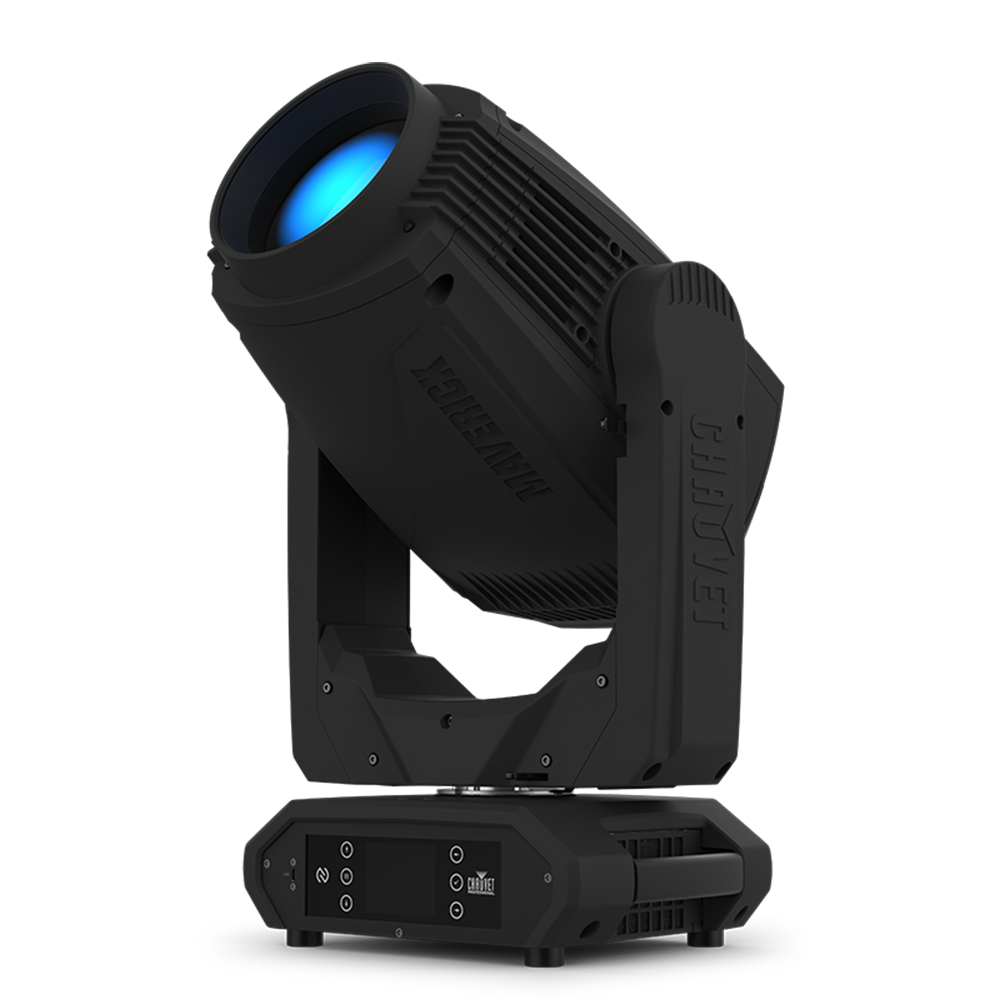

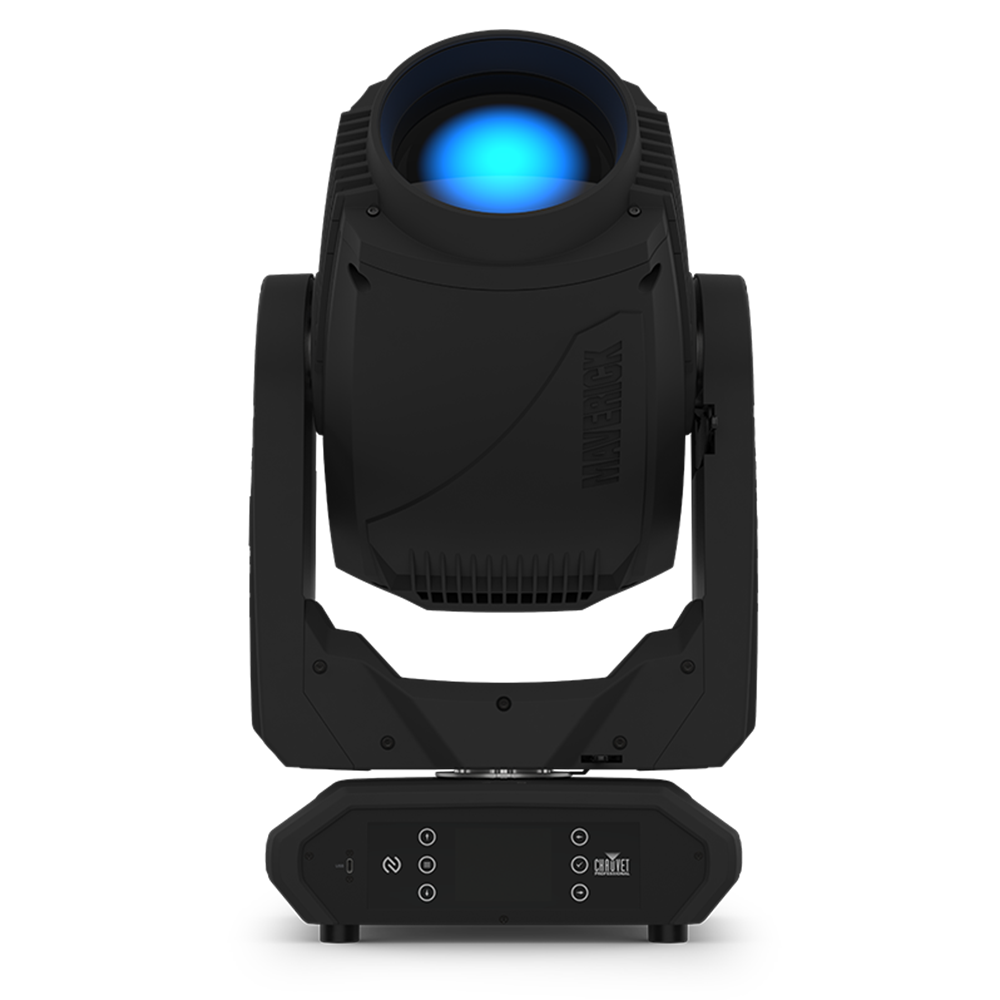

Chauvet Professional – Maverick Force X Spot

Chauvet Professional

A compact and lightweight LED moving spot that delivers a powerful 17,325-lumen output, a versatile 18:1 zoom, and a comprehensive feature set including CMY color mixing, dual gobo wheels, a five-facet prism, and frost.

Designed as a workhorse for a wide range of short and long throw applications, this fixture is ideal for touring, theatre, corporate events, and broadcast.

Features

  • Features a powerful 520W cool white LED engine with a 6462 K color temperature.
  • Delivers an expansive 3.5° to 57.7° zoom range for flexible beam shaping.
  • Offers a variable CMY system and a color wheel with CRI and CTB filters.
  • Includes an iris for precise beam control alongside dual gobo wheels and a prism.
  • Supports versatile control via DMX, RDM, sACN, Art-Net, and onboard CRMX.
  • Ensures flicker-free on-camera operation with 16-bit dimming and high-speed PWM.
SKU: MAVERICKFORCEXSPOT Categories: , , ,

Description

This powerful yet lightweight fixture combines the latest technical advancements of the Maverick series to achieve 17,325 lumens of output in a design that maintains a flat field of focus from its narrow 3.5° beam to its wide 57.7° beam. Color calibration and gobo selection are comparable to other Force fixtures, and its design includes a variable CMY color mixing system, renowned for its true reds, a color wheel with CRI and CTB filters, static and rotating gobo wheels, a five-facet prism, iris, and frost. With excellent dimming performance, a wide 18:1 zoom, and a comprehensive array of features, the Maverick Force X Spot is a compact LED moving head, ideal for a wide range of short- and long-throw applications. Control via DMX, RDM, sACN, Art-Net, or CRMX.

Features

Compact LED Spot Fixture

A fully-featured, lightweight 520W LED yoke spot fixture with a comprehensive set of professional tools.

Variable CMY Color Mixing

Create a vast spectrum of colors with the smooth, variable CMY color mixing system.

Dual Gobo Wheels

Includes one rotating and one static gobo wheel for a wide range of pattern and aerial effects.

16-Bit Dimming

Provides exceptionally smooth control of fades and intensity changes.

High-Speed PWM

A 65,000 Hz PWM rate ensures flicker-free operation on camera while maintaining excellent dimming.

Flexible Control Options

Supports DMX, WDMX, sACN, and Art-Net protocols for versatile integration into any control system.

RDM Enabled

Allows for remote addressing, configuration, and troubleshooting directly from your controller.

Wide Zoom Range

Offers an expansive 3.5° to 57.7° zoom range for creating variable beam sizes.

Advanced Beam Control

Shape and modify the beam using the built-in iris, 5-facet prism, and frost filter.

True-1 Power Input

Features a secure, True-1 compatible power input connection for reliable power.

Easy Setup Presets

Simplify shop preparation with three menu presets and the ability to sync settings across multiple fixtures.

USB Software Updates

A convenient USB slot allows for quick and easy software uploads to keep the fixture current.

Battery Powered Display

Access the menu without main power via a display that auto-rotates for easy viewing in any orientation.

Failsafe Ethernet Connectivity

Ensures data pass-through continues on the network line even if the fixture loses power.

NFC Fixture Setup

Utilize Near Field Communication for fast and easy fixture configuration directly from a compatible device.

What’s Included

  • Maverick Force X
  • SpotSeetronic Powerkon power cable
  • Omega brackets with mounting accessories

Video

Light Snacks: Maverick Force X Spot & X Profile Overview

In this episode of Light Snacks, Sr. Product Manager Michael Graham spotlights the Maverick Force X Spot and Maverick Force X Profile, two compact fixtures designed to deliver smooth color, sharp optics, and versatile effects.

Additional information

Optical

Light Source:1 LED (CW) 520 W, (4.2 A), 6462 K, 50,000
Color Temperature (at full): 6462 K
Front lens diameters: 145 mm
CRI: 72.2
CQS: 69.6
TLCI: 50
CRI with CRI filter: 90
CQS with CRI filter: 89.8
TLCI with CRI filter: 78
CTB color temperature: 7946K
Beam Angle: 3.5° to 51.3°
Field Angle: 3.7° to 56.3°
Cutoff Angle: 3.9° to 57.7°
Zoom Range: 3.5° to 57.7°
Lumens – Output: 17,325
Illuminance:
Illuminance(3.5°): 93,084 lux @ 5 m
Illuminance (57.7°): 1,135 lux @ 5 m
Selectables PWM:600Hz, 1500Hz, 2000Hz 65000Hz
Construction / Physical

Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
Weight: 44.2 lbs (20 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
Control

DMX Channels: 22 or 29
Art-Net Channels: 22 or 29
Modoes/Personalities: 2 personalities (22, 29)
Battery

Battery type: Lithium Ion (display screen backup)
Rechargable: Yes
Battery Charge Time: 5 hours
Battery Life: 1 hour
Battery Power: 3.7 V, 500 mAh
Compatible Accessories

Clamps
RigLink IP65 powerCON cables
RigLink etherCON cables
DMX cables
Flight Cases
CP Rack
PowerStream 4 IP
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: Colors: 7 (Red, Orange, Magenta, CTO 4300K, CTO 3200K, CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY wheels
Color Macros: # macros
Gobos (1): 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9+ open (9 metal) continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 24 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobo: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5-facet, motorized, rotating
Strobe Rate: 0 to 25 Hz
Move-in-Black: yes
Dim Curves: 5

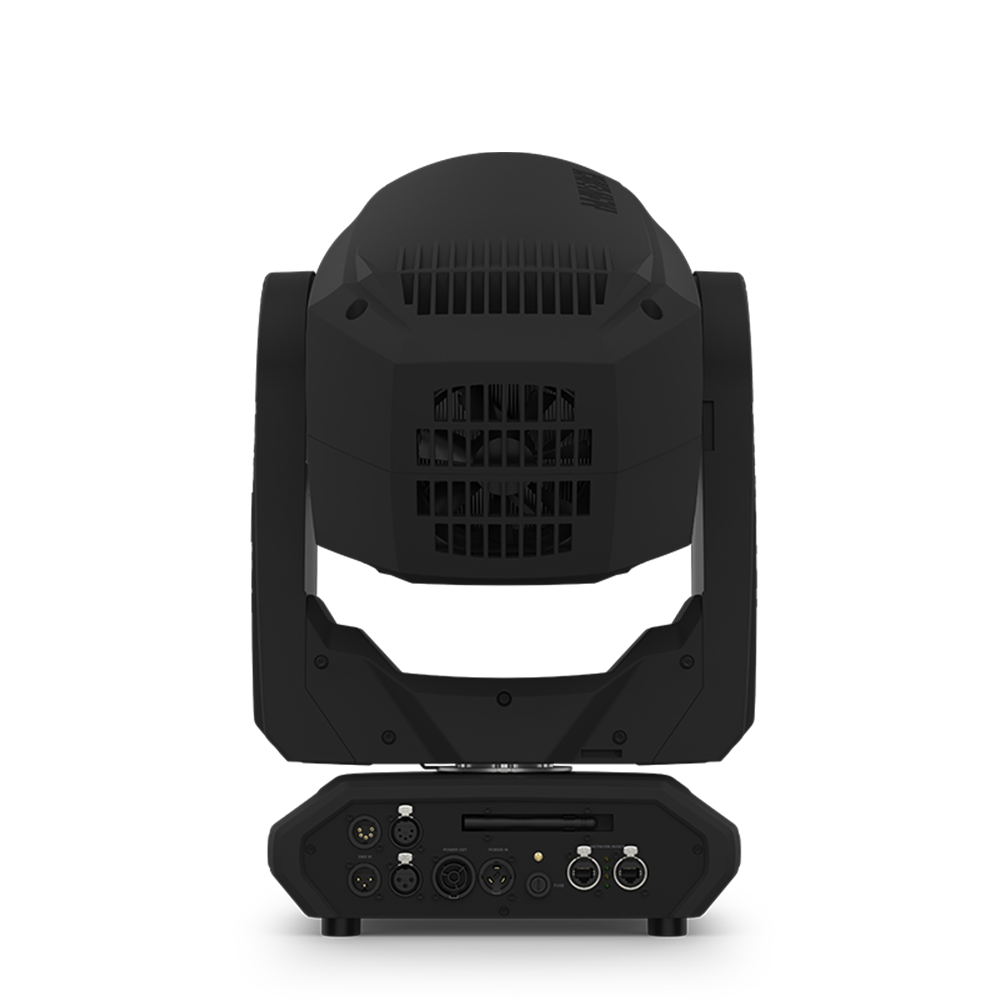

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
Cable Length (signal): 5 ft (1.5 m)
Electrical

Input Voltage:100 a 240 VAC, 50/60 Hz
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
Power and Current: 554 W, 4.64 A @ 120 V, 60 Hz
Power and Current: 541 W, 2.68 A @ 208 V, 60 Hz
Power and Current: 542 W, 2.44 A @ 230 V, 50 Hz
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Noise Levels:
Noise Level (Idle): 33.6 dB(A) @ 1 m
Noise Level (Auto): 36.6 dB(A) @ 1 m
Noise Level (Full): 39.7 dB(A) @ 1 m
Noise Level (ECO): 34.5 dB(A) @ 1 m
Noise Level (TV25): 34.5 dB(A) @ 1 m
Noise Level (TV35): 34.5 dB(A) @ 1 m
Noise Level (max): 42.4 dB(A) @ 1 m
Temperature (Ambient): -4 °F to 113 °F ( -20 °C a 45 °C )
