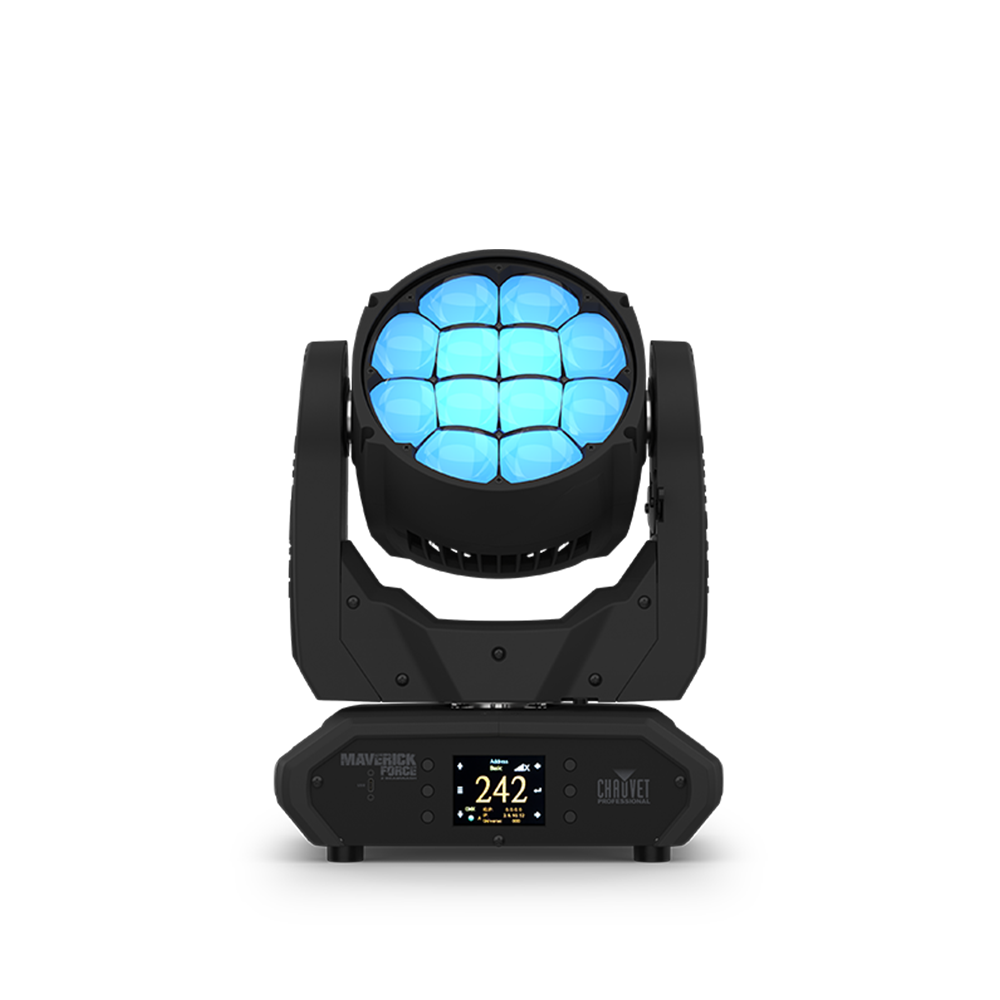

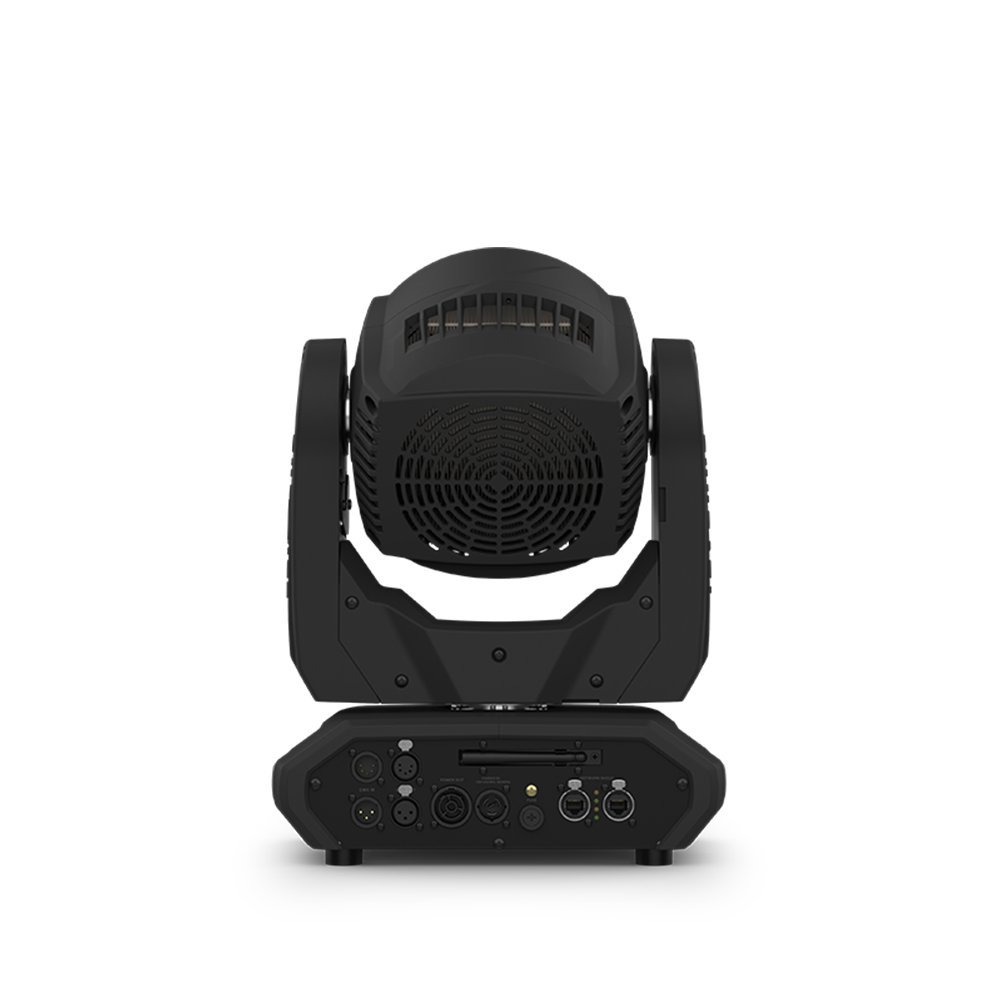

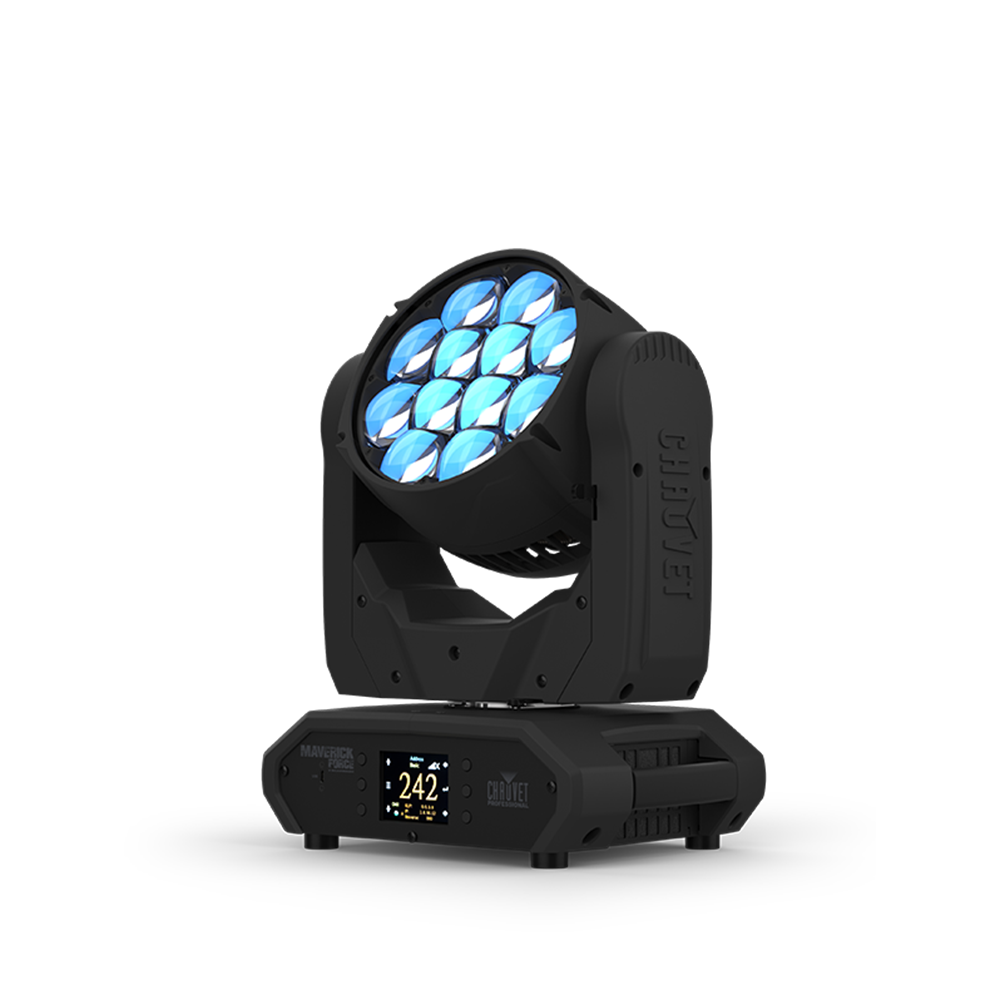

Chauvet Professional – Maverick Force 2 BeamWash

Chauvet Professional

A fast and lightweight RGBW LED yoke fixture that functions as both a beam and a wash, featuring full pixel mapping, a virtual gobo wheel, and a versatile zoom.

Ideal for concert touring, live events, and broadcast productions requiring a compact fixture capable of delivering rapid beam, wash, and pixel-mapped effects.

Features

  • Features twelve 45W RGBW LEDs for powerful output and rich, saturated color mixing.
  • Offers a versatile 3.7° to 44.1° zoom range for creating tight beams or wide washes.
  • Generates dynamic aerial looks with a virtual gobo wheel featuring background color control.
  • Produces precise whites with a calibrated 7500K point and a 2700K to 8000K CCT range.
  • Supports DMX, Art-Net, sACN, Kling-Net, and W-DMX for versatile system integration.
  • Operates quietly, making it ideal for broadcast studios and sound-sensitive applications.
SKU: MAVERICKFORCE2BEAMWASH Categories: , , ,

Description

A lighter, brighter, tighter, faster RGBW LED yoke wash fixture with pixel mapping and zoom. Maverick Force 2 BeamWash incorporates the latest LED and optical technologies to project the narrowest beams and deliver the deepest aerial washes. Foreground and background colors combine for sizzling atmospheric effects instantly with its built-in virtual gobo wheel. Flawlessly even output, full pixel mapping, and smooth 16-bit fades make this fixture a force to be reckoned with, live or on camera. Take control with DMX, RDM, sACN, Art-Net, Kling-Net or W-DMX.

Features

RGBW LED Wash Fixture

A versatile yoke wash light featuring full RGBW color mixing, pixel mapping capabilities, and an integrated zoom.

Smooth 16-Bit Dimming

Achieve exceptionally smooth fades with high-resolution 16-bit dimming control over the master dimmer and individual colors.

Virtual Color Wheel

Instantly access a wide array of pre-mixed colors using the built-in virtual color wheel.

Virtual Gobo Wheel

Create impressive atmospheric effects with a virtual gobo wheel that includes background color control.

Rapid Movement

Swift and precise pan, tilt, and zoom motors allow for dynamic lighting effects and quick adjustments.

Quiet Operation

Its low-noise performance makes it suitable for a wide range of sound-sensitive environments.

Flexible Control Options

Offers complete control flexibility with support for DMX, WDMX, sACN, Art-Net, and Kling-Net protocols.

RDM Enabled

Easily perform remote addressing and troubleshooting directly from your RDM-compatible controller.

Wide Zoom Range

Adjust from a tight 3.7° beam to a wide 44.1° wash for variable beam sizes.

Calibrated White Point

A user-selectable calibrated white setting provides a consistent 7500 K color temperature at full output.

Professional Power Input

Features a True 1 compatible power input for secure, professional-grade connections.

USB-C Software Port

A convenient USB-C port allows for simple and fast software updates.

Battery Backup Display

Configure the fixture without main power using the battery-powered display, which auto-rotates for easy viewing.

Easy Setup Presets

Simplify multi-fixture configuration with three setup menu presets and a sync function for quick cross-loading.

Video

Blazing Speed! Maverick Force 2 BeamWash & Force 3 Profile LED Moving Heads by CHAUVET Professional

What’s Included

  • Maverick Force 2 BeamWash
  • Seetronic Powerkon IP65 power cord
  • 2 140Dmm Omega brackets with mounting hardware

Additional information

Optical

Light Source: 12 LEDs (quad-color RGBW) 45 W (3 A), 50,000 hours life expectancy
Color Temperature (range): 2700 to 8000 K
Beam Angle: 3.7° to 33.6°
Field Angle: 5.8° to 44.1°
Cutoff Angle: 6.5° to 48.6°
Zoom Range: 3.7° to 44.1°
Lumens – Source: 10,800
Lumens – Output: 9,183
Illuminance:
Illuminance (3.7°): 41,355 lux @ 5 m
Illuminance (45.1°): 1,267 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Connections

Power Connection: Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Data Connectors: 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 620 W, 5.23 A @ 120 V, 60 Hz
Power and Current: 603 W, 2.96 A @ 208 V, 60 Hz
Power and Current: 600 W, 2.68 A @ 230 V, 50 Hz
Breaker Size: F10 A, 250 V
Certifications / Qualifications

Certifications: CE, MET, FCC, CB, UKCA
Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: No
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Curves: 4
Construction / Physical

Dimensions: 12.91 x 12.60 x 17.09 in (328 x 230 x 434 mm)
Weight: 29.6 lb (13.5 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Control

Control Protocol: Art-Net, sACN, Kling-Net, RDM, DMX, W-DMX
DMX Channels (Single Mode): 20ch, 25ch, 68ch, 122ch or 146ch
Art-Net/sACN Channels (Single Mode): 20ch, 25ch, 68ch, 122ch or 146ch
DMX Channels (Dual Mode) (Movement): 8ch, 20ch, 26ch
DMX Channels (Dual Mode) (Pixel): 36ch, 48ch, 96ch
Art-Net/sACN Channels (Dual Mode) (Movement): 8ch, 20ch, 26ch
Art-Net/sACN/Kling-Net Channels (Dual Mode) (Pixel): 36ch, 48ch, 96ch
Modes/Personalities: 8 personalities (20ch, 25ch, 68ch, 122ch or 146ch 8ch-36ch, 20ch-48ch, 26ch-96ch)
Compatible Accessories

Professional Clamps : CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables
IP Rated Seetronic® Powerkon Extensions
UPLOAD 08 software uploader
Micro T-1 TRX G6 WDMX Transceiver
FLIGHT CASE

Downloads

Data Sheet Download
User Guide Download
