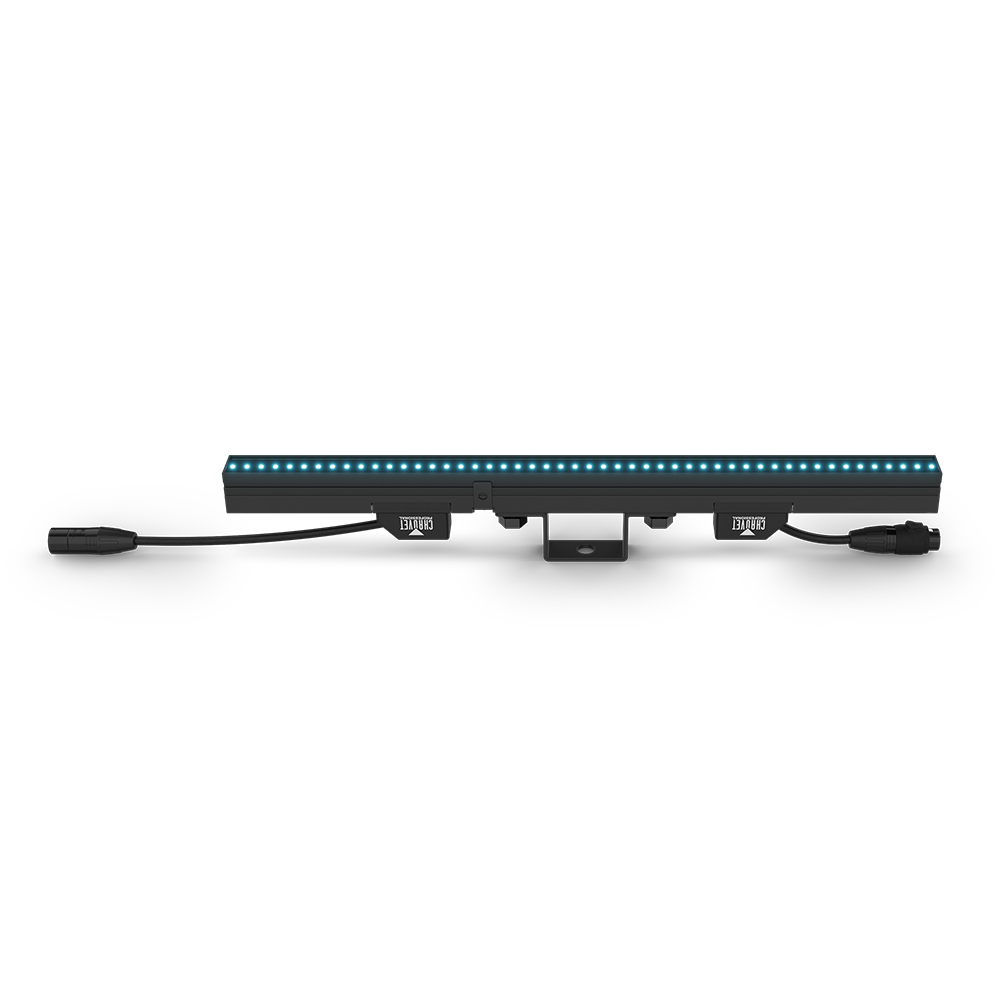

Chauvet Professional - ÉPIX Line 10 IP S front right of battenChauvet Professional - ÉPIX Line 10 IP S front right of batten

Chauvet Professional – ÉPIX Line 10 IP S

Chauvet Professional

This compact, half-meter IP65 linear fixture delivers vivid, wide-gamut RGB color and includes three optical filters for varied viewing angles and looks.

Native ÉPIX Mapping System compatibility enables fast, scalable video mapping for demanding touring, rental, and permanent integration projects.

Features

  • Outdoor-Rated Pixel Strip – Linear LED strip with 10 mm pixel pitch delivers vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.
  • Flexible Connectivity & Optics – Standard 4-pin XLR connectors and three included optical filters support multiple use cases, including wide viewing angles.
  • Compact & Serviceable Design – Slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower service costs.
  • Streamlined Setup – Native compatibility with the ÉPIX Mapping System and MVR support makes configuration fast and intuitive.
SKU: EPIXL10IPS Categories: , , ,

Description

ÉPIX Line 10 IP S delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPIX D4 IP Drive, this compact 0.5-meter outdoor-rated linear pixel strip offers native compatibility with the ÉPIX Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.

Features

Outdoor-Rated Pixel Strip

The IP65-rated housing and 10 mm pixel pitch deliver vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.

Flexible Optics and Connectivity

Three included optical filters and standard 4-pin XLR connectors provide versatile looks and support a wide range of installation requirements.

Compact and Serviceable Design

A slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower total cost of ownership.

Streamlined Setup and Control

Native compatibility with the ÉPIX Mapping System and MVR support makes system configuration and video mapping fast and intuitive.

Video

ÉPIX Line 10 IP: Redefine the Grid | CHAUVET Professional

ÉPIX Line 10 IP is engineered to redefine what a linear pixel fixture can be. Modular from the inside out, every component is accessible, serviceable, and replaceable because downtime isn’t an option.

What’s Included

  • ÉPIX LINE 10 IP S
  • Interlocking Bracket
  • Milky White Square Filter (Installed)
  • Black Stealth Square Filter (Included)
  • Milky White Round Filter (Included)
  • 1X Mounting Brackets (Installed)

Additional information

Optical

Light Source: 50 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
Beam Angle: 114.6°
Field Angle: 161.9°
Viewing Angle: 170°
Lumens: 581.2
Pixel Pitch: 10 mm
Display Refresh Rate: 4900 Hz
Connections

Power Supply (remote driver): ÉPIX D4 IP
Physical Linking (Standard Mode): 20 inline ÉPIX Line 10 IP S
Physical Linking (Hi Power Mode): 13 inline ÉPIX Line 10 IP S
Data Connectors: 4-pin IP65 XLR
Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between ÉPIX D4 IP and last ÉPIX Line: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX D4 IP and first ÉPIX Line: 65 ft (20 m)
Max. cable length (shielded cables) between each ÉPIX Line: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX D4 IP and last ÉPIX Line: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX D4 IP and first ÉPIX Line: 150 ft (45 m)
Max. cable length (unshielded cables) between each ÉPIX Line: 100 ft (30 m)
Dynamic Effects

Strobe Rate: 0 to 30 Hz
Construction/Physical

Dimensions (no filter): 19.685 x 1.161 x 2.862 in (500 x 29.5 x 72.7 mm)
Dimensions (square filter installed): 19.685 x 1.228 x 2.862 in (500 x 31.20 x 72.7 mm)
Dimensions (round filter installed): 19.685 x 1.969 x 2.862 in (500 x 50 x 72.7 mm)
Weight: 1.644 lb (0.746 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel
IP Rating: [IP65]
Control

Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System]
DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
Video Refresh Rate: 60 Hz
Electrical

Input Voltage: 48VDC
Power and Current (STD): 11 W, .223 A @ 48 VDC
Power and Current (Hi-PWR): 16 W, .328 A @ 48 VDC
Certifications/Qualifications

Compliance: [CE, MET, FCC, ETL, UKCA, etc.]
Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

Downloads

Data Sheet Download
User Guide Download
