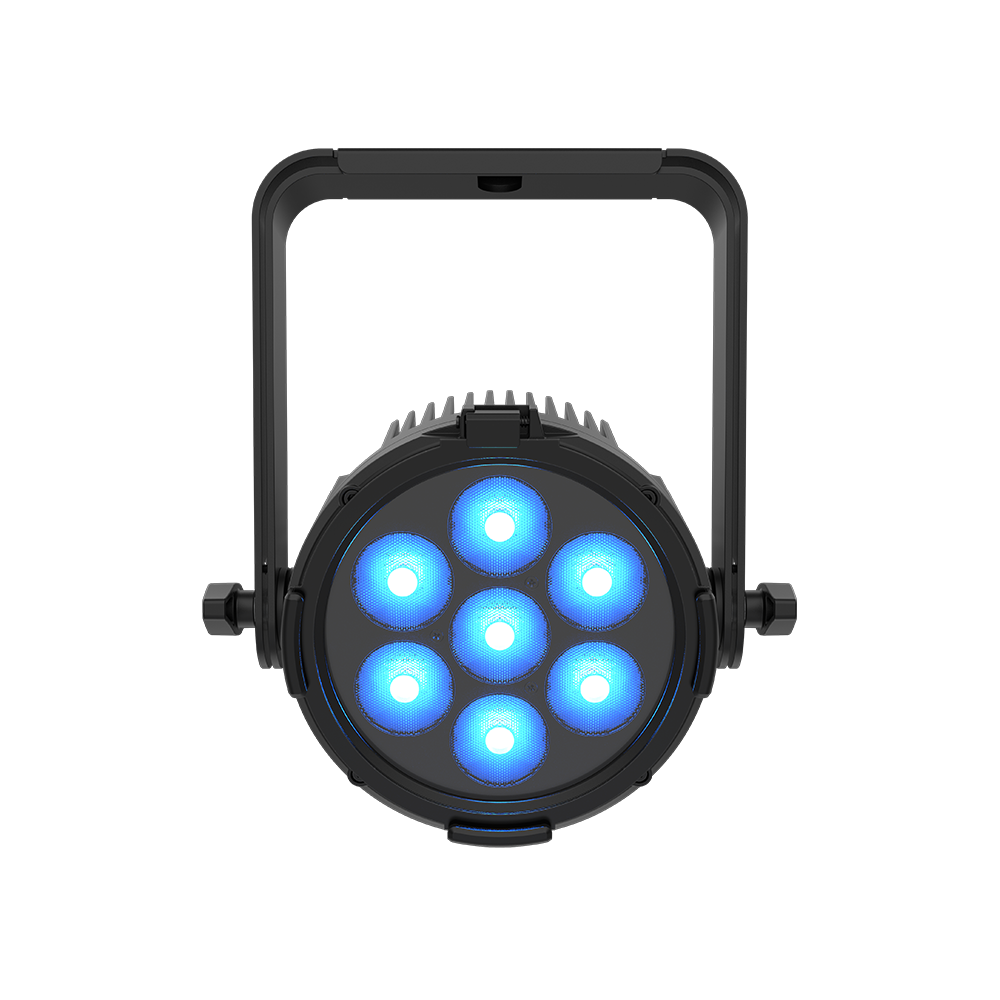

Chauvet Professional – COLORdash PAR H7X Front RightChauvet Professional – COLORdash PAR H7X Front Right

Chauvet Professional – COLORdash PAR H7X

Chauvet Professional

The COLORdash PAR H7X is a lightweight, durable, seven-color (RGBWAUV) LED wash light offering a versatile palette of colors, smooth 16-bit dimming, and flicker-free output.

Perfect for both live and on-camera applications, this fixture is an ideal workhorse for touring, broadcast, and theatrical productions where color precision and portability are paramount.

Features

  • Features seven 84W hex-color RGBAW+UV LEDs for a broad, saturated color palette.
  • Offers an adjustable color temperature range from 2800K to 10,000K for precise white balancing.
  • Provides four selectable dimming curves for exceptionally smooth, professional-grade fades.
  • Includes adjustable PWM settings to ensure flicker-free operation for on-camera applications.
  • Supports both DMX and RDM protocols with five personalities for flexible control integration.
  • Housed in a lightweight die-cast body with a double-bracketed yoke for versatile mounting options.
SKU: COLORDASHPARH7X Categories: , , ,

Description

In the rig or on the floor, live or on camera, the lightweight COLORdash PAR H7X RGBWAUV LED wash is a portable six pound package that delivers a broad palette of subtle to saturated color with beautiful precision. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H7X is a die-cast workhorse that withstands the rigors of real world use while offering convenient operation and excellent performance.

Features

Rugged 6-in-1 LED Wash

Provides a wide spectrum of rich colors, including true UV, in a durable housing built for any event.

Flicker-Free Operation

Adjust the Pulse Width Modulation (PWM) to ensure flawless performance on camera.

Remote Device Management

RDM capability allows for remote addressing and configuration for added flexibility.

Smooth Dimming Curves

Selectable dimming curves eliminate flicker and choppiness for perfectly smooth fades.

OLED Touchscreen Display

An easy-to-read, password-protected OLED display with a touchscreen interface allows for simple navigation.

Advanced Optics

The advanced optical system provides exceptional color mixing and high efficiency.

Versatile Mounting

A double-bracketed yoke also functions as a floor stand for flexible placement options.

What’s Included

  • Colordash Par H7X
  • Seetronic powerkon IP65 power cord
  • Gel frame holder
  • Gel frame

Additional information

Optical

Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (505 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10,000 K
Color Temperature (at full): 14,329 K
Beam Angle: 22.7°
Field Angle: 37.6°
Lumens: 2738
Illuminance (total): 522 lux @ 5 m
Selectable PWM: 600 Hz, 1.2K Hz, 2K Hz, 4K Hz, 6K Hz, 25K Hz
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Control

Control Protocol: DMX, RDM
DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Construction / Physical

Dimensions: 10.16 x 9.45 x 4.57 in (258 x 240 x 116 mm)
Weight: 6 lb (2.7 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.5 in (165 mm)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 20 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V
Power and Current: 70 W, .592 A @ 120 V, 60 Hz
Power and Current: 67 W, .344 A @ 208 V, 60 Hz
Power and Current: 67 W, .312 A @ 230 V, 50 Hz
Certicications / Qualifications

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3- or 5-pin DMX Cables
COLORdash Par H7X Barndoor
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3- or 5-pin DMX Cables
COLORdash Par H7X Barndoor

Downloads

User Guide Download
Data Sheet Download
