Chauvet Professional - COLORdash PAR H18X front right of led par fixture in hanging positionChauvet Professional - COLORdash PAR H18X front right of led par fixture in hanging position

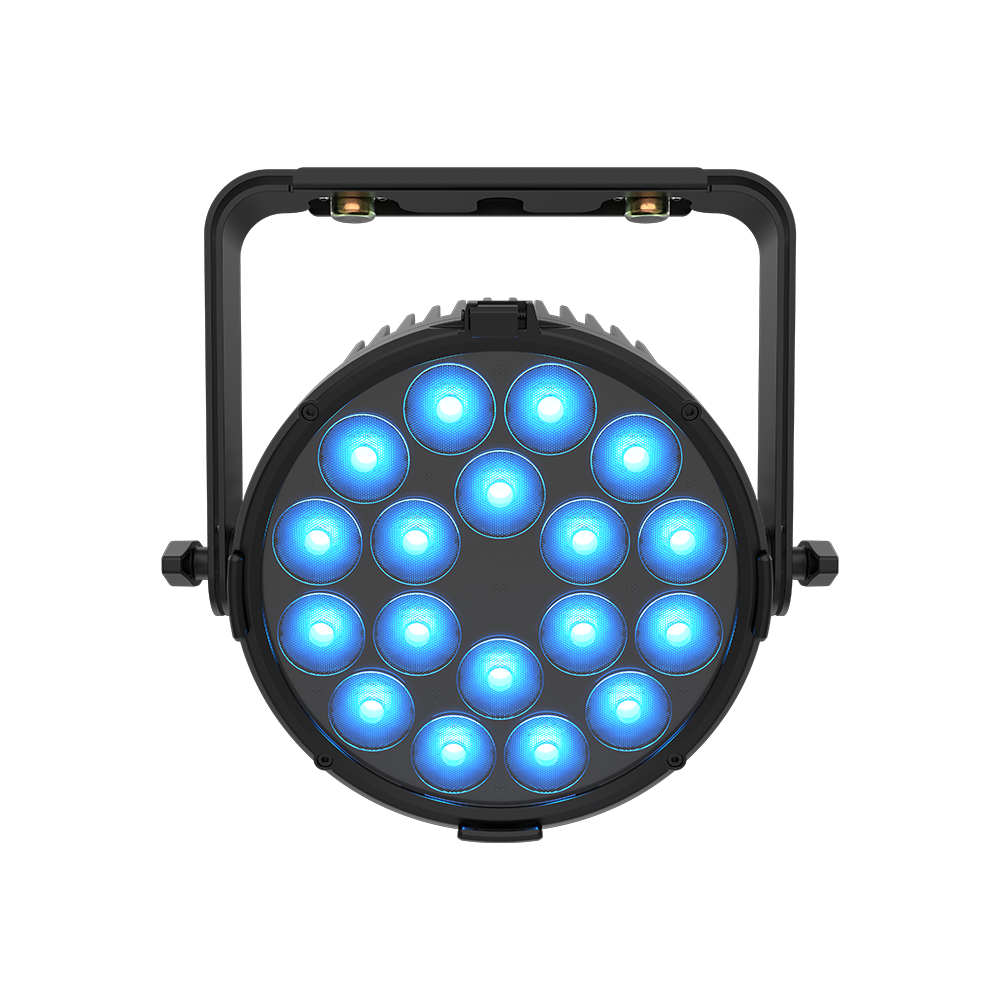

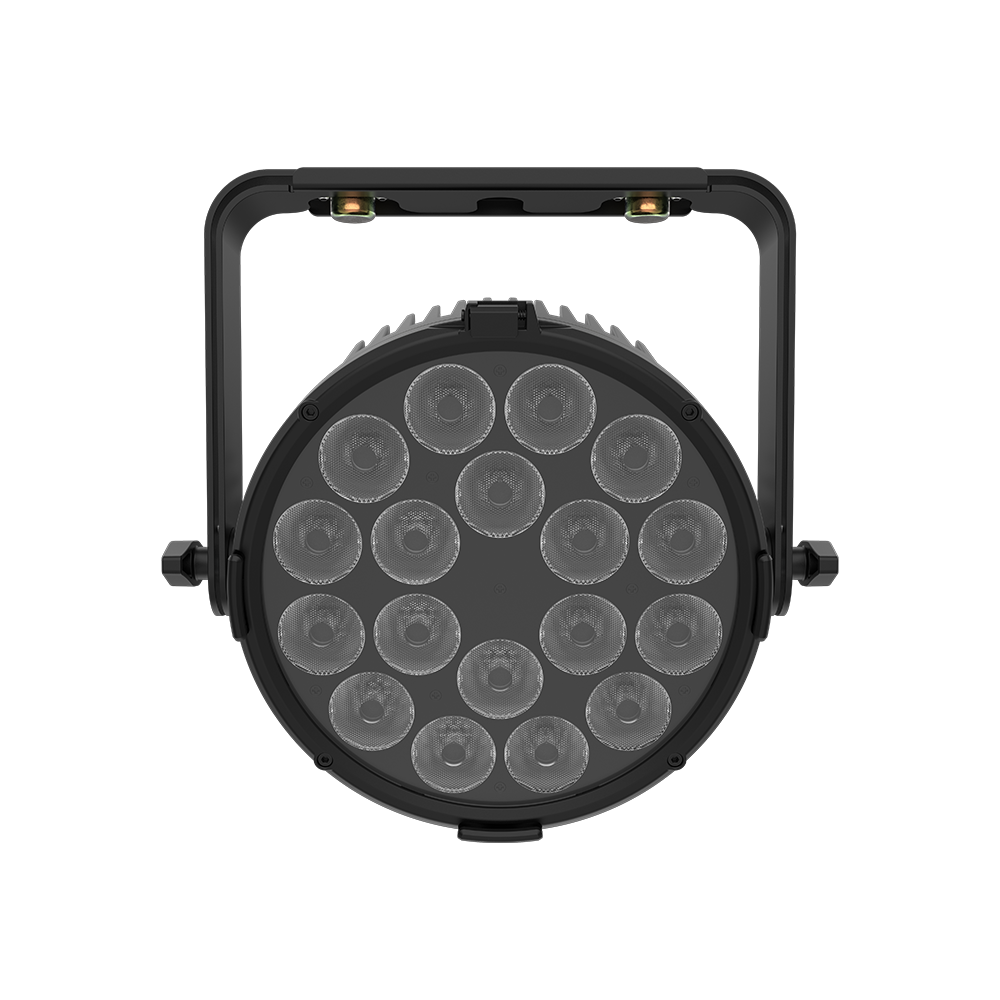

Chauvet Professional – COLORdash PAR H18X

Chauvet Professional

A powerful and durable RGBWAUV LED wash light that delivers a broad and versatile palette of colors with smooth, high-precision 16-bit dimming and flicker-free operation.

Perfectly suited for touring, broadcast, and live event applications where a durable, high-output, and flicker-free wash light is essential for use either on the floor or in the rig.

Features

  • Delivers 5,736 lumens of output from 18 hex-color RGBWAUV LEDs.
  • Offers a wide 2800K to 10,000K CCT range for precise white light control.
  • Provides a fixed 23.6° beam angle and 38.6° field angle for wide wash coverage.
  • Adjustable PWM frequencies ensure flicker-free performance for broadcast and on-camera use.
  • Supports DMX and RDM protocols with multiple channel modes for versatile control options.
  • Includes a versatile double-bracketed yoke that also functions as a convenient floor stand.
SKU: COLORDASHPARH18X Categories: , , ,

Description

The powerful COLORdash PAR H18X RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision and over 5,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H18X is a die-cast workhorse that withstands the rigors of real world use while offering convenient operation and excellent performance, in the rig or on the floor, live or on camera.

Features

Rugged 6-in-1 LED Wash

Provides a durable and vibrant RGBWA-UV color wash suitable for any event.

Flicker-Free On Camera

Features adjustable Pulse Width Modulation to eliminate flickering when filming.

Remote Device Management

Includes RDM capability for increased flexibility and remote fixture configuration.

Smooth Dimming Curves

Offers selectable dimming curves to ensure perfectly smooth fades without flicker or choppiness.

Intuitive OLED Display

An easy-to-read, password-protected OLED touchscreen interface allows for simple navigation and setup.

Advanced Optics

The advanced optical system delivers exceptional color mixing and high-efficiency output.

Versatile Mounting Yoke

A double-bracketed yoke with an included omega bracket also functions as a convenient floor stand.

What’s Included

  • COLORdash PAR H18X
  • Seetronic Powerkon IP65 power cord
  • Gel frame
  • Omega bracket
  • Quick Reference Guide

Additional information

Optical

Light Source: 18 LEDs (HEX-color RGBWAUV) 150 W, (550 mA), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 10,000K
Color Temperature (at full): 9507K
Beam Angle: 23.6°
Field Angle: 38.6°
Lumens: 5,736
Illuminance: 1,207 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 15 units @ 208 V; 17 units @ 230 V
Power and Current: 155 W, 1.305 A @ 120 V, 60 Hz
Power and Current: 153 W, 0.773 A @ 208 V, 60 Hz
Power and Current: 152 W, 0.704 A @ 230 V, 50 Hz
Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3- or 5-pin DMX Cables
Barndoor
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 12.45 x 4.38 x 8.68 in (316.4 x 111.5 x 220.7 mm)
Weight: 10.4 lb (4.7 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 9.25 in (235 mm)
Control

Control Protocol: DMX, RDM
DMX Channels: 6, 8, 9, 13 or 14
Modes/Personalities: 3 personalities (6ch, 8ch, 9ch, 13ch, 14ch)
Certifications / Qualifications

Certifications: CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Downloads

Data Sheet Download
User Guide Download
