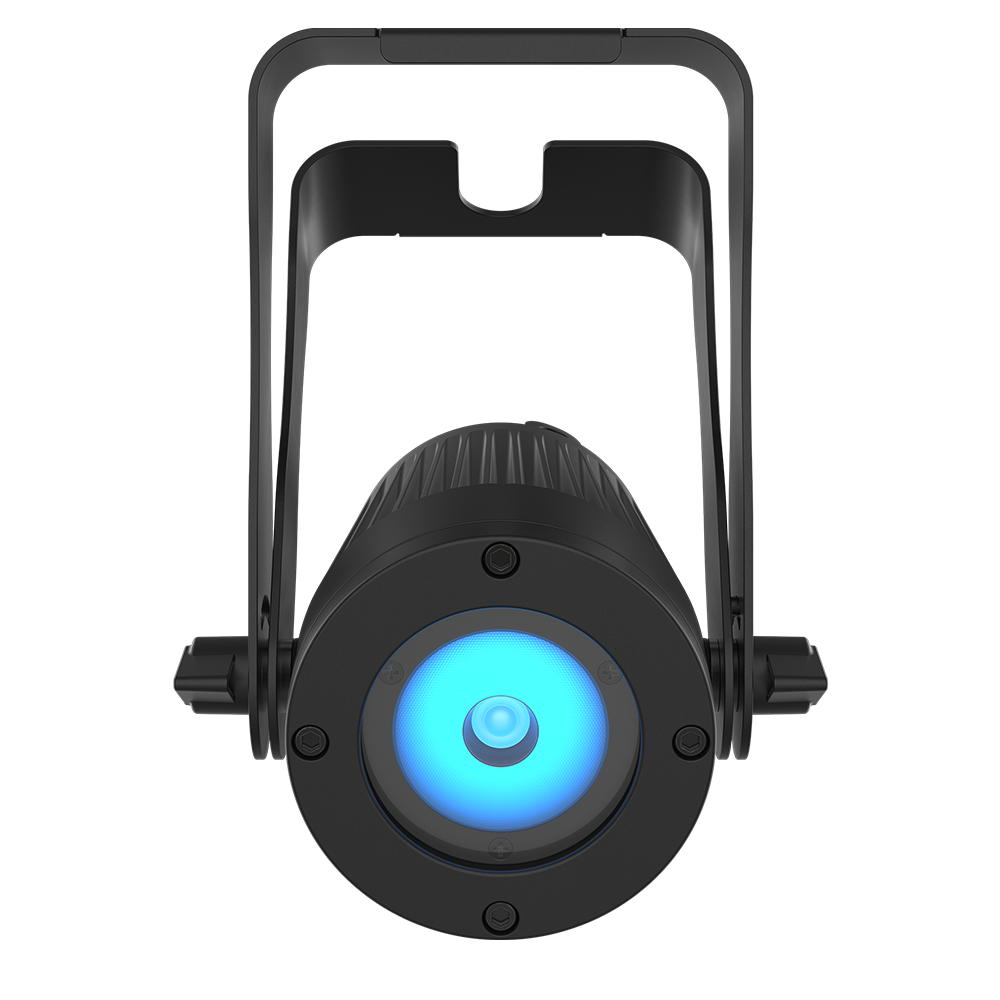

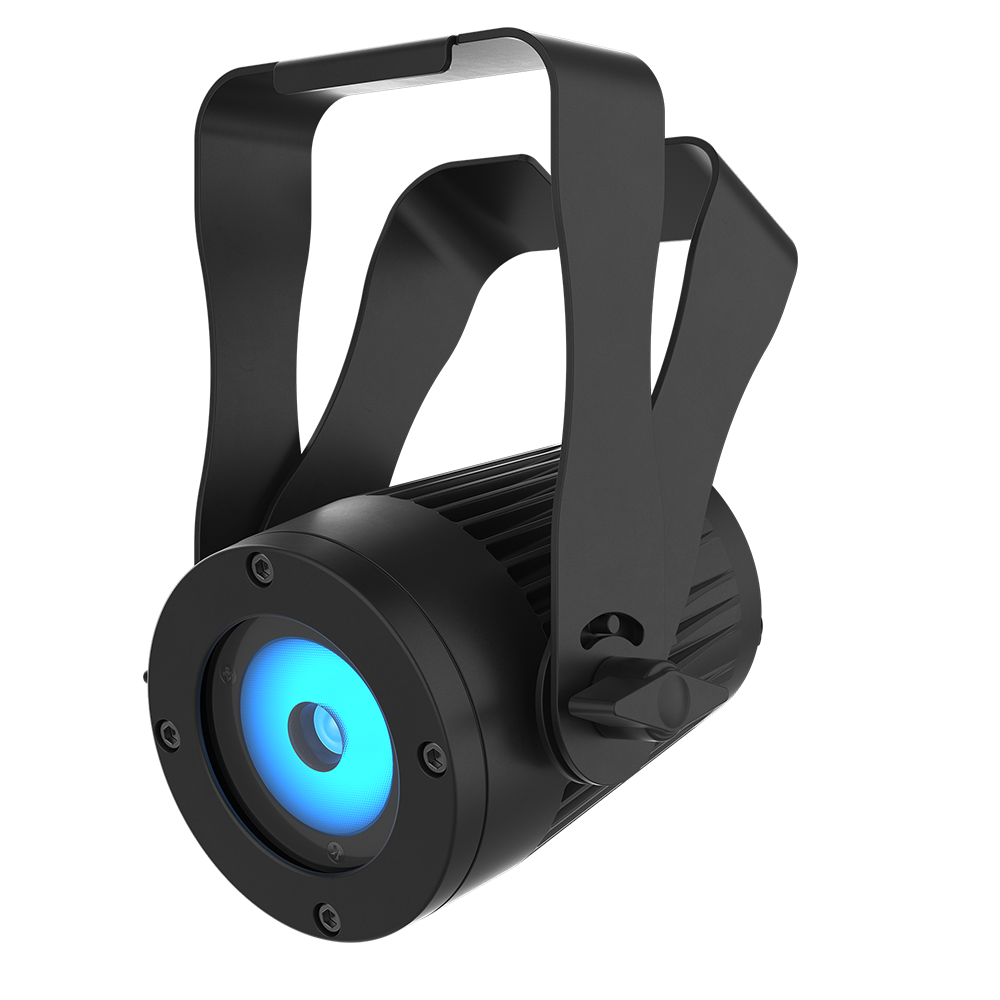

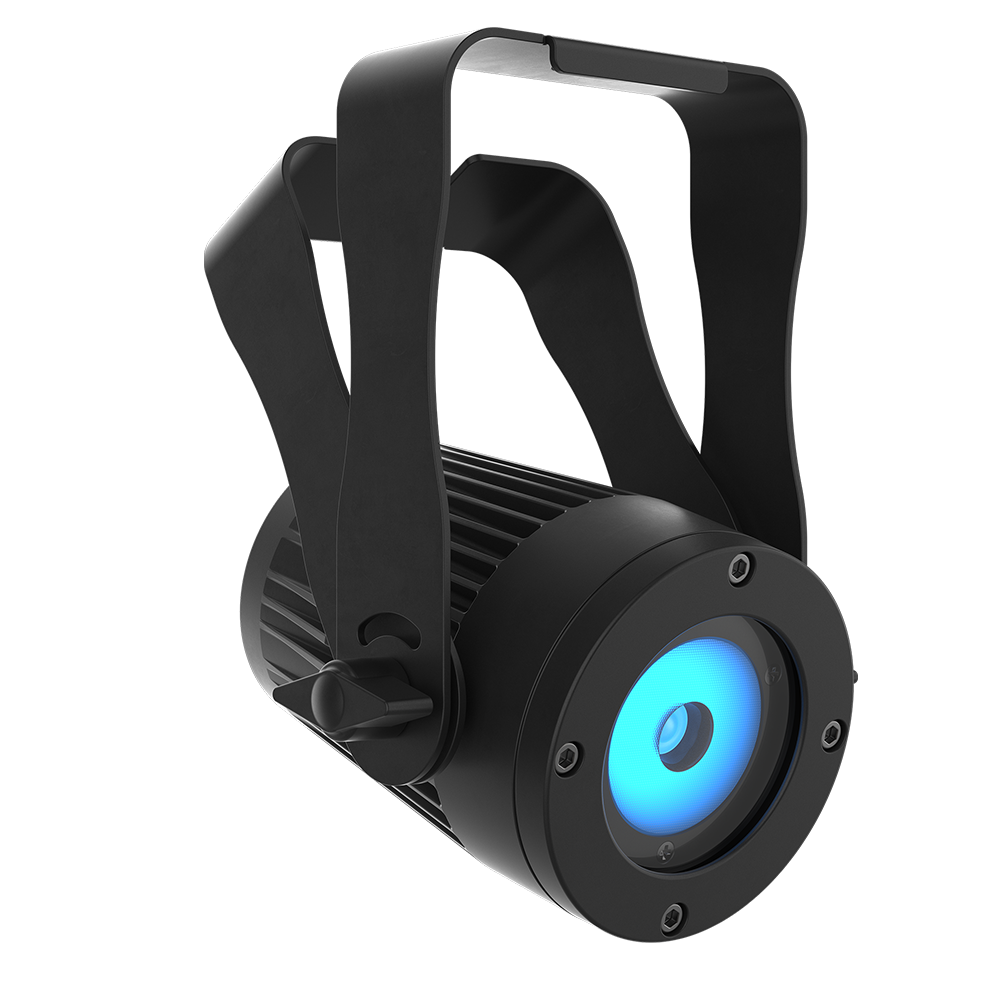

Chauvet Professional – COLORdash Accent 5X IP

Chauvet Professional

A compact, IP65-rated wash fixture powered by a single 40W hex-color RGBAW+UV LED for a tremendous punch of evenly mixed, saturated color.

Its palm-sized, weatherproof design and flicker-free output make it ideal for discreet, high-impact accent lighting in broadcast, event, and architectural applications.

Features

  • Hex-color (RGBWAUV) compact LED wash
  • Extremely compact with excellent output and IP65-rated versatility
  • Variable electronic dimmer (0–100%)
  • Simple and complex DMX channel profiles with RDM for programming versatility
  • Double-bracketed yoke doubles as floor stand
  • Easy to use OLED digital display
  • Replaceable filter for additional beam angles
  • Built-in auto programs recalled via DMX or Master/Slave
SKU: COLORDASHACCENT5XIP Categories: , , ,

Description

COLORdash Accent 5X IP delivers a tremendous punch of evenly mixed light with a tight 11.4° beam that can be expanded to 21.5° with its included filter. Powered by a 40W Hex-color RGBAW+UV LED, this versatile IP65-rated palm-sized fixture can be used indoors and out to deliver saturated colors and brilliant pastels with a soft, even glow. Variable pulse width modulation ensures flicker-free on-camera use. Convenient addressing for DMX control and easy menu navigation in stand-alone mode are offered via onboard OLED display.

Features

Rich Hex-Color Spectrum

A single 40W RGBAW+UV LED source delivers a wide palette of saturated colors, pastels, and true ultraviolet effects from a compact housing.

Powerful All-Weather Design

The IP65-rated, palm-sized body delivers impressive output for versatile accent lighting indoors or out, regardless of weather conditions.

Smooth Dimming Control

Achieve seamless fades and precise intensity adjustments with a variable electronic dimmer that offers five distinct dimming modes for ultimate control.

Flexible DMX and RDM

Utilize simple or complex DMX channel profiles and RDM for remote addressing, ensuring versatile integration into any professional lighting rig.

Versatile Mounting Options

A double-bracketed yoke allows for conventional truss mounting or use as a convenient floor stand for flexible uplighting applications.

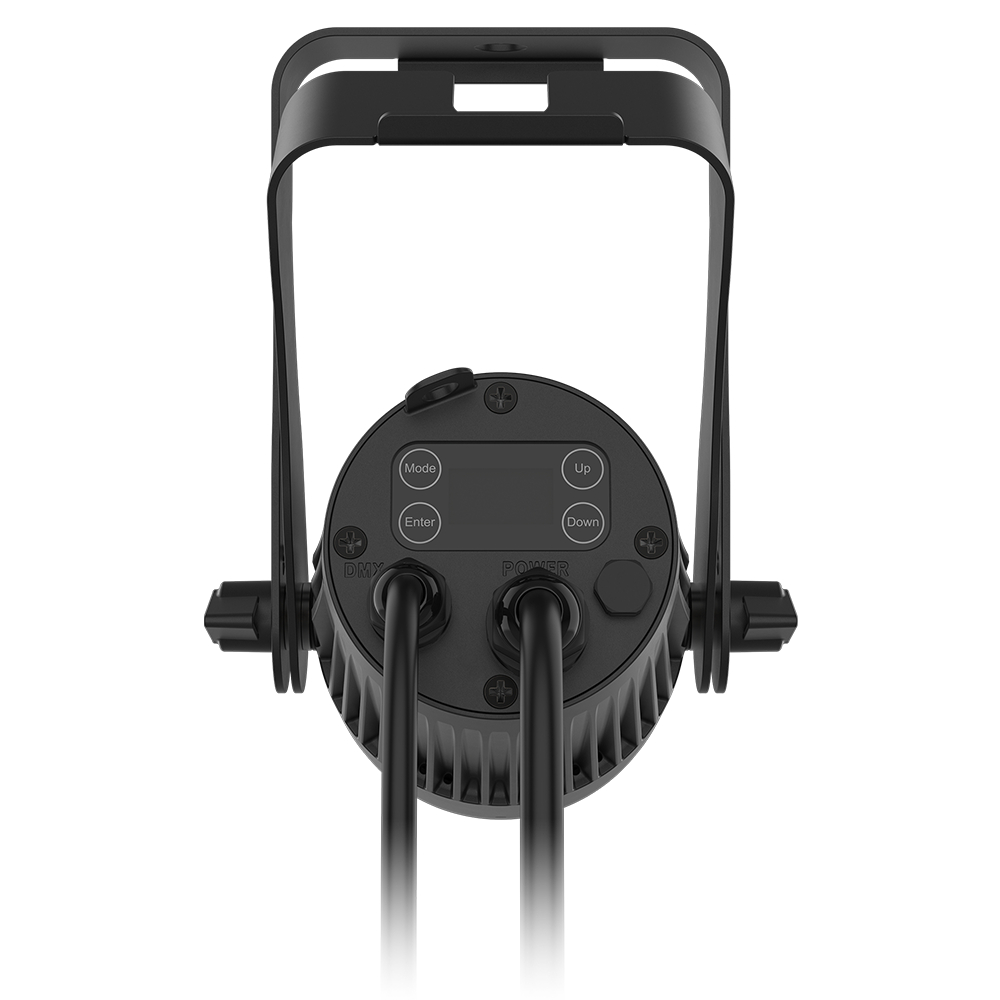

Clear OLED Display

Easily navigate menus and configure settings directly on the fixture using the high-contrast OLED display, even in low-light environments.

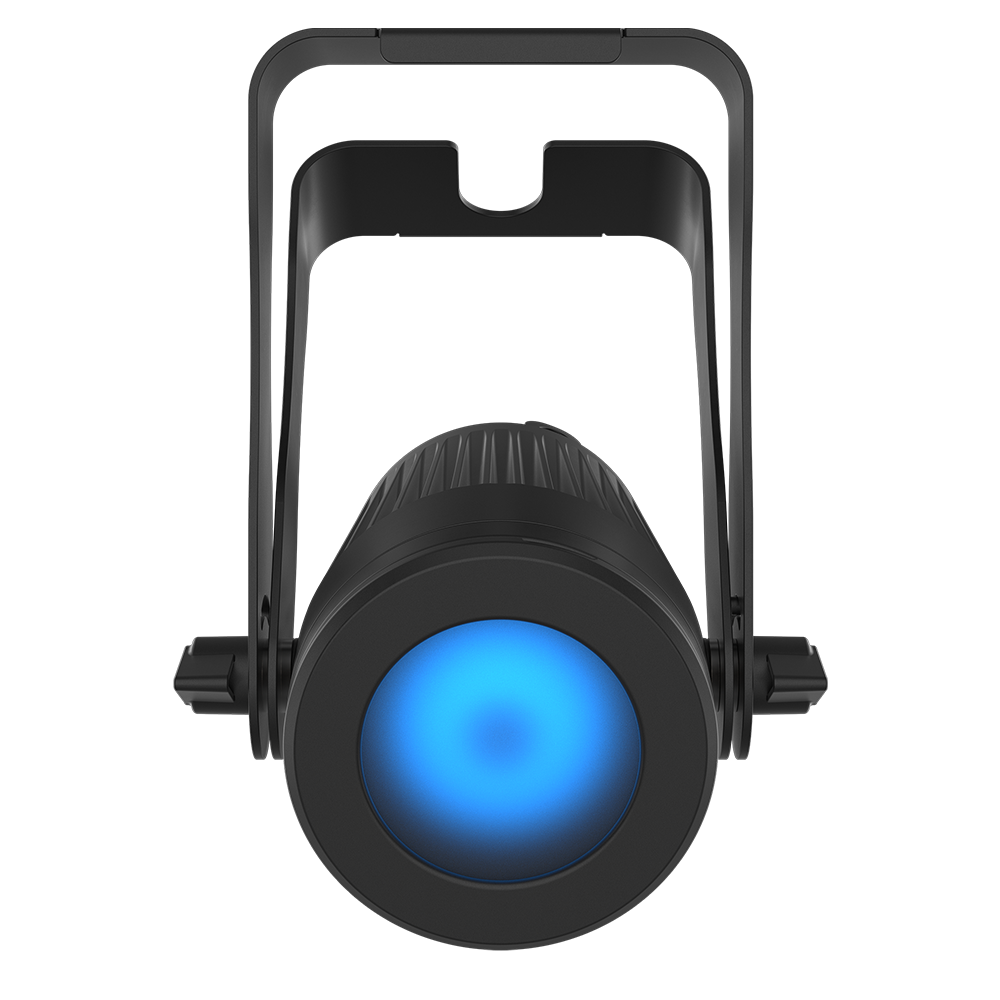

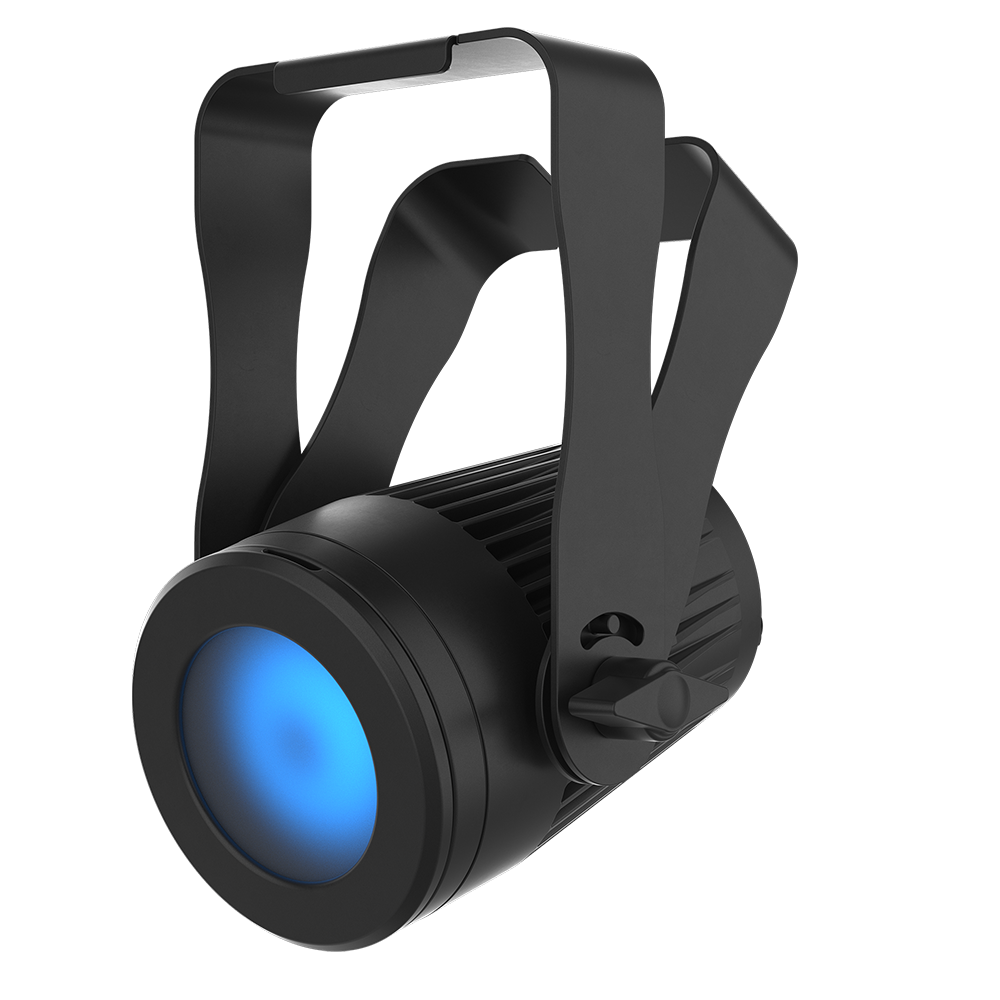

Included Beam-Shaping Filter

Expand the tight 11.4° beam to a wider 21.5° wash with the included filter, adapting the light for different coverage needs.

Standalone Automated Programs

Access built-in automated programs via DMX or Master/Slave mode for dynamic looks without the need for complex programming.

What’s Included

  • COLORdash™ Accent 5XIP
  • Frosted filter

Additional information

Optical

Light Source: 1 LED (Hex-color RGBWA+UV) 40 W, (950 mA), 50,000 hours life expectancy.
Beam Angle w/ filter: 21.5°
Field Angle w/ filter: 47.1°
Beam Angle w/o filter: 11.4°
Field Angle w/o filter: 20.4°
Lumens: w/o filter: 890 lm
Lumens: w/ filter: 733 lm
Illuminance (total) w/ filter: 126 lux 5 m
Illuminance (total) w/o filter: 618 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Connections

Power Connection: Edison plugs to hard-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR DMX input and output cable whips
Cable Length (power): 5 ft (1.5 m)

Certifications/Qualifications

Certifications: CE, MET, FCC, RoHS
IP Rating: IP65, temporary outdoor/wet use with pressure equalizing M6 GORE valve
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Dim Modes: 5
Built-in Automated Programs: Yes

Construction/Physical

Dimensions: 7.24 x 5.70 x 3.46 in (184 x 145 x 88 mm)
Weight: 2.8 lb. (1.3 kg)
Exterior Color: Black

Control

Control Protocol: DMX, RDM
DMX Channels: 6, 8, 9, 13 or 14
Modes/Personalities: 5 personalities (6, 8, 9, 13 or 14)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 44 W, 0.68 A @ 120 V, 60 Hz
Power and Current: 44 W, 0.48 A @ 208 V, 60 Hz
Power and Current: 43 W, 0.44 A @ 230 V, 50 Hz
