Chauvet-Professional-COLORado-Solo-Edge-3-Front-RightChauvet-Professional-COLORado-Solo-Edge-3-Front-Right

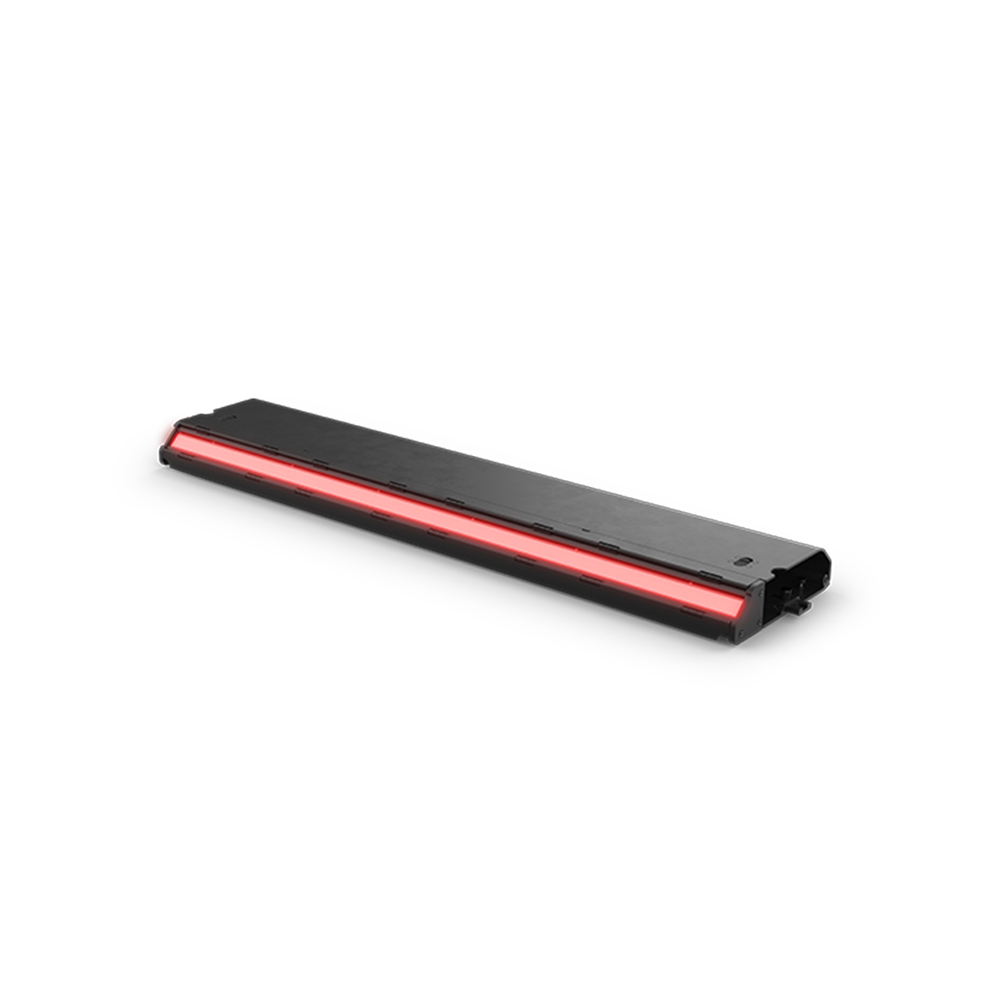

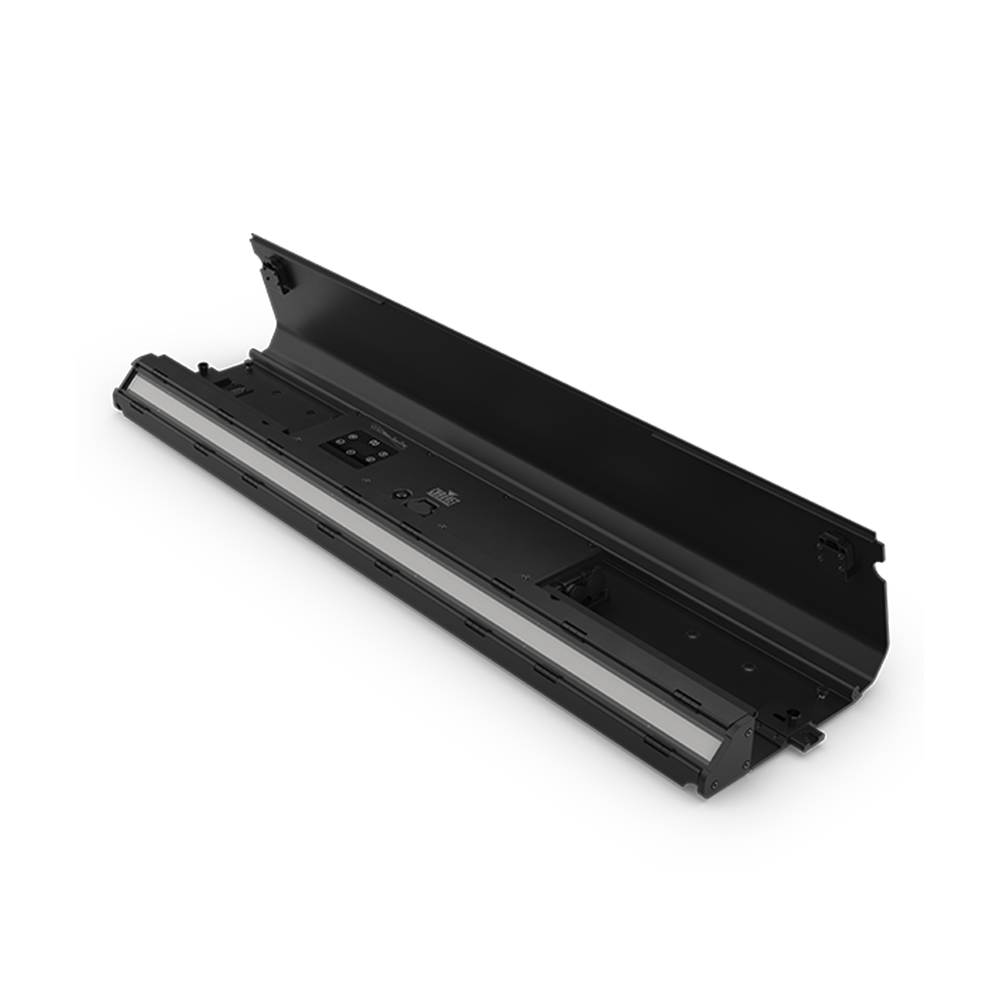

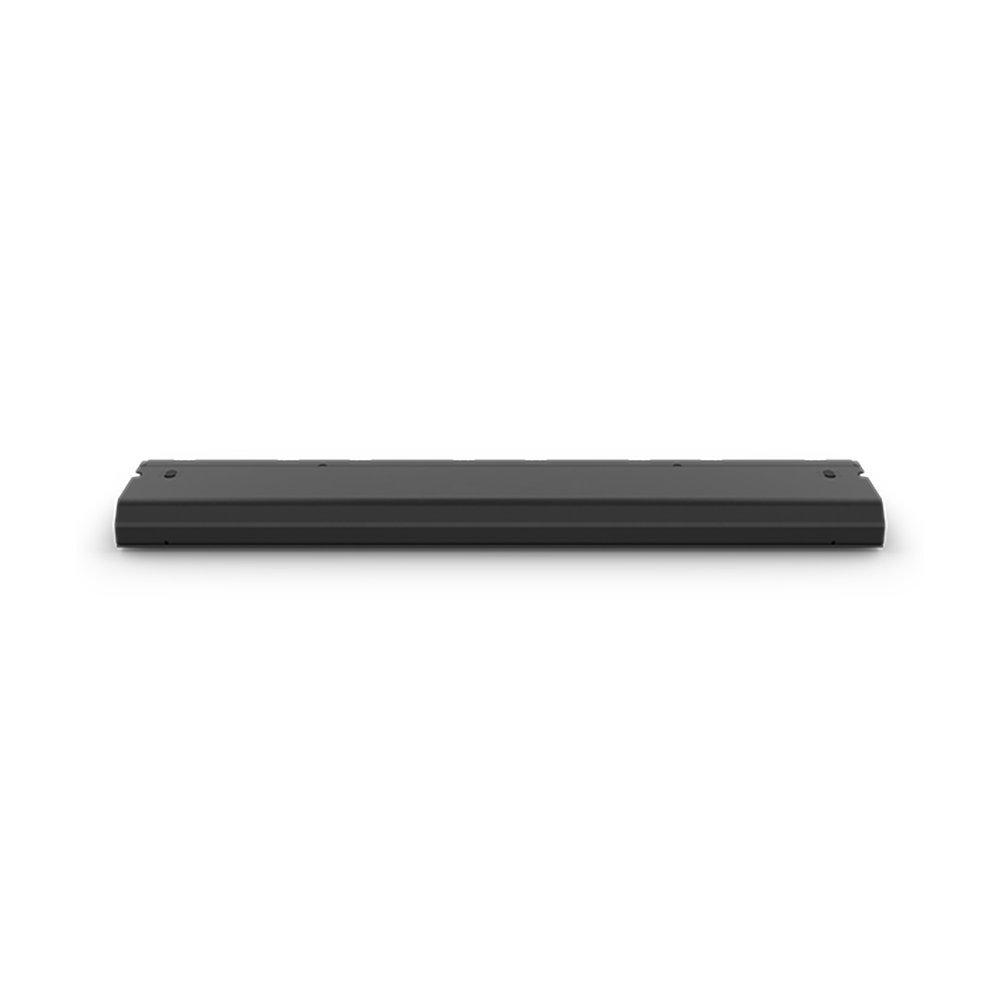

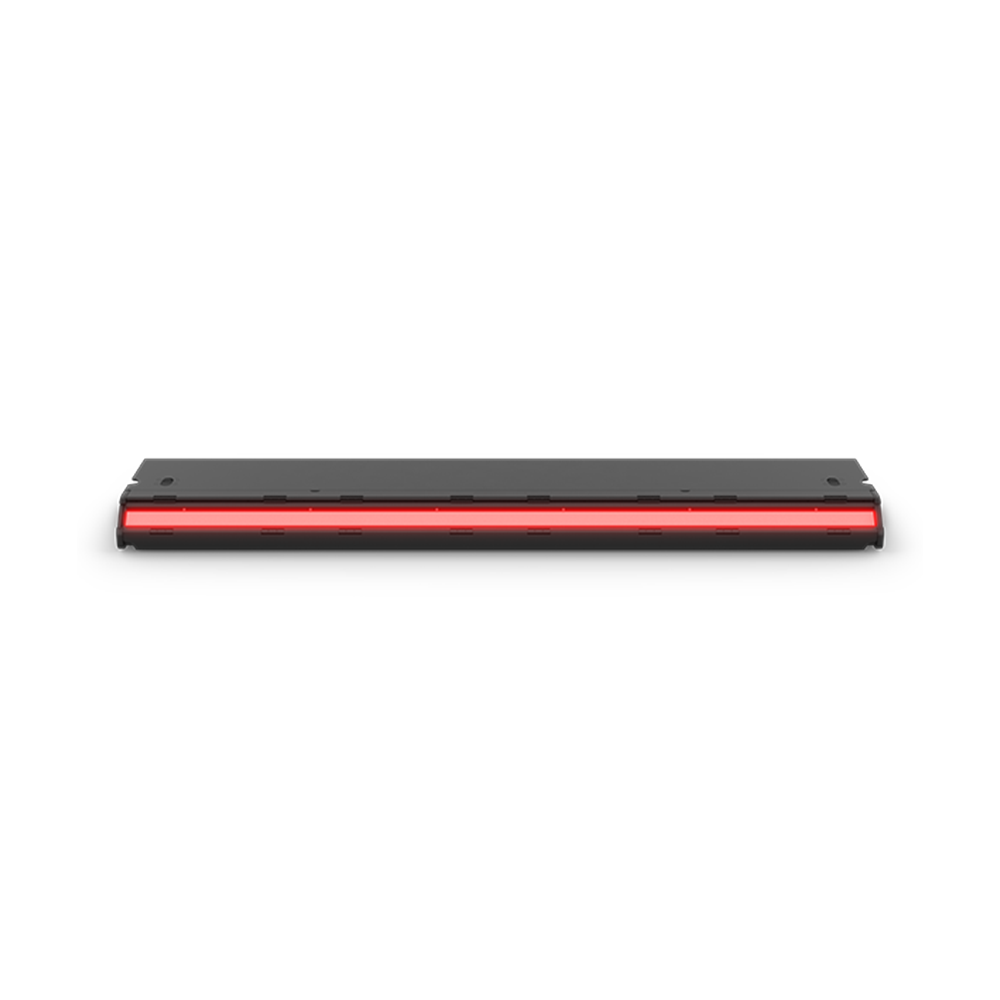

Chauvet Professional – COLORado Solo Edge 3

Chauvet Professional

This low-profile, one-meter IP65-rated footlight features an RGBwWL source and a single lens for smooth, high-quality color and white light output.

Integrated RGB marker lights provide talent cues while its end-to-end design creates seamless, gap-free arrays for stage and broadcast applications.

Features

  • Low-profile, 1m, IP65 rated footlight with full-color and high-quality white light
  • Single-source lens for smooth, even output with no distracting points of light and an additional “stealth” filter to help the fixture disappear when off
  • Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage
  • Designed for end-to-end use with no gaps or distracting cable mess, and a covered display to keep everything elegant unseen.
SKU: COLORADOSOLOEDGE3 Categories: , , ,

Description

This low-profile, 1-meter, IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off.

Features

High-Quality Theatrical Light

An advanced RGBwWL LED system delivers a full color spectrum and high-CRI white light, all housed in a rugged IP65-rated frame.

Smooth, Unseen Output

A single-source lens produces smooth, even washes, while the included stealth filter helps the fixture visually disappear when not in use.

Integrated Stage Markers

Fully controllable RGB marker lights are built directly into the fixture to provide clear visual cues for talent or define stage boundaries.

>Seamless End-To-End Design

Create perfectly aligned, gapless arrays with end-to-end connections and a covered display that keeps the focus on the light, not the hardware.

What’s Included

  • COLORado Solo Edge 3
  • Seetronic Powerkon IP65 power cord
  • Power and Data linking cables
  • Stealth Filter
  • 2 Omega bracket with mounting hardware

Additional information

Optical

Light Source:
Primary: 112 LEDs (Quintuple-color RGBwWL)
RGB Markers: 12 LEDs (Tri-color RGB)
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 6329 K
CRI @ 3200K: 92.5
Beam Angle:
Horizontal:116.4°
Vertical: 121.5°
Horizontal (Stealth Filter): 89.5°
Vertical (Stealth Filter): 91.6°
Field Angle:
Horizontal: 148.4°
Vertical: 158°
Horizontal (Stealth Filter): 131.4°
Vertical (Stealth Filter): 137.4°
Lumens:
Without Stealth Filter: 17,416
With Stealth Filter: 4,144
Illuminance:
Without Stealth Filter: 235 lux @ 5 m
With Stealth Filter: 82 lux @ 5 m
Control

Control Protocol: Art-Net, sACN, DMX, RDM
DMX Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69
Art-Net Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69
Modes/Personalities: personalities (32)
Certifications / Qualifications

Compliance: CE, MET, FCC
MET Listing Number: [E113093-1110, E113093-1125]
US Safety: [UL 60950-1]
Canadian Safety: [CSA C22.2 No. 60950-1]
Thermal Dissipation:
@ 120V: 819 BTU per hour
@ 208V: 819 BTU per hour
@ 230V: 819 BTU per hour
Temperature (Ambient): -4 °F to 122 °F (-20 °C to 50° C)
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: Yes
Construction / Physical

Dimensions: 39.37 x 8.85 x 2.51 in (1000x 225 x 64mm)
Weight: 22 lb (10 kg)
Exterior Color: Black
Housing Material: Aluminum alloy and Aluminum die-cast
IP Rating: IP66
Connections

Power Connection: Edison (Local) plug to Seetronic: Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB, Ethernet (RJ45)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V;
Power and Current: 242 W, 2.03 A @ 120 V, 60 Hz
Power and Current: 237 W, 1.18 A @ 208 V, 60 Hz
Power and Current: 236 W, 1.06 A @ 230 V, 50 Hz
Battery

Battery type: Lithium Ion
Rechargeable: Yes
Battery Power:
Li-ion Battery: 3.7Vdc, 200mAh
Li-Button: 3Vdc, 1000mAh

Downloads

Data Sheet Download
User Guide Download
